KWH53HRE — 950001236 00
KELVINATOR — Air-Conditioner

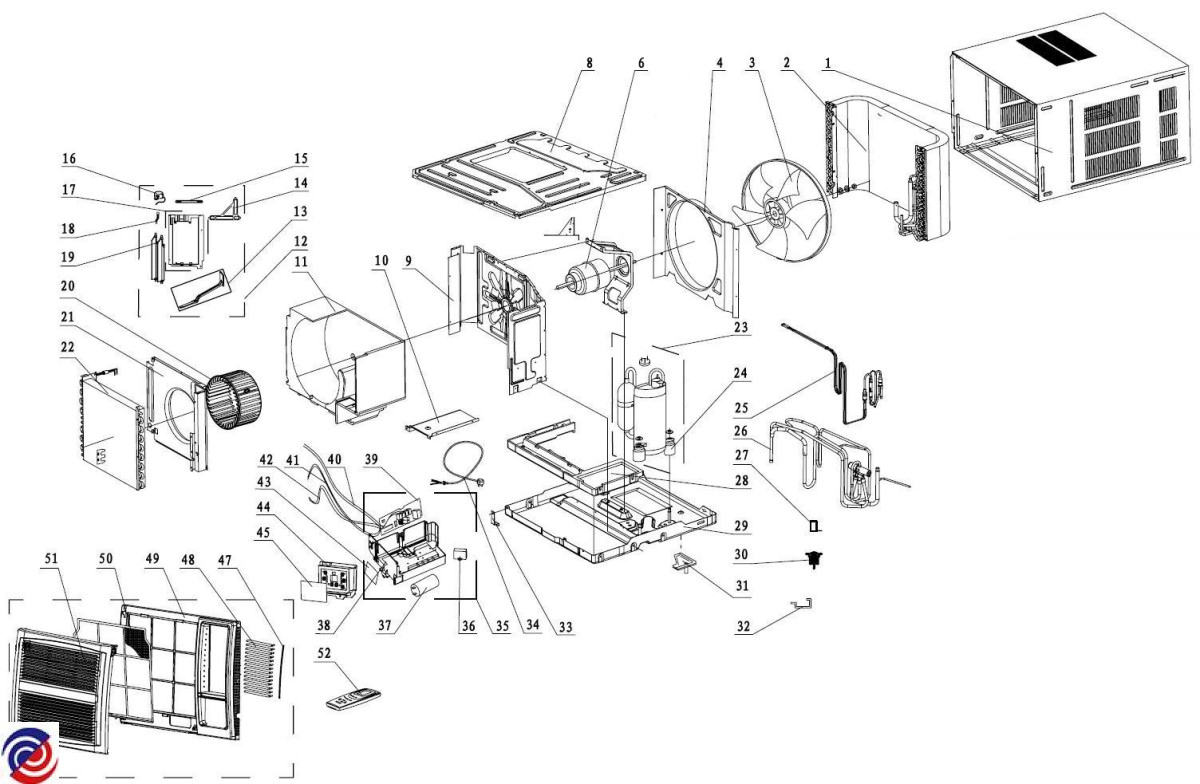

Parts for KWH53HRE
W0011164 COMPRESSOR KWH53CRE
$487.95
W0012088 EVAPORATOR ASSY
$322.95
W0012156 CONDENSER ASSY
$302.50
W0012220 CHASSIS, SUB ASSY
$126.50
W0012269 BASE PLATE OF AIR FLUE
$6.60
W0012280 REAR CLAPBOARD KWH18CRC
$44.00
W0012286 COVER FRONT FAN KWH47CRB
$29.70
W0012288 FRONT CLAPBOARD KWH12HRC
$66.00
W0012329 TOP COVER BOARD SUB-ASSY
$59.40
W0012482 CABINET ASSY
$301.65
W0013079 CAPILLARY, SUB ASSY
$38.50
W0013110 VALVE, 4-WAY & PRESSURE SWITCH
$405.00
W0014547 LOUVRE HORIZONTAL
W0014663 VENT FRESH AIR
$20.00
W0014664 LINKAGE HORIZONTAL AIR GUIDE
$4.50
W0015161 FILTER
$41.65
W0016461 SHROUD FAN SHELL EWJ16&18
$44.00
W0016576 TRAY WATER FOAM
$25.80
W0018968 MOTOR LOURVE KWH47HRB
$51.65
W0019413 GRILL FRONT
W0019422 OUTLET, AIR SUB ASSY
$45.85
W0019504 PCB BOX ASSY, ELECTRIC
W0019531 BOX, ELECTRIC ONLY KWH39CRE
W0019792 DRAIN CORNER PLASTIC
W0020887 CLIP PROTECTOR EWJ16HRA
$4.50
W0020945 FRAME FRONT CASE
W0021193 BOARD PC MAIN KWH53HRE
W0021740 BOARD, DISPLAY
W0022311 CAPACITOR
$50.40
W0022339 CAPAC 7UF 450V 4 SMALL PINS
$17.25
W0023276 SENSOR TEMPERATURE
$44.00
W0023277 SENSOR TEMPERATURE
$44.05
W0023280 SENSOR TUBE TEMP
$44.05
W0023351 POWER CORD 10A EWJ16CRA & HRA
$22.90
W0024865 VALVE 4 WAY
$58.05
W0026654 DECAL
$11.65
W0026846 COMPRESSOR GASKET
$7.70
W0045930 CLIP RETAINING CHASSIS
W0065196 VALVE DRAINAGE
$57.45
W0069477 BLADE FAN CENTRIFUGAL
$62.00
W0069630 FAN AXIAL FLOW
$91.30
W0070000 LOURVE SWING
$54.90
W0070095 LEVER SWING
$11.60
W0070097 LINKAGE SWING MECHANISM
W0070098 FRAME SWING MECHANISM
W0089840 MOTOR FAN
W0138648 CRANK LOUVER
$11.50
W0274875 HOLDER REMOTE CONTROL
W0274881 KELVINATOR AIRCON REMOTE CONTROL
W0284183 PANEL, CONTROL
