KWH26HRE — 950001234 AFTER S/N 83380001

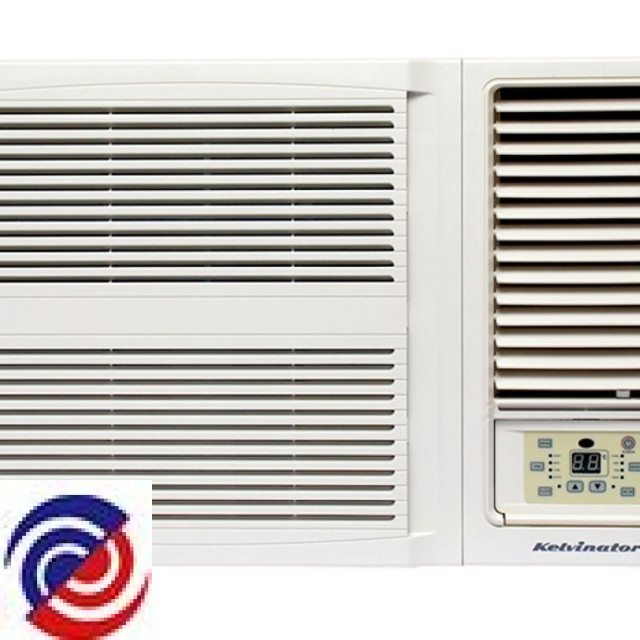

KELVINATOR — Air-Conditioner

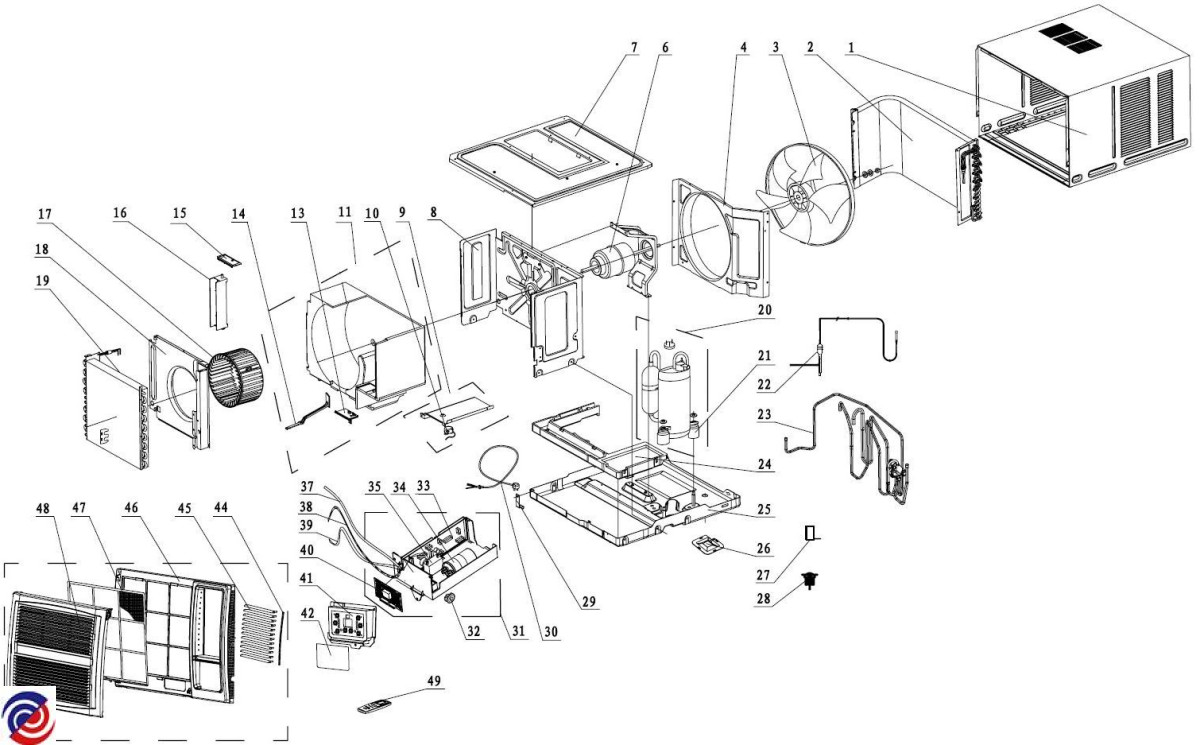

Parts for KWH26HRE
W0022340 CAPAC 3.5UF450V 4SMALL PIN RUN
$6.25
W0011163 COMPRESSOR KWH26CRE
$856.15
W0012091 EVAPORATOR ASSY
$275.00
W0012145 CONDENSER ASSY
$290.05
W0012212 CHASSIS, SUB ASSY
$88.00
W0012244 CLAMP CHASSIS TO CABINET
$4.50
W0012281 FRONT CLAPBOARD KWH07HRC
$59.40
W0012282 FRONT CLAPBOARD OF PROPELLER H
$29.70
W0012457 PLATE, BASE ASSY
W0012466 TOP CONNECTING PLATE ASSY
$55.00
W0012481 CABINET ASSY
$198.40
W0013089 CAPILLARY, SUB ASSY
$50.00
W0013118 VALVE, 4-WAY ASSY
$259.95
W0014422 BLADE FAN CENTRIFUGAL
$91.30
W0014456 BLADE FAN
$91.30
W0014535 LOUVRE AIR
$11.65
W0014539 LOUVRE AIR
$11.95
W0014615 BASE SWING LOUVRE
$6.60
W0014662 GUIDE BLADE LEVER KWH07CRC
$13.65
W0015160 FILTER SUB-ASSY
$28.60
W0016460 SHROUD FAN ASSY
$29.70
W0018880 MOTOR FAN (CJ60V)
$254.40
W0019414 GRILL FRONT KWH20CRC
$52.00
W0019510 BOX ASSY, ELECTRIC
$260.00
W0019789 PAN DRAIN
$24.60
W0019790 TRAY, WATER
$25.00
W0021192 BOARD MAIN
$180.05
W0021740 BOARD, DISPLAY
$71.05
W0022309 CAPACITOR CBB65 30UF/450V(P2/S
$41.00
W0023293 SENSOR INDOOR KSV53HRE
$44.00
W0023294 SENSOR INDOOR KWH20CRE
$44.00
W0023295 SENSOR INDOOR KWH20HRE
$37.50
W0023351 POWER CORD 10A EWJ16CRA & HRA
$22.90
W0024770 SLEEVING KWH15CMC
$7.70
W0024865 VALVE 4 WAY
$58.05
W0026654 DECAL
$11.65
W0026843 COMPRESSOR GASKET KWH07CRC
$10.00
W0046334 REAR CLAPBOARD KWH07CRC
$44.00
W0065196 VALVE DRAINAGE
$57.45
W0070096 LEVER DOOR
$11.60
W0090326 MOTOR STEP KWH07CRC
$44.20
W0096138 SUPPORT CROSS BEAM
$10.00
W0096777 FRONT CASE KWH07CRC
W0274875 HOLDER REMOTE CONTROL
$8.65
W0274881 KELVINATOR AIRCON REMOTE CONTROL
$120.00
W0283017 PANEL, CONTROL
$11.50
