KWH20CRE — 950001228 AFTER S/N 83381580
KELVINATOR — Air-Conditioner
Parts for KWH20CRE

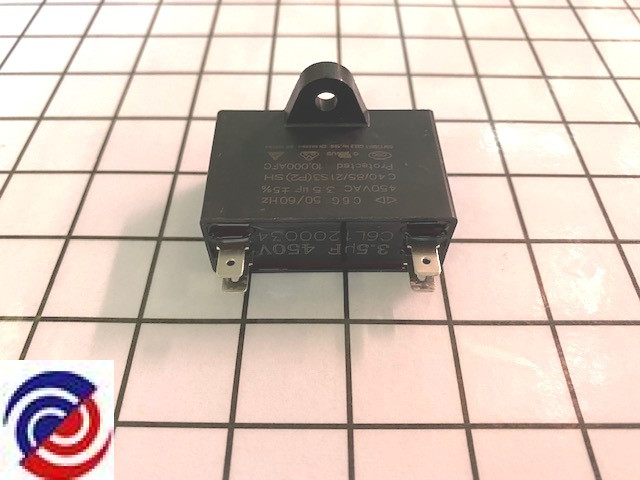

W0022340 CAPAC 3.5UF450V 4SMALL PIN RUN
$6.25
W0011162 COMPRESSOR KWH20CRE
$446.35
W0012087 EVAPORATOR ASSY
$360.00
W0012154 CONDENSER ASSY
$355.20
W0012210 CHASSIS SUB ASSY
W0012244 CLAMP CHASSIS TO CABINET
$4.50
W0012281 FRONT CLAPBOARD KWH07HRC
$59.40
W0012282 FRONT CLAPBOARD OF PROPELLER H
$29.70
W0012457 PLATE, BASE ASSY
W0012466 TOP CONNECTING PLATE ASSY
$55.00
W0012481 CABINET ASSY
$198.40
W0013083 CAPILLARY SUB ASSY
W0013290 TUBE, SUB ASSY INHALATION
W0013291 TUBE, SUB ASSY DISCHARGE
W0014422 BLADE FAN CENTRIFUGAL
$91.30
W0014456 BLADE FAN
$91.30
W0014539 LOUVRE AIR
$11.95
W0014615 BASE SWING LOUVRE
$6.60
W0016460 SHROUD FAN ASSY
$29.70
W0018880 MOTOR FAN (CJ60V)
$254.40
W0019507 BOX ASSY, ELECTRIC
$240.00
W0019590 LCD BOARD (REMOTE CONTROL)
$16.85
W0019789 PAN DRAIN
$24.60
W0019790 TRAY, WATER
$25.00
W0021191 BOARD MAIN
$165.00
W0021740 BOARD, DISPLAY
$71.05
W0022308 CAPACITOR CBB65 25UF/450V(P2/S
$28.00
W0023293 SENSOR INDOOR KSV53HRE
$44.00
W0023294 SENSOR INDOOR KWH20CRE
$44.00
W0023351 POWER CORD 10A EWJ16CRA & HRA
$22.90
W0024770 SLEEVING KWH15CMC
$7.70
W0026655 DECAL
$9.65
W0026844 GASKET, COMPRESSOR
$10.00
W0026848 PLUG, OVER FLOW
$4.50
W0046334 REAR CLAPBOARD KWH07CRC
$44.00
W0070096 LEVER DOOR
$11.60
W0090326 MOTOR STEP KWH07CRC
$44.20
W0096138 SUPPORT CROSS BEAM
$10.00
W0274875 HOLDER REMOTE CONTROL
$8.65
W0274881 KELVINATOR AIRCON REMOTE CONTROL
$120.00
W0284433 PANEL FRONT ASSY
$93.05
