KSV90HRH — 956004528 00
KELVINATOR — Air-Conditioner
Parts for KSV90HRH
W0019307 KELVINATOR AIRCON OUTDOOR TERMINAL & POWER PCB
.jpg)

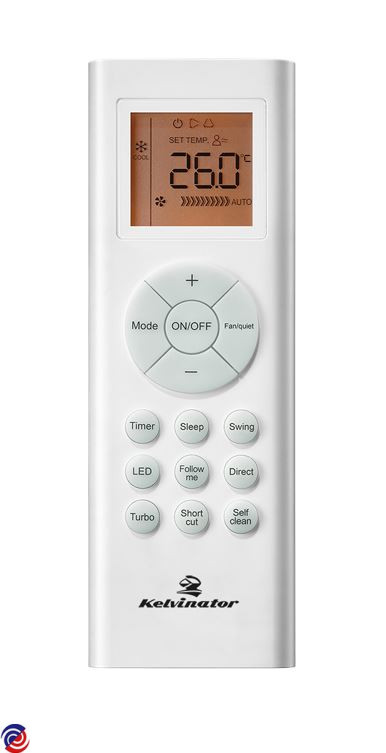

W0284450 REMOTE CONTROLLER
W0014921 MOTOR FAN INDOOR
W0014922 MOTOR, FAN OUTDOOR
$438.55
W0015094 COMPRESSOR
$1,086.60
W0015409 SENSOR AMBIANT TEMP ASSY
$49.35
W0015414 SENSOR, DISCHARGE TEMP ASSY
W0015415 SENSOR PIPE TEMP ASSY
W0016448 BLADE FAN AXIAL FLOW
$143.00
W0016453 FILTER AIR FRESHENING
$41.70
W0016454 FILTER AIR FRESHENING
$28.35
W0016456 JOINT DRAIN
$4.50
W0016458 HANDLE
$15.00
W0016470 HOLDER BEARING
W0016503 COLLECTOR, WATER
$50.00
W0016521 CHASSIS ASSEMBLY
$200.00
W0016532 PANEL, FRONT
$180.00
W0016533 SUPPORT FAN MOTOR ASSY
$99.95
W0016536 PARTITION BOARD ASSY
$65.00
W0016538 PLATE, VALVE
$30.00
W0016539 PANEL, REAR RIGHT ASSY
$108.00
W0016540 PLATE LEFT SIDE ASSEMBLY
$70.00
W0016542 PANEL, FRONT RIGHT ASSY
$122.70
W0016766 SEAL RING
$4.50
W0016770 BASE BEARING
W0018954 TUBE, SUCTION ASSEMBLY
$35.00
W0018955 TUBE, DISCHARGE ASSEMBLY
$63.05
W0019123 VALVE ASSEMBLY, 4 WAY
$511.35
W0019129 VALVE ASSEMBLY, LIQUID
$200.70
W0019135 VALVE GAS (SUCTION)
$34.35
W0019136 VALVE GAS (SUCTION)
$59.45
W0019144 NUT, FLARE NUT 5/8 - 15.9mm
$10.75
W0019145 NUT , FLARE NUT 3/8 - 9.52mm
$6.25
W0019328 REACTOR
$117.90
W0019329 JOINT WIRE
W0019333 WIRE ASSY COMPRESSOR
$24.50
W0282435 MOTOR LOUVRE
$74.60
W0282436 MOTOR LOUVRE
$74.60
W0282446 SENSOR PIPE TEMP ASSY
W0282473 FAN CROSS FLOW
$108.90
W0282474 FILTER AIR
$30.20
W0282475 CLAMP, TEMPERATURE SENSOR
$4.00
W0282476 HOSE DRAIN
$23.20
W0282477 HANDLE
$4.50
W0282480 CLAMP, PIPE
$4.00
W0282481 CHASSIS ASSEMBLY
$200.00
W0282484 COVER FAN MOTOR
$14.15
W0282485 LOUVER HORIZONTAL UPPER
$22.35
W0282486 COVER ELEC EQUIPMENT
$4.50
W0282488 LOUVER HORIZONTAL LOWER
$22.35
W0282491 LOUVER HORIZONTAL ASSEMBLY
$4.00
W0282492 ROD, CONNECTING LOUVRE
$4.20
W0282493 ROD, CONNECTING LOUVRE
$4.20
W0282495 GRILLE, AIR OUTLET
$170.50
W0282498 PANEL FRAME ASSEMBLY
W0282534 PLATE INSTALLATION
$85.40
W0282537 COVER NET, REAR
$53.85
W0282538 HANDLE, BIG
$15.85
W0282860 PIPE NUT
$4.00
W0282863 CONDENSER ASSEMBLY
$1,211.70
W0282869 EVAPORATOR ASSEMBLY
$432.95
W0284050 CAP SCREW
$4.50
W0284115 HOLDER, REMOTE CONTROL
W0284252 SENSOR PIPE TEMP ASSY
$43.55
W0284360 COVER, TOP ASSY
$107.85
W0284374 GRILLE, AIR OUTLET
$65.00
W0284392 BOARD PCB DISPLAY BOX ASSY
W0284555 FRAME PANEL ASSEMBLY
$230.75
W0284629 ELEC CONTROL BOX PCB ASSY
W0284691 ELEC CONTROL BOX PCB ASSY
W0296441 BUSH, LOURVE
$4.00
W0364291 SUPPORT, PANEL
