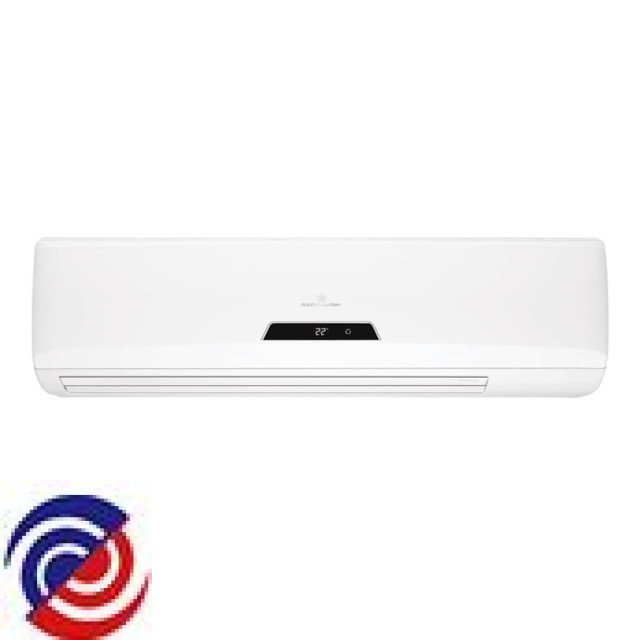

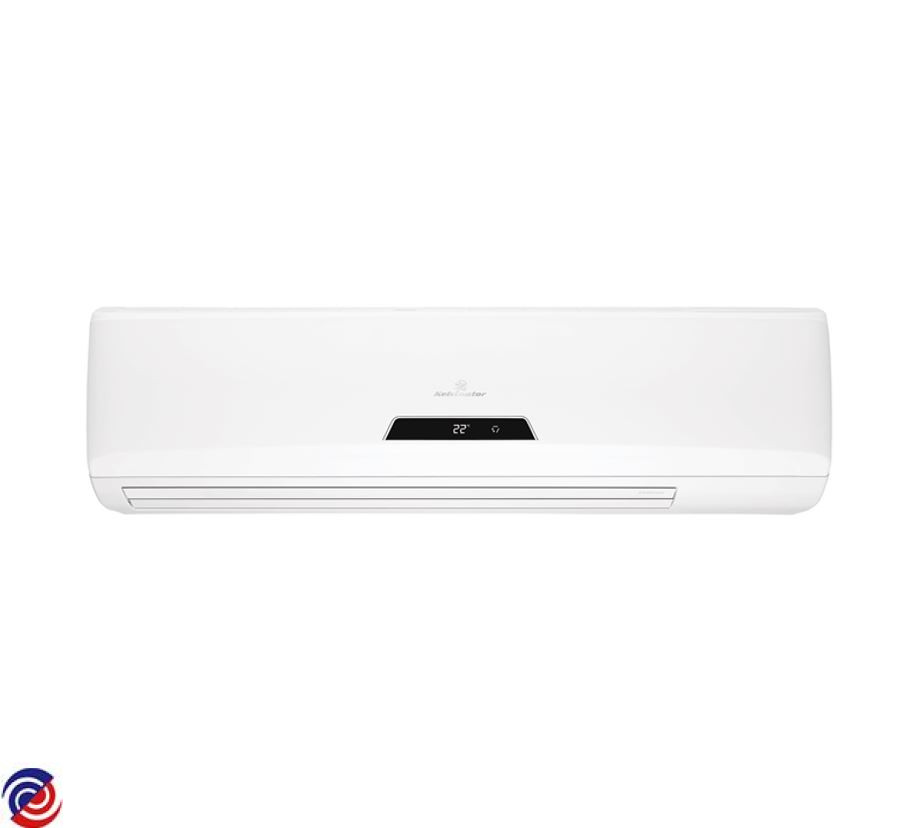

KSV70CRE — 950001226 00
KELVINATOR — Air-Conditioner
Parts for KSV70CRE
W0022340 CAPAC 3.5UF450V 4SMALL PIN RUN
$6.25
W0011174 COMPRESSOR KSV70CRE
$1,493.65
W0012105 EVAPORATOR ASSY
$362.00
W0012198 CONDENSER ASSY
$1,068.20
W0012309 CLAPBOARD, SUB ASSY
$50.00
W0012337 BRACKET WALL MOUNTING
W0012347 TOP COVER KSV53HRC
$70.00
W0012388 LEFT SIDE PLATE KSV53HRC
$27.50
W0012389 RIGHT SIDE PLATE KSV53HRC
$44.00
W0012507 REAR GRILL KSV53HRC
$14.30
W0012599 SUPPORT, MOTOR SUB ASSY
$33.00
W0012609 VALVE SUPPORT SUB-ASSY
$12.10
W0012666 BOARD, SUPPORTING (CONDENSER)
$40.00
W0012954 BOARD MAIN ASSY OUTDOOR ELECT
W0013019 CHASSIS, SUB ASSY
$200.00
W0013192 CAPILLARY
W0013362 TUBE ASSY, DISCHARGE
$54.95
W0013365 TUBE, INHALATION SUB ASSY
$85.00
W0013516 HOSE DRAIN
$30.00
W0014091 VALVE CUT-OFF SUCTION 5/8
$68.75
W0014098 VALVE, CUT OFF SUB ASSY 1/4
$50.00
W0014464 FAN AXIAL FLOW KSV53HRC
W0014490 BLADE FAN CROSS FLOW ASSY
W0014563 LOUVER, LOWER GUIDE
$72.20
W0014582 LOUVER, AIR
$4.00
W0014632 BUSH AXILE
W0014648 CRANK, UPPER
$4.00
W0014649 CRANK, LOWER
$4.00
W0014665 ROD, CONNECTING - LOUVER SWING
$4.00
W0014666 GUIDE, CRANK
$4.00
W0015167 FILTER, SUB ASSY
W0018886 MOTOR FAN INDOOR KSV70CRE
W0018910 MOTOR FAN OUTDOOR KSV62HRE
W0018967 MOTOR STEP KSV70CRE
W0019424 CASE, FRONT
$80.00
W0019456 CASE ASSY, FRONT
$55.00
W0019459 CASE ASSY, REAR
$120.00
W0019511 COVER, ELECTRIC BOX
$11.00
W0019533 COVER, ELECTRIC BOX
$10.00
W0019535 BOX, ELECTRIC ONLY
$40.00
W0019545 INSULATING PLATE OF ELEC BOX C
$13.00
W0019583 BOX, ELECTRIC
$40.00
W0019664 COVER, ELECTRIC BOX
$24.95
W0019793 TRAY WATER
$66.00
W0019935 BOARD MAIN ASSY INDOOR ELECT
$280.00
W0020514 COVER, VALVE
$10.00
W0020562 FRONT GRILL KSV53HRC
W0020564 WINDOW, RECEIVER
$50.25
W0020678 COVER, SCREW
$4.00
W0020769 PLATE, PRESS (CRANK)
$4.00
W0020770 PIPE CLAMP KSV62HRC
$4.00
W0020787 CLIP, MOTOR FIX
$6.00
W0020885 HANDLE KSV53HRC
$29.55
W0020946 PANEL, FRONT 11
$50.00
W0020947 LOUVER, UPPER GUIDE
$72.20
W0021235 BOARD MAIN INDOOR
$249.45
W0021247 BOARD MAIN OUTDOOR
$645.60
W0021300 REMOTE CONTROL
W0021802 BOARD, DISPLAY
W0023280 SENSOR TUBE TEMP
$44.05
W0023290 SENSOR TEMPERATURE
W0023293 SENSOR INDOOR KSV53HRE
W0023357 CONNECTING CABLE KSV62HRC
$170.00
W0024729 TERMINAL BOARD 3-BIT ASSY
$20.00
W0024732 TERMINAL BOARD 4-BIT
$14.90
W0024873 REACTOR KSV70CRC
$99.00
W0024938 SWITCH PRESSURE PROTECT
W0025274 RADIATOR
$85.00
W0026748 NUT, FLARE (ONE TIME) 16MM
$26.40
W0026749 NUT, FLARE (ONE TIME) 6.35MM
$11.00
W0026850 PLUG WATER TRAY
W0047829 FRONT PANEL KSV53HRC
$116.10
W0096483 CLAMP WIRING
$4.50
W0096528 HANDLE
W0142538 O GASKET CROSS FAN BEARING
