ALL ELECTRICAL WORK MUST BE PERFORMED BY A LICENSED ELECTRICIAN

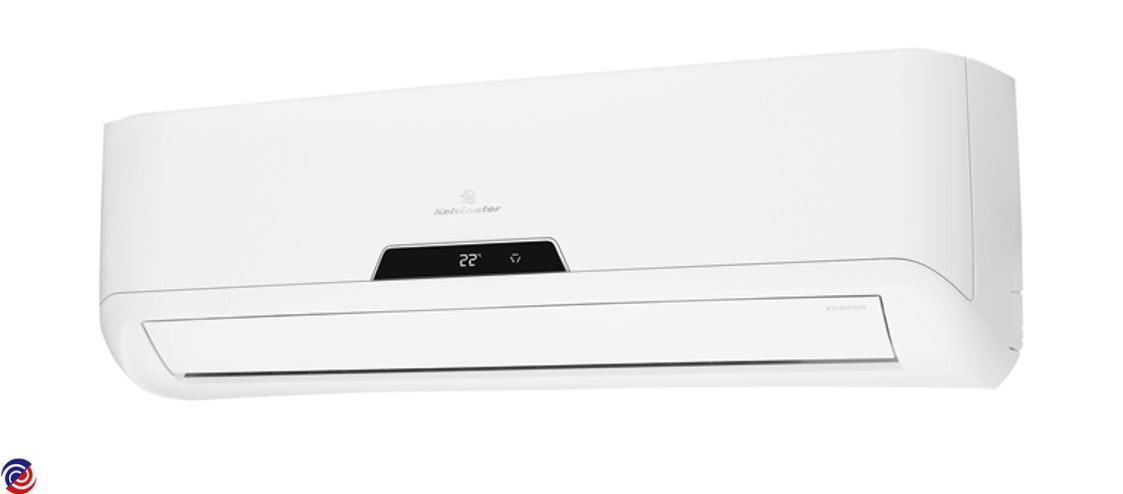

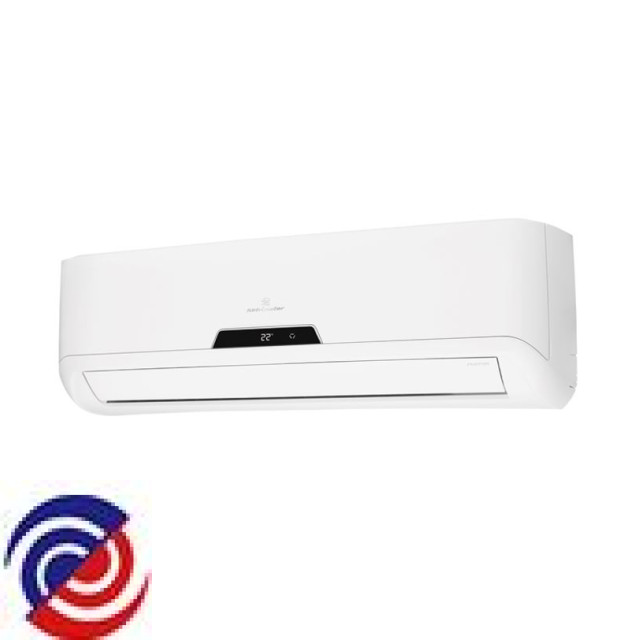

KSV62HRE — 950001221 00
KELVINATOR — Air-Conditioner

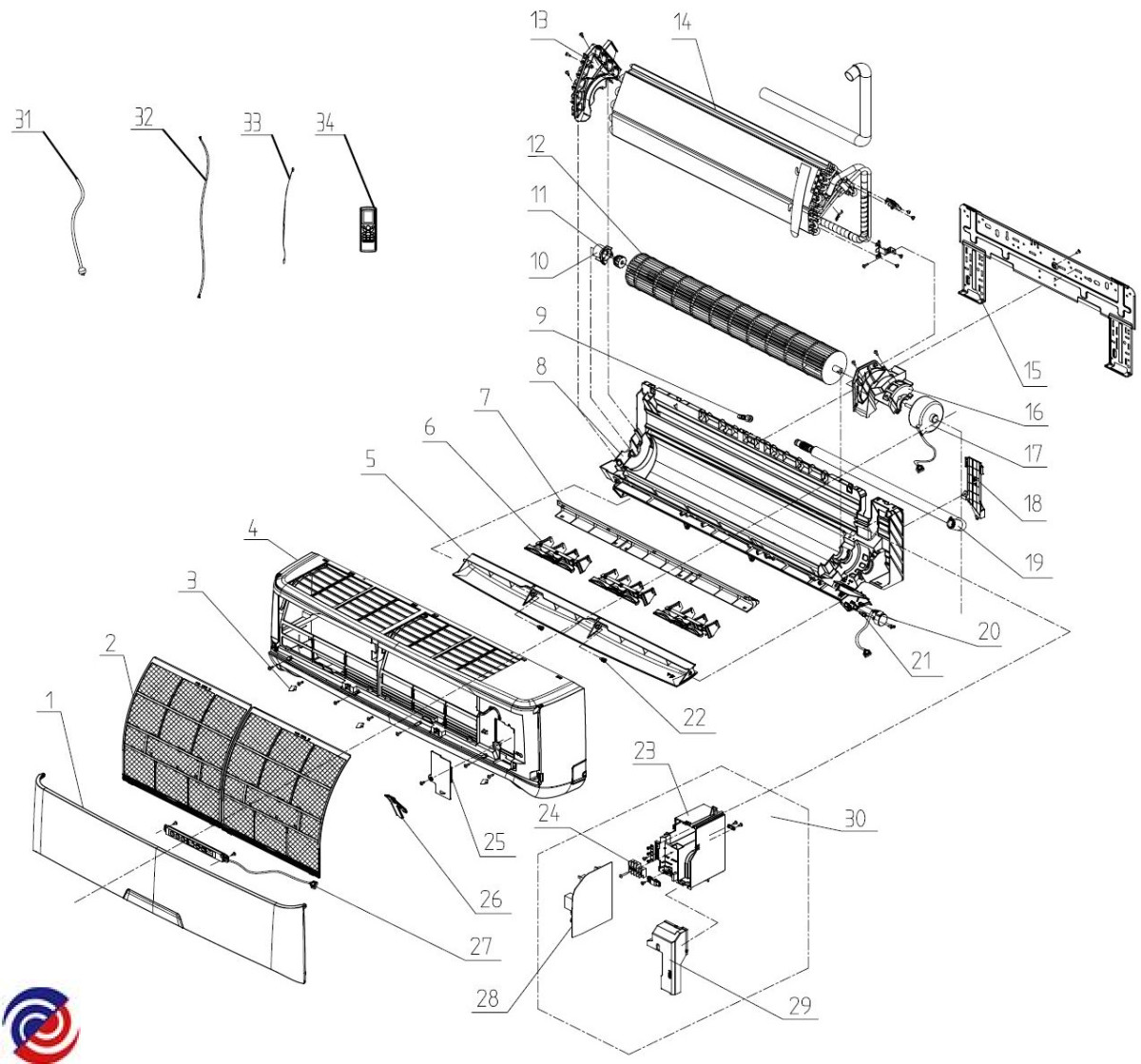

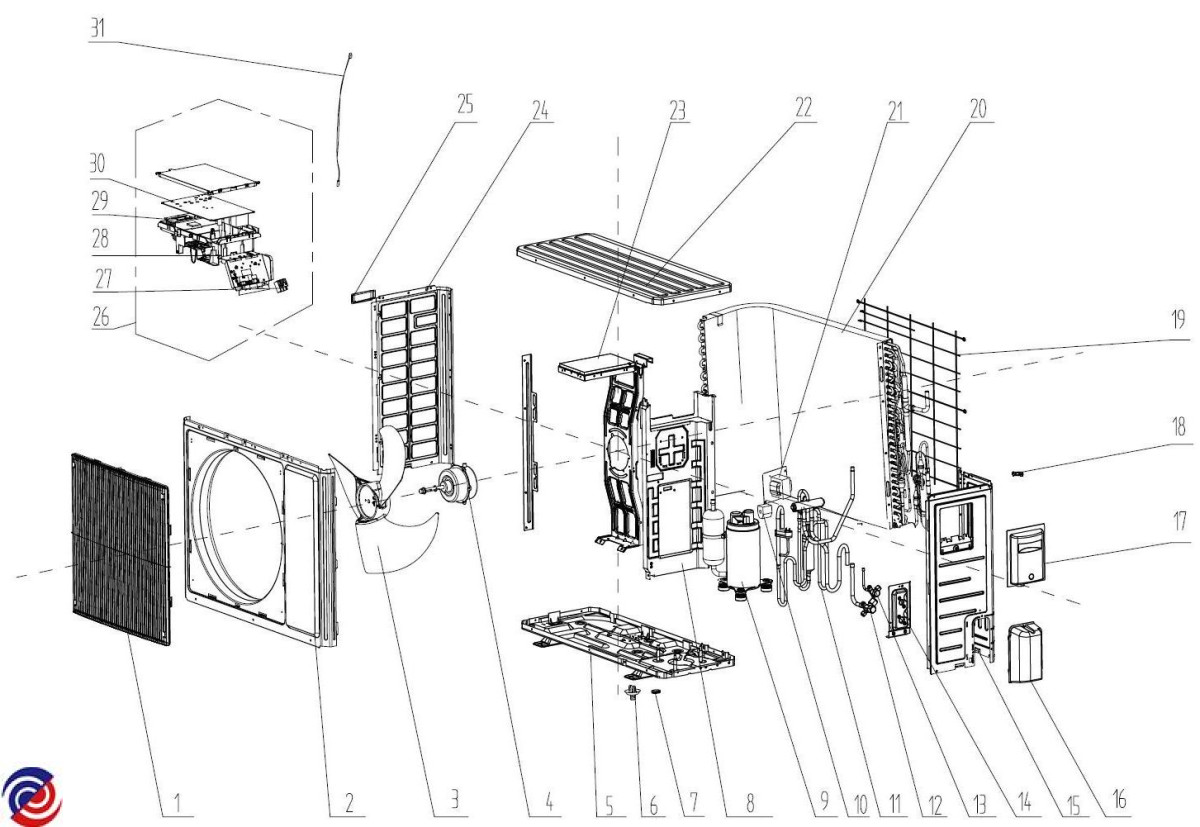

Parts for KSV62HRE

No image available
W0011173 COMPRESSOR KSV53HRE
$737.18
No image available
W0012109 EVAPORATOR ASSY
No image available
W0012197 CONDENSER ASSY
$293.96
No image available
W0012298 CLAPBOARD ASSY
$37.50
No image available
W0012332 FRAME, WALL MOUNTING
No image available
W0012347 TOP COVER KSV53HRC
$52.50
No image available
W0012378 PLATE ASSY, RIGHT SIDE
$33.71
No image available
W0012388 LEFT SIDE PLATE KSV53HRC
$20.63
No image available
W0012507 REAR GRILL KSV53HRC
$10.73
No image available
W0012599 SUPPORT, MOTOR SUB ASSY
$24.75
No image available
W0012609 VALVE SUPPORT SUB-ASSY
$9.08
No image available
W0012950 BOARD MAIN ASSY OUTDOOR ELECT
$387.38
No image available
W0013015 CHASSIS, SUB ASSY
No image available
W0013159 VALVE ASSY, 4-WAY
$194.96
No image available
W0013190 CAPILLARY, SUB ASSY
No image available
W0013517 HOSE DRAIN
No image available
W0013881 COUPLING CONNECTER DRAINAGE
No image available
W0013998 SEAL DRAINAGE
$4.50
No image available
W0014091 VALVE CUT-OFF SUCTION 5/8
$51.56
No image available
W0014092 VALVE, CUT OFF SUB-ASSY
No image available
W0014464 FAN AXIAL FLOW KSV53HRC
No image available
W0014489 BLADE FAN CROSS FLOW ASSY
No image available
W0014566 LOUVER, AIR
No image available
W0014631 BUSH AXILE
No image available
W0014667 CRANK
$4.13
No image available
W0015164 FILTER, SUB ASSY
$18.23
No image available
W0018910 MOTOR FAN OUTDOOR KSV62HRE
No image available
W0019455 FRONT PANEL ASSY
$43.01
No image available
W0019460 CASE ASSY, FRONT
$82.50
No image available
W0019461 CASE ASSY, REAR
No image available
W0019538 BOX. ELECTRIC ONLY
$30.00
No image available
W0019549 BOX ELECTRIC ONLY (FIRE PROOF)
$30.00
No image available
W0019604 COVER, BOX ELECTRIC 1
$7.50
No image available
W0019607 COVER, BOX ELECTRIC 2
$30.00
No image available
W0019938 BOARD MAIN ASSY INDOOR ELECT
$278.03
No image available
W0020514 COVER, VALVE
$7.50
No image available
W0020562 FRONT GRILL KSV53HRC
No image available
W0020661 SUPPORT, EVAPORATOR
No image available
W0020665 BAR, STAY SUB ASSY
$7.50
No image available
W0020777 TONGUE, HELICOID
No image available
W0020784 MOTOR PRESS PLATE KSV53HRC
$7.43
No image available
W0020858 RING OF BEARING KSV53HRC
$8.55
No image available
W0020885 HANDLE KSV53HRC
$22.16
No image available
W0020948 LOUVER, GUIDE
$11.55
No image available
W0021237 MAIN PCB INDOOR KSV62HRE
$163.54
No image available
W0021239 MAIN PCB OUTDOOR KSV62HRE
$449.40
No image available
W0021803 BOARD, DISPLAY
No image available
W0023282 SENSOR OUTDOOR KSV53HRE
$26.21
No image available
W0023290 SENSOR TEMPERATURE
No image available
W0023293 SENSOR INDOOR KSV53HRE
No image available
W0023350 CORD, POWER
$26.25
No image available
W0023356 CONNECTING CABLE(FOUR CORE)
$53.63
No image available
W0024729 TERMINAL BOARD 3-BIT ASSY
$15.00
No image available
W0024732 TERMINAL BOARD 4-BIT
$11.18
No image available
W0024862 COIL, MAGNETIC (4-WAY VALVE)
$37.50
No image available
W0024874 REACTOR KSV53HRC
$57.75
No image available
W0024938 SWITCH PRESSURE PROTECT
No image available
W0025271 RADIATOR
$30.00
No image available
W0026748 NUT, FLARE (ONE TIME) 16MM
$19.80
No image available
W0026749 NUT, FLARE (ONE TIME) 6.35MM
$8.25
No image available
W0026834 BEARING FAN BLADE
No image available
W0026850 PLUG WATER TRAY
No image available
W0047829 FRONT PANEL KSV53HRC
$87.08
No image available
W0089846 MOTOR FAN INDOOR WSV70HRB
No image available
W0090334 MOTOR LOURVE
$44.55
No image available
W0096142 SCREW COVER
$3.00
No image available
W0096482 PIPE CLAMP KSV53HRC
$3.00
No image available
W0096483 CLAMP WIRING
$3.38
No image available
W0096528 HANDLE
