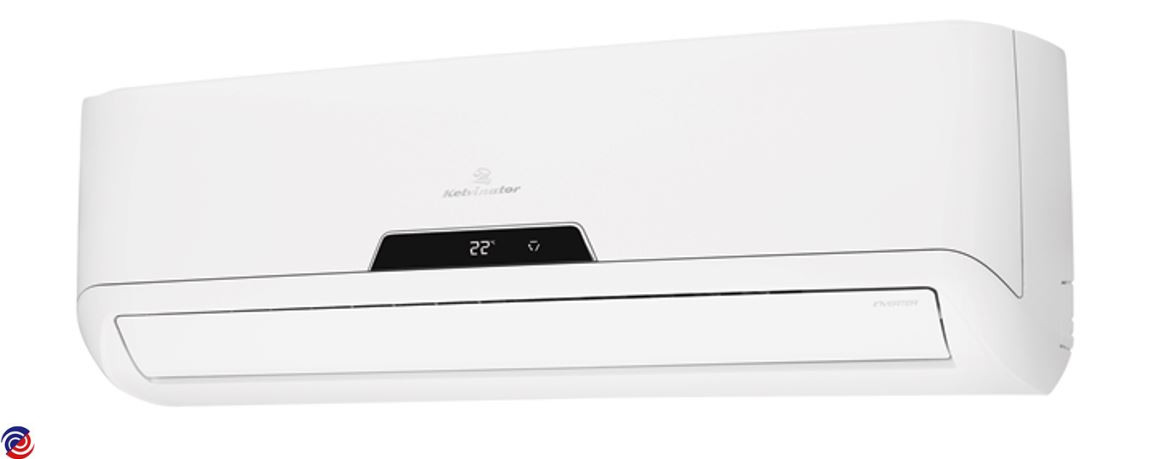

KSV53HRE — 950001220 00
KELVINATOR — Air-Conditioner
Parts for KSV53HRE
W0023278 SENSOR TEMPERATURE
W0011173 COMPRESSOR KSV53HRE
$737.18
W0012095 EVAPORATOR ASSY
$389.81
W0012199 CONDENSER ASSY
$635.44
W0012298 CLAPBOARD ASSY
$37.50
W0012335 FRAME, WALL MOUNTING
$22.50
W0012347 TOP COVER KSV53HRC
$52.50
W0012388 LEFT SIDE PLATE KSV53HRC
$20.63
W0012389 RIGHT SIDE PLATE KSV53HRC
$33.00
W0012507 REAR GRILL KSV53HRC
$10.73
W0012593 SUPPORT, MOTOR SUB ASSY
$37.50
W0012614 SUPPORT, VALVE ASSY
$11.21
W0012951 BOARD MAIN ASSY OUTDOOR ELECT
$464.85
W0013018 CHASSIS, SUB ASSY
$150.00
W0013157 VALVE ASSY, 4-WAY
$194.96
W0013191 CAPILLARY
$29.14
W0013514 DRAIN PIPE KSV35CRC
$11.40
W0013881 COUPLING CONNECTER DRAINAGE
W0013998 SEAL DRAINAGE
$4.50
W0014094 VALVE, CUT OFF SUB ASSY 1/4
$17.33
W0014099 VALVE, CUT OFF SUB ASSY 1/2
$39.19
W0014464 FAN AXIAL FLOW KSV53HRC
W0014485 FAN, CROSS FLOW
W0014562 BUSH AXILE LH
W0014584 LOUVER, AIR 1
$41.21
W0014585 LOUVER, AIR 2
$3.00
W0014631 BUSH AXILE
W0014667 CRANK
$4.13
W0015163 FILTER, SUB ASSY
W0018893 MOTOR, FAN FN20V-PG
W0018912 MOTOR FAN OUTDOOR KSV53HRC 01
W0018978 MOTOR STEP KSV53HRE
W0019453 PANEL, FRONT ASSY
$44.66
W0019457 CASE, FRONT
$75.00
W0019458 CASE ASSY, REAR
$97.50
W0019538 BOX. ELECTRIC ONLY
$30.00
W0019549 BOX ELECTRIC ONLY (FIRE PROOF)
$30.00
W0019604 COVER, BOX ELECTRIC 1
$7.50
W0019607 COVER, BOX ELECTRIC 2
$30.00
W0019939 BOARD MAIN ASSY INDOOR ELECT
W0020514 COVER, VALVE
$7.50
W0020562 FRONT GRILL KSV53HRC
W0020663 SUPPORT, EVAPORATOR
$7.50
W0020665 BAR, STAY SUB ASSY
$7.50
W0020779 TONGUE, HELICOID
$5.25
W0020789 PLATE, MOTOR PRESS
$22.50
W0020885 HANDLE KSV53HRC
$22.16
W0020949 LOUVER, GUIDE
$14.89
W0021238 BOARD MAIN INDOOR
W0021240 MAIN PCB OUTDOOR KSV53HRE
$418.91
W0021300 REMOTE CONTROL
W0021803 BOARD, DISPLAY
W0023284 SENSOR TEMPERATURE
W0023290 SENSOR TEMPERATURE
W0023350 CORD, POWER
$26.25
W0023356 CONNECTING CABLE(FOUR CORE)
$53.63
W0024729 TERMINAL BOARD 3-BIT ASSY
$15.00
W0024732 TERMINAL BOARD 4-BIT
$11.18
W0024862 COIL, MAGNETIC (4-WAY VALVE)
$37.50
W0024874 REACTOR KSV53HRC
$57.75
W0024938 SWITCH PRESSURE PROTECT
W0025271 RADIATOR
$30.00
W0026747 NUT, FLARE (ONE TIME) 12.7MM
$15.68
W0026749 NUT, FLARE (ONE TIME) 6.35MM
$8.25
W0026834 BEARING FAN BLADE
W0026850 PLUG WATER TRAY
W0047829 FRONT PANEL KSV53HRC
$87.08
W0096142 SCREW COVER
$3.00
W0096481 PIPE CLAMP KSV26CRC
$3.00
W0096483 CLAMP WIRING
$3.38
W0117886 JUMPING CONNECTOR KSV26HRC
$15.00
W0142539 BEARING. O-GASKET SUB ASSY
