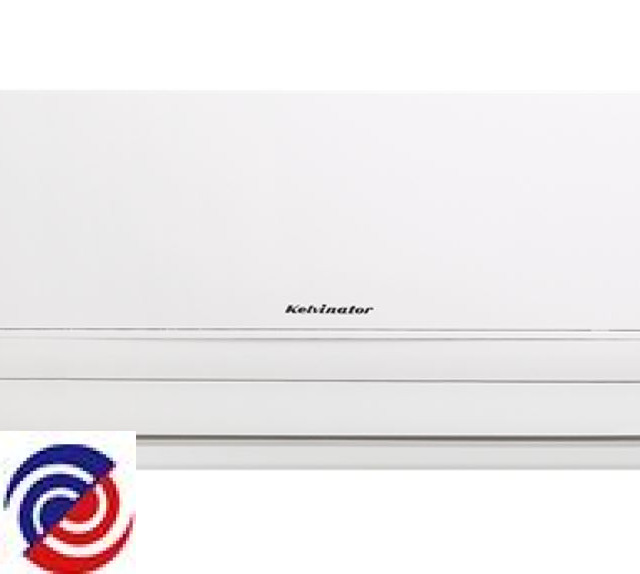

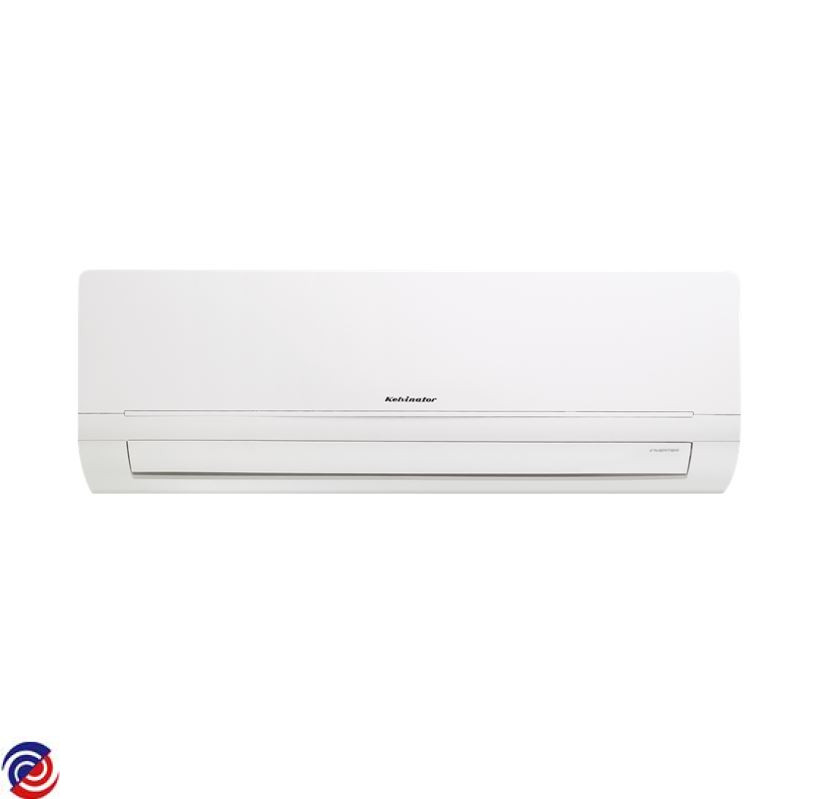

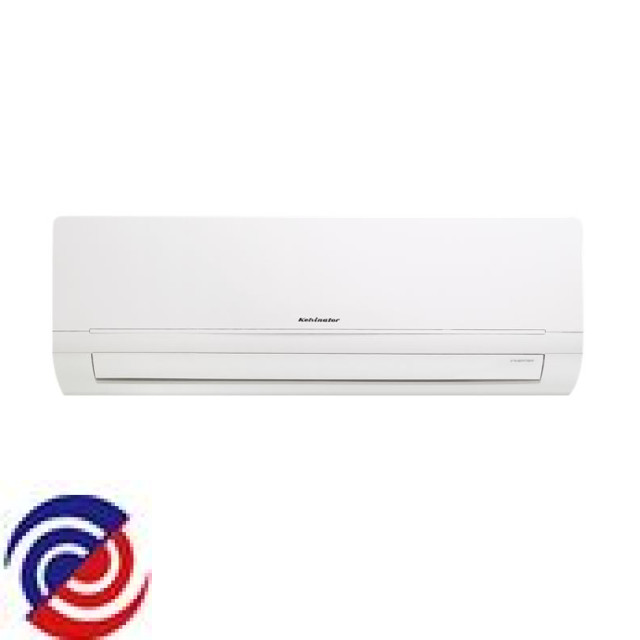

KSV35HRD — 950001560 00
KELVINATOR — Air-Conditioner

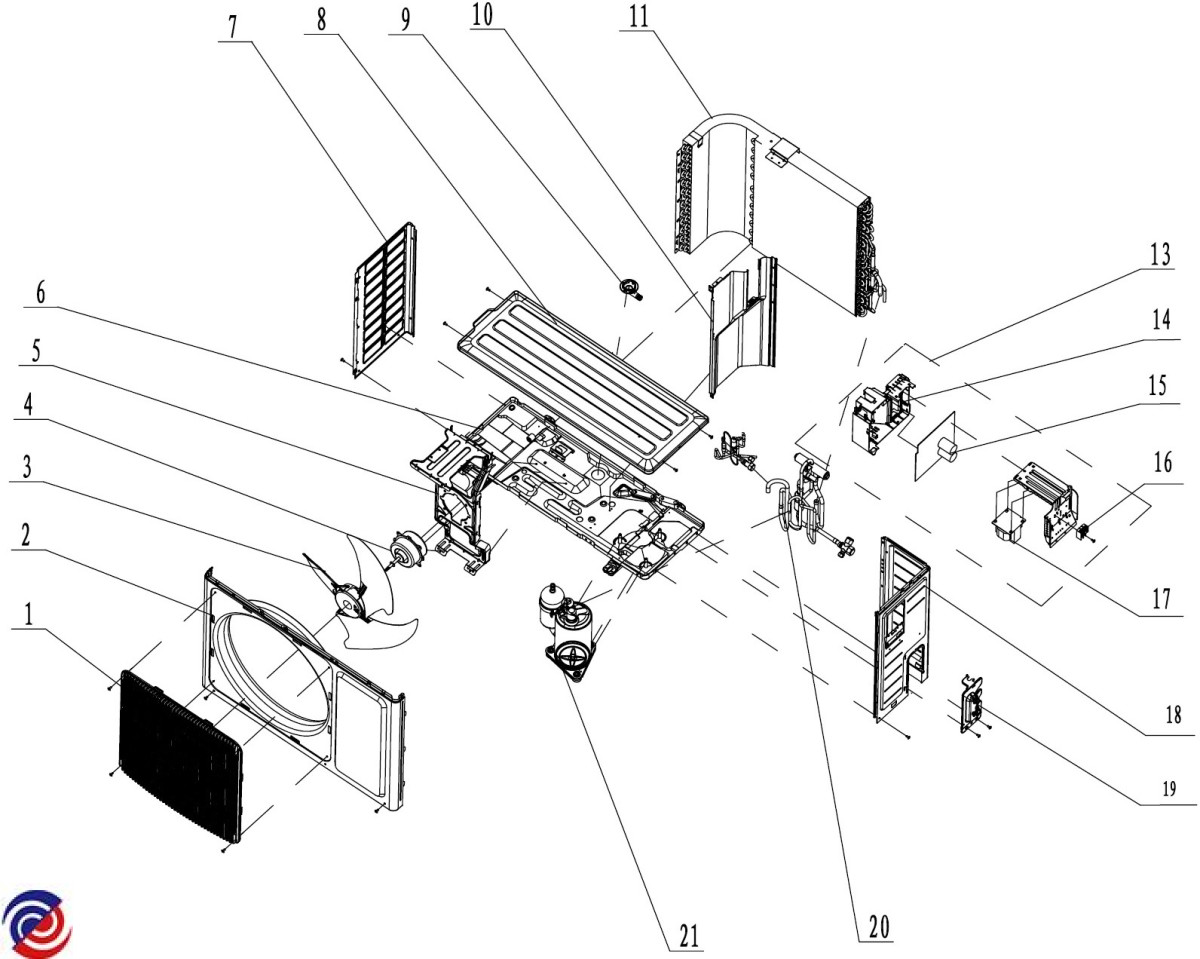

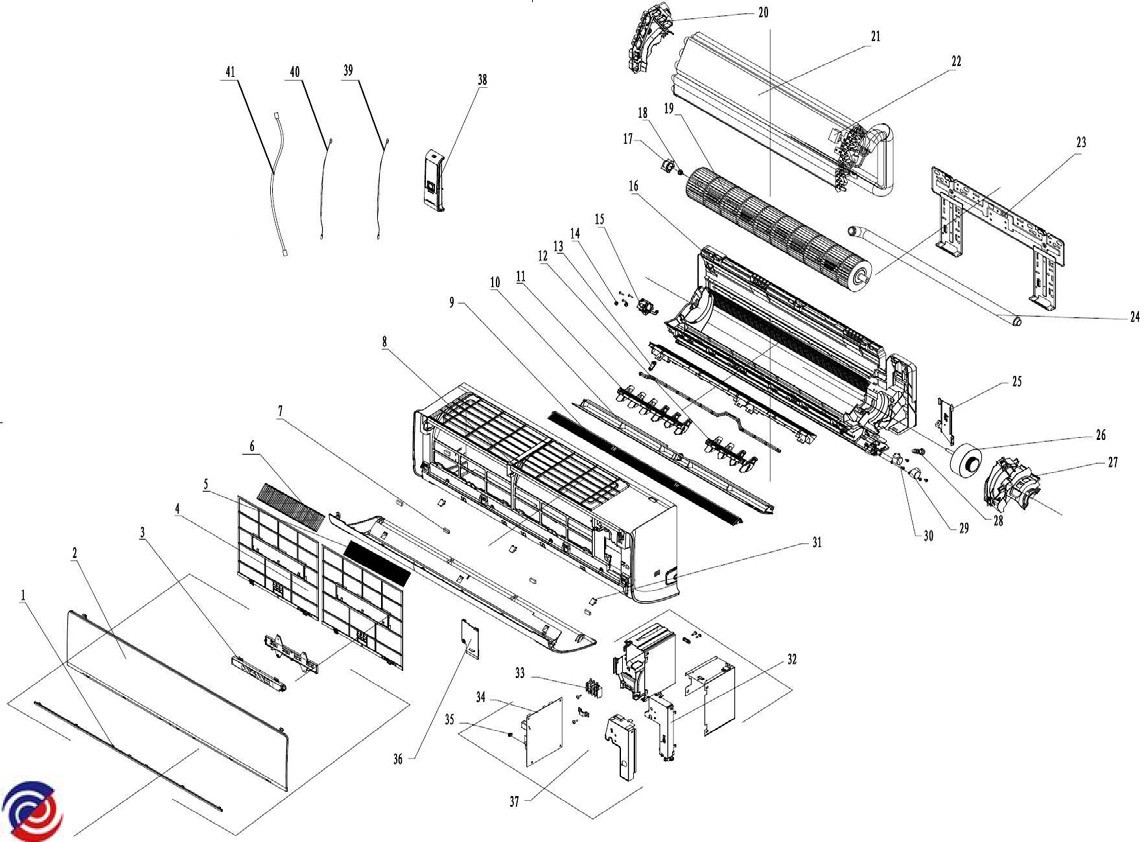

Parts for KSV35HRD

W0014946 FILTER CARBON

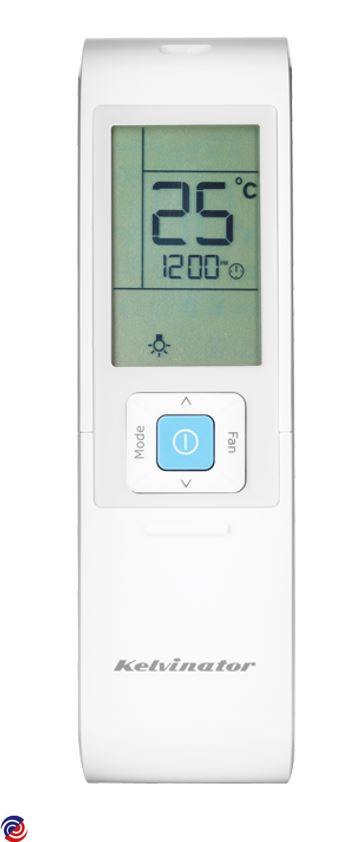

W0021299 REMOTE CONTROL
$114.70
W0023278 SENSOR TEMPERATURE
No image available
W0011170 COMP & FITTINGS
$317.35
No image available
W0012104 EVAPORATOR ASSY
$275.00
No image available
W0012135 CONDENSER ASSY
$364.60
No image available
W0012301 CLAPBOARD SUB ASSY
$38.50
No image available
W0012338 BRACKET WALL MOUNTING
No image available
W0012371 LEFT SIDE PLATE KSE26CRC
$27.50
No image available
W0012374 RIGHT SIDE PLATE
$27.50
No image available
W0012536 PANEL FRONT ASSY
$77.00
No image available
W0012554 COVER, SHELD OF ELEC BOX
$11.00
No image available
W0012594 MOTOR SUPPORT SUB-ASSY
$27.50
No image available
W0012595 VALVE SUPPORT SUB-ASSY
$14.30
No image available
W0013108 VALVE 4 WAY ASSY
$165.00
No image available
W0013514 DRAIN PIPE KSV35CRC
$15.20
No image available
W0014259 BOX ASSY, ELECTRIC OUTDOOR
$315.70
No image available
W0014262 BOX ASSY, ELECTRIC INDOOR
$247.50
No image available
W0014458 FAN, AXIAL FLOW
$54.95
No image available
W0014487 BLADE FAN CROSS FLOW ASSY
$91.05
No image available
W0014562 BUSH AXILE LH
No image available
W0014565 GUIDE LOUVER (SMALL) KSV35CRC
$12.85
No image available
W0014575 LOUVRE AIR (LEFT)
$11.95
No image available
W0014580 LOUVRE HORIZONTAL MAIN
No image available
W0014630 BEARING FAN BLADE
$7.35
No image available
W0014668 LEVER SUPPORT
$7.00
No image available
W0015172 FILTER SUB-ASSY KSV35CRC
No image available
W0015175 FILTER (HEPPA)
No image available
W0015217 FILTER GENERATOR COLD PLASMA
$74.40
No image available
W0018895 FAN MOTOR KSV26HRC*01
No image available
W0018903 MOTOR FAN OUTDOOR
$215.00
No image available
W0018970 MOTOR LOURVE
$56.05
No image available
W0018972 MOTOR SECONDARY LOUVER
No image available
W0018973 MOTOR MAIN LOUVER
No image available
W0019440 FRONT CASE KSV35CRC
$65.00
No image available
W0019441 FRONT PANEL KSE26CRC
$27.50
No image available
W0019550 BOX ELECTRIC
$16.50
No image available
W0019599 ELECTRIC BOX COVER 2 KSV26CRC
No image available
W0020560 FRONT GRILL KSE26CRC
$41.20
No image available
W0020655 HOLDER REMOTE CONTROL
No image available
W0020662 EVAPORATOR SUPPORT KSV26CRC
$6.60
No image available
W0020778 MOTOR PRESS PLATE KSV26CRC
$6.60
No image available
W0020790 DRAINAGE JOINT KSE26HRC
$7.70
No image available
W0021203 BOARD MAIN INDOOR
$189.15
No image available
W0021208 BOARD MAIN
$299.95
No image available
W0021800 BOARD DISPLAY INDOOR
No image available
W0023284 SENSOR TEMPERATURE
No image available
W0023352 CORD POWER KSV26CRC
$33.00
No image available
W0024728 TERMINAL BOARD KSV26HRC
$14.90
No image available
W0024761 WIRE JUMPER
$20.00
No image available
W0024867 MAGNET COIL KSV26NRC-OUD
$70.10
No image available
W0024876 COIL REACTOR
$85.65
No image available
W0026759 MAGNET KSV26CRC
$5.50
No image available
W0026835 BEARING FAN
No image available
W0026850 PLUG WATER TRAY
No image available
W0046441 TOP COVER KSE26CRC
$60.00
No image available
W0070009 LOUVRE AIR (RIGHT)
$11.95
No image available
W0093603 PANEL FRONT ASSY IN KSV35CRC
$27.50
No image available
W0095838 CABINET ASSY REAR
$143.00
No image available
W0096142 SCREW COVER
$4.00
No image available
W0096481 PIPE CLAMP KSV26CRC
$4.00
No image available
W0117871 TERMINAL BOARD KSV53HRC
$13.20
