KSV35HRA — 950001082 00

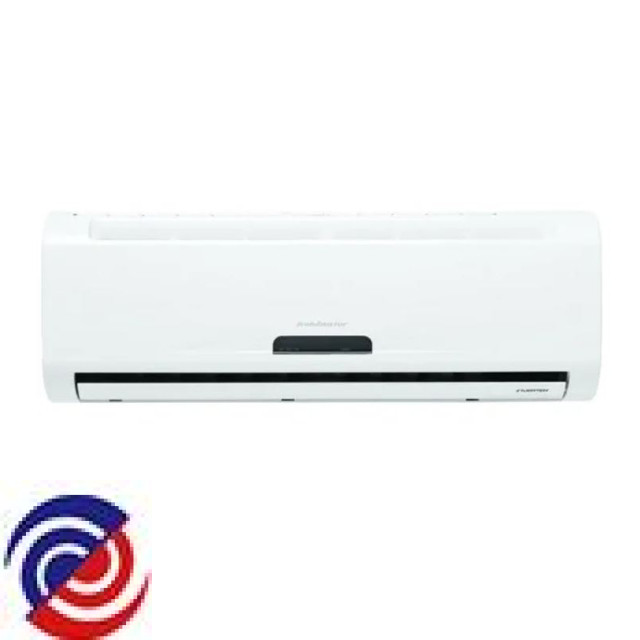

KELVINATOR — Air-Conditioner

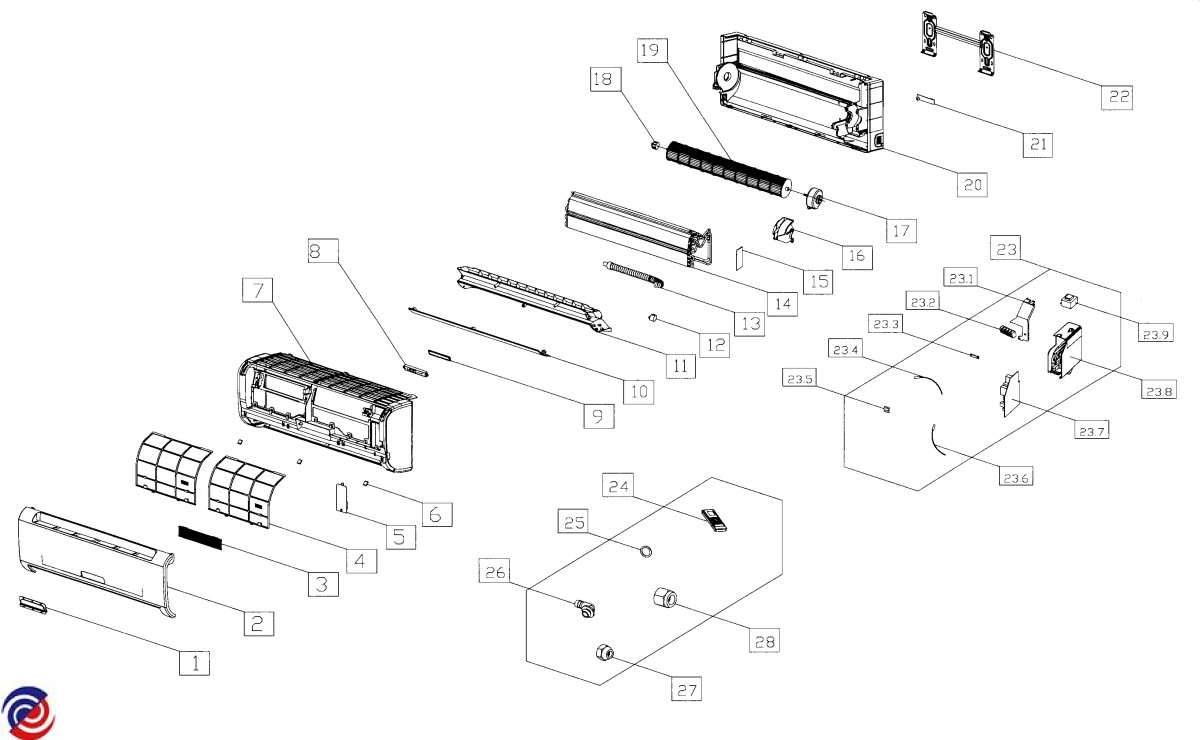

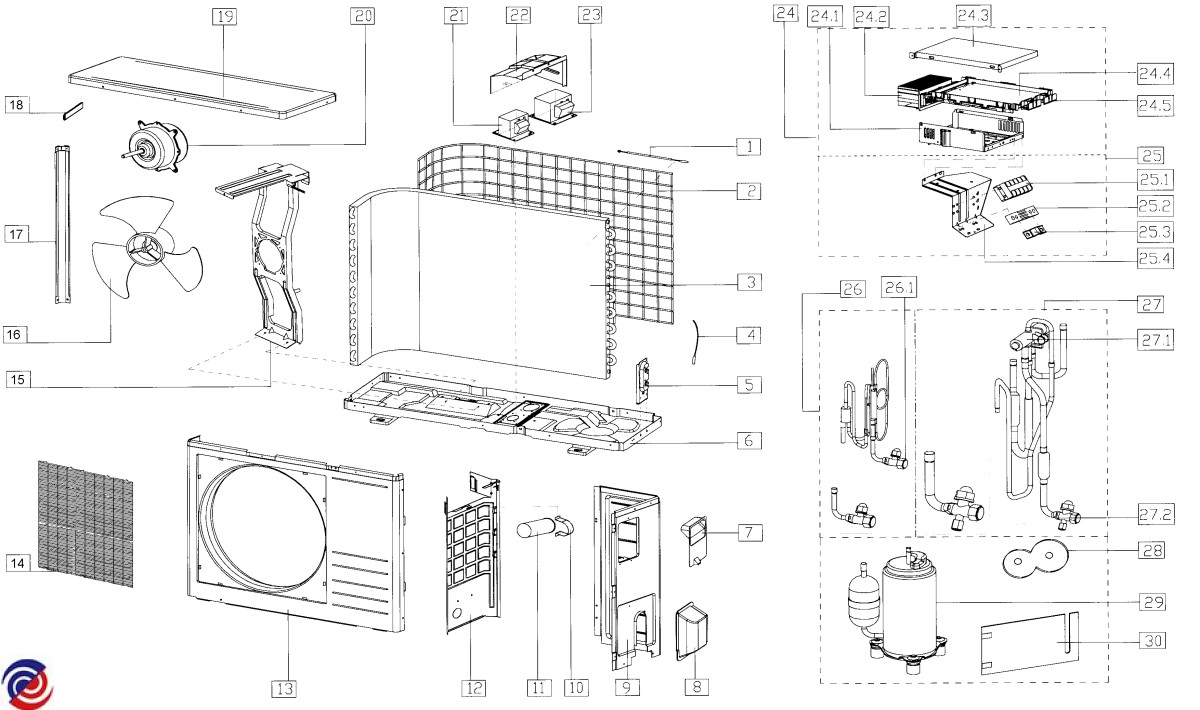

Parts for KSV35HRA
W0014359 FILTER AIR
W0019830 SENSOR OUTDOOR TEMP
$44.00
W0068065 HOLDER FILTER
W0069459 HOLDER BEARING
W0072500 MOTOR FAN
W0075340 SENSOR TEMP EVAPORATOR TEMP
W0093746 FILTER AIR (RIGHT)
W0093747 FILTER AIR (LEFT)
W0093749 FRAME AIR OUT ASSY
$40.00
W0093994 BOARD MAIN INDOOR
$150.05
W0094020 BOARD MAIN OUTDOOR
$401.45
W0094405 BOARD DISPLAY INDOOR
W0094445 KELVINATOR AIRCON REMOTE CONTROL
W0103211 HOSE DRAIN
W0127090 SENSOR TEMP EVAPORATOR TEMP
W0014361 COVER TEMP SENSOR
$5.50
W0015698 RADIATOR ESD12HRB
$77.00
W0016783 WIRE JOINT ESD09HRA
$11.00
W0019611 COVER FOR INDUCTANCE ASSY
$29.70
W0019626 BASE PLATE COMPRESSOR
$99.00
W0019763 LIQUID VALVE ASSY KSV35HRA
$103.40
W0068069 INDOOR TEMP SENSOR
W0068317 CLAMP
W0068319 BLADE FAN
$54.90
W0068320 BIG HANDLE
W0068321 CLAMP CAPACITOR
W0068323 CLAMP FOR WIRING
W0068324 WASHER FOR WIRE JOINT ESD09HRA
W0068916 MOTOR LOUVRE
W0069449 VALVE LIQUID ASSY
$65.00
W0069462 CLAMP CONNECTING PIPE
W0069468 PLATE INSTALLATIONFOR VALVES
W0069496 PAN DRAIN
W0069497 PANEL SIDE RH OUTDOOR
$27.50
W0070406 HANDLE SMALL (ESG21HRIA)
W0070654 NUT FLARE TLM A01 1/4 6.35MM
$7.70
W0070691 COPPER NUT TLM C03 1/2, 12.7MM
$11.00
W0072004 TRANSFORMER
$70.00
W0072501 WIRE JOINT. 5P ESD09HRA
W0072508 COUPLING PIPE DRAINAGE INDOOR
W0072527 COVER TOP OUTDOOR
$37.40
W0072528 GRILL FRONT OUTDOOR
W0072529 FAN MOTOR ESD12HRB
W0072530 PANEL PARTITION PLATE ASSEMBLY
$49.50
W0072531 E-PARTS BOX COVER ESD18HRB
$16.50
W0072532 INSTALLATION BOX. E-PARTS
$27.50
W0072534 VALVE 4-WAY
W0072535 COMPRESSOR
$301.40
W0072537 HOLDER. E-PARTS ESD18HRB
W0072538 SENSOR DISCHARGE TEMP 500MM
W0072540 REACTOR ESD12HRB
W0072542 TERMINAL BLOCK & MOUNT OUTDOOR
$44.00
W0075151 CAPAC 45UF 450V 4PIN COMPRESS
$42.00
W0093667 BLADE FAN CROSS FLOW ASSY
W0093705 DISPLAY CAP KSV35HRA
$5.50
W0093706 BRACKET EVAPORATOR LH
$6.60
W0093713 CHASSIS
$99.00
W0093714 MOTOR COVER KSV35HRA
$11.00
W0093715 ELECTRONIC CONTROL BOX
$77.00
W0093716 COVER CONTROL BOX ASSY
$11.00
W0093750 WINDOW COVER FOR REPAIRING
$8.80
W0093753 SCREW CAP KSV35HRA
$5.50
W0093754 FRONT PANEL ASSY KSV35HRA
$27.50
W0093755 INDICATOR. LED KSV35HRA
$22.00
W0093756 PANEL FRAME ASSY KSV35HRA
$120.00
W0093757 LOUVRE HORIZONTAL UP
W0093841 GRILLE REAR OUTDOOR
$16.50
W0093901 LEFT SUPPORTER KSV26HRA
$14.30
W0093902 SHROUD FAN OUTDOOR
$90.00
W0093911 MOTOR MOUNTING BRACKET
$50.00
W0093912 BOARD OF TERMINAL KSV26HRA
W0093987 DISPLAY BOX ASSY KSV35HRA
$88.00
W0094070 EVAPORATOR ASSY
$346.50
W0094093 CONDENSOR COIL ASSY KSV35HRA
$357.50
W0094167 VALVE ASSY LOW PRESSURE
$200.20
W0094236 SOUND-PROOF MATERIAL
$11.00
W0094237 SOUND-PROOF MATERIAL
W0094258 COIL REACTOR
$60.00
W0094409 ELEC CONTROL BOX. INDOOR UNIT
W0094425 BOX CONTROL ASSY OUTDOOR
$497.00
W0102601 VALVE ASSY LOW PRESSURE
$44.00
W0103212 PLATE INSTALLATION
W0167029 SEAL KSV26HRA
