KSV26HRC — 950132910 01

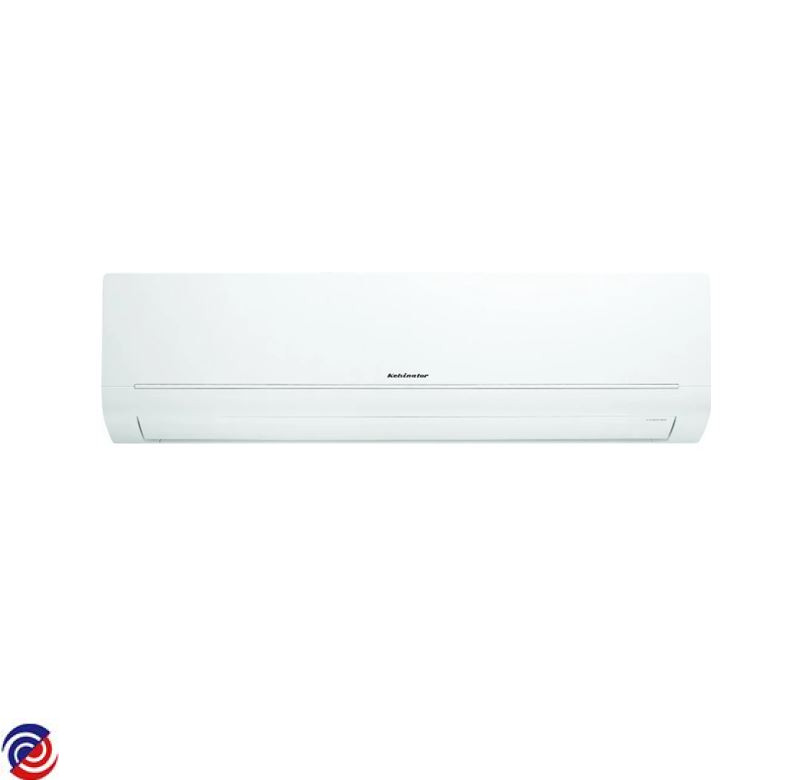

KELVINATOR — Air-Conditioner

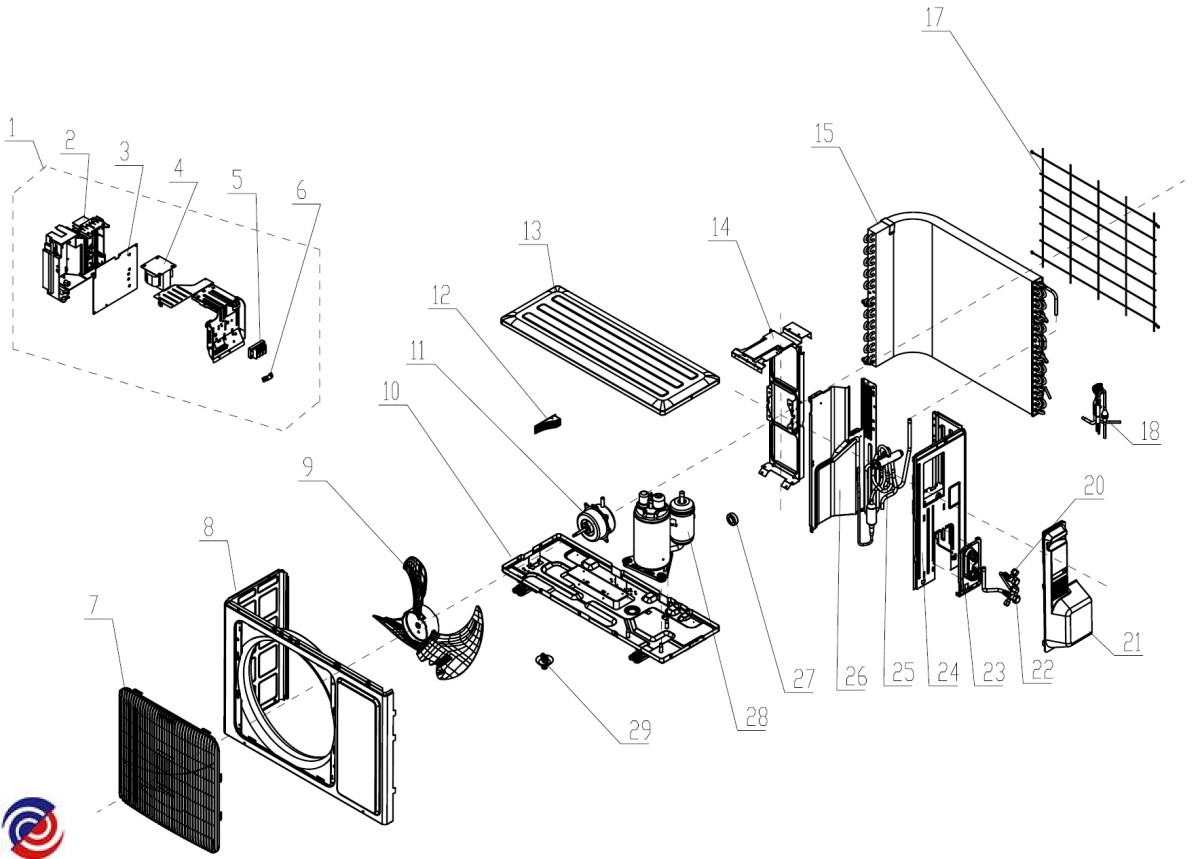

Parts for KSV26HRC

W0014946 FILTER CARBON
W0021209 KELVINATOR AIRCON INDOOR MAIN PCB KSV/26/35/52/53
W0021299 REMOTE CONTROL
$114.70
W0023278 SENSOR TEMPERATURE
No image available
W0011169 COMPRESSOR & FITTINGS KSV26HRC
$487.95
No image available
W0012098 EVAPORATOR ASSY KSV26CRC
$324.95
No image available
W0012191 CONDENSER ASSY
$328.00
No image available
W0012302 PANEL PARTITION RH OUTDOOR
$27.50
No image available
W0012338 BRACKET WALL MOUNTING
No image available
W0012339 COVER TOP
$43.55
No image available
W0012372 PANEL SIDE RH OUTDOOR
$27.50
No image available
W0012505 REAR GRILL KSV26HRC
$26.40
No image available
W0012533 FRONT PANEL KSV26HRC
$77.00
No image available
W0012590 VALVE SUPPORT KSV26CRC
$9.90
No image available
W0012591 MOTOR SUPPORT KSV26HRC
$26.55
No image available
W0012940 BOX CONTROL ASSY
No image available
W0012942 ELECTRIC BOX SUB-ASSY KSV26HRC
$303.00
No image available
W0013011 CHASSIS SUB ASSY
$88.00
No image available
W0013151 4-WAY VALVE ASSY KSV26HRC
$126.50
No image available
W0013186 CAPILLARY SUB-ASSY
$38.50
No image available
W0013517 HOSE DRAIN
No image available
W0013881 COUPLING CONNECTER DRAINAGE
No image available
W0014075 VALVE CUT-OFF (3/8)
$50.00
No image available
W0014090 VALVE CUT OFF
$50.00
No image available
W0014457 BLADE FAN AXIAL FLOW
$91.30
No image available
W0014488 BLADE FAN CROSS FLOW ASSY
No image available
W0014562 BUSH AXILE LH
No image available
W0014572 LOUVRE HORIZONTAL SMALL
$17.45
No image available
W0014576 LOUVRE AIR (LEFT)
$11.90
No image available
W0014577 LOUVRE AIR (RIGHT)
$11.95
No image available
W0014581 LOUVRE HORIZONTAL MAIN
$29.00
No image available
W0014630 BEARING FAN BLADE
$7.35
No image available
W0014668 LEVER SUPPORT
$7.00
No image available
W0014669 LEVER SWING MOTOR TO LOUVRE
No image available
W0014670 LEVER SWING MOTOR TO LOUVRE
$13.60
No image available
W0015170 FILTER MAIN INDDOR
No image available
W0015175 FILTER (HEPPA)
No image available
W0015217 FILTER GENERATOR COLD PLASMA
$74.40
No image available
W0018895 FAN MOTOR KSV26HRC*01
No image available
W0018900 MOTOR BRUSHLESS DC
No image available
W0018970 MOTOR LOURVE
$56.05
No image available
W0018972 MOTOR SECONDARY LOUVER
No image available
W0018973 MOTOR MAIN LOUVER
No image available
W0019446 CHASSIS FRONT ASSY
$160.00
No image available
W0019447 PANEL FRONT ASSY INDOOR
$27.50
No image available
W0019609 COVER ELECTRIC BOX
$11.00
No image available
W0020508 REAR CASE ASSY KSV26CRC
$185.00
No image available
W0020558 GRILL FRONT OUTDOOR
$88.00
No image available
W0020662 EVAPORATOR SUPPORT KSV26CRC
$6.60
No image available
W0020778 MOTOR PRESS PLATE KSV26CRC
$6.60
No image available
W0020880 SMALL HANDLE KSV26CRC
$11.00
No image available
W0020882 HANDLE
No image available
W0021234 BOARD MAIN OUTDOOR
No image available
W0021800 BOARD DISPLAY INDOOR
No image available
W0023284 SENSOR TEMPERATURE
No image available
W0023288 SENSOR TEMPERATURE KSV26HRC
No image available
W0023352 CORD POWER KSV26CRC
$33.00
No image available
W0024728 TERMINAL BOARD KSV26HRC
$14.90
No image available
W0024864 COIL VALVE 4-WAY
$50.00
No image available
W0024876 COIL REACTOR
$85.65
No image available
W0025270 MAGNETIC RING KSV26CRC
$5.50
No image available
W0026759 MAGNET KSV26CRC
$5.50
No image available
W0026763 FIXED CLAMP
$4.00
No image available
W0026835 BEARING FAN
No image available
W0026850 PLUG WATER TRAY
No image available
W0050277 IRON FASTENER KSV26CRC
No image available
W0093605 FRONT PANEL KSV26HRC
No image available
W0093692 BOX ELECTRIC
$40.00
No image available
W0094372 ELECTRIC BOX ASSY KSV26HRC
No image available
W0096142 SCREW COVER
$4.00
No image available
W0096481 PIPE CLAMP KSV26CRC
$4.00
No image available
W0117871 TERMINAL BOARD KSV53HRC
$13.20
