KSE88CRC — 950132928 00

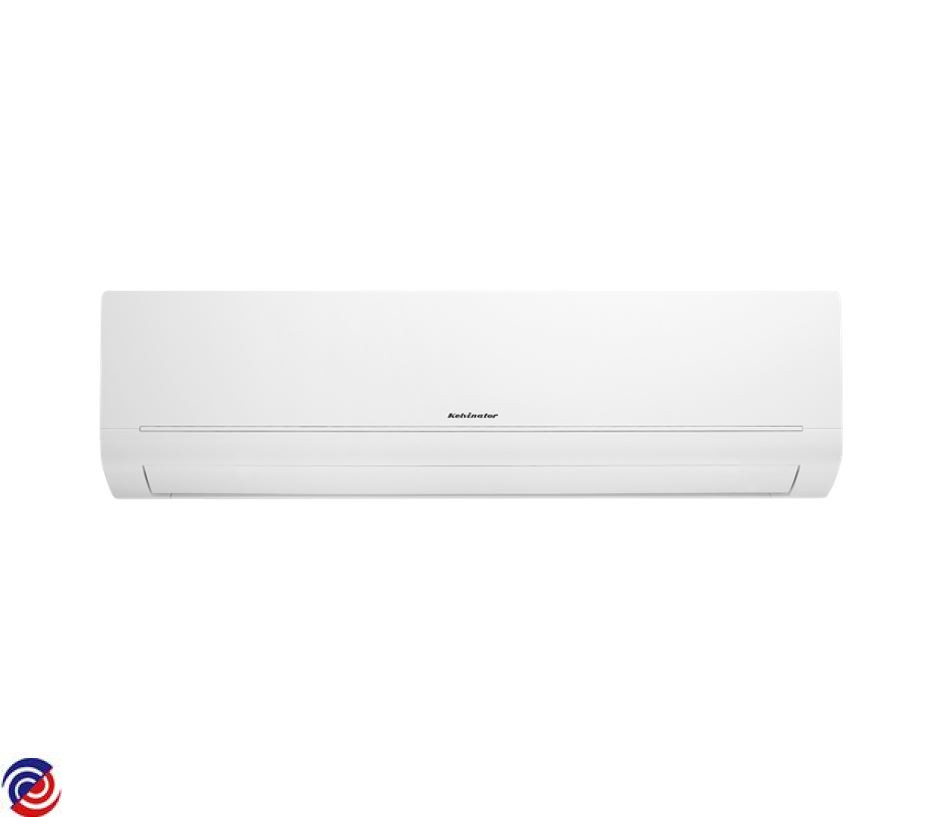

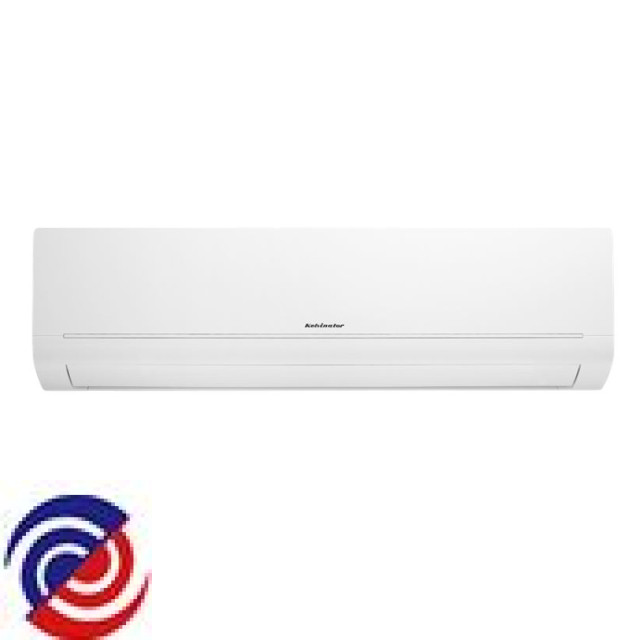

KELVINATOR — Air-Conditioner
Parts for KSE88CRC
W0014946 FILTER CARBON
W0021299 REMOTE CONTROL
$114.70
W0012099 EVAPORATOR ASSY
$778.95
W0012188 CONDENSER ASSY KSE88CRC
W0012203 CONDENSOR SUPPORT PLATE
$14.30
W0012230 CHASSIS SUB ASSY
$88.00
W0012306 PANEL PARTITION LH OUTDOOR
$27.50
W0012337 BRACKET WALL MOUNTING
W0012349 COVER TOP
$59.40
W0012381 PANEL SIDE LH
$49.50
W0012382 PANEL SIDE RH OUTDOOR
$70.00
W0012385 PANEL FRONT RIGHT
$27.50
W0012488 PANEL FRONT ASSY OUTDOOR
$77.00
W0012509 REAR GRILL KSE62HRC
$26.40
W0012555 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012556 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012605 MOTOR SUPPORT SUB-ASSY
W0012615 VALVE SUPPORT SUB-ASSY
$14.30
W0012934 BOARD MAIN ASSY OUTDOOR
$264.00
W0013149 CAPILLARY SUB-ASSY KSE88CRC
W0013355 REVERSING VALVE & TUBEKSE70CRC
$61.60
W0013356 REVERSING VALVE & TUBEKSE80CRC
W0013516 HOSE DRAIN
$30.00
W0014086 VALVE CUT-OFF DISCHARGE 1/4
W0014091 VALVE CUT-OFF SUCTION 5/8
$68.75
W0014463 FAN AXIAL FLOW KSV70HRC
$84.35
W0014490 BLADE FAN CROSS FLOW ASSY
W0014562 BUSH AXILE LH
W0014578 LOURVE SMALL
$84.35
W0014671 SWING LEVER 1 KSV62HRC
W0014672 SWING LEVER 3 KSV62HRC
$13.65
W0015168 FILTER MAIN INDDOR
W0018971 Motor, Louver (Left/Right)
W0018974 MOTOR LOURVE
W0018976 Motor, Louver (Main) R/Hand
$52.00
W0018980 Motor, Louver (Main) L/Hand
$56.05
W0019449 CHASSIS FRONT ASSY
$126.50
W0019450 PANEL FRONT ASSY INDOOR
$79.00
W0019536 BOX ELECTRIC
$77.00
W0019545 INSULATING PLATE OF ELEC BOX C
$13.00
W0019596 ELEC BOX COVER 2 KSV53HRC
W0019598 ELECTRIC BOX COVER KSV62HRC
$11.00
W0019798 WATER TRAY ASSY KSV62HRC
$140.00
W0019885 BOARD MAIN ASSY INDOOR
$190.30
W0020563 FRONT GRILL KSV70HRC
W0020655 HOLDER REMOTE CONTROL
W0020657 LEFT EVEP SUPPORT KSV62HRC
$8.05
W0020658 RIGHT SUPPORT OF EVAPORATOR
$10.65
W0020679 SCREW COVER KSV62HRC
$40.00
W0020770 PIPE CLAMP KSV62HRC
$4.00
W0020785 MOTOR FIXED CLIP 1 KSV62HRC
$4.50
W0020786 MOTOR FIXED CLIP 2 KSV62HRC
$4.50
W0020859 MOTOR HOLDER KSV62HRC
$8.75
W0020886 SMALL HANDLE
$11.00
W0021133 BOARD SOFT STARTER ASSY
W0021196 BOARD MAIN INDOOR
$190.90
W0021198 BOARD MAIN OUTDOOR
$376.60
W0021801 BOARD DISPLAY
W0022301 CAPAC 50UF 450V 4PIN
$44.00
W0022339 CAPAC 7UF 450V 4 SMALL PINS
$17.25
W0023277 SENSOR TEMPERATURE
$44.05
W0023281 SENSOR TEMPERATURE
W0023347 POWER CORD KSV62HRC
$51.60
W0023359 CONNECTING CABLE KSE62HRC
$143.00
W0023362 SIGNAL WIRE KSV62HRC
$40.00
W0024726 TERMINAL BOARD KSE62HRC
$13.20
W0024727 TERMINAL BOARD KSE62HRC
$13.20
W0024888 RELAY AC CONTACTOR KSE62HRC
W0024938 SWITCH PRESSURE PROTECT
W0026834 BEARING FAN BLADE
W0026850 PLUG WATER TRAY
W0026851 COMPRESSOR GASKET KSE88CRC
W0036048 COMPRESSOR
$462.00
W0050275 FIXING CLIP (EVAPORATOR)
$4.50
W0070010 LOUVRE AIR
$11.65
W0070012 LOUVRE HORIZONTAL MAIN
W0070055 BUSH AXIAL (GUIDE LOUVRE)
W0070100 SWING LEVER 2 KSV62HRC
$10.40
W0089868 MOTOR FAN INDOOR
W0089895 MOTOR FAN OUTDOOR
$320.50
W0095839 REAR CASE ASSY KSE62HRC
$77.00
W0096530 HANDLE LARGE OUTDOOR
W0118634 TRANSFORMER
$69.95
W0138649 CRANK KSV62HRC
$8.00
W0142538 O GASKET CROSS FAN BEARING
