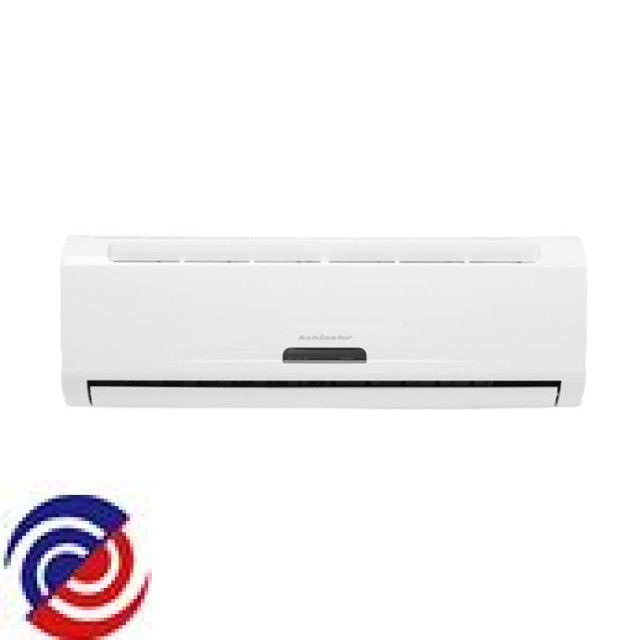

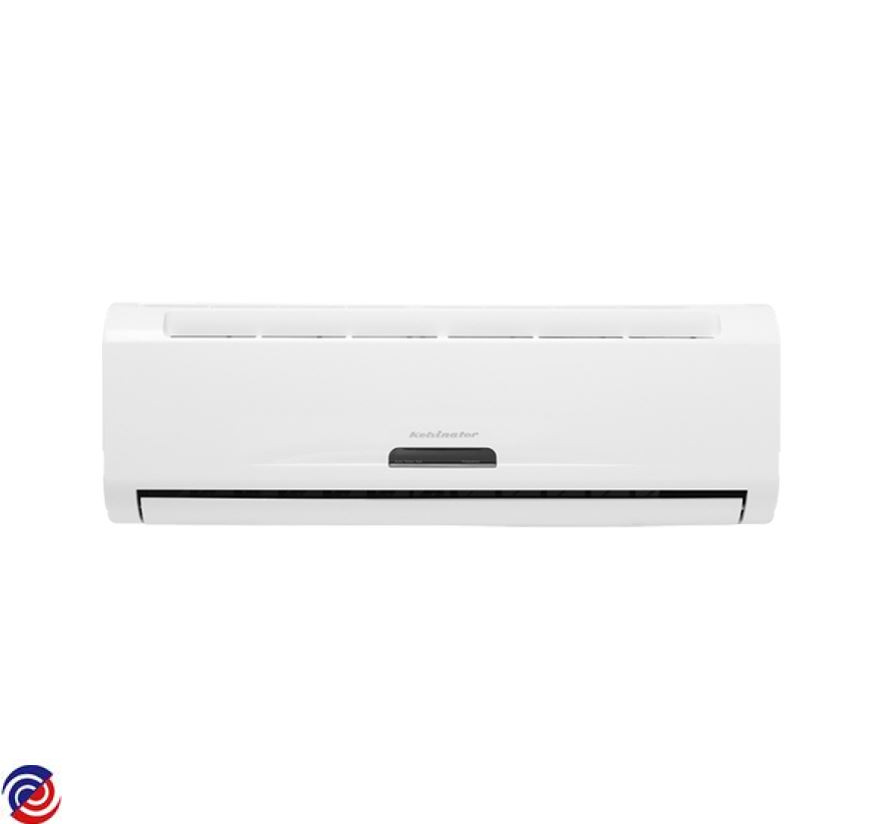

KSE53HRB — 950132769 00
KELVINATOR — Air-Conditioner

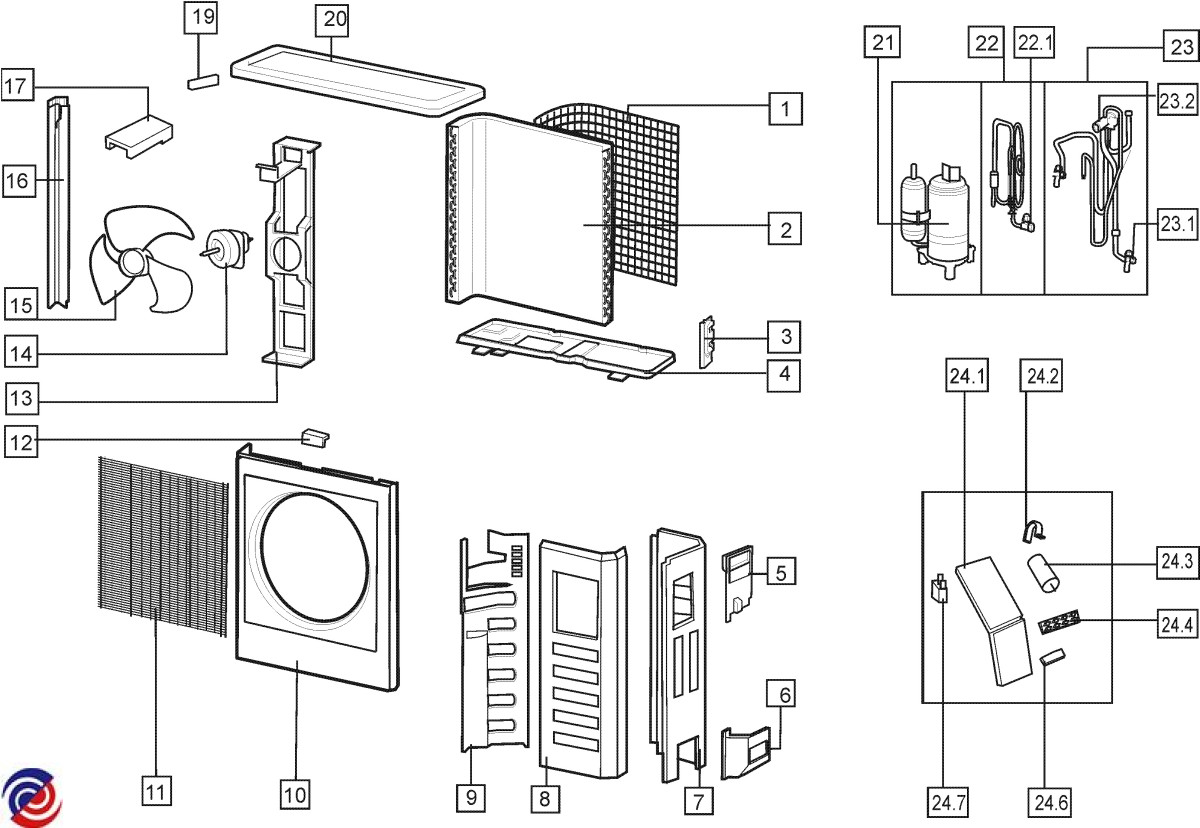

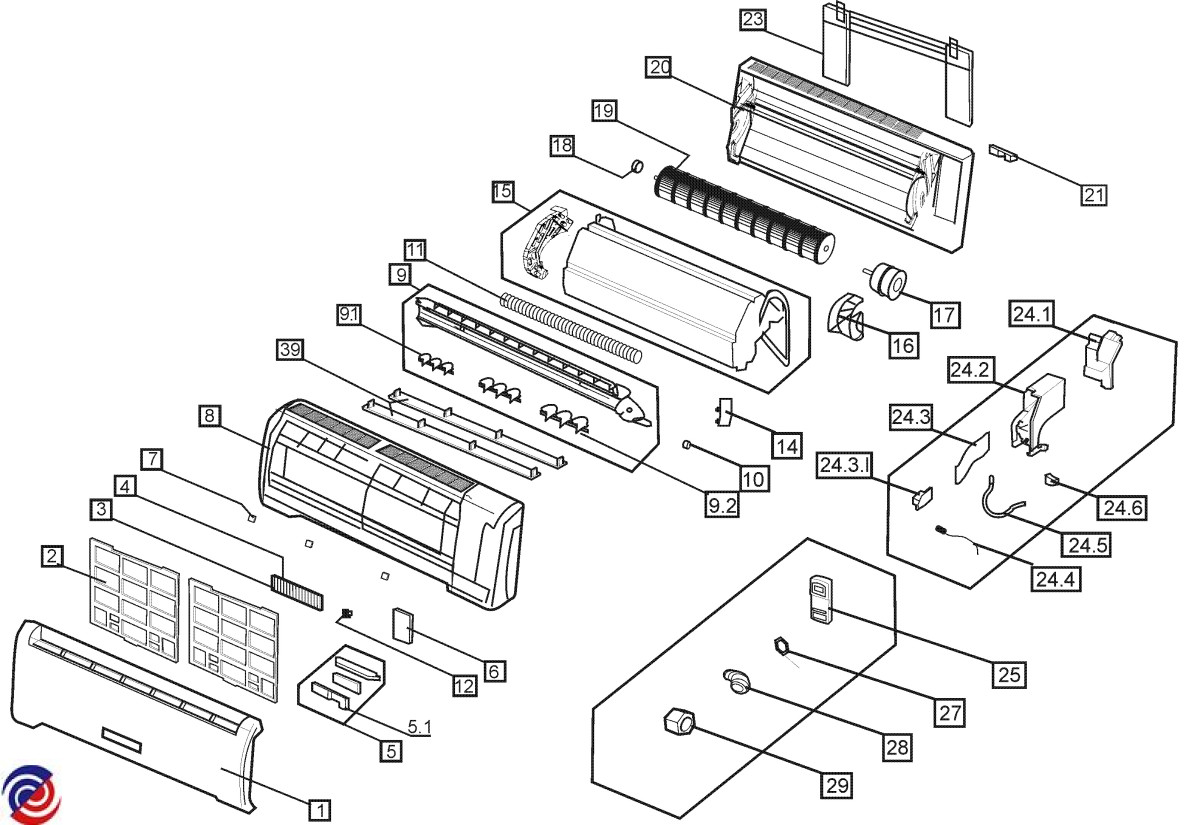

Parts for KSE53HRB
W0014359 FILTER AIR
W0019516 BLADE FAN CROSS FLOW ASSY
$64.00
.JPG)
W0019828 SENSOR INDOOR TEMP
W0068065 HOLDER FILTER
W0069459 HOLDER BEARING
W0075340 SENSOR TEMP EVAPORATOR TEMP
W0094303 MOTOR FAN INDOOR
W0103211 HOSE DRAIN
W0014361 COVER TEMP SENSOR
$5.50
W0014446 GUARD. FAN KSE88CRA
$29.70
W0016778 VALVE 4-WAY
$120.00
W0019518 BLADE FAN AXIAL FLOW
$91.30
W0019556 LOURVE VERTICAL AIRFLOW DOWN
W0019557 LOUVRE HORIZONTAL
$11.90
W0019610 PLATE INSTALLATION
$30.00
W0019630 REAR RIGHT CLAPBOARD ASSY
$49.50
W0019635 MOTOR MOUNTING BRACKET ASSY
$27.50
W0019649 REAR NET KSE53HRB
W0019653 LEFT SUPPORTER KSE53HRB
W0019655 FRONT RIGHT CLAPBOARD ASSEMBLY
W0019700 COMPRESSOR
$564.70
W0019740 4-WAYS VALVE KSE35HRB
W0019766 4-WAYS VALVE ASSY KSE53HRB
W0019845 LOUVER MOTOR KSE35CRB
$45.85
W0019862 CAPAC 1.5UF 450V 2PIN SOLDER
W0068318 CLAMP NET OUTDOOR
W0068324 WASHER FOR WIRE JOINT ESD09HRA
W0068682 PLATE INSTALLATION
W0068690 FOAM OVEN HOLDER MOTOR ESE18C
W0068696 BIG HANDLE ESE18CRA
W0068703 PAN DRAIN
W0068922 CONDENSATOR TEMP SENSOR ESE21
W0070654 NUT FLARE TLM A01 1/4 6.35MM
$7.70
W0070691 COPPER NUT TLM C03 1/2, 12.7MM
$11.00
W0072501 WIRE JOINT. 5P ESD09HRA
W0072504 E-PART BOX COVER ESD18HRB
$40.00
W0072505 E-PARTS BOX ESD18HRB
W0072508 COUPLING PIPE DRAINAGE INDOOR
W0075151 CAPAC 45UF 450V 4PIN COMPRESS
$42.00
W0076557 VALVE LOW PRESSURE
$50.00
W0093706 BRACKET EVAPORATOR LH
$6.60
W0093762 MOTOR COVER KSV53HRA
$16.50
W0093764 CHASSIS
$126.50
W0093765 FILTER AIR
W0093766 SCREW CAP KSV53HRA
$5.50
W0093770 VERTICAL GRILLE KSV35HRB
W0093771 LOUVER HOLDER KSV35HRB
W0093775 FRONT PANEL ASSY KSE35HRB
$50.00
W0093776 COVER WINDOW
$11.00
W0093777 FRAME AIR OUT ASSY
W0093786 CABINET FRONT ASSY
$167.75
W0093788 FRONT PANEL ASSY KSE35HRB
$50.00
W0093837 SMALL HANDLE KSV26CRB
$11.00
W0093858 CLAMP CAPACITOR OUTDOOR
$4.50
W0093889 CONNECTING PIPE CLAMP
$4.50
W0093920 PARTITION PLATE ASSY KSE53HRB
$14.30
W0093934 TOP COVER ASSY KSE53HRB
$70.00
W0093935 BRACKET TERMINAL OUTDOOR
W0093936 PANEL FRONT RIGHT
$49.50
W0093937 BASE PLATE COMPRESSOR
$77.00
W0093941 FRONT PANEL KSE53HRB
W0094001 DISPLAY BOARD KSE70HRB
W0094004 BOARD MAIN INDOOR
$153.00
W0094074 EVAPORATOR ASSY KSV35CRB
W0094098 CONDENSER COIL ASSY KSE53HRB
$302.50
W0094171 4-WAYS VALVE ASSY KSE53HRB
$126.50
W0094176 LIQUID VALVE ASSY KSE53HRB
W0094279 BLOCK TERMINAL
$11.00
W0094305 MOTOR INDOOR KSE35CRB
W0094322 MOTOR FAN OUTDOOR
$254.45
W0094325 ASYNCHRONISM MOTOR KSE53HRB
W0094346 CAPAC 3UF 450V 4 PIN FAN MOT
W0094411 BOARD DISPLAY ASSY
$188.85
W0094448 REMOTE CONTROLLER KSV80HRB
W0102580 SEAL CIRCUIT
$4.00
W0127091 LIQUID PIPE VALVE ESD18HRB
