KSE26HRA — 950001060 00
KELVINATOR — Air-Conditioner

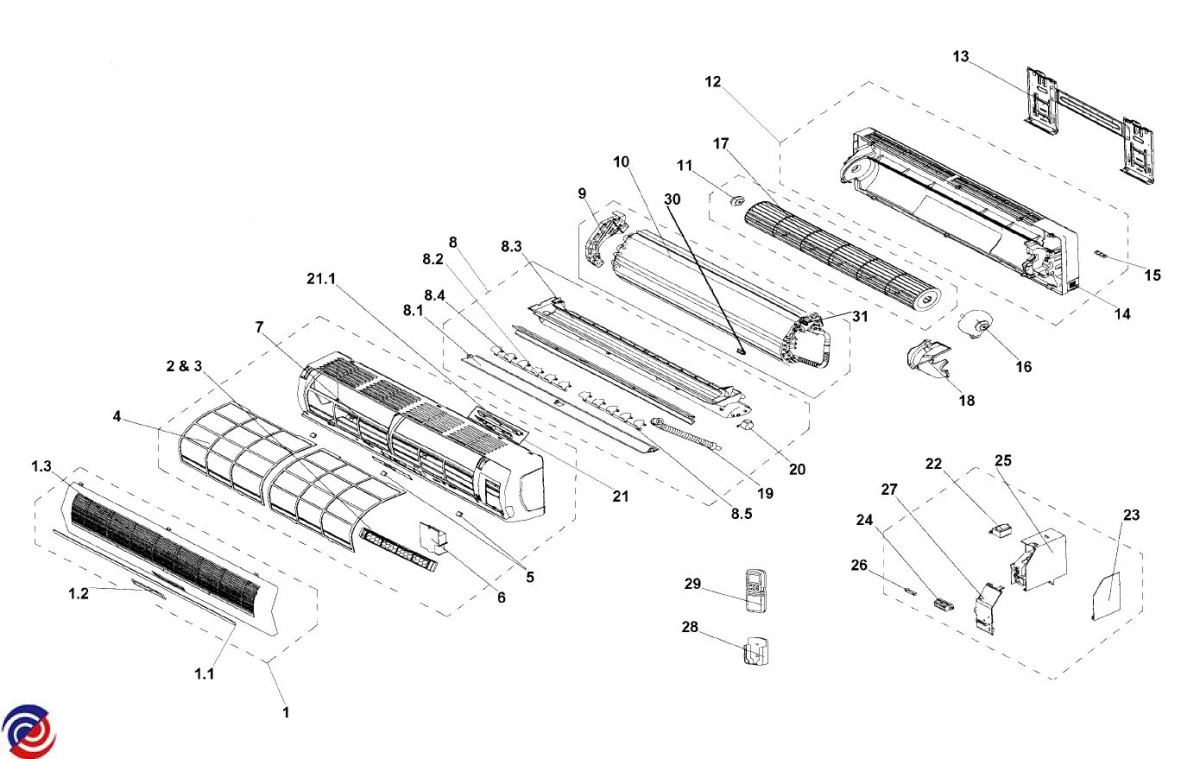

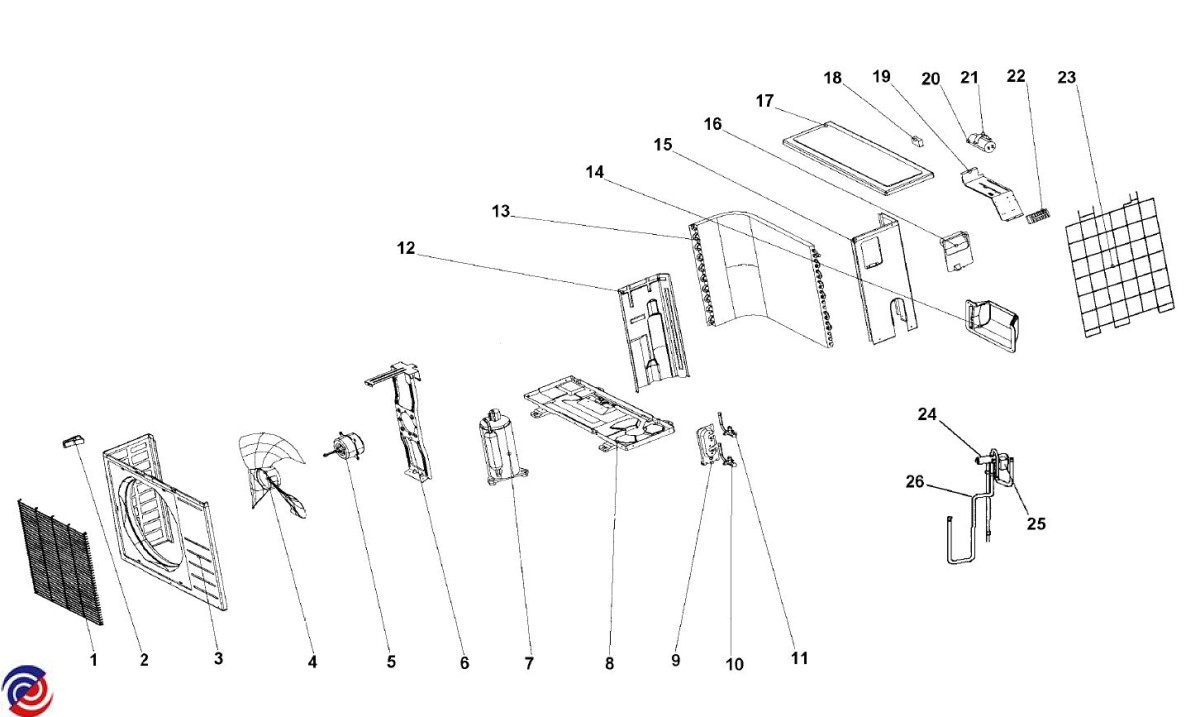

Parts for KSE26HRA
W0014359 FILTER AIR
W0068065 HOLDER FILTER
W0069459 HOLDER BEARING
W0103211 HOSE DRAIN
W0014368 EVAPORATOR HOLDER ESE09CRB1
$9.90
W0014418 MOTOR FAN INDOOR
W0014425 BASE PLATE COMPRESSOR
$77.00
W0014435 COMPRESSOR
$263.95
W0014436 VALVE HIGH PRESSURE
$46.20
W0014519 WIRE JOINT 5P ( ESE09CRA)
$16.50
W0018872 FILTER AIR
$30.00
W0018875 CONDENSER
$275.00
W0019944 PANEL REAR (ESE09CRA)
$15.40
W0026097 SUPPORT BOARD ESE09CRB1
$27.50
W0068068 EVAPORATOR TEMP SENSOR
W0068069 INDOOR TEMP SENSOR
W0068072 GRILL FRONT OUTDOOR
W0068073 SMALL HANDLE
W0068074 COIL REVERSING ASSY
W0068075 VALVE REVERSING & COIL
W0068077 CAPACITOR CLAMP MWH05CM
W0068078 TERMINAL POINT ESE12HRA
W0068316 WIRE CLAMP
W0068319 BLADE FAN
$54.90
W0068320 BIG HANDLE
W0068322 CAPAC 2.5UF 50/60HZ
W0068535 SEPARATING BOARD (ESE09CRA)
W0068682 PLATE INSTALLATION
W0068703 PAN DRAIN
W0068916 MOTOR LOUVRE
W0069460 BLADE FAN CROSS FLOW ASSY
$58.90
W0069461 BACK COVER FOR CHASSIS
W0069462 CLAMP CONNECTING PIPE
W0069463 MOTOR COVER
W0069519 FRONT PANEL TYPE A
W0069520 VALVE REVERSING ASSY
$161.20
W0069555 PLATE INDICATOR
$14.30
W0069557 EVAPORATOR ASSY ESE09CRB1
$275.00
W0069559 DISPLAY LABEL KSE26HRA
$4.50
W0069561 BOARD MAIN INDOOR
W0070320 TRANSFORMER
W0070322 HOLDER REMOTE CONTROLLER MSE3
W0070654 NUT FLARE TLM A01 1/4 6.35MM
$7.70
W0070655 NUT FLARE TLM B02 3/8 9.52MM
$7.70
W0070659 COVER TOP
W0070675 VALVE GAS PIPE (ESE09CRA)
W0072497 PLATE INSTALLATION
W0072509 JUNCTION BOX ( ESE09CRA)
W0073080 CAPACITOR COMPRESSOR ESE09CRA
W0075131 CHASSIS INDOOR
W0075134 CABINET FRONT OUTDOOR
W0075212 WINDOW COVER FOR REPAIRING
W0075339 ENCLOSURE COVER ESE12CRA
W0075373 PANEL OUTDOOR RH
$15.40
W0089777 CAP SCREW
W0089779 DISPLAY BOARD ASSY ESE09CRA
W0089780 HOLDER DISPLAY BOARD (ESE09CRA
W0089781 FRAME ASSY AIR OUT (ESE09CRA
W0089783 HOLDER LOUVRE [1] (ESE09CRA)
W0089785 HOLDER LOUVRE [2] (ESE09CRA)
W0089786 LOUVRE VERTICAL (ESE09CRA)
W0089825 PANEL FRAME ESE09HRA
W0089835 LIQUID VALVE ASSY ESE09HRA
W0094494 FAN MOTOR ESE09CRA
W0094496 SUPPORT FAN MOTOR (ESE09CRA)
W0096058 REMOTE CONTROLLER ESE18HRA
W0101407 FRONT PANEL ASSY KSE26HRA
W0129392 HORIZONTAL GRILLE ESE09CRB1
