KSD35HRH — 956004540 00

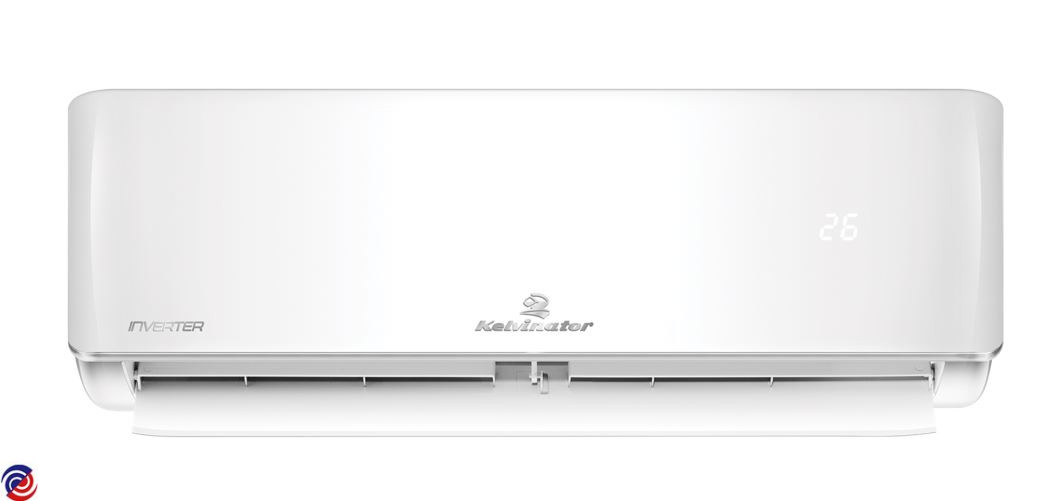

KELVINATOR — Air-Conditioner
Parts for KSD35HRH
W0014920 MOTOR FAN INDOOR

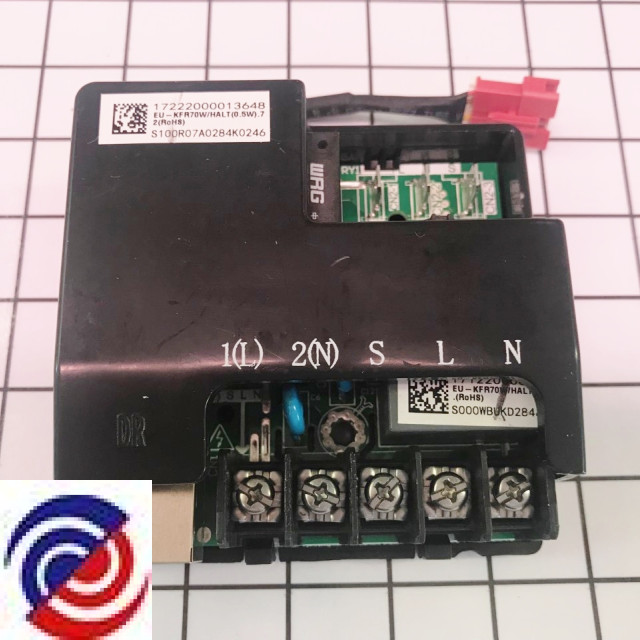

W0019307 KELVINATOR AIRCON OUTDOOR TERMINAL & POWER PCB
.jpg)

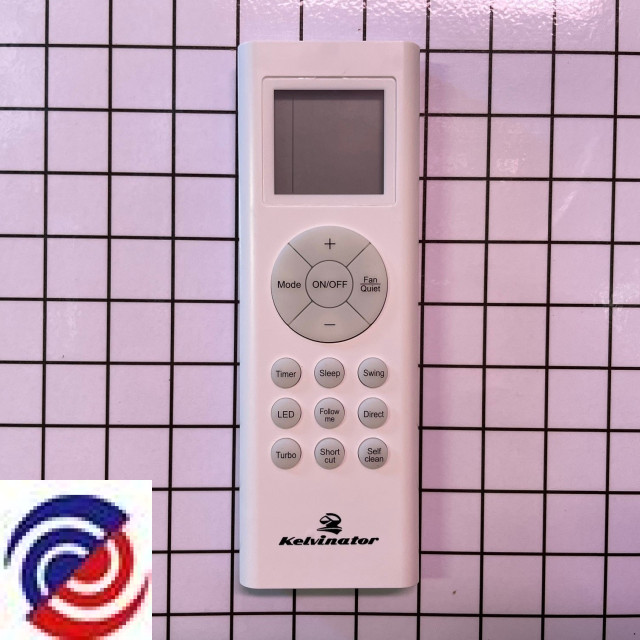

W0284450 REMOTE CONTROLLER
W0014917 MOTOR LOUVRE
W0015091 COMPRESSOR
W0015407 SENSOR TEMP ASSY DISCHARGE
W0015411 SENSOR AMBIENT TEMP ASSY
W0015413 SENSOR PIPE TEMP ASSY
W0015415 SENSOR PIPE TEMP ASSY
W0016446 FAN CROSS FLOW
W0016447 BLADE AXIAL FLOW
W0016451 FILTER AIR
W0016453 FILTER AIR FRESHENING
$41.70
W0016454 FILTER AIR FRESHENING
$28.35
W0016455 HOSE DRAIN
$23.20
W0016456 JOINT DRAIN
$4.50
W0016468 LOUVRE VERTICAL
$29.05
W0016470 HOLDER BEARING
W0016473 CHASSIS ASSEMBLY
$263.80
W0016476 COVER CHASSIS RIGHT
$34.40
W0016481 COVER ELECTRONIC BOX
$9.85
W0016484 COVER FAN MOTOR
$91.75
W0016485 LOUVRE HORIZONTAL ASSEMBLY
$29.05
W0016488 COVER ELEC EQUIPMENT
$11.50
W0016490 COLLECTOR WATER
$57.35
W0016493 COVER CHASSIS LEFT
$34.40
W0016499 CLAMP PIPE BOARD
$6.50
W0016502 PANEL ASSEMBLY
W0016509 PLATE INSTALLATION
$305.05
W0016511 CHASSIS ASSEMBLY
$200.00
W0016515 PLATE MOUNTING PCB
$5.85
W0016516 COVER TOP ASSEMBLY
W0016517 PLATE VALVE
$34.40
W0016518 PARTITION BOARD ASSEMBLY
$45.85
W0016519 PANEL RIGHT ASSEMBLY
W0016766 SEAL RING
$4.50
W0016770 BASE BEARING
W0019117 VALVE ASSEMBLY 4-WAY
$255.05
W0019118 VALVE LIQUID ASSY (DISCHARGE)
$58.05
W0019138 VALVE GAS (SUCTION)
$39.85
W0019141 VALVE LIQUID (DISCHARGE)
$25.35
W0019146 NUT, FLARE NUT 1/2 - 12.7mm
$6.50
W0019147 NUT, FLARE NUT 1/4 - 6.35mm
$4.50
W0019303 PCB MODULE DEMAND RESPONSE
W0019310 ELEC CONTROL BOX PCB ASSY
W0019330 TERMINAL BLOCK
W0019332 WIRE ASSY COMPRESSOR
$24.50
W0282497 PANEL FRAME ASSEMBLY
W0282535 NET, REAR
$35.05
W0282539 SUPPORT FAN MOTOR
$42.50
W0282851 MUFFLER ASSEMBLY
$51.95
W0282866 CONDENSER ASSEMBLY
W0282874 EVAPORATOR ASSEMBLY
W0284051 PIPE NUT
$4.00
W0284111 SENSOR TEMP ROOM
W0284115 HOLDER, REMOTE CONTROL
W0284177 HANDLE, BIG
$16.55
W0284372 GRILLE, AIR OUTLET
W0284375 PANEL, REAR LEFT PLATE ASSY
$73.70
W0284432 BOARD PCB DISPLAY BOX ASSY
W0284498 PANEL, FRONT ASSEMBLY
W0284574 MOTOR FAN OUTDOOR
$196.20
W0284656 ELEC CONTROL BOX PCB ASSY
