ESE24CRB — 950001009 00
KELVINATOR — Air-Conditioner

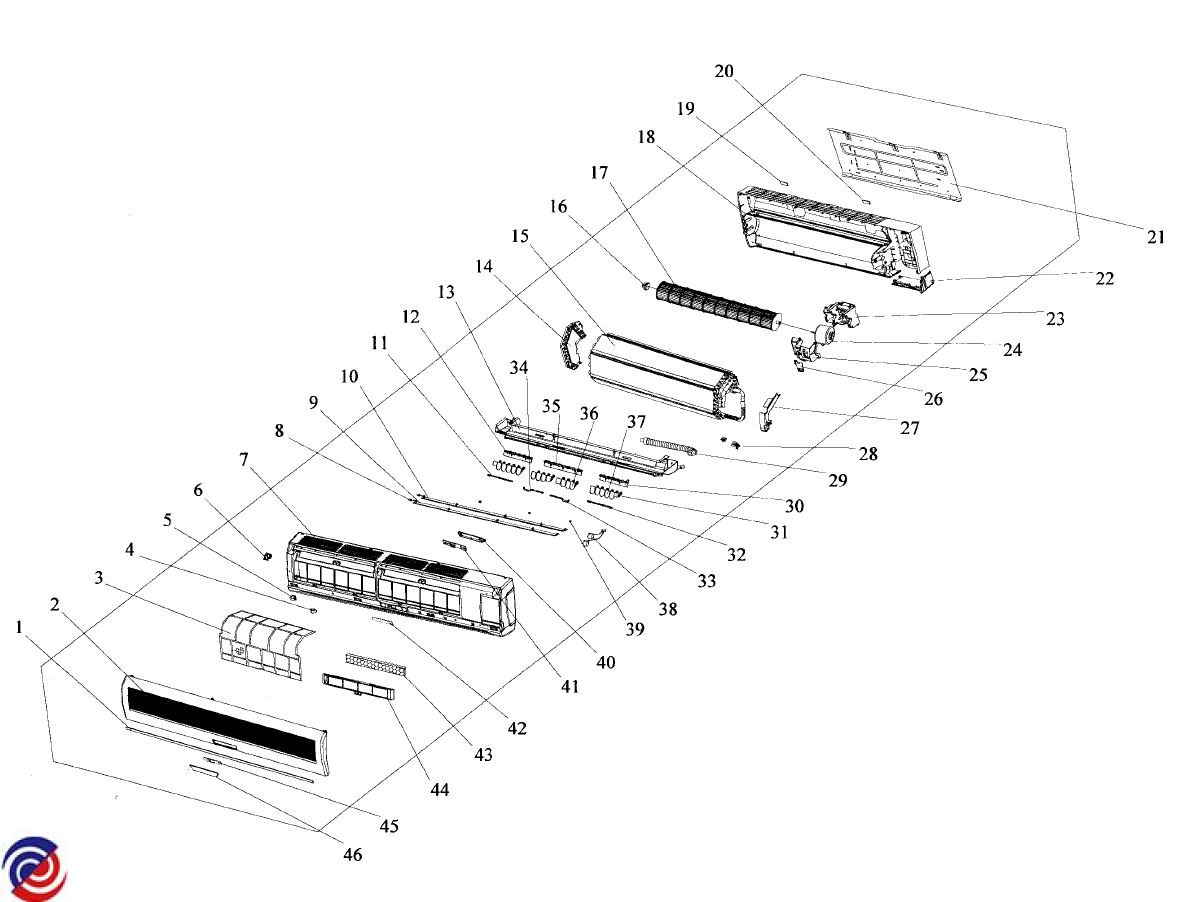

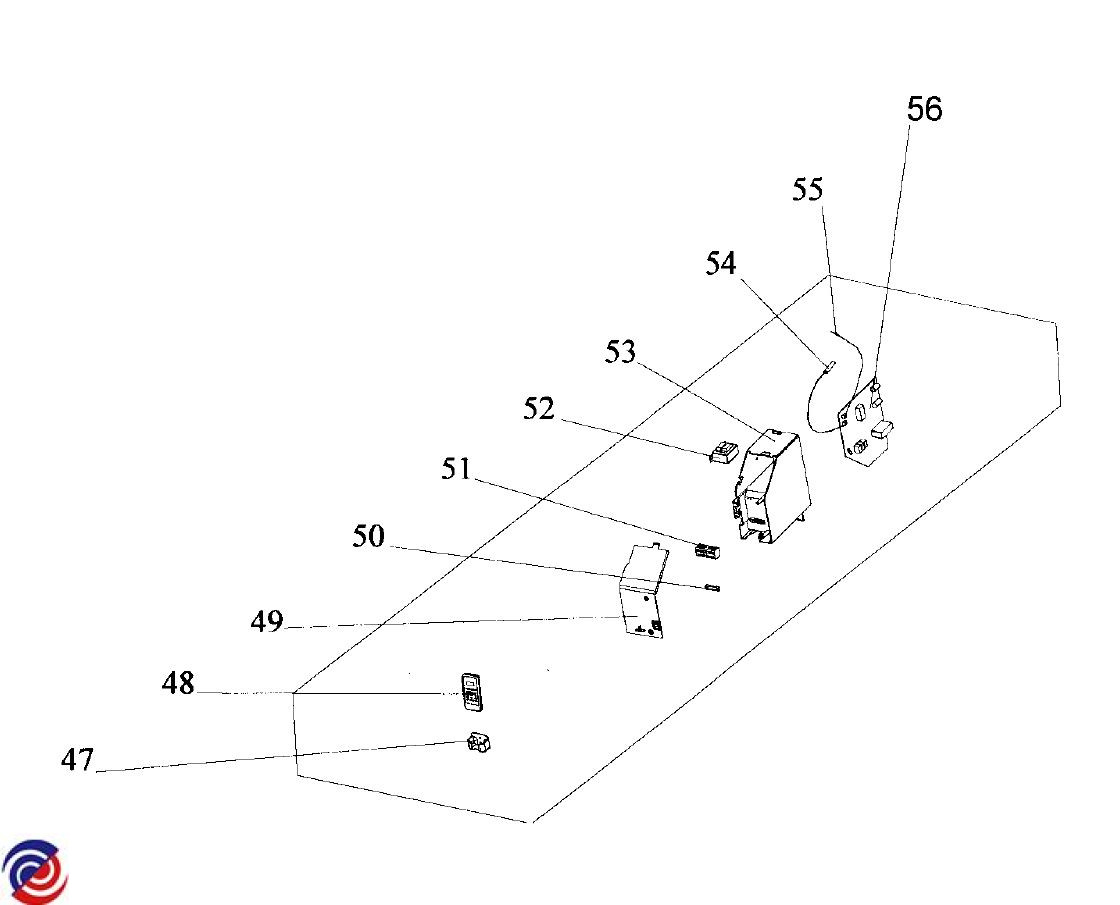

Parts for ESE24CRB
W0014468 BLADE FAN ASSY CROSS FLOW
.JPG)
W0014469 HOLDER BEARING
$7.30
.JPG)
W0018919 SENSOR TEMP INDOOR
W0067849 MOTOR LOUVRE
W0103211 HOSE DRAIN
W0014361 COVER TEMP SENSOR
$5.50
W0014451 INDICATOR HOLDER ESE24CRB
$6.60
W0014452 CAPAC 3UF 450V 2PIN SOLDER FAN
W0014467 LEFT CONNECTOR LOUVRE MSE30CR
$5.50
W0014470 COVER CHASSIS REAR LH
$11.00
W0014471 BACK COVER FOR CHASSIS, RIGHT
$11.00
W0014472 BRACKET FAN MOTOR INDOOR
$18.35
W0014473 FILTER AIR
W0014478 FUSE
W0021118 REMOTE CONTROL
W0068066 CLAMP TEMP SENSOR ESG21HRIA
W0068685 TRANSFORMER ESE21CRA
W0069058 WIRE JOINT 5P MSE30CR
W0069466 POWER CORD CLAMP MSE30CR
W0069570 PROTECTING PLATE ESE18HRB
W0069576 FRONT PANEL STRIP ESE24CRB
W0069577 EVAPORATOR ASSY
W0069578 OVERLAY ESE24CRB
W0069579 DISPLAY BOARD ENCLOSURE
W0069580 BOARD MAIN CONTROL ESE24CRB
W0069590 BUSH (LARGE) MSE30CR
W0069627 WATERPROOF BOARD ESE24CRB
W0069660 SCREW CAP MSE30CR
W0069661 DOWN CLAP FOR PANEL FRAME
$4.00
W0069662 CAP UPPER FRAME
$4.00
W0069665 LEFT MED CONNECTOR LOUVRE MSE3
W0069666 LOUVRE SMALL MSE30CR
W0069667 LOUVRE BIG
W0069668 LEFT HOLDER LOUVRE MSE30CR
W0069670 MED HOLDER LOUVRE
W0069671 MED LOUVRE MSE30CR
W0069672 BUSH SMALL
$4.00
W0069673 RIGHT HOLDER LOUVRE MSE30CR
W0069674 RIGHTR CONNECTOR MSE30CR
W0069675 RIGHT MED CONNECTOR LOUVRE
W0069676 LEFT HOLDER FOR EVAPORATOR
W0069677 INSTALLATION PLATE MSE30CR
W0069678 MOTOR FAN ESE30CRA
W0069679 COVER MOTOR
W0069680 MOTOR COVER II MSE30CR
W0069681 FILTER HOLDER
$7.00
W0069682 COVER E-PARTS BOX MSE30CR
W0070322 HOLDER REMOTE CONTROLLER MSE3
W0070655 NUT FLARE TLM B02 3/8 9.52MM
$7.70
W0072244 COPPER NUT TLM-D04 5/8 15.88MM
W0089787 EVAPORATOR TEMP SENSOR ESE09CR
W0090055 FILTER AIR
W0090056 PANEL FRAME MSE30CR
W0090057 DISPLAY BOARD ASSY ESE30CRA
W0090058 FRAME AIR OUT ASSY
W0090059 LOUVRE HORIZONTAL UP
W0090060 LOUVRE HORIZONTAL DOWN
W0090062 CHASSIS
$132.00
W0090064 E-PARTS BOX MSE30CR
W0090066 CORNER BOARD FOR CHASSIS
