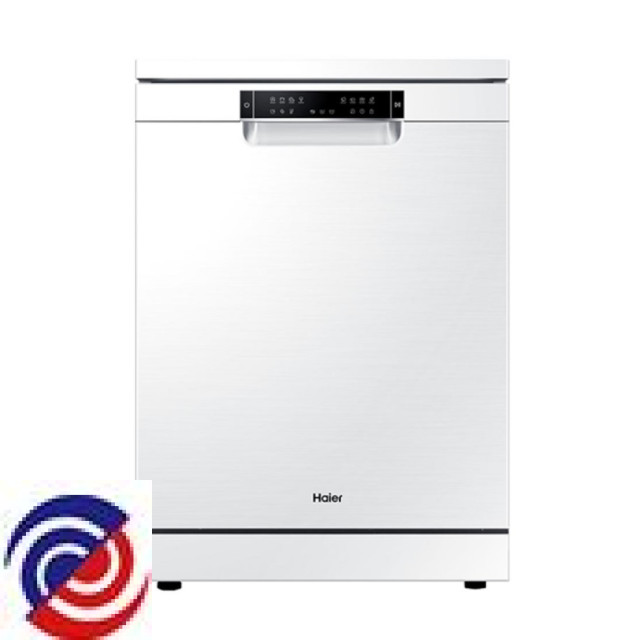

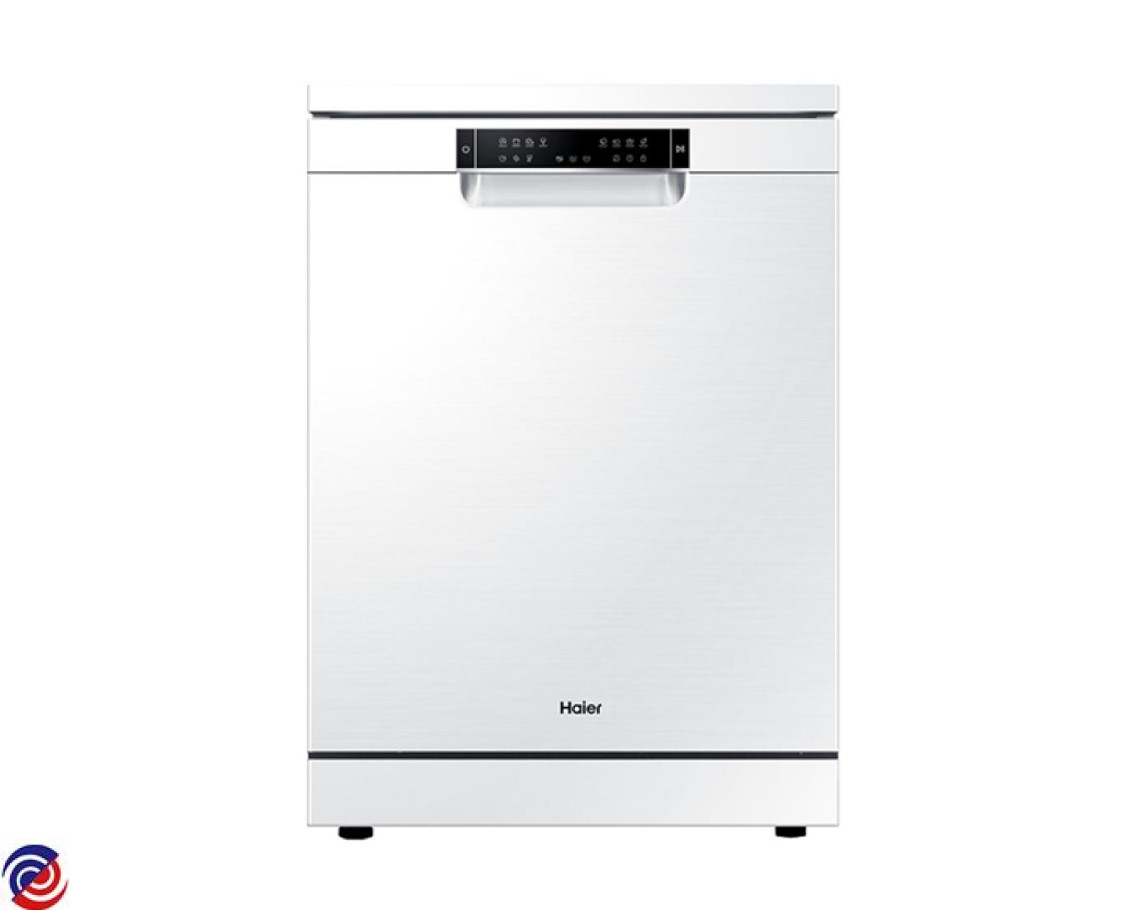

HDW15V2W1 — 61599-B
HAIER — Dishwasher
Parts for HDW15V2W1
W0186104 FISHER & PAYKEL DISHWASHER LOWER RACK WHEEL
$13.00
W0189030 UPPER SPRAYER BASE
$33.50
W0190000 HOSE DRAIN LONG
$65.00
W0191415 FISHER & PAYKEL/HAIER DISHWASHER CUTLERY BASKET-DW60 GREY
$30.00
W0192618 FISHER & PAYKEL/HAIER SECOND SPRAYER ASSEMBLY
$41.00
W0185088 BOLT
$4.50
W0185096 ORING THERMO LIMITER DDW9SST
$4.50
W0185381 AXEL STUB LOWER BASKET
$6.00
W0185615 SCREW M4 8
$4.50
W0185920 FLAP NON RETURN VALVE
$4.50
W0185921 FRAME NON RETURN VALVE
$4.50
W0185922 PLUG
$4.50
W0185923 BRACKET POWER SUPPLY CABLE
$4.50
W0185950 HOSE CLAMP
$8.00
W0185952 SCREW NST42 X 13
$4.50
W0185955 CLAMP DRAIN HOSE
$7.00
W0185958 SCREW ST5 20HB
$4.50
W0185960 BOLT
$4.50
W0185961 SCREW SELFTHREADING
$4.50
W0186107 O RING GASKET
$4.50
W0186691 CLAMP HOSE
$4.50
W0186764 ENDCAP RAIL
$4.50
W0186786 SPRAYER 3RD
$4.60
W0186932 CLIP FOLD DOWN
$9.90
W0186950 CLIP FOLD DOWN
$9.90
W0187021 NUT BREATHER RING WEIR
$4.50
W0187285 HOUSING FLAP VALVE
W0187378 VALVE FLAP UPPER SPRAYARM
$8.00
W0187379 NUT OUTER DUCT GREY
$7.90
W0187381 ORING AIR VENT
$14.00
W0187773 SCREEN SUMP OUTLET
$8.70
W0187880 FIRE BLANKET
$9.00
W0187957 COVER FOR SUMP
W0188054 HOSE OVERFLOW PLATE
$10.40
W0188086 FLOAT SUPPORT
$10.60
W0188132 PLATE WASH PUMP
$10.40
W0188205 FOOT FRONT FREESTANDING
$13.20
W0188208 FOOT REAR ADJUSTABLE FREESTAND
$13.30
W0188294 HOSE THERMO DRY
$16.46
W0188299 ORING GASKET WEIR
$13.90
W0188337 GASKET SEALING
$14.10
W0188447 FISHER & PAYKEL HAIER DISHWASHER TOP FOLD DOWN RACK
$15.10
W0188587 COVER DISPENSER
$14.00
W0188863 FRONT FOOT SUPPORT
$17.60
W0188912 HOSE
$20.00
W0189084 GUIDE DRAIN HOSE PKD
$17.60
W0189331 CLAMP HOSE 2032MM
$18.00
W0189363 HAIER DISHWASHER HOSE TOP SPRAYER
$32.95
W0189500 BRACKET MIDDLE REAR
$17.60
W0189604 HOSE DRAIN SHORT
$25.00
W0189994 DOOR SPRING
$21.50
W0189997 MOUNT RUBBER WASH PUMP
$17.80
W0189998 COVER LOWER SPRAYER
$17.20
W0190001 O RING GASKET
$21.50
W0190005 FLOAT
$21.50
W0190006 CLAMP HOSE
W0190007 ROPE CONNECTING SPRING
$21.50
W0190133 GRID CUTLERY BASKET
$22.20
W0190441 HINGE LEFT SPCC
$22.10
W0190552 HOSE DIVERTER OUTER DUCT
$23.80
W0190572 HINGE RIGHT SPCC
$22.80
W0190696 DOOR INSULATION
$24.10
W0190793 CLAMP HOSE 3250MM
$6.22
W0190825 GASKET INNER DOOR
$23.70
W0190865 OUTER DUCT
$25.10
W0191189 KNIFE RACK
$22.00
W0191234 LOWER SPRAYER
$35.00
W0191261 GASKET SUMP
$22.60
W0191615 SEAL TUBE TOP SPRAYARM
$35.00
W0192397 HOSE INLET ASSY AA TW KR
$38.40
W0192717 BRACKET LOWER FRONT
$29.50
W0193520 LIFTING MECHANISM RIGHT
$45.30
W0193588 BASEBOARD WH
$44.20
W0193662 SENSOR TEMPTURBIDITY EMZ
$48.70
W0193668 LIFTING MECHANISM LEFT
$46.20
W0194175 GASKET TUB
$47.30
W0194329 TRAY BOTTOM BASE
$48.20
W0194539 MOBILE RAIL INCLUDES WHEELS
$62.00
W0194578 FILTER ASSY DW60
$62.70
W0194641 WEIR INCL FLOW METER
$66.00
W0194654 PANEL SIDE RH WHITE
$53.00
W0194944 HOSE INLET LONG 2M PKD
$51.00
W0195430 SUMP ASSY
$66.00
W0195500 DETERGENT DISPENSER
$72.40
W0195554 DRAIN PUMP
$72.50
W0196745 PANEL SIDE LH WHITE
$92.80
W0196968 TOP ASSY COMPLETE WHITE
$96.10
W0198139 PANEL HINGE LOWER DOOR
$142.10
W0199045 WASH PUMP1PS HEATER ASSY
$295.23
W0281004 BRACKET LOWER REAR
$23.90
W0281042 POWER SUPPLY CABLE
$41.10
W0281056 PCB MAINBOARD WITH BOX COVER
$213.00
W0281068 MICRO SWITCH FLOAT SWITCH
$19.90
W0281069 SCREW ST35 13
$4.50
W0294271 COVER TOP TRANSITION GREY
$4.50
W0295639 TRANSITION TOP GREY
$19.00
W0298638 DOOR PANEL WH
$67.60
W0298645 SUPPORT CROSSPIECE UPPER REAR
$17.60
W0298648 DOOR SWITCH 1
$4.50
W0298649 DOOR SWITCH 2
$4.50
W0298650 PCB BOX COVER
$17.60
W0298659 VALVE INLET SPADE TERMINAL
$29.30
W0298660 HARNESS CONTROL CABLEPANEL
$39.80
W0298672 LOWER BASKET
$116.00
W0298679 PLATE PLASTIC OVERFLOW
$14.10
W0298680 HOUSING THERMO DRY
$24.30
W0298684 DISPLAY BOARD V2
$82.10
W0298686 DOOR LOCKHOOK ASSEMBLY
$47.70
W0298688 PCB MAINBOARD
$102.00
W0358802 COMB ADJUSTABLE LEFT HAND
$29.30
W0358803 COMB ADJUSTABLE RIGHT HAND
$29.30
