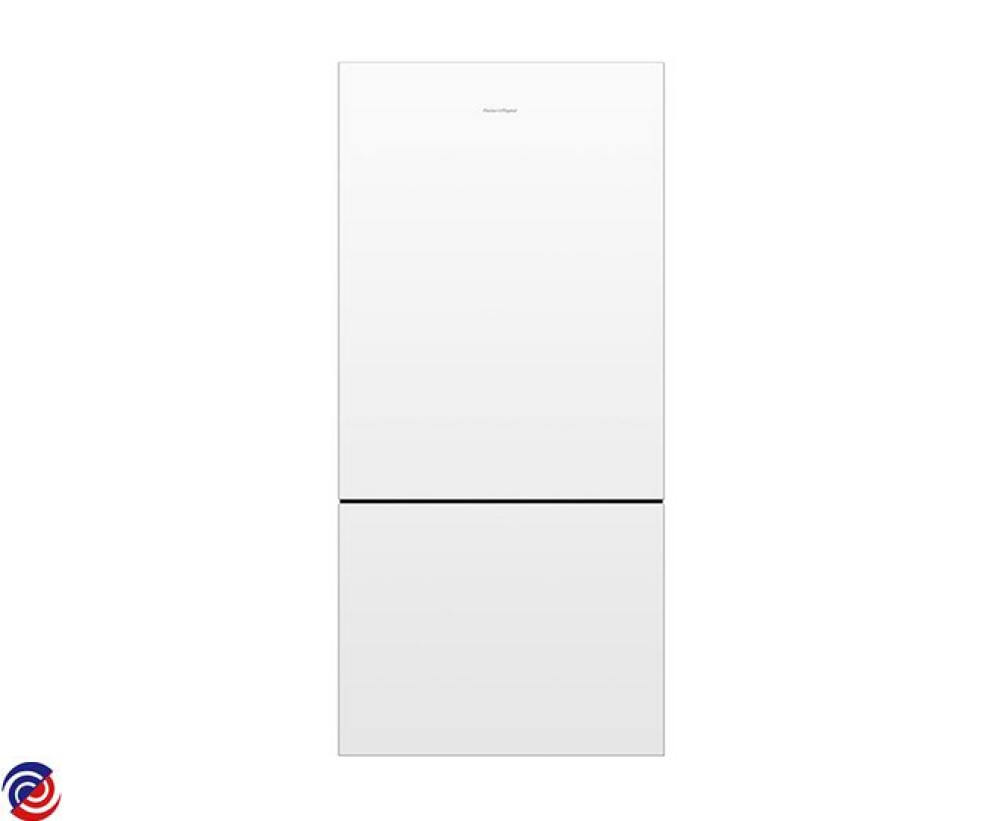

RF522BLPW6 — 25028-B
FISHER & PAYKEL — Fridge

W0187334 FISHER & PAYKEL FRIDGE SHELF SUPPORT BRACKET

$17.00

W0193970 BIN SMALL

$52.80

W0194894 FISHER & PAYKEL FRIDGE ACTIVE SMART SENSOR KIT

$75.00

W0195549 SHELF GL PC 790 ASSY SC

$84.83

W0177159 ADAPTOR JST REC TO MOLEX KIT

W0183801 CONNECTOR RAST 7234014500

W0185167 COVER PROTECTOR VEM

$4.50

W0185268 SCREW 10X19 AB 2 SQ TV PKT 10

$4.50

W0185289 CAP SCREW CROSS RAIL WHT PKD

$4.50

W0185297 INSULATION INSERT PID

$4.50

W0185356 SCREW 8 X12 SP PAN NIB TV PKT

$4.50

W0185383 PLUG DOOR BOTTOM WH

$4.50

W0185405 GROMMET COMPR MTG 26MM

W0185528 CLIP ACTIVE SMART BAFFLE

$4.50

W0185530 SCREW 832X9 TYT PHTV PKT 10

$4.50

W0185532 PKT SCREW 8X16 HEX

$4.50

W0185533 RETAINER 2 WAY YLS02V

$4.50

W0185535 CLIP EVAP BAFFLE

$4.50

W0185536 WIRE DRAIN HEATER DOUBLE B

$4.50

W0185539 COVER PLUG TYCO

$4.50

W0185546 COVER DOOR TOP NONHINGE WH

$4.50

W0185555 COVER DOOR BOT UD HINGE LH WH

$4.50

W0185561 COVER REED SWITCH P42 ST4 WH

$4.50

W0186182 RETAINER 3 WAY YLS03V

$4.50

W0186787 CLIP DEF HEATER B SHORT

$4.50

W0186816 JST PLUG 2PIN YLP02V

$4.80

W0186853 JST PLUG 4PIN YLP04V

$4.50

W0186902 CONNECTOR RAST 7234004500

$5.20

W0186939 BEARING HNGE TOP DR FLAT 900 W

$4.50

W0186940 BOOK UC AS B MODELS EUP UDO

$4.50

W0186975 COVER DOOR BOT NONHINGE LH WH

$5.50

W0187030 DIVIDER BOTTLE 522B

$5.80

W0187044 TRIM CORNER RECESSED WHITE

$5.80

W0187056 WHEEL LEVELING FOOT ASSY RC

$12.50

W0187080 JST SOCKET 2PIN YLR02V

W0187097 RETAINER HCL FRONT 790

$6.10

W0187119 JST SOCKET 3PIN YLR03V

$5.40

W0187134 CONNECTOR RAST 929002EE01

$5.50

W0187188 DEFLECTOR HEAT 790B

$5.50

W0187237 CLOSING HOOK DR STOP LHWHNOFLG

$6.90

W0187267 JST SOCKET 4PIN YLR04V

$5.90

W0187345 CLIP FOOT COMPRESSOR PKT 4

$6.70

W0187386 CONNECTOR RAST 929004EF02

$7.60

W0187448 TERMINAL SYF01T PKT 10

$7.30

W0187511 COVER DOOR SF TOP 790B

$7.20

W0187532 SLIDE CTRL HUMIDITY RH

$8.90

W0187533 SLIDE CTRL HUMIDITY LH

$8.90

W0187579 CONNECTOR RAST 7234003500

$7.90

W0187615 JST PLUG 6PIN YLP06V

$8.10

W0187663 CONNECTOR RAST 7234008500

$9.60

W0187730 COVER MAGNET DOOR UD WH

$8.30

W0187821 JST PLUG 8PIN YLP08V

$8.70

W0187829 JST SOCKET 6PIN YLR06VF

$9.10

W0187876 CONNECTOR RAST 7234010500

$10.90

W0187918 MAGNET DOOR SWITCH ST4

$11.00

W0187984 BOLT BLIND END HINGE BRACKET

$9.90

W0187996 BEARING HINGE WATER LH UD

$11.50

W0188011 SCREW 12X12 TAB CSK PH PKT10

$9.60

W0188115 SHIELD EVAP CHASSIS 790B

$10.30

W0188175 PLUG TAPPED HOLE WHITE PKT 3

$13.00

W0188206 CONNECTOR RAST 7234005500

$13.30

W0188248 TRAY ICE BASE

$13.40

W0188277 CONNECTOR RAST 929002AB01

$11.30

W0188278 CONNECTOR RAST 929002BA01

$11.30

W0188289 HOUSING FRONT LED PC

W0188328 JST SOCKET 8 PIN YLR08V

$11.70

W0188368 KIT SCW M5X20 HEX PH ST TV PKT

$14.50

W0188369 CONNECTOR RAST 7234006500

$14.50

W0188377 WHEEL CHASSIS ASSY

$14.60

W0188457 TRAY ICE LID

$15.20

W0188475 SCREW 6 X12 AB TRUSS PH ST TV

$15.20

W0188476 SCREW 8X22 WAFER PHIL TV PKD

$15.20

W0188478 SCREW 10X25 CSK SQ SS PK 10

$15.20

W0188578 CLIP SLIDE PKT X 2

$22.70

W0188594 WINDOW LED PC

$14.10

W0188686 COVER DOOR SF TOP 790B WH LH

$14.10

W0188856 GUIDE CTRL HUMIDITY RH

$17.60

W0188868 HARNESS EARTH 100MM

$16.30

W0188891 INSULATION COVER DUCT LONG B

$15.70

W0189025 GUIDE CTRL HUMIDITY LH

$17.60

W0189059 RAIL SHELF DOOR RF522W

$17.60

W0189144 COVER DUCT PC TOP B

$17.50

W0189146 ADAPTOR JST PLUG TO MOLEX KIT

$17.60

W0189168 DOOR STOP ASSY

$17.60

W0189639 SKID TRAY LH

$19.60

W0189708 CONNECTOR RAST 7234012500

$17.60

W0189827 SKID TRAY RH

$20.70

W0190058 SHIELD COVER 790B

$20.70

W0190112 SHELF DOOR SOLID 790

$18.30

W0190389 CONNECTOR RAST 7234017502

$21.90

W0190452 HARNESS VCC INV IEC EMB

$22.10

W0190663 COVER SHELF RF522W

$24.10

W0190726 SHELF DR BTM RF522W

$24.40

W0190975 POST COMP MTG 26MM PKT X4

$21.30

W0191361 DUCT RETURN AIR FC 680

$23.30

W0191399 BRACKET CTR HINGE LH PKD

$28.40

W0191510 BRACKET HINGE BASE LH PKD

$29.50

W0191573 DUCT RETURN AIR FC 790

$24.90

W0191599 TRAY EVAP AS

$30.20

W0191658 KIT WHEEL BRACKET CLIP

W0191660 GRILLE PC RETURN AIR B MODEL

$30.80

W0191887 CHASSIS EVAP 790B

$33.00

W0191951 LID HUMIDITY CTRL 790B

$38.00

W0192098 TRAY COMP MOUNTING 790 VCC

$30.50

W0192820 SWITCH REED FIELD FIX KIT ST4

$70.00

W0193613 RETAINER SLIDE FC B RH

$48.10

W0193614 RETAINER SLIDE FC B LH

$48.10

W0193707 KIT HARNESS DISPLAY 5 PIN

$47.30

W0193878 CORDSET PWR AUNZ ST41

$51.30

W0193895 TUBE EVAP TRAY FORMED HSHK 68

$51.50

W0193927 COVER FAN FC FRONT E790B

$52.10

W0194425 GASKET FRAME PUSHIN 790B FC

$76.00

W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH

$61.60

W0194732 GASKET FRAME PUSHIN 522B PC

$82.26

W0194835 COVER DUCT PC B LONG WATER

$56.00

W0194843 BIN SMALL 790

$96.00

W0195035 RETAINER SLIDE PC 790 LH ASSY

$71.20

W0195168 SLIDE 305 RH ASSY

$98.00

W0195169 SLIDE 305 LH ASSY

$104.64

W0195356 SHELF GL HCL 790B ASSY SC

$72.40

W0195545 SLIDE 355 RH ASSY

$79.81

W0195546 SLIDE 355 LH ASSY

$95.00

W0195634 HEATER DEFROST DBLE 230V 790

W0195638 RETAINER SLIDE PC 790 RH ASSY

$95.50

W0196309 MOD DISP AS U2 INT 6 BUTTON SV

W0196503 BIN LARGE 790 ASSY

$99.20

W0197555 PANEL BACK ASSY 1390X780

$112.70

W0197556 KIT JOINER WHITE AJRF17W

$100.20

W0197671 TUBE SUCTCAP ASSY 516 1LOOP

$117.20

W0197791 EVAP ASSY 790B 230V DP

$148.40

W0198274 DOOR FC 790X605 P WH LH

$158.20

W0198545 INVERTER VEMC9C 230V40TO150HZ

$241.33

W0200003 KIT VEMC9C STANDALONE 230V

$688.20

W0276606 FISHER & PAYKEL FRIDGE METAL REAR WHEEL/ROLLER

$48.00

W0277038 MOD CNTRL F AS51 120230V SVC

$207.90

W0279627 TRAY 790

$42.00

W0279675 KIT COVER HINGE LOW WHT L

$36.80

W0279897 MOD LAMP AS CEILING SVC

$72.40

W0279923 SUPPORT HINGE LOW NIW

$28.70

W0279999 DOOR PC 790X10525 P WH LH LGO

$314.00

W0280031 FAN FC 3W KIT 790 SERIES A TO

$135.00

W0280034 PC 3W FAN ASSY JSTDCT

$98.00

W0294960 COVER HINGE LOW NIW WH L

$37.30

W0294961 HINGE BRACKET
