E450R — 22100-A
FISHER & PAYKEL — Fridge

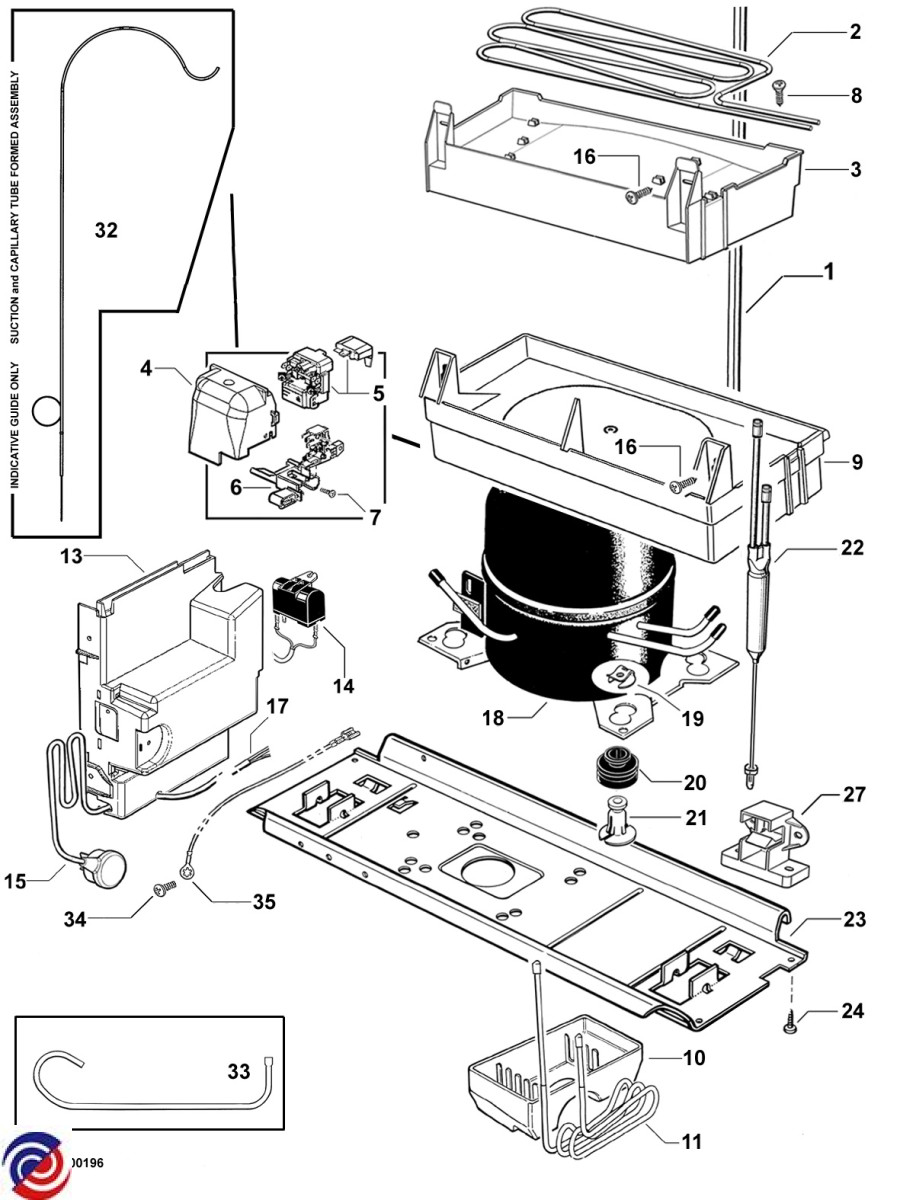

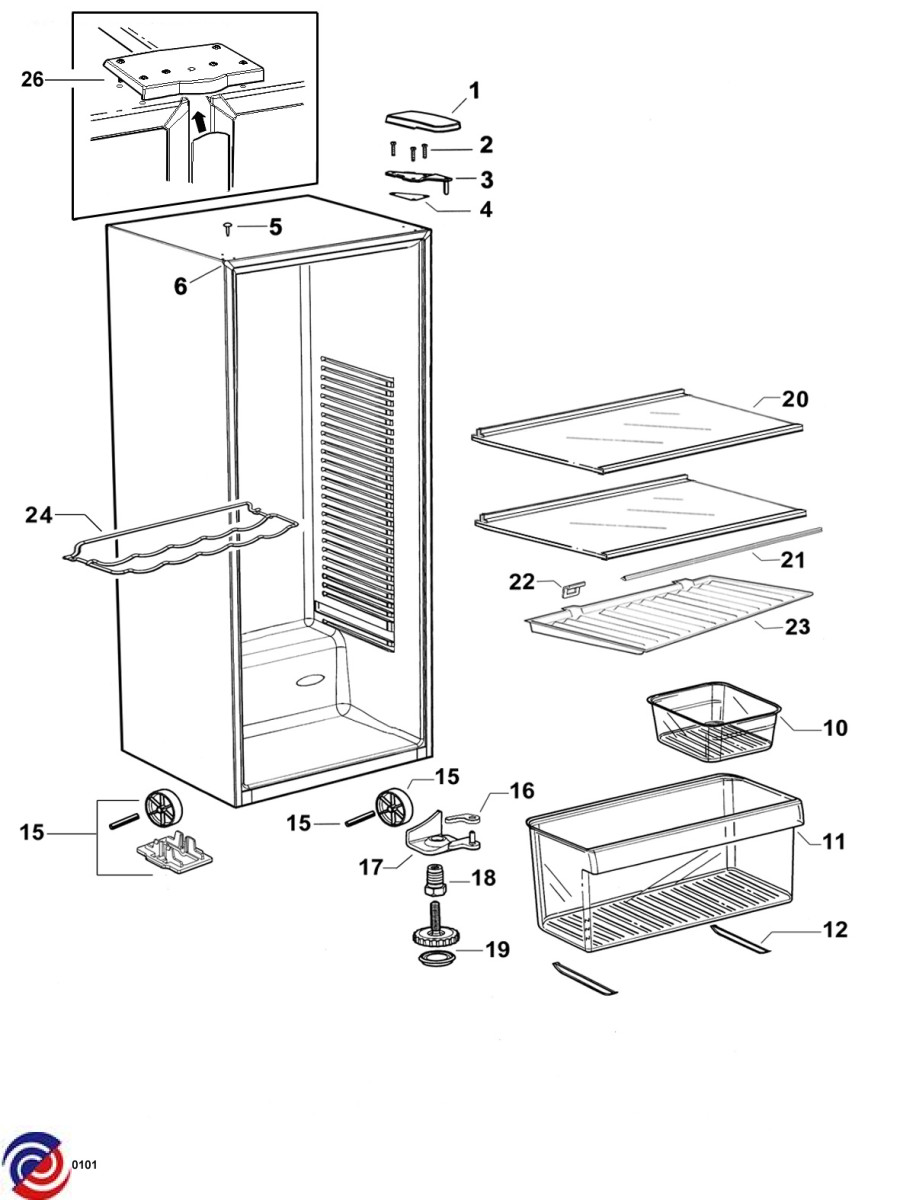

Parts for E450R
.JPG)

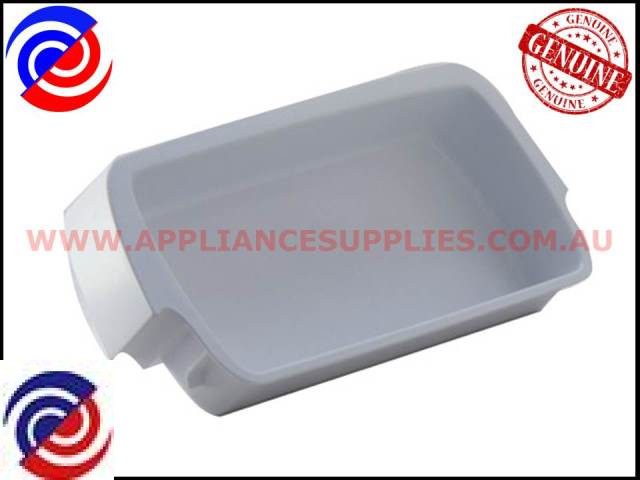

W0189092 FISHER & PAYKEL FRIDGE DOOR SHELF SML R/HAND-WHITE
$18.50
.JPG)
W0189523 FISHER & PAYKEL FRIDGE DOOR SHELF SML L/H-WHITE
$20.02
.JPG)
W0194289 SHELF DOOR LARGE 635
$58.00
.JPG)

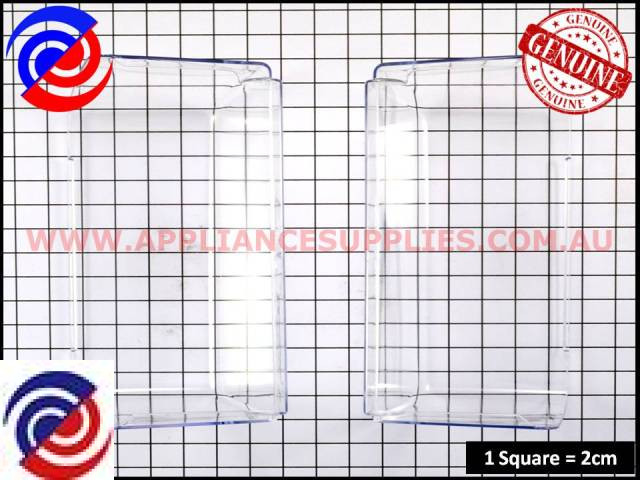

W0194806 FISHER & PAYKEL FRIDGE DAIRY COVER LIDS L/H & R/H (SOLD AS PAIR)
$73.00
W0177619 FAN BLADE 90 DIA
W0177628 CLIP FOOT COMPRESSOR
W0177970 CORD CLIP ACC 9N
W0178373 MOTOR FAN BRKT ASSY JRM 230V
W0178831 PLUG DOOR SHELF WHITE
W0179081 SUCTION CAPILLARY C425 ASSY
W0179218 RAIL BOTTLE SUPPORT 635
W0179269 BRACKET TOP HINGE ASSY PLATED
W0179328 DOOR PC WH635X1651 BS C450
W0179372 CAP HANDLE SCREW WHITE
W0183964 BRACKET BTTM HINGE RH PLATED
W0184221 BACK PANEL C450 ASSEMBLY
W0184670 BEARING DR CLOSING RH WH
W0185116 CLAMP CORD B SF SERIES
$4.50
W0185139 RETAINER 511400205 MLX
$4.50
W0185351 PLUG MALE 511380200 MLX
$4.50
W0185356 SCREW 8 X12 SP PAN NIB TV PKT
$4.50
W0185529 KNOB LIGHT SWITCH
$4.50
W0185530 SCREW 832X9 TYT PHTV PKT 10
$4.50
W0185562 POST COMPRESSOR MOUNTING TALL
$4.50
W0185568 COVER PLUG MOLEX
$4.50
W0186130 CAP FEMALE 511390200 MLX
$4.50
W0186597 EVAP CLIP ASSY 635
$4.50
W0186600 CAP FEMALE 511390600 MLX
$4.50
W0186815 CLIP DEFROST SENSOR
$4.80
W0186819 PIN 1622AWG 505998100 MLX
$4.50
W0187044 TRIM CORNER RECESSED WHITE
$5.80
W0187056 WHEEL LEVELING FOOT ASSY RC
$12.50
W0187099 SOCKET 1622AWG 505978100 MLX
$5.30
W0187165 BRACKET HCL SUPPORT T GL SH
$6.50
W0187182 SCREW 10X32X95 TYP PAN PKT10
$5.80
W0187208 KNOB CONTROL ASSY
$5.80
W0187295 COVER TOP HINGE WH
$7.30
W0187454 TERMINAL PHASE CONTROL BOX
$8.40
W0187577 TERMINAL SPRING CONT BOX 635
$9.10
W0187869 CAM CONTROL BOX
$10.80
W0187947 FOOT CRISPER RUNNER TPKT2
$11.30
W0187985 SCREW 8X16 SP PAN NIB ST PKT10
$9.90
W0188056 DUCT CONTROL BOX 635
$10.40
W0188172 EXTRUSION HCL SUPPORT 635680
$13.00
W0188175 PLUG TAPPED HOLE WHITE PKT 3
$13.00
W0188368 KIT SCW M5X20 HEX PH ST TV PKT
$14.50
W0188370 SCREW 8X20 PAN PH SS PK 10
$14.50
W0188412 NAMEPLATE FP ELEGTASMAN
$14.80
W0188476 SCREW 8X22 WAFER PHIL TV PKD
$15.20
W0188477 SCREW M4X10 TRUSS PH PKT X 10
W0188586 DIVIDER BOTTLE RAIL WHITE
$16.10
W0188641 TERMINAL NEUTRAL CONTROL BOX
$16.70
W0188660 HEAT SHIELD INSUL E450373
$14.70
W0188931 BOLT BTTM HINGE BRKT TV
$16.90
W0189061 CAP DOOR END OUTER WH 635
$17.60
W0189560 SHELF EGG RACK 635
$19.20
W0189594 LAMP 230V 15W SES
W0189818 COVER PROTECTOR MAT SF230V
$17.60
W0190781 HARNESS COMP 3
$20.40
W0190805 COVER EVAP INNER SHOWA
$33.00
W0191371 COVER CONTROL BOX
$24.50
W0191658 KIT WHEEL BRACKET CLIP
W0191747 TRAY CRISPER T 635
$27.60
W0191895 EVAP DEFLECTOR SHOWA
$36.00
W0192156 HARNESS THERMAL FUSE 635
W0192166 COVER EVAP REAR E373E450
$49.00
W0193064 LID HUMIDITY CONTROL T 635680
$46.10
W0193227 BASE CONTROL BOX
$47.30
W0193878 CORDSET PWR AUNZ ST41
$51.30
W0193895 TUBE EVAP TRAY FORMED HSHK 68
$51.50
W0194146 HANDLE DR SINGLE MOULD WH
$67.00
W0194335 BRACKET STABILITY ASSY
$55.60
W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH
$61.60
W0194549 COVER DUCT PC E450
$51.50
W0194747 BIN CRISP 635 T MOULDED
$66.10
W0200109 RELAYOLOAD MAT 6SP 7015 230V
W0200128 COMPR PKD MAT SF48C91RAW5
W0200935 THERMISTOR KIT
W0200965 CAP 40UF 450V RAST5 P2
W0200977 BOOKLET UC LOCALUKROW
W0200986 SHELF GL PC 635 ASSY ALI TRIM
W0201026 KIT JOINER WHITE
W0201030 LEAFLET WARRANTY NZ AUST
W0201039 HARNESS CONTROL BOX
W0201061 TRAY COMP MOUNTING 635
W0201063 MOD CNTRL RF DTC 110230V SVC
W0201067 TRAY WATER EVAP
W0201181 GASKET ASSY C450 PC LGREY
W0201191 BEARING HINGE RH WH LIP 635
W0201197 COVER HGE DR 635 RHTLHBWH LIP
W0201198 COVER HGE DR 635 LHTRHBWH LIP
W0201209 CAP DOOR CLOSING RH HGE BRKT G
W0279040 CLAMP CORD A SF SERIES
$4.50
W0279702 GASKET TOP HINGE
$5.90
