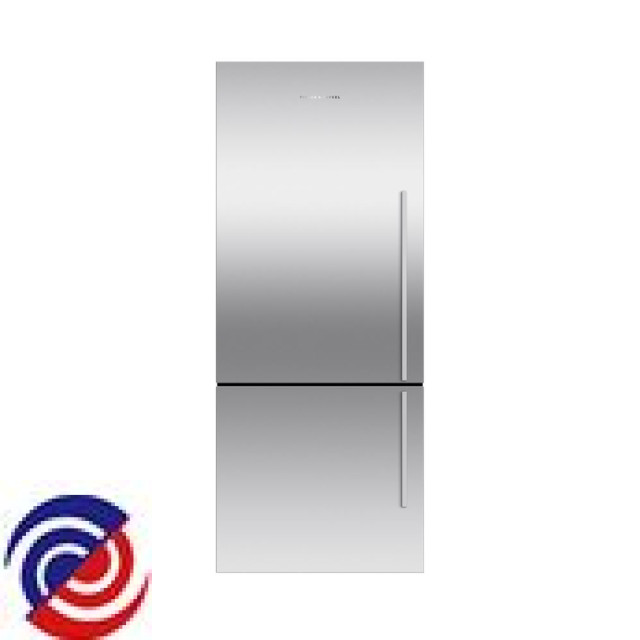

E442BLXFDJ5 — 24817-A
FISHER & PAYKEL — Fridge

W0187334 FISHER & PAYKEL FRIDGE SHELF SUPPORT BRACKET

$17.00

W0187391 PLUGPIN HGE DAIRY COVER PKT 2

$14.00

W0189764 BOSS HANDLE FLAT SPARES KIT

$20.32

W0189834 SHELF EGG RACK 680

$20.80

W0191203 SHELF DOOR SMALL RH 680

$34.00

W0191574 FISHER & PAYKEL FRIDGE BOTTLE SHELF SUPPORT RAIL 680

$31.50

W0191983 COVER COMPARTMENT 680 LH MOULD

$33.80

W0191984 COVER COMPARTMENT 680 RH MOULD

$33.80

W0193970 BIN SMALL

$52.80

W0194718 FISHER & PAYKEL FRIDGE FULL DOOR SHELF 680 LARGE

$80.00

W0194894 FISHER & PAYKEL FRIDGE ACTIVE SMART SENSOR KIT

$75.00

W0196940 FISHER & PAYKEL FRIDGE FAN

$125.00

W0197375 FISHER & PAYKEL FRIDGE ICEMAKER & TRAY-E402/E442B/E522/RF522

$184.00

W0198805 MOD CNTRL GLTH M5T ROHS 220V S

W0279677 FILTER WATER REF FWC3

$84.00

W0279691 BRACKET FILTER WATER ASSY

$30.20

W0176063 CLOSING HOOK DR STOP GR LH

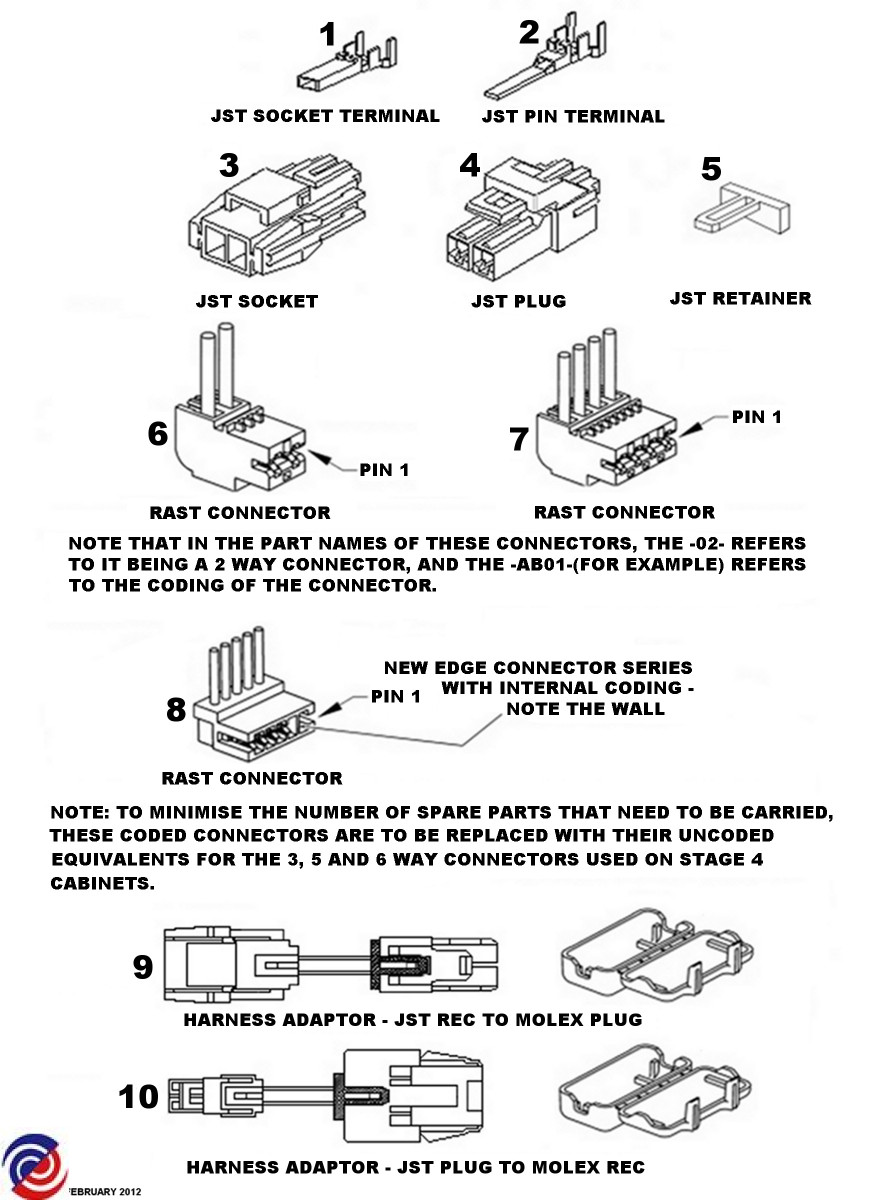

W0177159 ADAPTOR JST REC TO MOLEX KIT

W0183801 CONNECTOR RAST 7234014500

W0185167 COVER PROTECTOR VEM

$4.50

W0185268 SCREW 10X19 AB 2 SQ TV PKT 10

$4.50

W0185289 CAP SCREW CROSS RAIL WHT PKD

$4.50

W0185297 INSULATION INSERT PID

$4.50

W0185356 SCREW 8 X12 SP PAN NIB TV PKT

$4.50

W0185397 TRIM CORNER SILVER 680790

$4.50

W0185405 GROMMET COMPR MTG 26MM

W0185528 CLIP ACTIVE SMART BAFFLE

$4.50

W0185530 SCREW 832X9 TYT PHTV PKT 10

$4.50

W0185532 PKT SCREW 8X16 HEX

$4.50

W0185533 RETAINER 2 WAY YLS02V

$4.50

W0185535 CLIP EVAP BAFFLE

$4.50

W0185536 WIRE DRAIN HEATER DOUBLE B

$4.50

W0185539 COVER PLUG TYCO

$4.50

W0185542 SPIGOT FILL ICE MAKER

$4.50

W0185561 COVER REED SWITCH P42 ST4 WH

$4.50

W0185567 COVER REED SWITCH ST4 SILVER

$4.50

W0186182 RETAINER 3 WAY YLS03V

$4.50

W0186722 BEARING HINGE WATER LH

$4.50

W0186781 PLUG TAPPED HOLE SILVER PKT 3

$4.50

W0186782 CAP SCREW CROSS RAIL SILVER

$4.50

W0186787 CLIP DEF HEATER B SHORT

$4.50

W0186808 LEVER BIN DETECT

$4.70

W0186816 JST PLUG 2PIN YLP02V

$4.80

W0186853 JST PLUG 4PIN YLP04V

$4.50

W0186894 FOAM CLIP SENSOR

$5.20

W0186902 CONNECTOR RAST 7234004500

$5.20

W0186986 BOOK USECARE BOOK NZAUROW

W0186991 PLUG DOOR SHELF WHITE PKT 2

$5.60

W0187043 COVER MAGNET DOOR FLAT

$5.00

W0187056 WHEEL LEVELING FOOT ASSY RC

$12.50

W0187080 JST SOCKET 2PIN YLR02V

W0187090 CLIP SENSOR ICE TRAY

$7.00

W0187119 JST SOCKET 3PIN YLR03V

$5.40

W0187134 CONNECTOR RAST 929002EE01

$5.50

W0187267 JST SOCKET 4PIN YLR04V

$5.90

W0187269 COVER DOOR HINGE LH SL

$7.10

W0187345 CLIP FOOT COMPRESSOR PKT 4

$6.70

W0187386 CONNECTOR RAST 929004EF02

$7.60

W0187448 TERMINAL SYF01T PKT 10

$7.30

W0187453 BEARING HINGE TOP DOOR FLAT GR

$8.40

W0187532 SLIDE CTRL HUMIDITY RH

$8.90

W0187533 SLIDE CTRL HUMIDITY LH

$8.90

W0187538 TRAY ICE AUTO LARGE

$18.00

W0187579 CONNECTOR RAST 7234003500

$7.90

W0187615 JST PLUG 6PIN YLP06V

$8.10

W0187626 CLOSING HOOK DR STOP LH GR M90

$9.00

W0187663 CONNECTOR RAST 7234008500

$9.60

W0187802 TRIM CORNER DOOR FLAT SL

$10.30

W0187821 JST PLUG 8PIN YLP08V

$8.70

W0187829 JST SOCKET 6PIN YLR06VF

$9.10

W0187876 CONNECTOR RAST 7234010500

$10.90

W0187918 MAGNET DOOR SWITCH ST4

$11.00

W0187984 BOLT BLIND END HINGE BRACKET

$9.90

W0188011 SCREW 12X12 TAB CSK PH PKT10

$9.60

W0188012 LEVER GEAR BOX ICE

$14.00

W0188057 SHIELD EVAP B CHASSIS

$9.90

W0188134 RETAINER HCL FRONT 680

$11.00

W0188206 CONNECTOR RAST 7234005500

$13.30

W0188248 TRAY ICE BASE

$13.40

W0188250 DEFROST HTR CHASSIS PKD

$11.10

W0188277 CONNECTOR RAST 929002AB01

$11.30

W0188278 CONNECTOR RAST 929002BA01

$11.30

W0188289 HOUSING FRONT LED PC

W0188328 JST SOCKET 8 PIN YLR08V

$11.70

W0188367 KIT BLOWER FIXTURES

$14.50

W0188368 KIT SCW M5X20 HEX PH ST TV PKT

$14.50

W0188369 CONNECTOR RAST 7234006500

$14.50

W0188377 WHEEL CHASSIS ASSY

$14.60

W0188457 TRAY ICE LID

$15.20

W0188475 SCREW 6 X12 AB TRUSS PH ST TV

$15.20

W0188476 SCREW 8X22 WAFER PHIL TV PKD

$15.20

W0188478 SCREW 10X25 CSK SQ SS PK 10

$15.20

W0188525 SCOOP ICE

$15.60

W0188577 TRIM DOOR DESIGNER SL

$13.90

W0188578 CLIP SLIDE PKT X 2

$22.70

W0188586 DIVIDER BOTTLE RAIL WHITE

$16.10

W0188594 WINDOW LED PC

$14.10

W0188729 SCREW CAP M5X14 PKT 10

$14.50

W0188856 GUIDE CTRL HUMIDITY RH

$17.60

W0188868 HARNESS EARTH 100MM

$16.30

W0188891 INSULATION COVER DUCT LONG B

$15.70

W0188959 SCREW M6X12 PAN SS PKT 10

$17.60

W0189025 GUIDE CTRL HUMIDITY LH

$17.60

W0189144 COVER DUCT PC TOP B

$17.50

W0189146 ADAPTOR JST PLUG TO MOLEX KIT

$17.60

W0189168 DOOR STOP ASSY

$17.60

W0189182 SHIELD COVER 680B

$17.60

W0189593 BOTTLE HOLDER SINGLE ASSY

$17.50

W0189639 SKID TRAY LH

$19.60

W0189708 CONNECTOR RAST 7234012500

$17.60

W0189827 SKID TRAY RH

$20.70

W0189944 SCREW M5X40 CAP PKT 10

$21.50

W0190117 LID HUMIDITY CTRL 680B

$22.10

W0190389 CONNECTOR RAST 7234017502

$21.90

W0190452 HARNESS VCC INV IEC EMB

$22.10

W0190484 CHASSIS EVAP 635 B

$19.40

W0190698 SHIELD DRAIN HTR DRAIN 680 B

$20.00

W0190975 POST COMP MTG 26MM PKT X4

$21.30

W0191204 SHELF DOOR SMALL LH 680

$28.00

W0191361 DUCT RETURN AIR FC 680

$23.30

W0191399 BRACKET CTR HINGE LH PKD

$28.40

W0191510 BRACKET HINGE BASE LH PKD

$29.50

W0191599 TRAY EVAP AS

$30.20

W0191658 KIT WHEEL BRACKET CLIP

W0191660 GRILLE PC RETURN AIR B MODEL

$30.80

W0191724 TRAY COMP MOUNTING 680 VCC

$26.00

W0192354 RETAINER SLIDE PC 680 RH ASSY

$36.10

W0192368 ICE FILL TUBE HEATER KIT MK2

$33.10

W0192377 RETAINER SLIDE PC 680 LH ASSY

$36.40

W0192561 HOUSING ICE MAKER

$39.90

W0192820 SWITCH REED FIELD FIX KIT ST4

$70.00

W0193151 FISHER & PAYKEL FRIDGE ICEMAKER SENSOR WIRE KIT

$50.00

W0193183 COVER FAN FRONT 680B

$47.30

W0193277 BIN AND SCOOP ASSY

$65.00

W0193381 ADAPTOR TAP 14 OD X 12BSP

$47.30

W0193613 RETAINER SLIDE FC B RH

$48.10

W0193614 RETAINER SLIDE FC B LH

$48.10

W0193878 CORDSET PWR AUNZ ST41

$51.30

W0193895 TUBE EVAP TRAY FORMED HSHK 68

$51.50

W0194333 SHELF GL PC 680 ASSY SC

$84.12

W0194394 BIN SMALL 680

$59.40

W0194459 KIT HARNESS DISPLAY 10 PIN

$50.10

W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH

$61.60

W0194648 SHELF GL HCL 680B ASSY SC

$63.90

W0194832 HANDLE D3 374 BRUSHED

$58.80

W0194835 COVER DUCT PC B LONG WATER

$56.00

W0195095 MOD LAMP AS 2LED ROHS SVC

$72.40

W0195168 SLIDE 305 RH ASSY

$98.00

W0195169 SLIDE 305 LH ASSY

$104.64

W0195173 FISHER & PAYKEL FRIDGE DEFROST HEATER-RF442BRPW6

$72.40

W0195286 TRAY 680

$72.40

W0195545 SLIDE 355 RH ASSY

$79.81

W0195546 SLIDE 355 LH ASSY

$95.00

W0195666 VALVE ICE WATER 16 WATT

$79.00

W0195726 HANDLE D3 612 BRUSHED

$80.10

W0196097 GASKET FRAME E442B E406B

$123.00

W0196116 BIN LARGE 680 ASSY

$88.80

W0196226 GEARBOX ICE MAKER

$91.60

W0196409 VALVE PRESS LIMIT 600KPA 85PSI

$121.00

W0196463 MOD DISP AS U2 INT 8 BUTTON SV

$97.90

W0197557 KIT JOINER SILVER AJRF17X

$102.00

W0197567 EVAP ASSY 680B 230V DP

$118.60

W0197671 TUBE SUCTCAP ASSY 516 1LOOP

$117.20

W0197803 PANEL BACK ASSY 1390X670

$123.20

W0197882 FISHER & PAYKEL FREEZER FAN MOTOR KIT-680 series

$185.00

W0198474 DOOR FC 680X610 F SX LH

$172.30

W0198545 INVERTER VEMC9C 230V40TO150HZ

$241.33

W0199523 DOOR PC 680X1052 F SX LH

W0200003 KIT VEMC9C STANDALONE 230V

$688.20

W0201703 CAP DOOR CLOSING LH HGE BRKT

W0276606 FISHER & PAYKEL FRIDGE METAL REAR WHEEL/ROLLER

$48.00

W0279682 HEAD FILTER WATER 90 DEG FS

W0279688 KIT COVER HINGE LOW GRY LH

$20.40

W0279692 BRACKET WALL PLV

$4.50

W0279693 KIT INSTALL FILTER WATER AU

W0279923 SUPPORT HINGE LOW NIW

$28.70

W0279925 COVER HINGE LOW NIW GRY L

$33.10

W0294961 HINGE BRACKET

W0297321 CLIP LOCKING IW

$4.50

W0297322 TUBE FILTER WATER 14 500MM

$4.90
