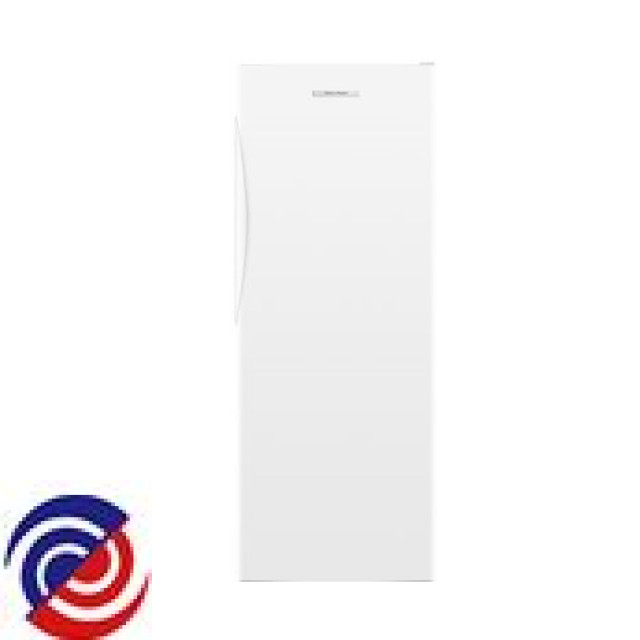

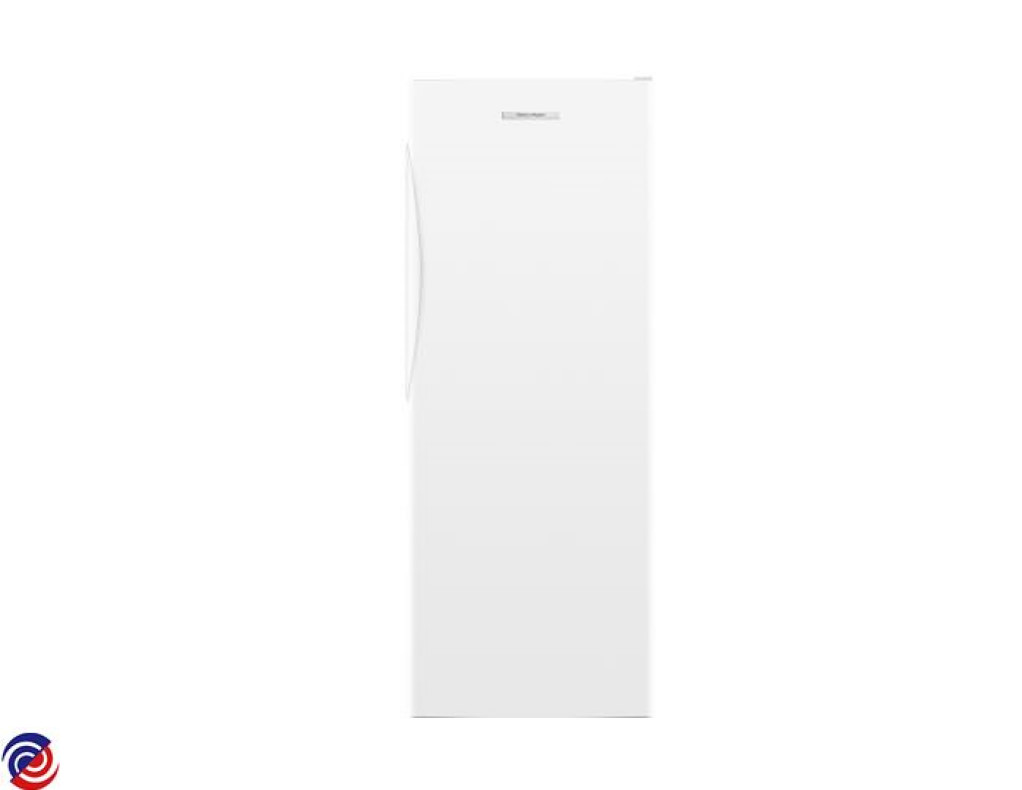

E388RW1 — 25053-A
FISHER & PAYKEL — Fridge
Parts for E388RW1
W0177251 BOOKLET UC NONIW NZAUUKIE
W0177553 CLIP COVER 01245233
W0179138 FOOT LEVELLING ASSEMBLY
W0179269 BRACKET TOP HINGE ASSY PLATED
W0179372 CAP HANDLE SCREW WHITE
W0183964 BRACKET BTTM HINGE RH PLATED
W0184670 BEARING DR CLOSING RH WH
W0185139 RETAINER 511400205 MLX
$4.50
W0185149 FILTER P CATCHER DRAIN
$4.50
W0185351 PLUG MALE 511380200 MLX
$4.50
W0185370 TRIM CORNER WHITE
$4.50
W0185531 SCREW 8X16 SP PAN NIB TV PKT
$4.50
W0185561 COVER REED SWITCH P42 ST4 WH
$4.50
W0185562 POST COMPRESSOR MOUNTING TALL
$4.50
W0185568 COVER PLUG MOLEX
$4.50
W0186130 CAP FEMALE 511390200 MLX
$4.50
W0186724 CLIP OLOAD 01246801
$4.50
W0186732 COVER TERMINAL FAN
$4.60
W0186815 CLIP DEFROST SENSOR
$4.80
W0186819 PIN 1622AWG 505998100 MLX
$4.50
W0186900 POST EVAPORATOR TOP
$5.20
W0187099 SOCKET 1622AWG 505978100 MLX
$5.30
W0187295 COVER TOP HINGE WH
$7.30
W0187345 CLIP FOOT COMPRESSOR PKT 4
$6.70
W0187549 GROMMET EVAP TUBE
$7.50
W0187580 CLIP EVAP PLATE
$9.10
W0187712 COVER FC TRIM
$8.20
W0187918 MAGNET DOOR SWITCH ST4
$11.00
W0187985 SCREW 8X16 SP PAN NIB ST PKT10
$9.90
W0188175 PLUG TAPPED HOLE WHITE PKT 3
$13.00
W0188248 TRAY ICE BASE
$13.40
W0188368 KIT SCW M5X20 HEX PH ST TV PKT
$14.50
W0188412 NAMEPLATE FP ELEGTASMAN
$14.80
W0188457 TRAY ICE LID
$15.20
W0188475 SCREW 6 X12 AB TRUSS PH ST TV
$15.20
W0188476 SCREW 8X22 WAFER PHIL TV PKD
$15.20
W0188868 HARNESS EARTH 100MM
$16.30
W0188931 BOLT BTTM HINGE BRKT TV
$16.90
W0189026 GROMMET FAN MOUNTING N210 WH
$17.60
W0189061 CAP DOOR END OUTER WH 635
$17.60
W0189159 GASKET EVAP COVER FF
$17.60
W0189652 GROMMET COMP MOUNT PKT 4
$17.60
W0190781 HARNESS COMP 3
$20.40
W0190854 FISHER & PAYKEL FRIDGE FAN GRILLE COVER
$25.00
W0191482 COVER PROTECTOR 01899
$24.20
W0191599 TRAY EVAP AS
$30.20
W0191658 KIT WHEEL BRACKET CLIP
W0191940 RUNNER FC ASSY 635790 BVF LH
$33.40
W0191941 RUNNER FC ASSY 635790 BVF RH
$35.00
W0192820 SWITCH REED FIELD FIX KIT ST4
$70.00
W0193727 FISHER & PAYKEL FREEZER BASKET FRONT TRIM - 635 WHITE
$49.50
W0193878 CORDSET PWR AUNZ ST41
$51.30
W0193895 TUBE EVAP TRAY FORMED HSHK 68
$51.50
W0194146 HANDLE DR SINGLE MOULD WH
$67.00
W0194385 TUBE SUCT CAP FORMED ASSY
$56.40
W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH
$61.60
W0194842 SHELF FC TOP 635BVF WHITE
$67.70
W0196177 BASKET FC BOTTOM 635BVF
$78.60
W0196282 BASKET FC 635 N388308 POSN 2
$93.10
W0196400 BASKET FC CYCLIC 635BVF
$96.60
W0198198 PANEL BACK ASSY 400H395BN388
W0199579 COMPR PAN DGH77C13RAW PKD 220V
W0200110 OVERLOAD MAT 5TM232NHBYY
W0200926 COVER FAN MOTOR
W0200935 THERMISTOR KIT
W0200965 CAP 40UF 450V RAST5 P2
W0201013 GASKET PUSHIN 635X1626 FC LG
W0201058 FAN BLADE 102MM VF 635
W0201061 TRAY COMP MOUNTING 635
W0201064 CLIP EVAP BAFFLE 60MM
W0201066 HEATER DEFROST E308E388
W0201191 BEARING HINGE RH WH LIP 635
W0201197 COVER HGE DR 635 RHTLHBWH LIP
W0201198 COVER HGE DR 635 LHTRHBWH LIP
W0201209 CAP DOOR CLOSING RH HGE BRKT G
W0279702 GASKET TOP HINGE
$5.90
W0280025 DOOR FC 635X1651 C WH E388 LGO
