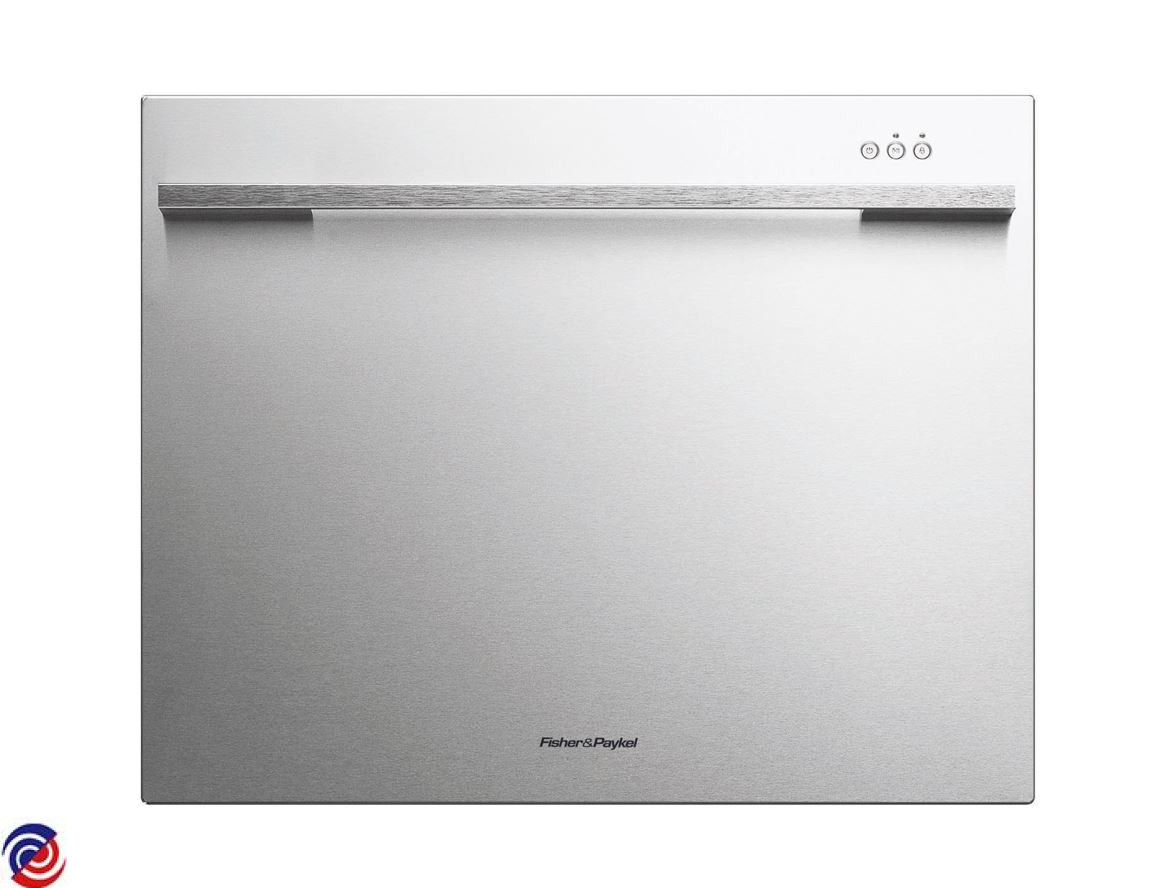

DD60SDFTX7 — 80889-A
FISHER & PAYKEL — Dishwasher
Parts for DD60SDFTX7
.JPG)
W0175944 KIT DRAIN HOSE 605
W0186563 LOCKNUT FPLATE MID GREY
$4.50
W0188612 FISHER & PAYKEL DISHDRAWER ROTOR O-RING RED
W0189874 FISHER & PAYKEL DISHDRAWER CUP RACK R/H DD60S/D 80MM ASSY
$32.90
W0190365 FISHER & PAYKEL DISHDRAWER RACK CUP L/H DD60 100MM
$42.02
W0192829 FISHER & PAYKEL DISHDRAWER CUP RACK(PKT4) DD60/90S
$49.02
W0194889 ADJUSTABLE CROCKERY INSERT
$95.00
W0196838 KIT LID ACTUATORS 605 PKT 2
$143.00
W0196946 FISHER & PAYKEL DISHDRAWER DETERGENT DISPENSER
$150.00
W0198408 KIT HEATER PLATE 605 230V NZ
$115.00
W0198650 FISHER & PAYKEL DISHDRAWER CONTROL PCB-DD60
$245.00
W0175945 MOTOR ROTOR ASSY 605 SP
W0176539 PRISM TUB HOME 2MM LOW
W0176639 MOD CHAS 525 PH51 SGL 230V SV
W0177116 HANDLE D2 ASSY 565 B
W0185146 RETAINER LINK
$4.50
W0185259 GROMMET 605 CHASSIS MODULE
W0185260 RETAINER FLAP FAN HOUSING 605
$4.50
W0185271 CLAMP HOSE TYPE 1223217
$4.50
W0185444 PIN DOOR MID GREY
$4.50
W0185445 FLAP VALVE FAN HOUSING 605
$4.50
W0185449 TERM STRIP SADDLE NIPL
$4.50
W0185484 SCREW M35X14 PANTX K35 PKT10
$4.50
W0186144 TABLET INSERT 60
W0186183 SCREW M5X30 CSK PZ ZN PKT X 2
$4.50
W0186593 LOCKBAR BADGE DESIGNER SERIES
$4.50
W0186798 CLIP CORNER FLAT DOOR
$4.50
W0187040 CLIP TUB RELEASE LH MID GREY
$9.00
W0187041 CLIP TUB RELEASE RH MID GREY
$10.00
W0187042 LIGHT PIPE TUB HOME 605
$5.80
W0187130 BRACKET LINK SUPPORT
$6.30
W0187211 DD KNIFE CLIP COMBINED
$6.80
W0187258 SUPPORT DRAIN HOSE
$7.10
W0187421 ST INSERT C BASKET 60
W0187427 SHIM MOTOR ASSY 605 SP
$8.30
W0187598 BRACKET DISPENSER SHORT
$8.00
W0187600 CLIP CORNER INNER
$7.60
W0187605 KIT SUPPORT GLASS CLIPON PKT
$9.30
W0187667 CLAMP HOSE HERBIE TYPE E
$9.60
W0187744 BUNG ASSY DISP RAID MID GREY
$27.00
W0187794 ISOLATION DRYING FAN 605
$9.00
W0187844 COVER CONNECTOR ELEMENT 605
$8.80
W0188073 CLAMP HOSE DIA 3214
$12.10
W0188361 KIT LOCKNUT INNER
$45.00
W0188534 CONTAINER CUTLERY BASKET ASSY
W0188581 CLIP LINK SUPPORT
$16.10
W0188600 KIT CLIP FRONTBACK PA
$35.00
W0188720 KIT ADAPTOR LID YOKE TALL TUB
$15.10
W0188746 BUTTONS BADGE DESIGNER
$17.65
W0188775 TRAPDOOR 48MM PHASE 7
$17.60
W0188785 SEAL INTEGRATED DOOR
$34.00
W0188908 KIT FLAP VLVORING 605 PKT 2
$20.00
W0188969 OUTER CORNER DOOR FLAT
$16.50
W0189065 EXIT DUCT ASSY
$17.60
W0189066 KIT INSTALL TAB SGL DISHDRAWER
$17.60
W0189067 DEFLECTOR DRYING DD60 SPARE
$17.10
W0189070 SCREW ST 8X12MM TAB MTS PKT10
$17.60
W0189106 CLIP WIRE DRAIN PKT 2
$17.60
W0189197 WIRE SUPPORT CUP RACK TALL
$17.60
W0189214 DRAIN SPIGOT CONNECTOR SINGLE
$17.60
W0189288 LATCH ASSY RH DD606
$20.00
W0189289 LATCH ASSY LH DD606
$17.70
W0189482 ROD LINK SUPPORT
$18.80
W0189553 LID YOKE RIGHT DD605
$27.95
W0189554 LID YOKE LEFT DD605
$27.95
W0189577 SCREW ST M4X12 XTITE HXW PKT10
$17.60
W0190051 INSUL DOOR 480T
$18.00
W0190110 INSULATION CHASSIS TOP TALL
$18.30
W0190319 BOOK INSTL DD60 PH7 AA GB
$19.80
W0190499 INSULATION CHASSIS SGL TALL
$19.50
W0190777 LOCKNUT OUTER 605
$32.00
W0190959 HARNESS BADGE ISOLATOR 605
$25.50
W0190979 COVER WIRING COMOULD 605
$25.80
W0191397 BOOK SET USER PH7 DES TXT AA
W0191501 CLIP LINK TUB SIDE PKT 10
$25.60
W0191546 SUPPORT HANDLE IZONA DOOR
$24.70
W0191869 BRACKET INT SHIELD LH ROHS
$28.50
W0191938 HARNESS DISPENSER PH3
$33.40
W0192032 HALL SENS PCB ASSY 605 RH SVC
$34.40
W0192174 KIT CLIP FRONTBACK FD PH7
W0192203 BRACKET INT SHIELD RH ROHS
$31.60
W0192266 CUTLERY BASKET 60 ASSY
$46.90
W0192353 HARNESS MOTOR 605
$37.90
W0192397 HOSE INLET ASSY AA TW KR
$47.50
W0192429 BADGE ASSY 480T SVC
$33.60
W0192474 KIT DRAIN HOSE JOINER
$39.20
W0192520 SPRAYARM ASSY 607 V2
$39.70
W0192803 VALVE INLET SINGLE 605
$36.50
W0192897 BASE RACK ASSY 606
$43.90
W0193276 KIT INSTAL DBLSGL PH5PH6
$47.30
W0193544 KIT HOUSING MAINS FILTER 605
$47.30
W0193581 BACK PANEL 480T
$44.10
W0193690 KIT SEAL WASH 605
$68.00
W0193772 CROCK INSERT MP 7PS
W0193835 KIT BRACKET CAVITY PH7
$47.30
W0193856 DRAIN FILTER ASSY FPOM 607 V2
$52.00
W0193886 FLEX MAINS 605 NZ
$52.93
W0193996 525 BADGE ISOLATOR V2 ROHS SVC
$65.32
W0194252 COVER MAINS FILTER
$57.10
W0194540 BACK PANEL TOP 480T
$51.40
W0194721 KIT TRIMSEAL DD60ST
$57.00
W0194849 CARTON SLEEVE REPACK DD60S6
$56.20
W0195351 DESIGNER BDG PCB ASSY ROHS SVC
$90.62
W0196458 HARNESS CHASSIS LOWER DD60
$97.80
W0196603 HARNESSFAN ASSY 605
$107.00
W0196863 KIT DRAIN HOSE EXTN KDDDEXT1
$79.90
W0197039 LID ASSY 605 SP
$124.00
W0197346 KIT BRACKET SLIDE RH LH ASSY
$126.60
W0197392 KIT FILTER PLATE OMOLD 60 MID
$210.00
W0197748 KIT DOOR DESIGNER 480T SX
$126.30
W0197761 FISHER & PAYKEL DISHDRAWER MOTOR ASSEMBLY KIT
$156.00
W0198341 KIT REPLACE CHASSIS DD60ST6
$155.00
W0198770 KIT TUB TALL WA 60T7 TXT ECO
$189.40
W0200490 HOSE FILL LOWER WRC
W0200544 KIT TAPE UNDERBENCH
W0202010 PANEL CONTROLLER 605
W0202154 SCREW MC M5X10 TAPTITE PKT10
$17.30
