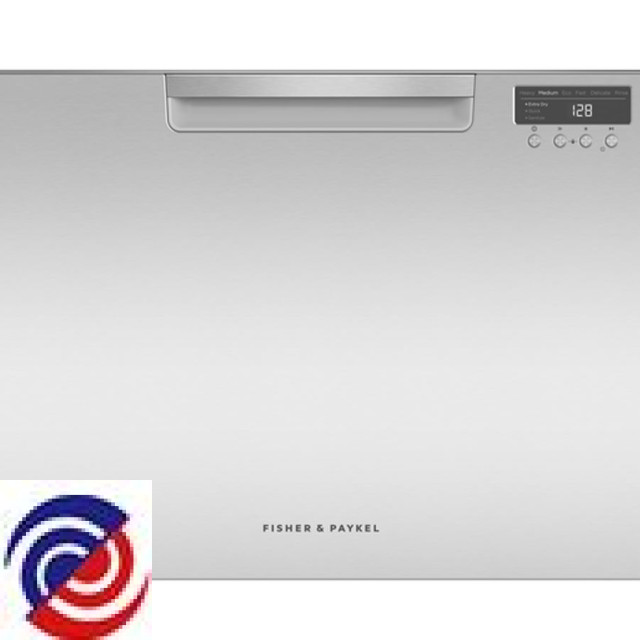

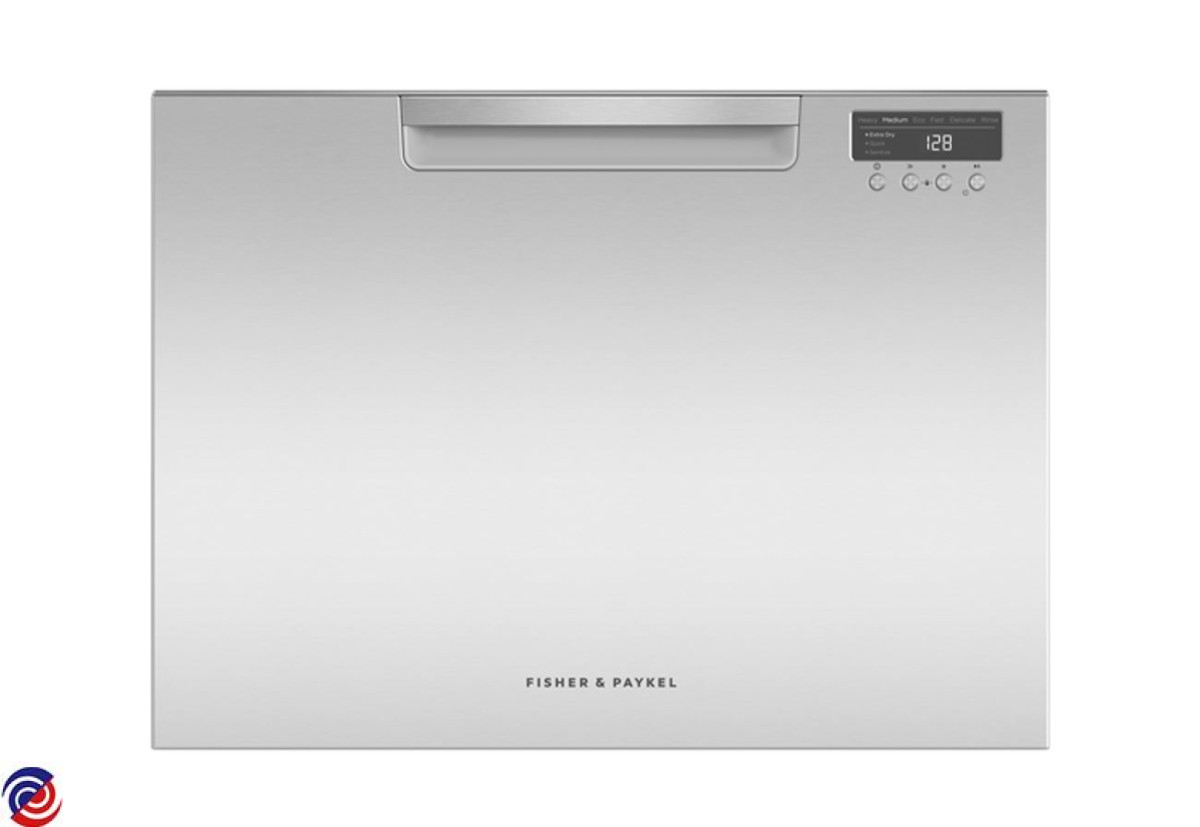

DD60SCTX9 — 81593-A
FISHER & PAYKEL — Dishwasher
Parts for DD60SCTX9
W0189874 FISHER & PAYKEL DISHDRAWER CUP RACK R/H DD60S/D 80MM ASSY
$32.90
W0190365 FISHER & PAYKEL DISHDRAWER RACK CUP L/H DD60 100MM
$42.02
W0194889 ADJUSTABLE CROCKERY INSERT
$95.00
W0196582 FISHER & PAYKEL DISHWASHER DISHDRAWER MOTOR ROTOR
$185.00
W0196838 KIT LID ACTUATORS 605 PKT 2
$149.80
W0196946 FISHER & PAYKEL DISHDRAWER DETERGENT DISPENSER
$150.00
W0177544 CONTAINER C BASKET ASSY MIDGY
W0185104 TAPE UNDERBENCH CONDENSATION
W0185171 SPACER THERMISTOR 608
$4.50
W0185172 CLIP LINK SUPPORT 608
$4.50
W0185173 CLIP LINK CHASSIS SIDE 608
$4.50
W0185174 3 DEGREE LIGHTPIPE PH8
$4.50
W0185175 PIN DOOR SQUARE
$4.50
W0185260 RETAINER FLAP FAN HOUSING 605
$4.50
W0185271 CLAMP HOSE TYPE 1223217
$4.50
W0185438 O RING 152 SILICONE 40 608
$9.00
W0185441 ROD LINK SUPPORT 608
$4.50
W0185442 CLIP LINK TUB RIB
$4.50
W0185443 3 DEGREE PRISM
$4.50
W0185445 FLAP VALVE FAN HOUSING 605
$4.50
W0185449 TERM STRIP SADDLE NIPL
$4.50
W0185484 SCREW M35X14 PANTX K35 PKT10
$4.50
W0186576 CLIP TRAPDOOR 608
$4.50
W0186694 GROMMET 4MM THERMISTOR
$4.50
W0186719 WEDGE HOUSING UI DD PH9
$4.50
W0187040 CLIP TUB RELEASE LH MID GREY
$9.00
W0187041 CLIP TUB RELEASE RH MID GREY
$10.00
W0187130 BRACKET LINK SUPPORT
$6.30
W0187211 DD KNIFE CLIP COMBINED
$6.80
W0187258 SUPPORT DRAIN HOSE
$7.10
W0187338 MOUNT LINK CHASSIS 608
$6.30
W0187388 BK INSTAL PH9 LCD FP AA GB SG
$6.60
W0187598 BRACKET DISPENSER SHORT
$8.00
W0187605 KIT SUPPORT GLASS CLIPON PKT
$9.30
W0187667 CLAMP HOSE HERBIE TYPE E
$9.60
W0187744 BUNG ASSY DISP RAID MID GREY
$27.00
W0187794 ISOLATION DRYING FAN 605
$9.00
W0188073 CLAMP HOSE DIA 3214
$12.10
W0188078 MOTOR LOCKING RING
$10.60
W0188363 SEAL DOOR DD609
W0188399 WIRE TRAPDOOR 608 LOOP CTD
$12.80
W0188600 KIT CLIP FRONTBACK PA
$35.00
W0188669 HARNESS UI ONE PH8
$14.80
W0188720 KIT ADAPTOR LID YOKE TALL TUB
$15.10
W0188908 KIT FLAP VLVORING 605 PKT 2
$20.00
W0188918 ELEMENT COVER 608
$16.80
W0189065 EXIT DUCT ASSY
$17.60
W0189106 CLIP WIRE DRAIN PKT 2
$17.60
W0189136 REAR PANEL DD609 UPR TALL
$17.50
W0189197 WIRE SUPPORT CUP RACK TALL
$17.60
W0189214 DRAIN SPIGOT CONNECTOR SINGLE
$17.60
W0189288 LATCH ASSY RH DD606
$20.00
W0189289 LATCH ASSY LH DD606
$17.70
W0189314 BKST USR PH9 CLASSIC FP AA GB
$17.60
W0189553 LID YOKE RIGHT DD605
$27.95
W0189554 LID YOKE LEFT DD605
$27.95
W0189671 COVER TUB BASE 608
$17.60
W0190020 FISHER & PAYKEL DISHDRAWER INSTALL BRACKET KIT
$34.95
W0190110 INSULATION CHASSIS TOP TALL
$18.30
W0190309 SPRAYARM ASSY 608
W0190499 INSULATION CHASSIS SGL TALL
$19.50
W0190544 SCREW ST 8X516 NP PKT 10
$19.70
W0190562 SCREW M4X8 WAFER YLW PKT 10
$19.80
W0190563 BRACE HANDLE DD PH9
$29.95
W0190697 SCREW ST 8X12 HILO ZP PKT 10
$20.00
W0191194 PUMP CAP ASSY 608
W0191214 SCREW M35X10 CSK BLK PKT 10
$22.20
W0191359 COVER CHASSIS MODULE 608
$23.30
W0191543 RETAINING RING E18 PKT 10
$24.60
W0191678 RIVET SNAP NYLON GREY PKT 10
$25.60
W0191774 HOUSING CHASSIS MODULE DD608
$31.90
W0191869 BRACKET INT SHIELD LH ROHS
$28.50
W0192068 HARNESS THERMISTOR
$34.80
W0192168 BUTTON ASSY DD PH9
$34.30
W0192203 BRACKET INT SHIELD RH ROHS
$31.60
W0192397 HOSE INLET ASSY AA TW KR
$47.50
W0192474 KIT DRAIN HOSE JOINER
$39.20
W0192620 GRIP HANDLE DD PH9
$48.00
W0192803 VALVE INLET SINGLE 605
$36.50
W0192830 FLEX MAINS AA
$43.00
W0193276 KIT INSTAL DBLSGL PH5PH6
$47.30
W0193453 KIT DD FILL HOSE LOWER SPARE
$47.30
W0194216 KIT ASSY TOPCAP AL DD PH9
$53.90
W0194269 DRAIN/MICROFILTER ASSEMBLY KIT
$85.95
W0194311 CONTROL PANEL ESD SHIELD 608V
$58.00
W0194721 KIT TRIMSEAL DD60ST
$57.00
W0194930 HARNESS RINSEAID DRYFAN DET DI
$57.20
W0194945 KIT DD DRAIN HOSE SPARE
$81.00
W0196025 KIT DD HARNESS LOWER 608 SPARE
$90.16
W0196110 FISHER & PAYKEL DISHDRAWER OVERMOULDED 608 TYPE 16-DD60
$114.85
W0196142 KIT MODULE DISPLAY DD60C9
$131.00
W0196650 KIT WASH CTRL P9 AA SG PF SP 2
W0196763 KIT ELEMENT SEAL 608 230V
W0196863 KIT DRAIN HOSE EXTN KDDDEXT1
$79.90
W0196959 KIT MOTOR ASSY 608V
$198.00
W0197039 LID ASSY 605 SP
$124.00
W0197346 KIT BRACKET SLIDE RH LH ASSY
$126.60
W0199344 KIT MC 525 PH9 230V SGL SP
W0202154 SCREW MC M5X10 TAPTITE PKT10
$17.30
W0278615 BASKET CUTLERY 60 ASSY MIDGY
$40.00
W0279071 INSERT TABLET 60 MIDGREY
$4.50
W0279072 INSERT ST C BASKET 60 MIDGREY
$5.80
W0279078 KIT REPLACE CHASSIS DD60ST9
$157.70
W0279093 CROCK INSERT FD 7PS DD60C PH9
$41.90
W0279109 DOOR ASSY DD60SCTX9 N SP
$120.10
W0279520 BASE RACK ASSY DD60C PH9V2 CTD
$55.30
