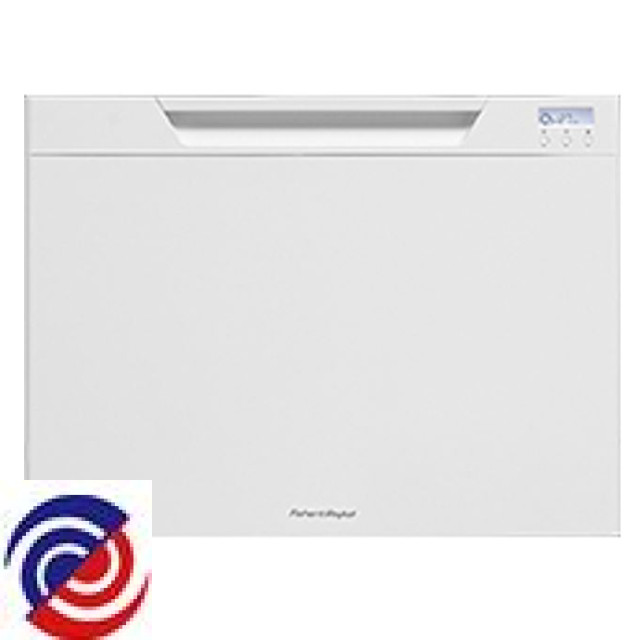

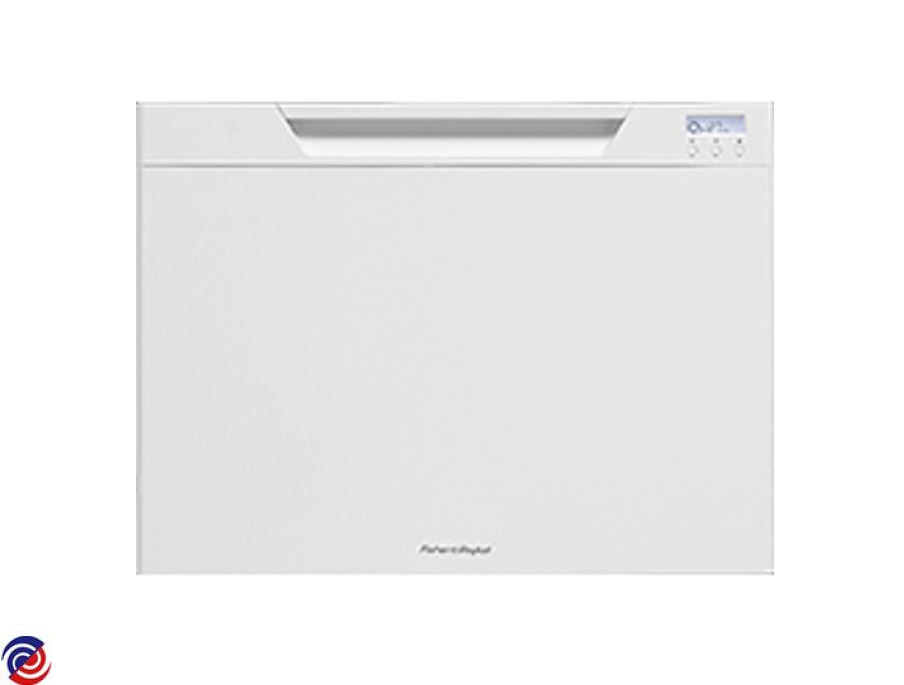

DD60SCTW7 — 80891-B
FISHER & PAYKEL — Dishwasher

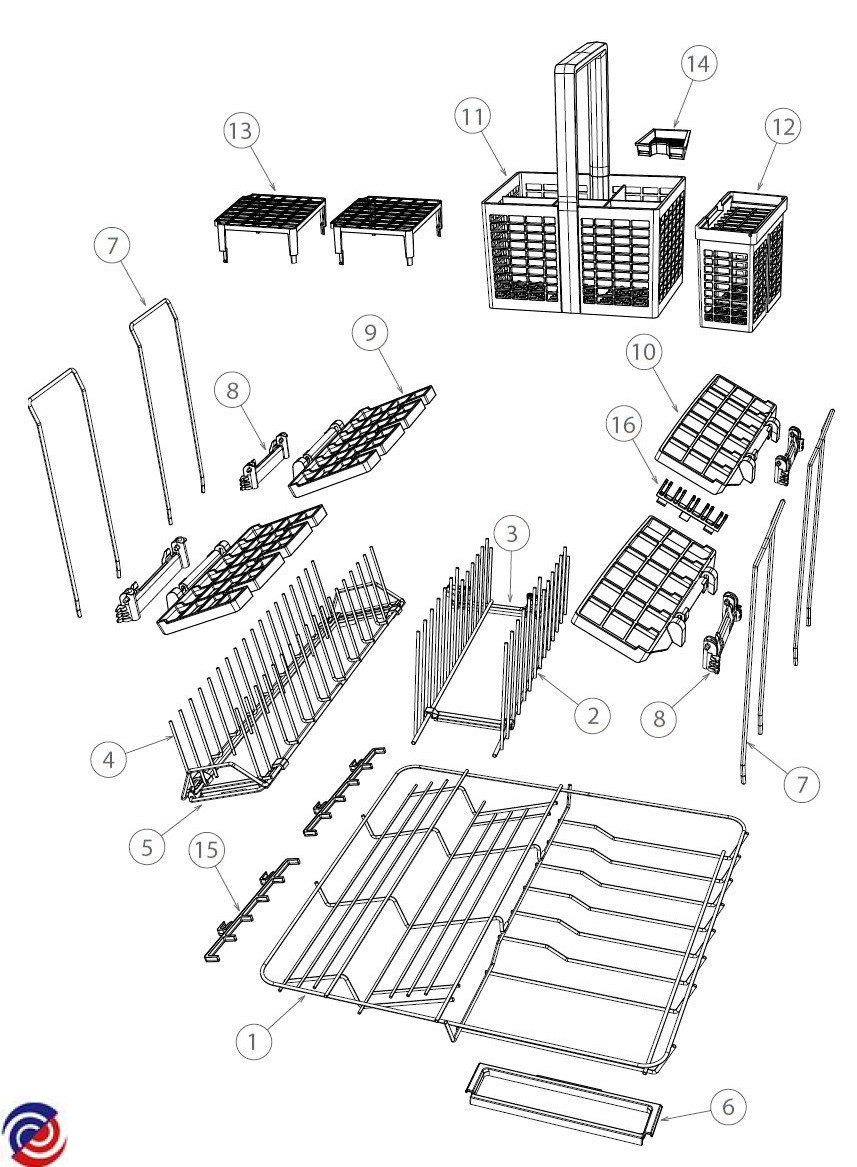

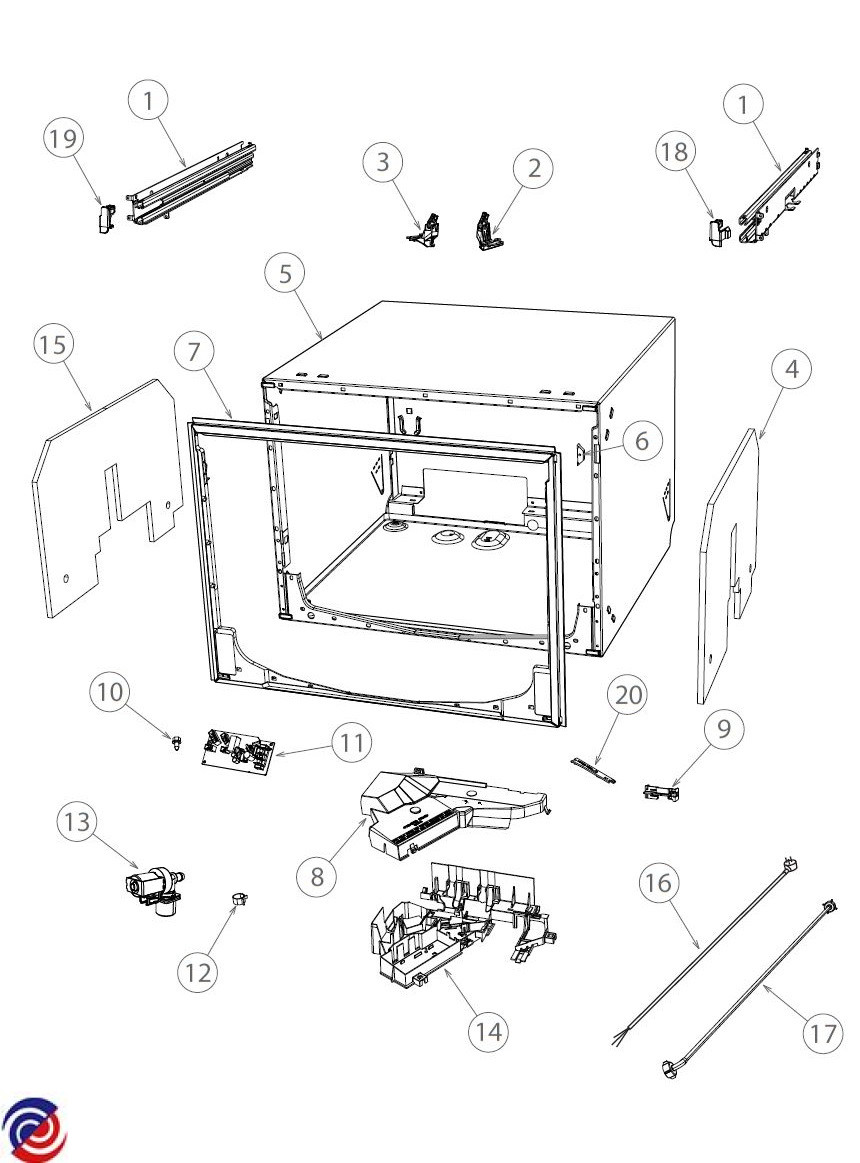

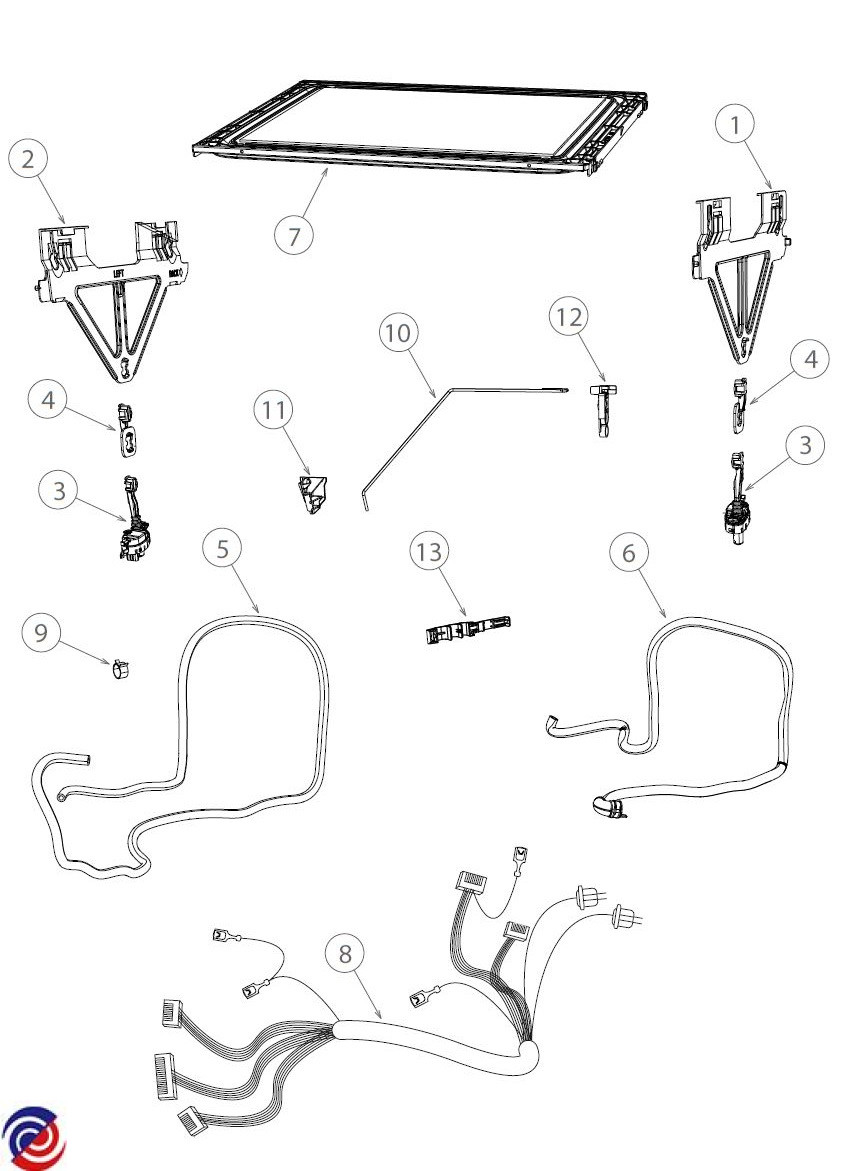

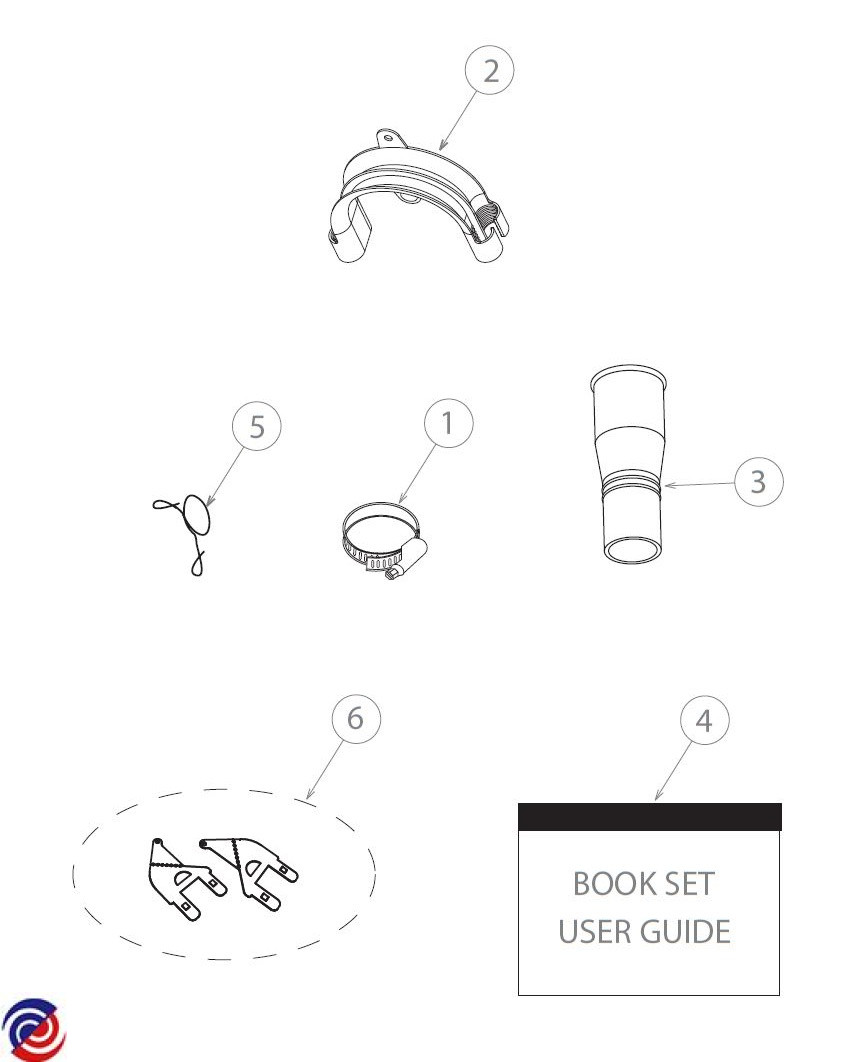

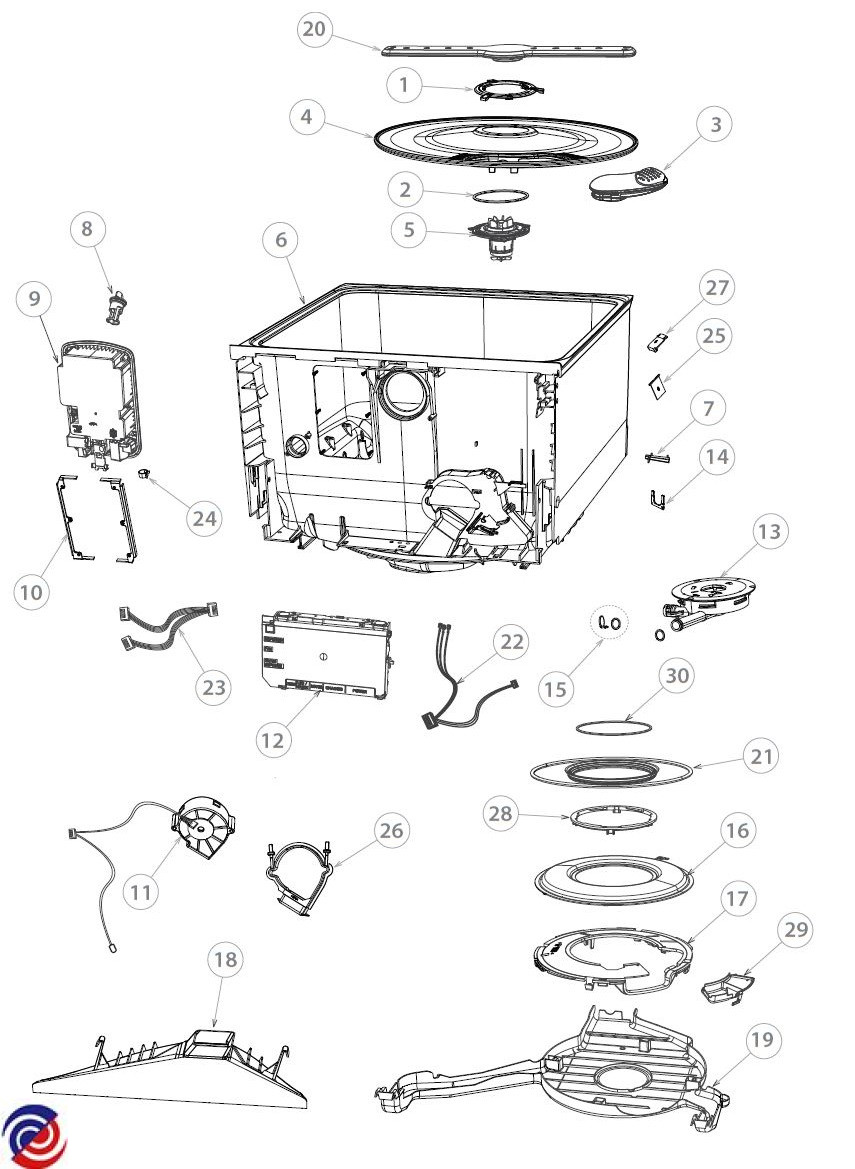

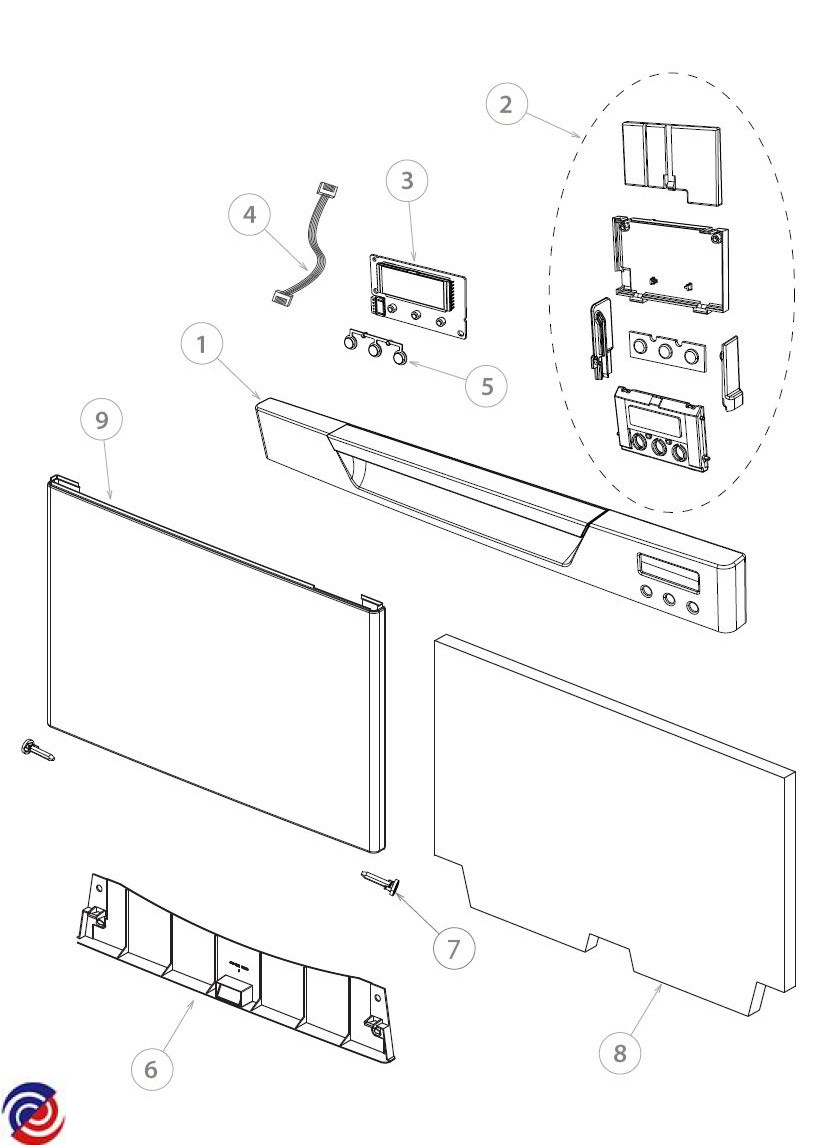

Parts for DD60SCTW7
.JPG)
W0175944 KIT DRAIN HOSE 605
W0186563 LOCKNUT FPLATE MID GREY
$4.50
W0188612 FISHER & PAYKEL DISHDRAWER ROTOR O-RING RED
W0189874 FISHER & PAYKEL DISHDRAWER CUP RACK R/H DD60S/D 80MM ASSY
$32.90
W0190365 FISHER & PAYKEL DISHDRAWER RACK CUP L/H DD60 100MM
$42.02
W0192829 FISHER & PAYKEL DISHDRAWER CUP RACK(PKT4) DD60/90S
$49.02
W0194889 ADJUSTABLE CROCKERY INSERT
$95.00
W0196838 KIT LID ACTUATORS 605 PKT 2
$149.80
W0196946 FISHER & PAYKEL DISHDRAWER DETERGENT DISPENSER
$150.00
W0198408 KIT HEATER PLATE 605 230V NZ
$115.00
W0198650 FISHER & PAYKEL DISHDRAWER CONTROL PCB-DD60
$245.00
W0175945 MOTOR ROTOR ASSY 605 SP
W0176072 MODULE LCD 525CLASSIC BL NROHS
W0176090 INSUL DOOR 606 CLSC 860 UPPER
W0176539 PRISM TUB HOME 2MM LOW
W0176639 MOD CHAS 525 PH51 SGL 230V SV
W0185146 RETAINER LINK
$4.50
W0185259 GROMMET 605 CHASSIS MODULE
W0185260 RETAINER FLAP FAN HOUSING 605
$4.50
W0185271 CLAMP HOSE TYPE 1223217
$4.50
W0185444 PIN DOOR MID GREY
$4.50
W0185445 FLAP VALVE FAN HOUSING 605
$4.50
W0185449 TERM STRIP SADDLE NIPL
$4.50
W0185484 SCREW M35X14 PANTX K35 PKT10
$4.50
W0186144 TABLET INSERT 60
W0187040 CLIP TUB RELEASE LH MID GREY
$9.00
W0187041 CLIP TUB RELEASE RH MID GREY
$10.00
W0187042 LIGHT PIPE TUB HOME 605
$5.80
W0187130 BRACKET LINK SUPPORT
$6.30
W0187160 BUTTONS LCD CLASSIC WHITE
$6.20
W0187211 DD KNIFE CLIP COMBINED
$6.80
W0187258 SUPPORT DRAIN HOSE
$7.10
W0187421 ST INSERT C BASKET 60
W0187427 SHIM MOTOR ASSY 605 SP
$8.30
W0187598 BRACKET DISPENSER SHORT
$8.00
W0187605 KIT SUPPORT GLASS CLIPON PKT
$9.30
W0187667 CLAMP HOSE HERBIE TYPE E
$9.60
W0187744 BUNG ASSY DISP RAID MID GREY
$27.00
W0187794 ISOLATION DRYING FAN 605
$9.00
W0187844 COVER CONNECTOR ELEMENT 605
$8.80
W0188073 CLAMP HOSE DIA 3214
$12.10
W0188361 KIT LOCKNUT INNER
$45.00
W0188534 CONTAINER CUTLERY BASKET ASSY
W0188581 CLIP LINK SUPPORT
$16.10
W0188600 KIT CLIP FRONTBACK PA
$35.00
W0188720 KIT ADAPTOR LID YOKE TALL TUB
$15.10
W0188775 TRAPDOOR 48MM PHASE 7
$17.60
W0188908 KIT FLAP VLVORING 605 PKT 2
$20.00
W0189065 EXIT DUCT ASSY
$17.60
W0189066 KIT INSTALL TAB SGL DISHDRAWER
$17.60
W0189067 DEFLECTOR DRYING DD60 SPARE
$17.10
W0189106 CLIP WIRE DRAIN PKT 2
$17.60
W0189162 BOOK SET USER PH7 LCD TXT AA
W0189197 WIRE SUPPORT CUP RACK TALL
$17.60
W0189214 DRAIN SPIGOT CONNECTOR SINGLE
$17.60
W0189288 LATCH ASSY RH DD606
$20.00
W0189289 LATCH ASSY LH DD606
$17.70
W0189482 ROD LINK SUPPORT
$18.80
W0189553 LID YOKE RIGHT DD605
$27.95
W0189554 LID YOKE LEFT DD605
$27.95
W0189577 SCREW ST M4X12 XTITE HXW PKT10
$17.60
W0189866 KIT LCD HOUSING DD606
$23.95
W0190110 INSULATION CHASSIS TOP TALL
$18.30
W0190319 BOOK INSTL DD60 PH7 AA GB
$19.80
W0190499 INSULATION CHASSIS SGL TALL
$19.50
W0190777 LOCKNUT OUTER 605
$32.00
W0190959 HARNESS BADGE ISOLATOR 605
$25.50
W0190979 COVER WIRING COMOULD 605
$25.80
W0191501 CLIP LINK TUB SIDE PKT 10
$25.60
W0191938 HARNESS DISPENSER PH3
$33.40
W0192032 HALL SENS PCB ASSY 605 RH SVC
$34.40
W0192174 KIT CLIP FRONTBACK FD PH7
W0192266 CUTLERY BASKET 60 ASSY
$46.90
W0192353 HARNESS MOTOR 605
$37.90
W0192390 KIT INSERT DOOR 606 CLASSIC
$33.30
W0192397 HOSE INLET ASSY AA TW KR
$47.50
W0192474 KIT DRAIN HOSE JOINER
$39.20
W0192520 SPRAYARM ASSY 607 V2
$39.70
W0192803 VALVE INLET SINGLE 605
$36.50
W0192897 BASE RACK ASSY 606
$43.90
W0193276 KIT INSTAL DBLSGL PH5PH6
$47.30
W0193544 KIT HOUSING MAINS FILTER 605
$47.30
W0193690 KIT SEAL WASH 605
$68.00
W0193772 CROCK INSERT MP 7PS
W0193856 DRAIN FILTER ASSY FPOM 607 V2
$52.00
W0193886 FLEX MAINS 605 NZ
$52.93
W0194252 COVER MAINS FILTER
$57.10
W0194721 KIT TRIMSEAL DD60ST
$57.00
W0194849 CARTON SLEEVE REPACK DD60S6
$56.20
W0196458 HARNESS CHASSIS LOWER DD60
$97.80
W0196565 KIT DOOR ASSY UPPER TALL WH
$83.80
W0196603 HARNESSFAN ASSY 605
$107.00
W0196849 KIT HANDLE ASSY PH7 V2 WHITE
W0196863 KIT DRAIN HOSE EXTN KDDDEXT1
$79.90
W0197039 LID ASSY 605 SP
$124.00
W0197346 KIT BRACKET SLIDE RH LH ASSY
$126.60
W0197392 KIT FILTER PLATE OMOLD 60 MID
$210.00
W0197761 FISHER & PAYKEL DISHDRAWER MOTOR ASSEMBLY KIT
$156.00
W0198341 KIT REPLACE CHASSIS DD60ST6
$155.00
W0198770 KIT TUB TALL WA 60T7 TXT ECO
$189.40
W0200490 HOSE FILL LOWER WRC
W0200544 KIT TAPE UNDERBENCH
W0202010 PANEL CONTROLLER 605
W0202154 SCREW MC M5X10 TAPTITE PKT10
$17.30
