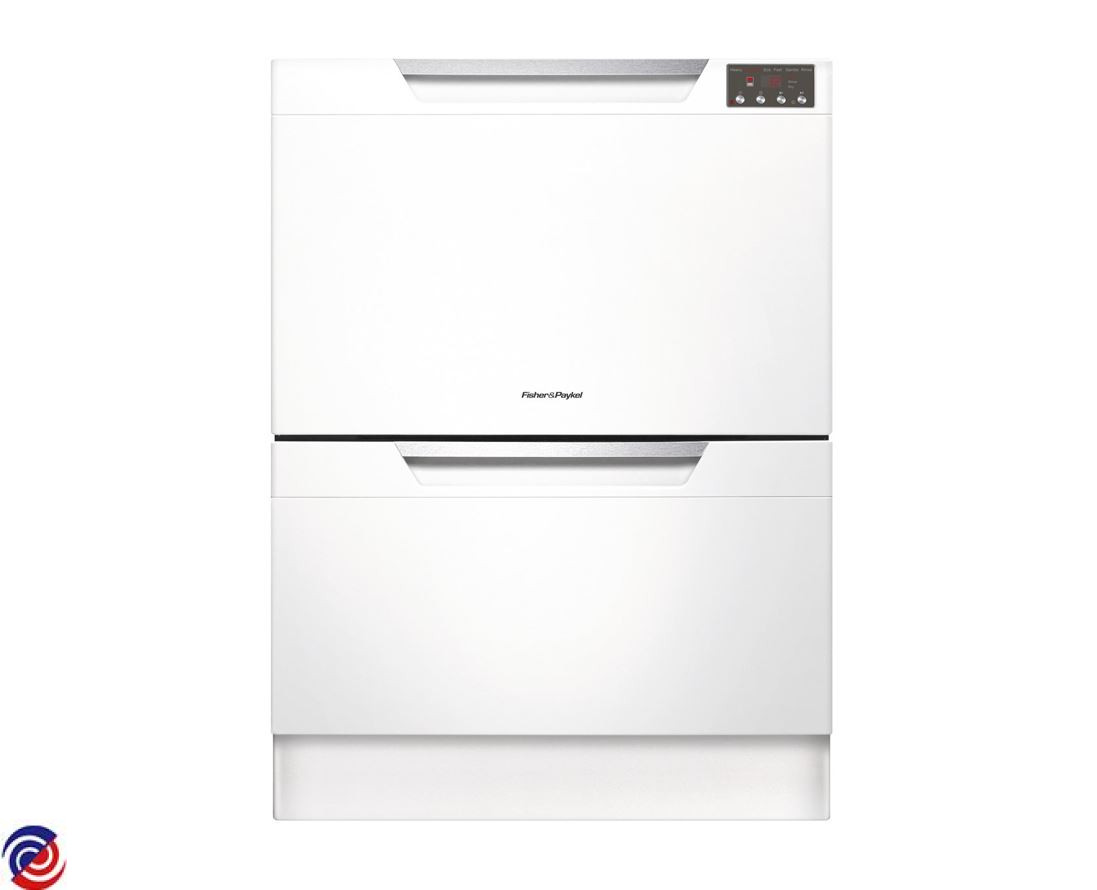

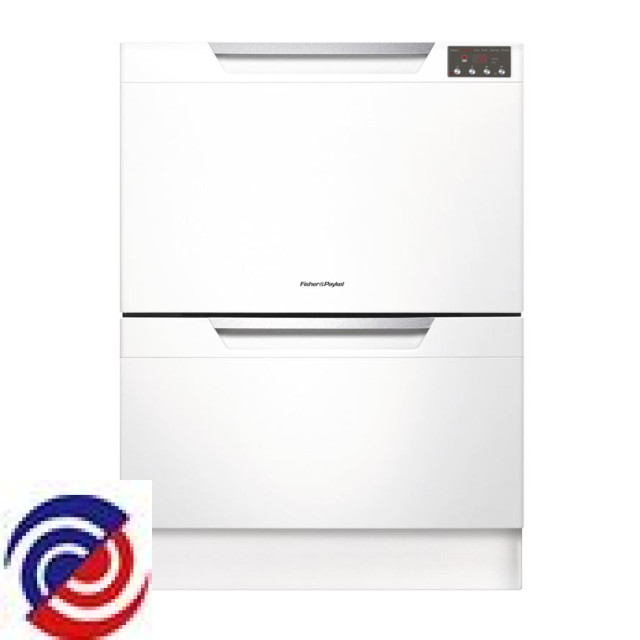

DD60DAW8 — 80864-B
FISHER & PAYKEL — Dishwasher
Parts for DD60DAW8
.JPG)
W0190096 DRAIN SPIGOT CONNECTOR DOUBLE
$25.00
W0196582 FISHER & PAYKEL DISHWASHER DISHDRAWER MOTOR ROTOR
$185.00
W0196838 KIT LID ACTUATORS 605 PKT 2
$143.00
W0177414 HANDLE CLSC TOP KIT 608V WH
W0177497 WASH CONTROLLER 525 608 AA SP
W0185104 TAPE UNDERBENCH CONDENSATION
W0185171 SPACER THERMISTOR 608
$4.50
W0185172 CLIP LINK SUPPORT 608
$4.50
W0185173 CLIP LINK CHASSIS SIDE 608
$4.50
W0185174 3 DEGREE LIGHTPIPE PH8
$4.50
W0185175 PIN DOOR SQUARE
$4.50
W0185260 RETAINER FLAP FAN HOUSING 605
$4.50
W0185271 CLAMP HOSE TYPE 1223217
$4.50
W0185348 KIT FOOT TOOLS 605
$4.50
W0185438 O RING 152 SILICONE 40 608
$9.00
W0185441 ROD LINK SUPPORT 608
$4.50
W0185442 CLIP LINK TUB RIB
$4.50
W0185443 3 DEGREE PRISM
$4.50
W0185445 FLAP VALVE FAN HOUSING 605
$4.50
W0185449 TERM STRIP SADDLE NIPL
$4.50
W0185484 SCREW M35X14 PANTX K35 PKT10
$4.50
W0186144 TABLET INSERT 60
W0186576 CLIP TRAPDOOR 608
$4.50
W0186694 GROMMET 4MM THERMISTOR
$4.50
W0186852 MOUNT LINK TOP 608
$4.50
W0187040 CLIP TUB RELEASE LH MID GREY
$9.00
W0187041 CLIP TUB RELEASE RH MID GREY
$10.00
W0187096 WEDGE HOUSING LCD CLASSIC
$5.10
W0187130 BRACKET LINK SUPPORT
$6.30
W0187258 SUPPORT DRAIN HOSE
$7.10
W0187338 MOUNT LINK CHASSIS 608
$6.30
W0187421 ST INSERT C BASKET 60
W0187598 BRACKET DISPENSER SHORT
$8.00
W0187605 KIT SUPPORT GLASS CLIPON PKT
$9.30
W0187667 CLAMP HOSE HERBIE TYPE E
$9.60
W0187679 FOOT
$8.50
W0187744 BUNG ASSY DISP RAID MID GREY
$27.00
W0187794 ISOLATION DRYING FAN 605
$9.00
W0187999 BOOK INSTL DD60DV8 FP AA GB
W0188073 CLAMP HOSE DIA 3214
$12.10
W0188078 MOTOR LOCKING RING
$10.60
W0188399 WIRE TRAPDOOR 608 LOOP CTD
$12.80
W0188669 HARNESS UI ONE PH8
$14.80
W0188752 WIRE SUPP FIXED LH CTD
$15.50
W0188753 WIRE SUPP FIXED RH CTD
$14.70
W0188908 KIT FLAP VLVORING 605 PKT 2
$20.00
W0188918 ELEMENT COVER 608
$16.80
W0189065 EXIT DUCT ASSY
$17.60
W0189106 CLIP WIRE DRAIN PKT 2
$17.60
W0189288 LATCH ASSY RH DD606
$20.00
W0189289 LATCH ASSY LH DD606
$17.70
W0189356 BOOKSET USR DD60DV8 FP AA GB
$17.60
W0189519 KIT PIN KICKSTRIP WH 608 PKT4
$19.00
W0189553 LID YOKE RIGHT DD605
$27.95
W0189554 LID YOKE LEFT DD605
$27.95
W0189606 CUPRACK ANGLE 80MM
$17.60
W0189671 COVER TUB BASE 608
$17.60
W0189871 CUPRACK ANGLE 100MM
$18.30
W0190020 FISHER & PAYKEL DISHDRAWER INSTALL BRACKET KIT
$34.95
W0190309 SPRAYARM ASSY 608
W0190455 KIT RIVET PUSH IN PKT 2
$19.30
W0190714 CROCK INSERT INTER FIT CTD
$24.30
W0191194 PUMP CAP ASSY 608
W0191359 COVER CHASSIS MODULE 608
$23.30
W0191774 HOUSING CHASSIS MODULE DD608
$31.90
W0192068 HARNESS THERMISTOR
$34.80
W0192174 KIT CLIP FRONTBACK FD PH7
W0192266 CUTLERY BASKET 60 ASSY
$46.90
W0192357 VALVE INLET DBL 4L 608V
$38.00
W0192390 KIT INSERT DOOR 606 CLASSIC
$33.30
W0192397 HOSE INLET ASSY AA TW KR
$47.50
W0192467 BUTTON LEVER ASSY 608V
$32.40
W0192474 KIT DRAIN HOSE JOINER
$39.20
W0192587 CROCK INS FOLDDOWN 608
W0192663 KIT KICKSTRIP WHITE DD60DA8 AA
$41.00
W0192830 FLEX MAINS AA
$43.00
W0193276 KIT INSTAL DBLSGL PH5PH6
$47.30
W0193453 KIT DD FILL HOSE LOWER SPARE
$47.30
W0193860 KIT DD FILL HOSE UPPER SPARE
$95.45
W0194269 DRAIN/MICROFILTER ASSEMBLY KIT
$85.95
W0194311 CONTROL PANEL ESD SHIELD 608V
$58.00
W0194411 KIT COWLING DD60DA8 AA
$59.70
W0194417 BASE RACK ASSY VM CTD
$51.90
W0194864 HARNESS RINSEAID DRYFAN
$81.08
W0194945 KIT DD DRAIN HOSE SPARE
$73.50
W0195134 KIT DISPENSER MID GREY 608V
$95.00
W0195534 CARTON SLEEVE REPACK DD60D6
$68.10
W0195594 MOD DISP 525 PH8
$105.00
W0195926 HANDLE CLSC BTM KIT 608V WH
$84.30
W0195967 KIT TRIMSEAL DD60D
$143.00
W0196025 KIT DD HARNESS LOWER 608 SPARE
$90.16
W0196110 FISHER & PAYKEL DISHDRAWER OVERMOULDED 608 TYPE 16-DD60
$114.85
W0196256 KIT DD HARNESS UPPER 608 SPARE
$92.40
W0196444 CONTROL PANEL UI ASSY 608V
$80.70
W0196568 KIT DOOR ASSY LOWER WH
$101.30
W0196763 KIT ELEMENT SEAL 608 230V
W0196836 KIT DOOR ASSY UPPER WH
$95.90
W0196863 KIT DRAIN HOSE EXTN KDDDEXT1
$79.90
W0196959 KIT MOTOR ASSY 608V
$198.00
W0197039 LID ASSY 605 SP
$124.00
W0197346 KIT BRACKET SLIDE RH LH ASSY
$126.60
W0197759 TUB STD WASSY DD608
$145.80
W0199177 KIT REPLACE CHASSIS DD60DA8
$413.44
W0199441 FISHER & PAYKEL DISHDRAWER MOTOR CONTROL MODULE-DD60
W0202154 SCREW MC M5X10 TAPTITE PKT10
$17.30
