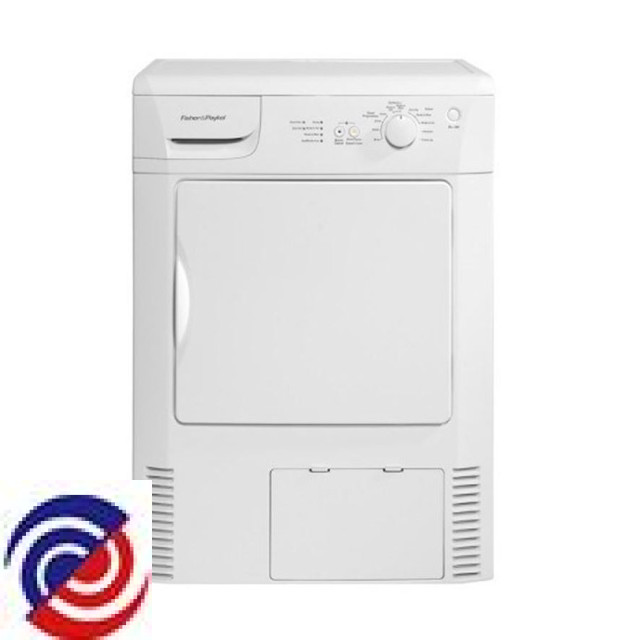

DE60F60NW1 — 98713
FISHER & PAYKEL — Clothes Dryer
Parts for DE60F60NW1

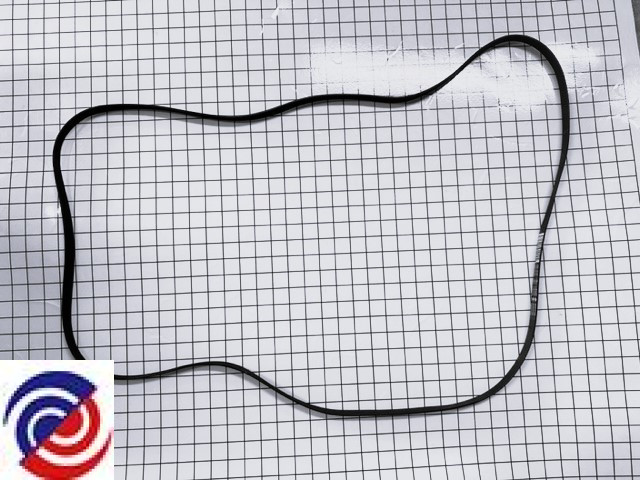

W0195871 FISHER & PAYKEL DRYER POLYV DRUM BELT DE60
$87.25
W0176064 PANEL CONTROL ASSY DE60F60NW1
W0187384 FOOT FIXED
$7.60
W0187385 BUFFER FOOT
$6.60
W0187429 COVER SWITCH ONOFF
$6.90
W0187468 COVER DOOR LOCK
$7.00
W0187469 COVER DOOR HINGE
$7.00
W0187482 RUBBER THERMAL CUT OUT
$8.10
W0187487 CIRCLIP 9X1
$7.10
W0187785 COVER BEARING DRUM FRONT
$10.30
W0187894 GUIDE LIGHT 4 LED
$9.10
W0188064 FOOT ADJUSTABLE
$10.00
W0188065 GLASS LAMP
$10.00
W0188067 SHAFT MICROSWITCH
$10.00
W0188068 SPRING SWITCH
$10.00
W0188288 BUTTON ONOFF
$11.40
W0188452 LOCK DOOR BODY ASSY
$13.10
W0188608 BEARING DRUM FRONT
$16.20
W0188999 BUTTON FUNCTION
$17.50
W0189677 SEAL LAMP
$17.60
W0190684 HOOK LOCK
$21.00
W0190783 MICROSWITCH
$21.40
W0190784 HOUSING TERMINAL
$21.40
W0190853 GASKET DOOR
$21.80
W0190935 HINGE DOOR
$21.00
W0190936 KNOB PROGRAMME
$17.70
W0190937 COVER PCB HOLDER
$21.00
W0190938 FILTER ASSY FIXED RIGHT
$21.00
W0190939 FILTER ASSY FIXED LEFT
$21.00
W0191271 MANUAL USE CARE DE60F60NW1
$22.70
W0191627 WING DRUM
$26.50
W0191900 LAMP NEON
$27.40
W0192372 COVER SENSOR
$38.10
W0192588 INTERFERENCE FILTER
$38.40
W0192589 SWITCH PUSH BUTTON
$40.30
W0193056 SEAL FELT FRONT
$46.00
W0193459 FILTER ASSY
$44.80
W0193818 KICK PLATE
$46.80
W0193819 SWITCH SELECTOR
$46.80
W0193966 THERMOSTAT NTC
$50.20
W0194275 BEARING DRUM REAR
$57.70
W0194439 PANEL CONTROL DE60F60NW1
$49.80
W0194964 CAPACITOR
$67.92
W0195369 FLEX MAINS DE60F60
$64.70
W0196115 TRIM TOP UNDERBENCH DE60F60
$73.50
W0196915 HARNESS MAIN DE60F60NW1
$94.50
W0197350 SEAL REAR PANEL
$105.00
W0197972 TOP DECK DE60F60
$132.30
W0198135 DOOR ASSY DE60F60
$141.90
W0198601 HEATER ASSY DE60F60NW1
$400.88
W0198752 PANEL REAR ASSY
$187.90
W0198882 HOUSING ASSY DRUM FRONT
$200.50
W0199181 MODULE PCB DE60F60NW1
$281.10
W0199187 CABINET DE60F60NW1
$234.10
W0199889 DRUM ASSY DE60F60NW1
$416.70
W0199967 MOTOR FAN ASSY DE60F60NW1
$486.40
W0279522 CABLE ASSY
$17.60
W0279523 SET LIGHT GUIDE
$7.80
