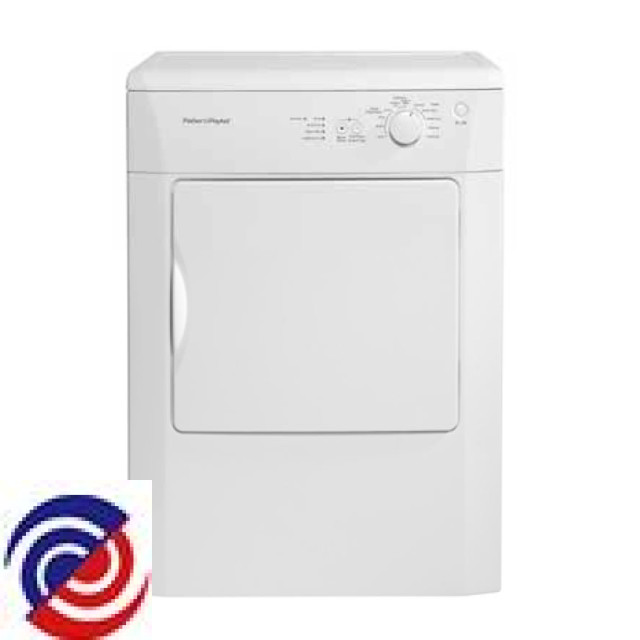

DE60F60EW1 — 98712-B
FISHER & PAYKEL — Clothes Dryer
Parts for DE60F60EW1
W0197260 PULLEY BELT RECESSED BEARING
$135.00
W0176067 BEARING DRUM FRONT
W0176068 COVER BEARING DRUM FRONT
W0177201 SENSOR COVER ASSY
W0187281 BRACKET SPRING TENSION
$6.00
W0187282 SCREW DRUM BAFFLE 5026 WN 545
$6.00
W0187283 FOOT RUBBER FIXED
$6.00
W0187385 BUFFER FOOT
$6.60
W0187410 CLAMP CABLE WH70
$6.70
W0187429 COVER SWITCH ONOFF
$6.90
W0187437 SPRING TENSION MOTOR
$6.90
W0187439 TIE CABLE
$6.90
W0187468 COVER DOOR LOCK
$7.00
W0187469 COVER DOOR HINGE
$7.00
W0187482 RUBBER THERMAL CUT OUT
$8.10
W0187487 CIRCLIP 9X1
$7.10
W0187543 COVER SERVICE
$7.40
W0187658 CLAMP MOTOR BRACKET
$7.90
W0187828 CLAMP MOTOR BRACKET PLASTIC
$8.70
W0187894 GUIDE LIGHT 4 LED
$9.10
W0188064 FOOT ADJUSTABLE
$10.00
W0188067 SHAFT MICROSWITCH
$10.00
W0188068 SPRING SWITCH
$10.00
W0188070 NUT M6
$10.00
W0188214 ADAPTOR HOSE
$11.00
W0188288 BUTTON ONOFF
$11.40
W0188362 ADAPTOR HOSE INTERNAL
$11.90
W0188452 LOCK DOOR BODY ASSY
$13.10
W0188999 BUTTON FUNCTION
$17.50
W0189559 BAFFLE DRUM B
$17.60
W0189796 BAFFLE DRUM A
$17.60
W0190281 COVER FAN HOUSING
$18.80
W0190516 HOUSING FAN
$19.60
W0190684 HOOK LOCK
$21.00
W0190783 MICROSWITCH
$21.40
W0190784 HOUSING TERMINAL
$21.40
W0190853 GASKET DOOR
$21.80
W0190935 HINGE DOOR
$21.00
W0190936 KNOB PROGRAMME
$17.70
W0190937 COVER PCB HOLDER
$21.00
W0190938 FILTER ASSY FIXED RIGHT
$21.00
W0190939 FILTER ASSY FIXED LEFT
$21.00
W0190940 MANUAL USE CARE DE60F60EW1
$21.00
W0192438 CAPACITOR 9F
$36.90
W0192477 SEAL FELT DRUM FRONT
$39.20
W0192589 SWITCH PUSH BUTTON
$40.30
W0193198 BEARING DRUM REAR
$41.50
W0193459 FILTER ASSY
$44.80
W0193506 PIPE EXHAUST
$43.10
W0193655 EMC FILTER
$47.20
W0193819 SWITCH SELECTOR
$46.80
W0193966 THERMOSTAT NTC
$50.20
W0194740 PANEL CONTROL DE60F60EW1
$54.60
W0194965 FAN DRYER
$57.70
W0195275 HOSE FLEXIBLE
$66.30
W0195369 FLEX MAINS DE60F60
$64.70
W0195429 FISHER & PAYKEL DRYER DRUM V-BELT 6PH1930-DE60F60
$73.30
W0196115 TRIM TOP UNDERBENCH DE60F60
$73.50
W0196476 COVER ASSEMBLY HEATER
$81.50
W0196983 HARNESS MAIN DE60F60EW1
$96.80
W0197350 SEAL REAR PANEL
$105.00
W0197972 TOP DECK DE60F60
$132.30
W0198135 DOOR ASSY DE60F60
$141.90
W0198209 CABINET DE60F60EW1
$146.70
W0198338 HEATER ASSY DE60F60EW1
$186.80
W0198852 PANEL ASSEMBLY REAR
$197.90
W0198879 HOUSING ASSY DRUM FRONT
$200.10
W0199183 MODULE PCB DE60F60EW1
$244.90
W0199230 MOTOR PULLEY ASSY DRYER
$263.90
W0199883 DRUM ASSY BAFFLES FITTED
$414.50
W0279523 SET LIGHT GUIDE
$7.80
