DC8060P1 — 93243-A

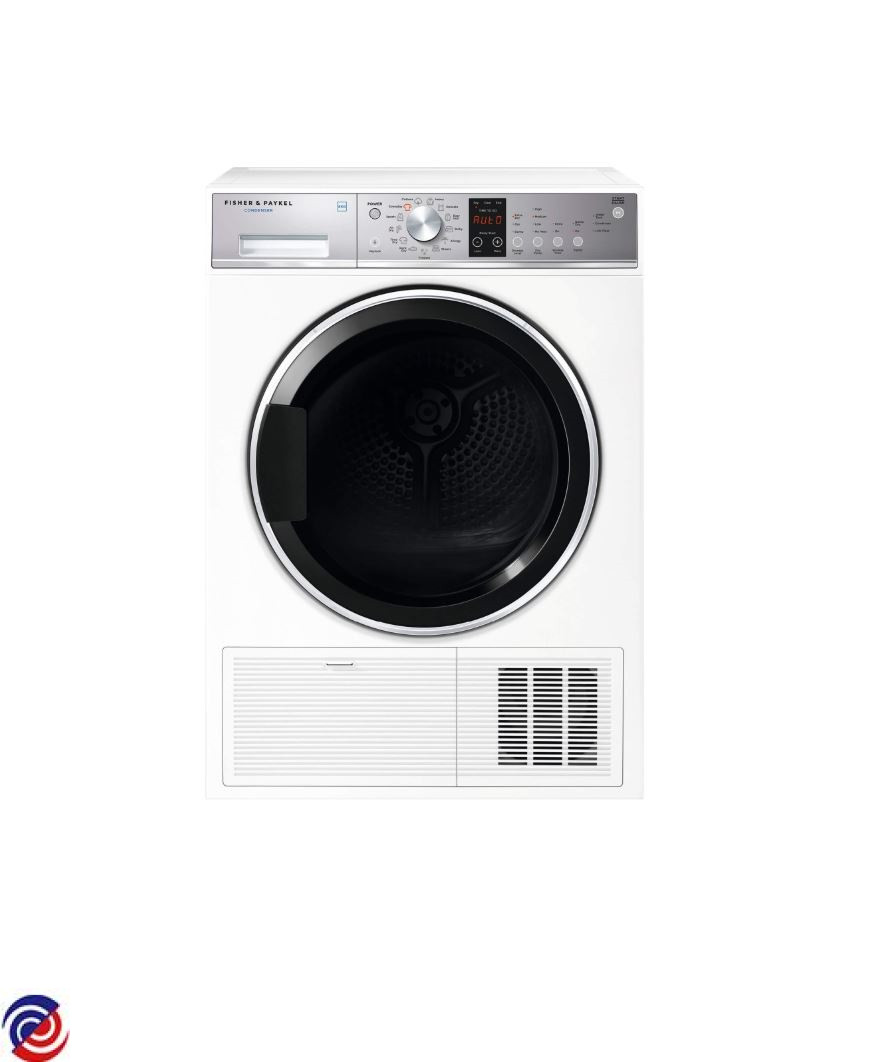

FISHER & PAYKEL — Clothes Dryer

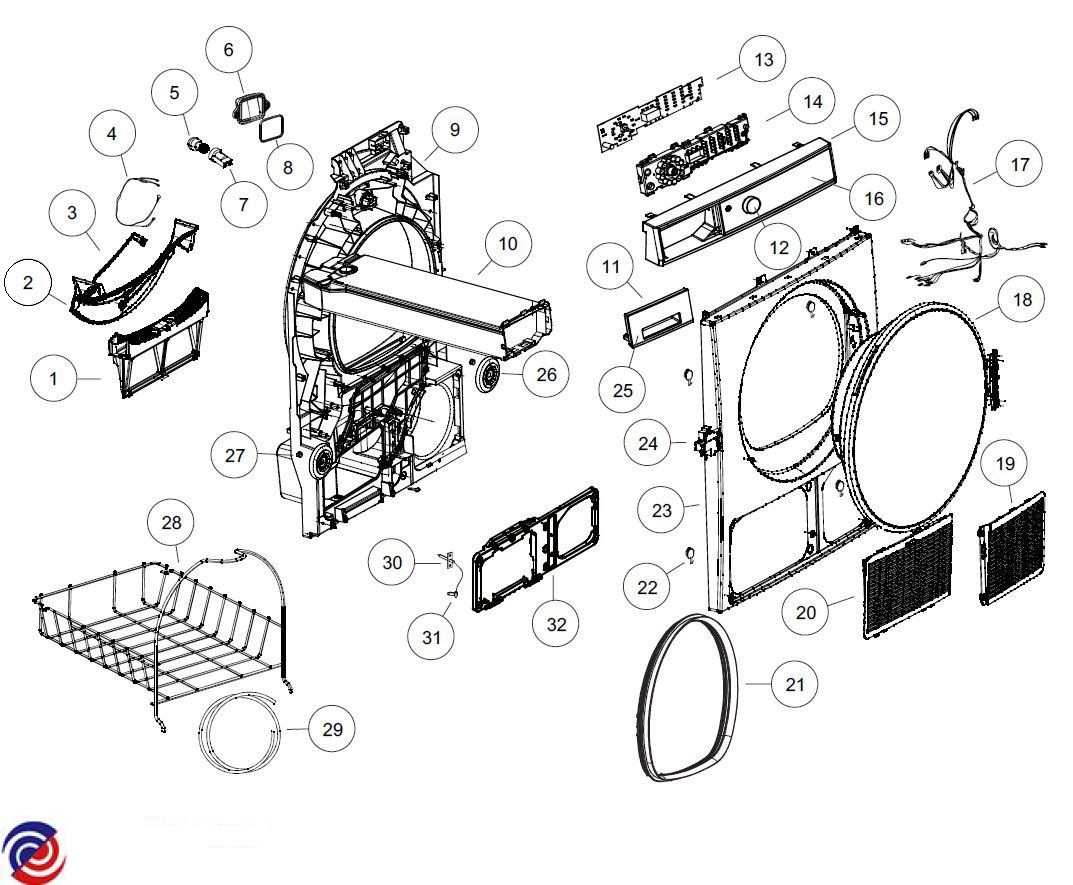

Parts for DC8060P1
W0190207 FISHER & PAYKEL HAIER DRYER LINT FILTER
$53.00
W0194346 FISHER & PAYKEL / HAIER DRYER DRUM BELT (PRODUCT FROM JAN 2018)
$90.00
W0195466 FISHER & PAYKEL HAIER DRYER DOOR GASKET/SEAL
$76.00
W0177070 SCREW
W0177215 LAMP COVER
W0177403 BEARING FRONT DRUM GUIDE DE
W0177509 PULLEY
W0185088 BOLT
$4.50
W0185267 CONNECTOR HOSE DRAIN
$4.50
W0185629 CLAMP
$4.50
W0185698 SENSOR HUMIDITY
$4.50
W0185715 CABLE TIE
$4.50
W0185748 NUT
$4.50
W0185749 WASHER METAL FAN
$4.50
W0185767 GASKET COOLING FAN
$4.50
W0185968 MOUNT MOTOR SUPPORT
$5.00
W0185969 CUSHION MOTOR SUPPORT
$5.00
W0185970 CLIP CONDENSATE HOSE
$4.50
W0185971 BRACKET CONDENSATE OUTLET
$4.50
W0185975 LOCK CONDENSER
$4.50
W0185976 BRACKET PUMP SUPPORT
$4.50
W0185982 SEAL FELT
$4.50
W0186112 SPRING
$4.50
W0186116 HOUSING TOP PUMP
$4.50
W0186215 GASKET INNER COVER TO GLASS
$4.95
W0186220 FOOT DRYER
$4.50
W0186247 WASHER
$4.50
W0186255 NUT BEARING SUPPORT
$4.50
W0187033 COVER REAR PROCESS DUCT FAN
$4.80
W0187406 BRACKET EARTHING
$7.00
W0187877 TUB BAFFLE
$16.90
W0188298 HOUSING DRUM BEARING
$13.90
W0188338 COVER CONDENSATE TANK
$12.30
W0188353 FISHER & PAYKEL SOCKET LAMP
$15.35
W0188624 SEAL FAN COVER
$14.30
W0188780 HOUSING COVER PROCESS FAN
$14.90
W0188877 FISHER & PAYKEL WATERPROOF RING
$17.60
W0188878 SEAL AIR GUIDE
$17.60
W0188968 HOSE CONDENSATE
$17.30
W0189040 HOSE PUMP CONDENSATE
$17.60
W0189081 PANEL REAR AIR CHANNEL
$17.90
W0189134 AIR GUIDE FRONT
$17.90
W0189296 COOLING FAN
$27.00
W0189361 HOSE CONDENSATION DRAIN 1300
$31.00
W0189648 FAN PROCESS HEATING
$32.00
W0189705 SPONGE REAR AIR PANEL DUCT
$17.60
W0189784 PANEL FAN REAR AIR CHANNEL
$17.60
W0189921 CIRCLIP MOTOR PULLEY X PKT 10
$20.50
W0190045 HOUSING COVER COOLING FAN
$17.90
W0190524 AIR GUIDE BODY
$22.90
W0190923 FISHER & PAYKEL/HAIER DRYER DRUM BEARING-DH8060P1
$34.00
W0191459 SWITCH WATER LEVEL
$29.00
W0192003 SENSOR NTC EXHAUST
$39.00
W0192123 DOOR LOCK SWITCH
$52.00
W0192250 HOUSING TOP CONDENSER
$30.60
W0192261 FLANGE DRUM SHAFT
$37.00
W0192399 TUBE
$18.00
W0192594 CAPACITOR 8UF 30UH
$38.00
W0193089 WIRING HARNESS
$38.40
W0193713 CABLE MAINS
$49.30
W0193965 RACK DRYING
$74.50
W0194661 LAMP LED DRYER
W0195357 PUMP CONDENSATE
$137.00
W0196866 SUPPORT FRONT DRUM
$92.50
W0197702 HEATER DRYER
$198.00
W0199151 CONDENSER HD80
$275.50
W0199156 PANEL BASE
$168.30
W0280281 FRONT PANEL SUPPORT
$4.50
W0280320 HOUSING PCB
$17.60
W0280330 HOSE CONDENSATE OVERFLOW
$15.70
W0280375 DECAL PANEL
$72.40
W0280430 PANEL TOP
$121.80
W0280431 KNOB
$43.80
W0280448 PCB DISPLAY BOARD
$158.30
W0280450 BINDING WIRE
$4.50
W0280454 MOTOR
$233.74
W0281155 PANEL REAR AIR DUCT
$46.00
W0281157 SIDE PANEL RH
$67.50
W0281158 SIDE PANEL LH
$67.50
W0281159 FRONT SUPPORT BRACKET
$19.70
W0281160 PCB MOUNTING PLATE
$21.80
W0281162 FRONT PANEL
$99.90
W0281163 BRACKET MOTOR SUPPORT FRONT
$11.00
W0281164 MOTOR CAP
$4.50
W0281167 TANK INLET NOZZEL
$16.10
W0281168 TANK HOUSING TOP
$17.30
W0281169 PANEL TOP BRACKET LH
$4.50
W0281170 HUMIDITY SENSOR SUPPORT
$29.95
W0281171 PANEL TOP BRACKET RH
$4.50
W0281174 PANEL COOLING FAN GRILL
$21.80
W0281175 PANEL CONDENSOR HOUSING
$29.60
W0281177 FRONT SUPPORT
$19.70
W0281178 TANK HOUSING
$29.90
W0281179 CONSOLE CONTROL PANEL
$39.20
W0281180 FRONT PANEL TANK
$17.60
W0281181 WATER TANK
$62.00
W0281186 HARNESS WIRING
$84.40
W0281192 MODULE DRUM ASSY
$222.00
W0281195 DOOR ASSY
$187.50
W0281196 PCB
$205.20
