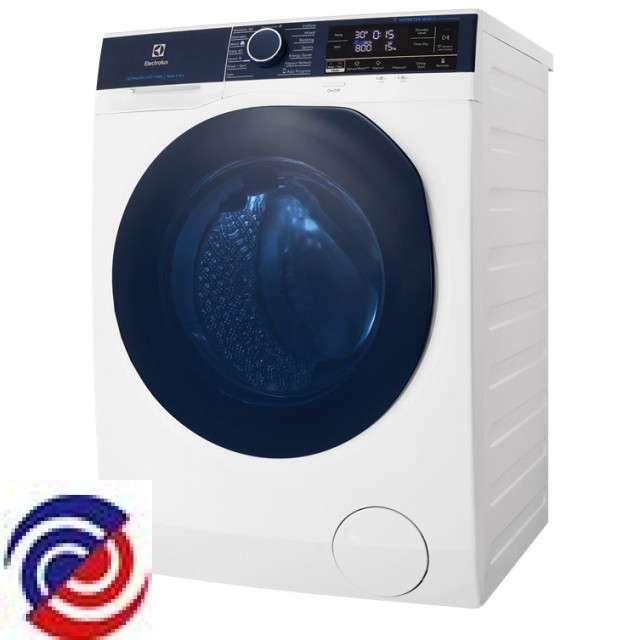

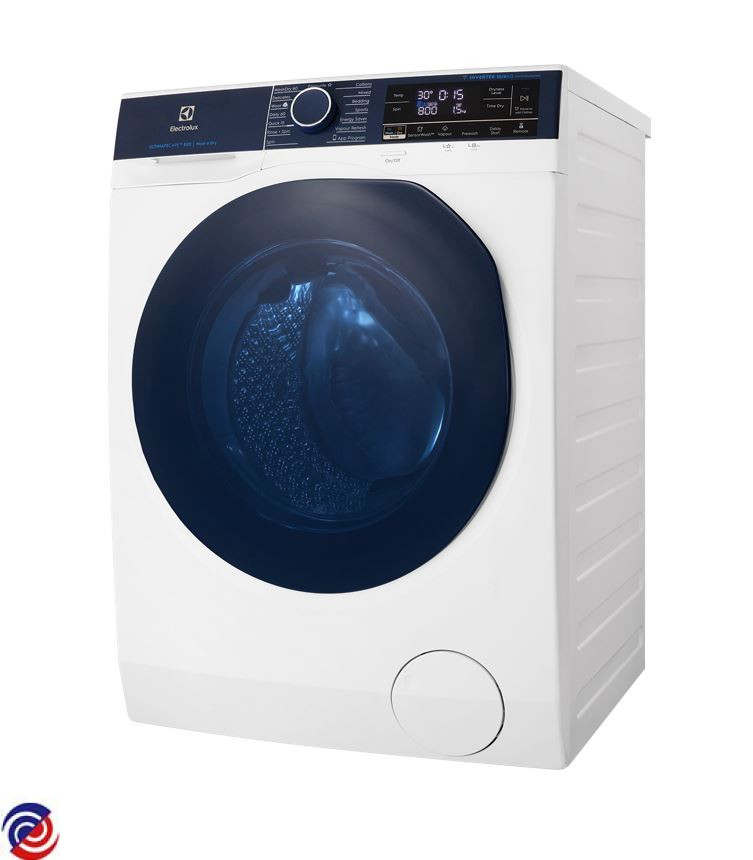

EWW1042ADWA — 914900769 00
ELECTROLUX — Washing Machine
Parts for EWW1042ADWA
W0016849 TUBE VALVE TO DISPENSER
$15.50
W0016971 TRANSIT BOLTS KIT
W0017029 SPRING, BELLOW, TUB, G33
$15.00
W0017043 HOSE SOLENOID VALVE
$16.50
W0017076 ELEMENT HEATING
W0017173 SPRING, SUSPENSION, TUB
$17.00
W0017199 BOLT SHOCK ABSORBER
W0017214 PUMP ASSEMBLY RECIRCULATION
W0017224 LOW FREQENCY ANALOG PRESSUR
W0026627 BEARING DRUM (6206Z)
W0026630 BEARING DRUM (6207Z)
W0029293 THERMOSTAT AUTOMATIC
$37.25
W0075952 BELT DRIVE
W0075967 PULLEY PLASTIC
$27.50
W0076089 HOSE FILLER
W0274160 HOSE ASSY INLET COLD GREY
W0274533 FILTER ASSEMBLY DIAPHRAGM
$21.00
W0284368 LOCK DOOR
W0016544 WASHER, PLAIN
$30.00
W0016559 SCREW PULLEY
$4.50
W0016573 GASKET TEMPERATURE REGULATOR
$11.20
W0016611 SPANNER FOR FOOT
$5.60
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0016984 VALVE 3 WAY WASH/DRY FLOWMETER
W0017040 DISPENSER & CONVEYER ASSY COMP
W0017067 FILTER ANTI NOISE
W0017081 DRAWER PARTITION RIB L.D.
$4.50
W0017098 CLAMP DET DISPENSER GASKET
W0017108 SUPPORT,HOSE DRAIN,LOW
$8.75
W0017113 SHOCK ABSORBER ASSEMBLY
W0017116 GASKET DRUM SHAFT
W0017171 SCROLL RECIRCULATION
$21.60
W0017218 GASKET AIR DUCT TUB
$5.50
W0017219 BLADE FAN WDG60
$40.95
W0017223 AIR DUCT LOWER
W0017226 PIPE DOOR GASK,CLIP WDP10
$4.50
W0018732 CORD POWER SUPPLY AUSTRALIA
$18.25
W0018750 HOSE & CLAMP ASSY FOR SOLENOID
$4.50
W0018766 DRAWER DETERGENT 3 SCOMPARTI
W0026237 O RING
$6.30
W0026983 NTC PROBE WD G60/G50
W0027045 STRIP, DOOR LOCK, EMERGENCY
$6.15
W0027079 LATCH, DOOR
$8.80
W0027099 PROTECTION DOOR LOCK
$4.50
W0027335 GASKET AIR DUCT G60 WD
$29.80
W0029292 THERMOSTAT SAFETY
$37.25
W0029602 BRACKET SPRING SUPPORT
$19.75
W0029733 MOTOR AL PM HP
W0029815 LIFTER DRUM
W0029963 MOTOR FAN CU WD.
$152.10
W0029988 SPIDER ASSEMBLY+BUSHING
$160.05
W0074341 SCREW BEARING SPIDER M8X25 5
W0074343 SCREW MOTOR 5.5 X 38 EWF1092
W0075275 CLAMP CABLE
W0076222 PANEL, BACK, HIGH
$47.00
W0076249 GASKET PROBE WD
W0076251 PROBE SUPPORT WD G60
W0089302 HOSE SET,PRESSURE SWITCH L550
W0132184 PIPE CLIPM 22,1MM
W0147297 PROBE TEMP NTC AIR DUCT
W0274360 HOOK OUTLET HOSE
W0275188 PUMP BODY KIT CW2.0 JET
$19.00
W0275648 PUMP-ASSY DRAIN AL 50HZ LL
W0275691 COVER DRAIN PUMP PROTECTION
W0282257 CLAMP HOSE
$4.50
W0282621 CROSSBAR, COMMAND
W0282622 GASKET INTAKE HOSE
$4.50
W0282849 INTERNAL DRAIN ASSY G60XC JET
W0283248 HEATER ASSY 3I140R 1400W-230V
W0283302 BELLOW DOOR 3XL WD JET
W0283303 HINGE REINFORCEMENT
$4.50
W0283309 FRONT PANEL PCM WHT 0.7MM
$129.25
W0283327 GLASS, DOOR
W0283329 BUSHING HINGE
$4.50
W0283330 PIN DOOR HINGE
$4.50
W0283336 HINGE
$21.65
W0283338 PCBA MOTOR CONTROL EMC14 PMM
W0283339 BUTTON PUSHFILTER DOOR
$21.00
W0283343 FRAME REAR DOOR
$26.50
W0283360 COVER HINGE GREY
$4.00
W0283410 SENSOR TURBIDITY & CONDUCTIVIT
$111.30
W0283427 PCB ASSY WIFI NIUX
$206.60
W0283615 HARNESS ASSY WD G60XC TC2/3
$285.60
W0283624 EXTERNAL FRAME ASSY BLACK+LENS
$188.65
W0283627 PCBA X SELECTOR-TC1 TC2-EAX
$73.90
W0283630 PCBA UI TC1 TC2 WD EUI
W0283638 CONTROL PANEL ASSY EWW1042ADWA
$280.70
W0283729 CLAMP BELLOWS WITH SPRING
W0284099 BRACKET SHOCK ABSORBER RH
$7.55
W0284411 WORK TOP ASSY
W0284449 AIR DUCT UPPER
$66.60
