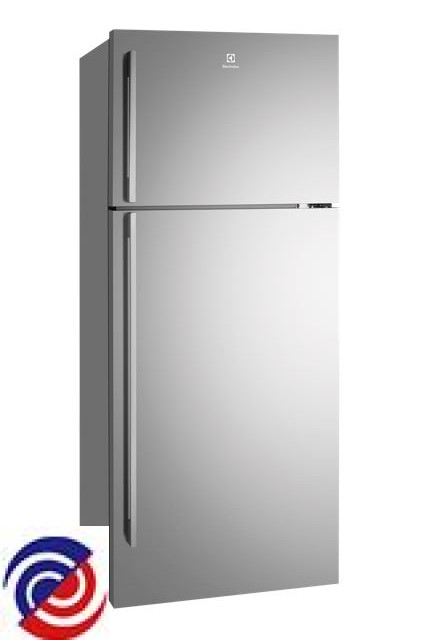

ETE4607SB — 925060418 00
ELECTROLUX — Fridge
Parts for ETE4607SB
W0027081 SCREW TRILOB M3X6
$4.50
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$4.50
W0027460 BIN ICE
W0027522 COVER SCREW
$4.50
W0027540 SHROUD FAN
$55.00
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029693 RACK BOTTLE TO SUIT 80CM WIDE
$56.90
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0274123 ELECTROLUX FRIDGE MOTORISED BAFFLE 241518501
$88.00
W0284066 FOOT STABILIZER ETE4607
W0018166 GROMMET FAN MOTOR
$16.45
W0027015 DEODORIZER BLOCK THIN
$18.00
W0027119 SCREW TRILOB M6X18
$4.50
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027411 BLADE FAN,NAT
$32.25
W0027441 SCREW TRUSS 4.2X13
W0027528 FAN SHROUD ASSY TF BIC
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027601 GASKET FRZ BF70
$101.55
W0027603 GASKET FC BF70
$116.05
W0029310 HINGE TOP LEFT
$6.40
W0029332 DUCT EVAPORATOR
$30.45
W0029337 COVER EVAP ASSY TF70 AU
W0029340 MULTIFLOW ASSY TF AU
W0029351 COVER DEO BAFFLE SILVER-ART
$18.45
W0029373 SUPPORT EVAPORATOR LEFT TF
$6.20
W0029393 BIN DOOR DAIRY BODY TF70 EL
W0029394 BIN DOOR DAIRY LOW LID TF70 EL
$13.30
W0029399 BIN DOOR DAIRY UP LID TF70 EL
$43.00
W0029417 DOOR BIN FC SHALLOW 70 EL
W0029418 BIN DOOR FC BOTTLE 70 2-HOTFOI
$77.00
W0029434 TRAY EGG 70W
W0029440 SHELF FZR TF70 EL ASSY
$66.55
W0029442 SUPPORT ICE T&S SHELF TF
W0029447 SHELF FC TF70 EAU ASSY
$84.60
W0029455 BARRIER DRAWER CRISPER TF70W
$5.00
W0029465 COVER TOP HINGE RIGHT GR
$4.50
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029527 PCB PROGRAMMED ETE4607
W0029538 BEARING AUTO CLOSER L TF SL
W0029556 EXTENSION SLIDE ASSY LH 250MM
$39.50
W0029557 EXTENSION SLIDE ASSY RH 250MM
$39.50
W0029561 HEATER RAD DEF R600 240V TF70W
$74.30
W0029586 FRAME T & S TRAY ASSY WHITE
$33.50
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029659 COMPRESSOR EMBRACO VESD7C
$504.95
W0029660 PCBA DRIVE EMBRACO VESD7C
$214.50
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029709 FOOT RIGHT ASSY
$20.10
W0029751 COVER CRISPER ASSY BF70 EAU
$64.05
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029817 RETAINER CLIP
$4.50
W0029830 SUPPORT EVAPORATOR RIGHT TF
$6.20
W0029844 TUBE CORRUGATE SD
$4.50
W0029849 DRAWER DELI BODY ASSY 70 EAU
$68.20
W0029894 BIN DR DAIRY FOLDABLE 70EL ASY
$94.55
W0029925 CRISPER GASKET 70
$11.40
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030100 POWERCORD INVERTER REF AU/NZ
$25.00
W0030112 HEATER TUBE DRAIN PAN SD
$91.30
W0030295 DISPLAY UI STD ELUX INTL ASSY
$264.00
W0087750 WASHER SLINGER NYLON
W0154011 BIN DOOR FLEX 70 1-HOTFOIL
$63.80
W0154049 CRISPER COVER ASSY BF80 WH+TEL
W0274872 PCBA # LED CLUSTEER GALGA
$23.20
W0282345 HARNESS-ASSY M/FLOW
W0283477 LENS 3 LEDS CLUSTER GALAGA
$19.75
W0283679 MEMBRANE TYVEK
$4.70
W0283680 MEMBRANE HUMIDITY CTRL ASSY
$11.00
W0283852 DOOR SPARE FZR+FC ETE4607SB-L
$625.60
W0284057 SCREW MOUNTING HANDLE MD36
W0284603 HANDLE & PEDESTAL KIT S/STEEL
