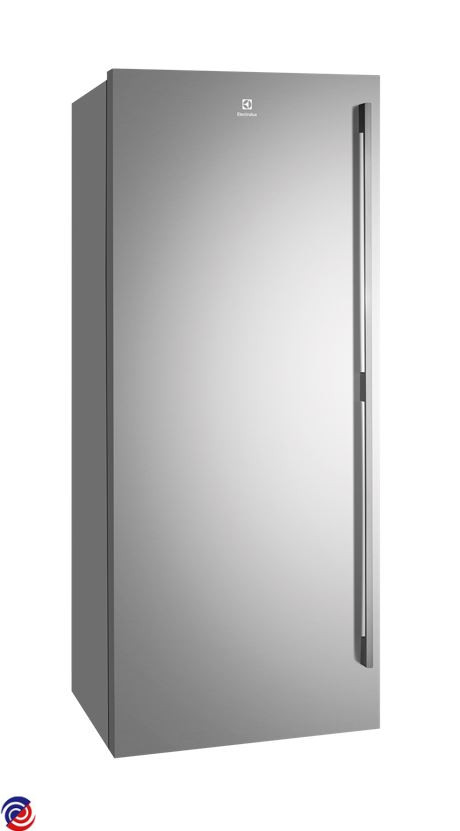

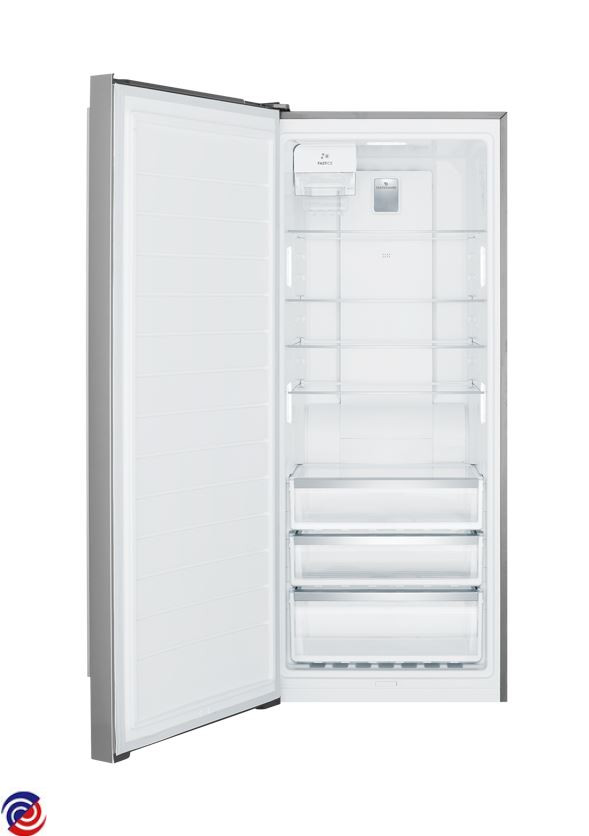

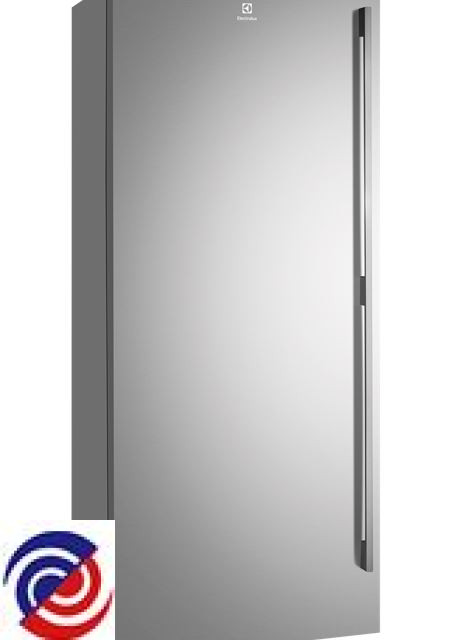

EFE4227SB — 925060428 00
ELECTROLUX — Fridge
Parts for EFE4227SB
.JPG)
W0018255 FILTER WATER INLINE ELECTROLUX
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027222 TUBE PROCESS
$14.36
W0027433 CAPACITOR 4UF
$11.18
W0027522 COVER SCREW
$3.38
W0027560 GROMMET COMPRESSOR
$8.63
W0027562 CLAMP NTC EVAPORATOR
W0027608 COVER TOP CABINET WH GR
$5.21
W0027610 CLAMP COMPRESSOR
$3.38
W0029307 DRAWER MIDDLE BODY BF70
W0029559 HEATER RAD DEF R600 240V BF70W
W0029694 SHAFT ROLLER FRONT WTB4600
$5.70
W0029699 FOOT BASE THREAD
$6.56
W0029700 ROLLER FOOT
$12.83
W0029701 FOOT LEVER
W0030315 WESTINGHOUSE FRIDGE STARTING DEVICE QPA-20A
$20.63
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0020669 LENS 3 LEDS CLUSTER GALAGA
$20.10
W0020714 ICE MAKER (SANKYO)
W0027114 BASE COMP ASSY 70W RAYONG
$33.68
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$3.38
W0027429 POWERCORD RF AU EMBRACO
$20.03
W0027441 SCREW TRUSS 4.2X13
W0027443 SEAL FOAM 6X8
$5.78
W0027605 GASKET SD 70
W0029310 HINGE TOP LEFT
$4.80
W0029351 COVER DEO BAFFLE SILVER-ART
$13.84
W0029363 COVER MFLOW UPPER BF1725 ELUX
$22.50
W0029467 COVER TOP HINGE LEFT GR
$3.38
W0029538 BEARING AUTO CLOSER L TF SL
W0029539 DRAWER LOWER BODY BF70
$63.08
W0029554 EXTENSION SLIDE ASSY LH 300MM
W0029555 EXTENSION SLIDE ASSY RH 300MM
W0029567 BEARING HINGE FZR TOP CLOSED
$6.11
W0029572 TRAY EVAP DRAIN BM/SD 70W
$12.38
W0029603 REAR HOUSING PCB COVER
$123.60
W0029640 EXTENSION SLIDE INSERT FZR LH
$7.05
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029657 DISPLAY UI SDAF ELUX ASSY
$198.75
W0029703 HINGE BASE LEFT ASSY
$21.75
W0029762 ICE MAKER COVER ELUX ARTWORK
$8.81
W0029796 FOOT BASE BF
$5.66
W0029806 COVER BOTTOM MULTIFLOW SD
$22.05
W0029808 DUCT EPS EVAP TOP ALL SD
$6.68
W0029809 DUCT EPS EVAP BOTTOM ALL SD
$8.36
W0029812 SHELF SHORT SD FZ 70W
$63.23
W0029813 SHELF ASSY ELUX FZ SD 70W
$66.90
W0029842 TUBE CORRUGATE TF
$12.71
W0029860 DRAWER ICE
$55.50
W0029874 FAN SHROUD DC ASSY SD
$79.31
W0029876 COVER EVAPORATOR ASSY SD FZ
$99.19
W0029877 COVER EVAPORATOR LID SD 70
$3.75
W0029878 MULTIFLOW ASY SD FZ ELUX
$67.50
W0029907 ICE MAKER BRACKET
$18.38
W0029968 DRAWER FZR FR LWR ASY 70 ELUX
$51.15
W0029972 DRAWER FZR FR MID ASY 70 EAU
$37.50
W0030007 COVER BODY SINGLE VALVE
W0030008 COVER LID SINGLE VALVE
$86.29
W0030021 PCB MAIN ERF2003 5LED FZ_S
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030047 I&W INSTALLATION KIT SD FZ
W0030048 VALVE SD
$61.54
W0030064 COMPRESSOR EMB66CLC
W0030181 DRAIN PAN & HEATER TUBE ASSY
$30.00
W0030289 EVAPORATOR FF SD FZ
$97.50
W0030312 TERMINAL BLOCK EMBRACO
$14.33
W0030313 TERMINAL COVER EMBRACO
$18.75
W0030314 OVERLOAD PROTECTOR EMBRACO
$22.88
W0030355 MULITIFLOW COVER SUPPORT
$152.93
W0030499 HARNESS-ASSY SENSOR DEFROST SD
W0147520 SWITCH DOOR
$19.88
W0147552 ROLLER REAR WTB4600WA RAYONG
$5.40
W0147553 SHAFT ROLLER
W0281772 CONNECTOR 1/4
W0282345 HARNESS-ASSY M/FLOW
W0283865 DOOR SPARE FZR EFE4227SB-L
$516.68
W0284057 SCREW MOUNTING HANDLE MD36
W0284504 HANDLE BODY
$150.00
W0284505 HANDLE PEDESTAL KIT
