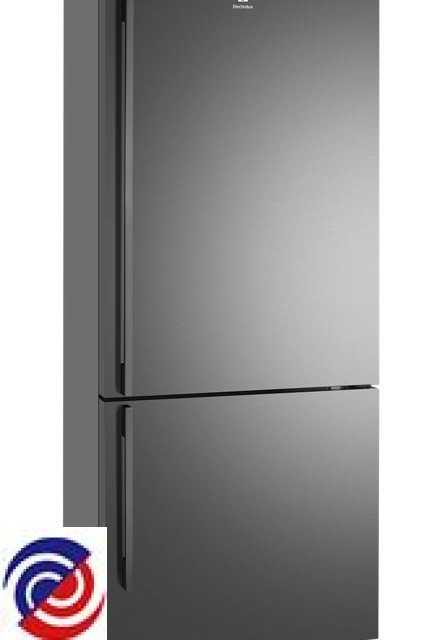

EBE4507BB — 925060566 00
ELECTROLUX — Fridge
Parts for EBE4507BB
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$4.50
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$4.50
W0027460 BIN ICE
W0027522 COVER SCREW
$4.50
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029307 DRAWER MIDDLE BODY BF70
W0029528 PCBA PROGRAMMED EBE4500
$210.05
W0029559 HEATER RAD DEF R600 240V BF70W
W0029692 RACK BOTTLE TO SUIT 70CM WIDE
$49.50
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027015 DEODORIZER BLOCK THIN
$17.00
W0027119 SCREW TRILOB M6X18
$4.50
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027411 BLADE FAN,NAT
$32.25
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$12.65
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027601 GASKET FRZ BF70
$101.55
W0027603 GASKET FC BF70
$116.05
W0029309 HINGE TOP RIGHT
$8.65
W0029358 MULTIFLOW ASSY BF EAU
W0029375 SEALING MFLOW BACK BF 1725
$12.15
W0029376 DRAWER BODY BF70
$34.10
W0029418 BIN DOOR FC BOTTLE 70 2-HOTFOI
$77.00
W0029434 TRAY EGG 70W
W0029447 SHELF FC TF70 EAU ASSY
$84.60
W0029465 COVER TOP HINGE RIGHT GR
$4.50
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029482 EVAPORATOR COVER BF70 ASY 2-Z
$65.00
W0029490 BIN ICE AIM BF ELUX
$25.90
W0029536 BEARING AUTO CLOSER R TF SL
W0029539 DRAWER LOWER BODY BF70
$84.10
W0029572 TRAY EVAP DRAIN BM/SD 70W
$16.50
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029640 EXTENSION SLIDE INSERT FZR LH
$9.40
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029659 COMPRESSOR EMBRACO VESD7C
$504.95
W0029660 PCBA DRIVE EMBRACO VESD7C
$214.50
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029676 CENTRE HINGE PIN DRAWER DOOR
$4.50
W0029697 COVER FOOT LEFT HINGE GREY
$12.95
W0029698 COVER FOOT RIGHT HINGE GREY
$4.50
W0029702 HINGE BASE RIGHT ASSY
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029751 COVER CRISPER ASSY BF70 EAU
$64.05
W0029761 BRACKET ICE MAKER
$14.50
W0029764 SUPPORT PASTRY SLIDE LH
$18.35
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029814 SUPPORT PASTRY SLIDE RH
$14.00
W0029820 EPS FZ AIR STOPPER
$5.00
W0029844 TUBE CORRUGATE SD
$4.50
W0029855 DRAWER DELI FRONT 70 EAU ASSY
$78.30
W0029894 BIN DR DAIRY FOLDABLE 70EL ASY
$94.55
W0029968 DRAWER FZR FR LWR ASY 70 ELUX
$68.20
W0029975 DRAWER FZR PASTRY ASY 70 ELUX
$65.00
W0029996 MAT DOOR BIN FLEX 1/2 TF70
$30.55
W0030014 DRAWER DELI BODY 70 ASSY
$59.65
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030100 POWERCORD INVERTER REF AU/NZ
$25.00
W0030112 HEATER TUBE DRAIN PAN SD
$91.30
W0030113 SPACER 3 TURN HEATER
$4.50
W0030287 EVAPORATOR FF BF70
$95.75
W0030295 DISPLAY UI STD ELUX INTL ASSY
$264.00
W0030341 INSERT DRAWER CRISPER BF70 EAU
$39.40
W0030629 COVER WATER TANK BF/MD ASSY
W0087750 WASHER SLINGER NYLON
W0087781 SPRING TWIST&SERVE
W0087794 SCOOP ICE
W0096152 TRAY ICE CUBE
W0096153 KNOB ICE T&S WHITE
W0147552 ROLLER REAR WTB4600WA RAYONG
$7.20
W0147553 SHAFT ROLLER
W0154011 BIN DOOR FLEX 70 1-HOTFOIL
$63.80
W0154025 HARNESS-ASSY M/FLOW BF EAUO
W0275544 EXTENSION SLIDE ASSY LH 300MM
W0275545 EXTENSION SLIDE ASSY RH 300MM
W0283305 COVER DEO BAFFLE SILVER-ART TG
$18.35
W0283317 SUPPORT DRAWER ELUX LH
$24.70
W0283318 SUPPORT DRAWER ELUX RH
$24.70
W0283653 PEDESTAL HANDLE
W0283655 PEDESTAL HANDLE
W0283679 MEMBRANE TYVEK
$4.70
W0283680 MEMBRANE HUMIDITY CTRL ASSY
$11.00
W0283856 DOOR SPARE FZR+FC EBE4507BB-R
$742.25
W0284057 SCREW MOUNTING HANDLE MD36
W0284602 HANDLE & PEDESTAL KIT BLACK SS
$369.00
