ESL67040R — 911434036 04
ELECTROLUX — Dishwasher
Parts for ESL67040R

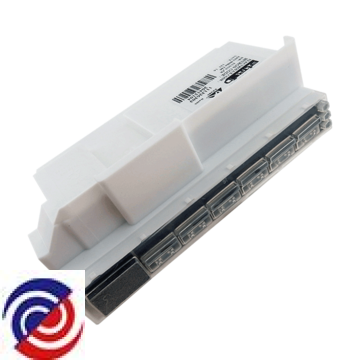

W0015203 BOARD USER INTERFACE EDW1503
$216.75
W0015364 AEG ELECTROLUX WESTING DISHWASHER DRAIN FILTER ASSEMBLY
$48.00
W0015381 NUT FASTENING TOP SPRAY ARM
$4.50
W0015778 GASKET DOOR 1800MM
$33.75
W0015843 GASKET DOOR LOWER BLK
W0025941 PEG DOOR PANEL KIT OF 2 SM HD
$9.79

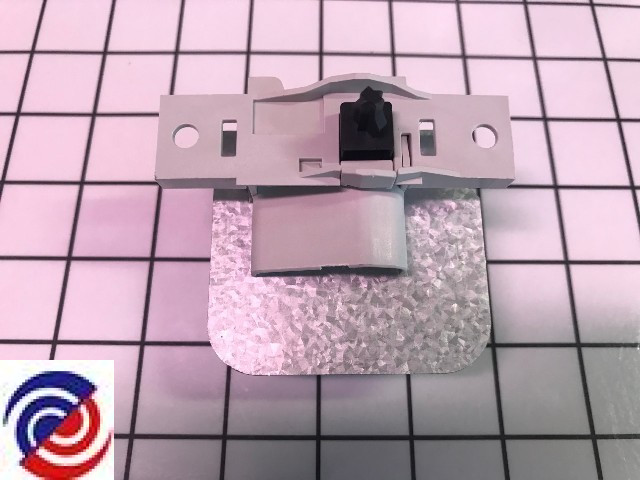

W0071643 AEG DISHLEX ELECTROLUX DISHWASHER ON OFF SWITCH 1113337024
$34.50
W0071723 CAPAC 3UF MOTOR DISHWASHER
$36.00
W0072878 SCREW ADJUSTING FOOT CENTRAL
$1.50
W0072920 SUPPORT CUP GREY - SHORT
$10.73
W0072989 SWITCH PRESSURE ANALOGIC COMP
$60.75
W0116480 PANEL DOOR INNER COMPLETE
$172.35
W0128335 ELEMENT INLINE 230V/2000W 32MM
W0149911 STOP BASKET REAR DK GREY
W0015189 LOCK DOOR
$52.50
W0015191 REGULATOR FLOW CONTROL
$87.00
W0015205 SWITCH TURBIDITY SENSOR
$51.75
W0015221 HARNESS WIRING MAIN ELECTRONIC
$15.64
W0015222 WIRING HARNESS ASSEMBLY
$172.09
W0015362 SPRAY ARM UPPER GREY
$73.50
W0015365 HOSE SUMP HEATER
$36.75
W0015366 HOSE HEATER CIRCULATION PUMP
$54.00
W0015368 O-RING SUMP
$13.50
W0015369 GASKET WATER SOFTENER
$18.75
W0015373 FILTER FLAT
$31.50
W0015376 BASKET DW UPPER DARK GREY
$208.84
W0015386 SUPPORT SPIKES RUBBER ORANGE
$29.25
W0015751 CORD POWER AUST/NZ 10A
$30.00
W0015776 TRAY BOTTOM SPILLAGE
$33.00
W0015777 BRACE FRONT UPPER
$25.91
W0015779 BASEPLATE BASEMENT
$33.00
W0015784 PANEL FRONT LOWER
$17.21
W0015788 COVER WIRING HARNESS
$7.39
W0015789 CLAMP FIXING PARTITION
$4.13
W0015792 RAIL BASKET UPPER
$12.75
W0015809 RACK FOLD DOWN LH 333MM
$30.00
W0015810 RACK FOLD DOWN RH 333MM
$33.00
W0015821 BUTTON ON/OFF GREY
$4.13
W0015824 TEMPLATE BUILT IN
$4.13
W0015829 RIVET PLASTIC DOOR DIA 12X19MM
$18.75
W0015863 LEG ADJUSTABLE CENTRAL 129MM
$15.00
W0015864 GUIDE FOOT CENTRAL REAR
$9.75
W0015866 MOUNT PUMP DRAIN
$3.00
W0015868 SPONGE WATER TANK
$4.95
W0015871 ADJUSTMENT D/WASH BASKET RH
$20.63
W0015872 ADJUSTMENT D/WASH BASKET LH
$20.63
W0015881 CONTROL PANEL SILKSCREENED
$57.75
W0015886 GROMMET SIDE MOUNT/DOOR GUIDE
$4.50
W0017615 SEALING PRESSURE SWITCH
$4.50
W0017652 DISPENSER DETERGENT
$87.00
W0018962 STOP BASKET UPPER - FRONT
$15.23
W0018984 TRIM TUB CABINET X 609MM
$25.50
W0018988 LATCH DOOR LOCK
W0019023 VENT VAPOUR OUTLET
$11.18
W0019046 TUBE CONTAINER CUP FILL VALVE
$18.98
W0019054 COG LEG ADJUSTABLE CENTRAL
W0023583 HANDLE COMPLETE
$27.23
W0023584 ROLLER KIT LOWER BSKT PKT 8
$60.00
W0023828 KIT OVERFLOW HOSE
$11.93
W0023904 KIT DOOR HINGE LEFT/RIGHT
$52.54
W0032293 TAPE FOIL KIT STEAM PROTECTION
W0071624 SWITCH & FLOAT ASSY
W0071854 VENTILATING TUBE X 1600MM
$18.64
W0071929 SUMP WATER ASSEMBLY
W0071931 HOSE WATER SOFTENER SUMP
$30.00
W0071933 SUPPORT SPRAY ARM LOWER
$23.06
W0071938 COVER TOP SPRAY ROSE
$9.45
W0071940 CAP WATER SOFTENER
$4.50
W0071941 NUT WATER SOFTENER
$3.38
W0071942 SPRAY ARM ASSY GREY
$59.18
W0071953 BASKET CUTLERY GREY COMPLETE
$42.90
W0071954 MANIFOLD INNER - 691.9MM LONG
$46.54
W0071962 LAMP DOOR INDICATOR
W0072700 TANK WATER SMALL
$24.86
W0072793 COVER TERMINAL
$6.60
W0072854 VENT DRYING ACTIVATOR
W0072862 BRACE FRONT LOWER
$22.50
W0072866 PANEL DOOR OUTER ZINC PLATED
W0072879 BASKET LOWER SILVER
$142.50
W0072906 FUNNEL FILLING D/W SALT TRANS
$4.50
W0072913 BRACE REAR UPPER
W0072921 SUPPORT CUP GREY - LONG
$10.73
W0072935 HOSE DRYING X 795MMLONG
$30.00
W0072937 BRACKET FIXING TOP
$7.50
W0072941 SUPPORT MOTOR RUBBER
$10.73
W0072974 HARNESS MAIN ELEC BRD IND LAMP
W0072981 PANEL SIDE LEFT - ZINC PLATED
$52.50
W0072983 SIDE PANEL RIGHT - ZINC PLATED
$74.25
W0072990 TANK WATER SOFTENER COMP
$99.00
W0077050 CHANNEL DRAINAGE ASSY GREY
$36.75
W0077067 CIRCULATION PUMP TACHO
W0090332 BRACKET ROLLER REAR SIFFENING
$7.50
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090578 SUPPORT FOOT FRONT LH
$7.50
W0090579 SUPPORT FOOT FRONT RH
$7.50
W0090627 GROMMET, DECALCIFIER ESL9163
$3.38
W0090637 COVER LATCH HOLE
$8.25
W0090645 LEG ADJUSTABLE FRONT 121MM
W0090684 HOSE SWITCH PRESSURE ?10X260MM
W0090769 DISCHARGE HOSE INSTALLATION
W0090851 FIXING CLAMP SENSOR
W0103995 CAPACITOR 0.47ÁF
$22.50
W0103997 PUMP DRAIN
W0116544 HOSE INLET WATER BLOCK X1800
W0128356 SUPPORT ROLLER KIT PKT 4
$43.50
W0153215 ELECTRONIC CONFIGURED EDW1---
