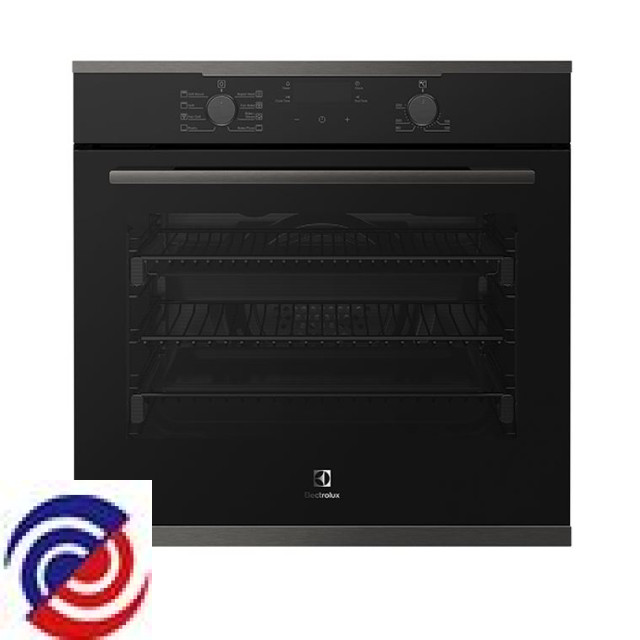

EVE614DSD — 944031793 00
ELECTROLUX — Cooker Electric
Parts for EVE614DSD
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0022968 HINGE DOOR
.JPG)
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0275063 LAMP OVEN ROUND PYRO BIOS
W0282043 SPACER HANDLE GLS DR
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011479 PANEL TOP PYRO NGP
$43.20
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011667 PANEL FAN COVER CAT BIOS
W0011856 SUPPORT ELEMENT
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0012849 DOOR OVEN INNER GLASS MIDDLE
W0013260 SHIELD WIRING
$11.95
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013730 BUMPER STOP BLK
$6.55
W0013967 CLOCK 3 BTN TOUCH 'BF11' WHT
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0030166 PANEL BASE BIOS 0.5MM
W0030352 FAN COOLING ASSY RADIAL 11W
W0030457 PANEL SIDE UB BIOS RH
$49.15
W0030458 PANEL SIDE UB BIOS LH
$49.15
W0030606 INSULATION OVEN BACK - KNAUF
$15.55
W0038118 COVER RETAINING LATCH
$10.95
W0042653 CHANNEL FRONT NGP UB LH
W0064527 SCREW NO 8 X 12 MM PD
$4.50
W0154077 ENDCAP CONTROL PANEL CHEF LHS
W0154078 ENDCAP CONTROL PANEL CHEF RHS
W0275331 SCREW M4 X 50 PAN GENESYS
$5.50
W0282427 KIT PNL CTRL EVE614DSD
W0283096 SCREW M4 X 7 T20 ZINCSCREW M4
$4.50
W0283348 PLATE MTG SW PIPO E100
$50.00
W0283437 KNOB HOLE COVER FLAT
$4.50
W0283441 COVER CLEAN HEAT
$9.65
W0283475 SPACER HANDLE E100 DARK S/S
W0283479 HANDLE PAD E100
$4.50
W0283519 PNL OV DR OUT AS 36 E100
W0283533 SWITCH MULTI 8 E100 STEAM
$24.70
W0283545 INSULATION OVEN WRAP - KNAUF
W0283700 INDICATOR LED LIGHT 250MM E100
$6.25
W0283701 INDICATOR LED LIGHT 600MM E100
$5.40
W0283732 HOLDER LAMP SIDE ASSY G9 PYRO
W0283810 KNOB PIPO DARK SS E100
$17.75
W0284064 CLIP SIDEGRIDS
$4.50
W0284067 CLIP THERMOSTAT BIOS
$4.50
W0284338 HANDLE DOOR E100 DARK S/S
$50.00
W0284442 ELEMENT DUAL C/HEAT STEAM E100
$142.35
