EKM6701X — 947805042 00
ELECTROLUX — Cooker Dual Fuel
Parts for EKM6701X
W0022688 HANDLE, OVEN DOOR, INOX
$132.00
W0022734 THERMOCOUPLE 500MM WOK
$31.65
W0022804 CROWN TRIPLE WOK BNR CYL NAT
W0022806 GASCOCK, TRIPLE CROWN BURNER
$121.00
W0023236 ROTARY SELECTOR, POTENTIOMETER
$88.00
W0035479 CAP BURNER ENAMEL MATT
$20.00
W0053260 REGULATOR GAS NG PTP INTEGR
W0102417 THERMOCOUPLE T ELUX BURNER 750
W0109893 SPARK PLUG, L=1100MM EKM6701X
$16.50

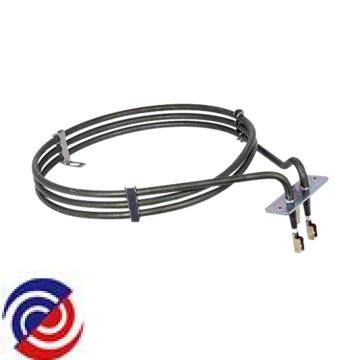

W0109901 ELEMENT FAN
W0109923 MOTOR FAN OVEN EKC6707X
$88.00

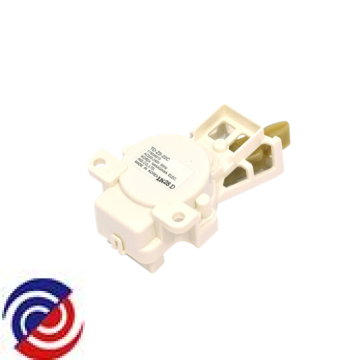

W0109934 LOCK DOOR MOTOR
$104.50
W0109977 ELEMENT OVEN LOWER 1000W
$88.00
.JPG)
W0114461 BOARD OVC1000-SW-OVC1C301
W0011126 BASE BURNER AUX IGN NG
$29.05
W0022685 INDICATING PLATE,ROTARY SWITCH
$50.60
W0022686 INDICATING PLATE, SELECTOR, BL
$6.60
W0035458 BASE BURNER SEMI RAPID IGN NG
$13.20
W0035472 CAP BURNER WOK INNER MATT
W0035473 BURNER CAP ELUX WOK OUTER MATT
W0046413 CLIP SPARK PLUG E/LUX
W0060092 ADAPTER LP TEST POINT
W0090145 CONECTOR TEST POINT LP
W0095847 CAP SCREW COVER BLK
W0100925 GOVERNOR NG
W0108681 SLEEVE. HINGE. RIGHT EKC6707X
W0108682 SLEEVE. HINGE. LEFT EKC6707X
W0108779 REAR PANEL EKM6700X
W0108782 RAIL. DRAWER EKC6707X
W0108788 BAFFLE PLATE. INTERNAL
W0108797 ROASTING TRAY.H=33MM EKC6707X
W0108798 ROASTING TRAY. H=20MM
W0108803 WORKTOP. INOX EKM6701X
W0108880 DRAWER PANEL. INOX EKC6707X
W0108881 DRAWER PANEL, INOX
$141.90
W0108886 PANEL. OVEN DOOR. INOX
W0108887 SIDE PANEL. RIGHT. INOX
W0108888 SIDE PANEL. LEFT. INOX
W0108889 PROFILED BAR. UPPER.GLASS DOOR
W0108945 FRONT PIECE. CONTROL PANEL
W0108956 CAP BURNER SMALL 55MM
W0108957 CAP BURNER MEDIUM 72MM
W0108959 ELBOW 1/2
W0108960 CUP BURNER SMALL
W0108961 CUP BURNER MEDUM
W0108965 SKIRT BURNER SMALL
W0108969 BURNER
$44.00
W0108970 CROWN. MEDIUM BURNER. SR
W0108977 CUP DOUBLE CROWN BURNER
W0108979 END PIECE. SHOULDER. LEFT
W0108980 END PIECE. SHOULDER. RIGHT
W0109013 PIPE. REAR. RIGHT. S/R M13X1
W0109014 PIPE. FRONT. RIGHT EKM6700X
W0109015 PIPE. FRONT. LEFT EKM6700X
W0109016 PIPE. BACK. LEFT EKM6700X
W0109029 SPRING KNOB
W0109034 CLIP SPARKPLUG & THEMOCOUPLE
W0109042 SPRING DOOR OVEN
W0109047 NUT EOC6800X
W0109049 SCREW, STUD, OVEN DOOR
$4.00
W0109050 SHAFT. FIXING. GRATING
W0109097 GRILL. SIDE. LEFT EOB6730X
W0109098 GRILL. SIDE. RIGHT EOB6730X
W0109102 GRILL. ANTI-SPLASH EOC6800X
W0109104 GRILL. CAST IRON EKM6700X
W0109107 RACK GRILL INSERT
$50.60
W0109207 KNOB ASSY. BLACK EKC6707X
W0109221 PUSH BUTTON. RHEA. INOX. L=29
W0109571 INDICATING PLATE. BLACK
W0109680 END CAP LOWER LEFT DOOR
$58.05
W0109681 END CAP LOWER RIGHT DOOR
W0109683 END PIECE, UPPER RIGHT, DOOR
$19.80
W0109688 END PIECE. UPPER LEFT. GLASS D
W0109694 LENS ORANGE
W0109703 FOOT EKM6701X
W0109707 VIEWER. PROGRAMER EKM6701X
W0109708 BUFFER KNOB H=2.5MM
W0109709 BUFFER GLASS PANEL
W0109710 BUMPER BUFFER GLASS PANEL
W0109711 SPACE COMPENSATOR. BEZEL L
W0109712 SPACE COMPENSATOR. BEZEL R
W0109715 PROTECTION. ANTI OVER FLOW
W0109717 BUSH INDICATING PLATE
W0109719 BUFFER GLASS PANEL
W0109720 CLAMP CABLE
W0109732 DRAWER. BLACK EKC6707X
W0109754 GLASS PANEL. INTERNAL O/D
W0109769 GLASS PANEL. INTERNAL. O/DOOR
W0109770 GLASS PANEL. INTERNAL. O/D
W0109791 GASKET. COCK EKM6700X
W0109802 SEALING. SEAL EKM6700X
W0109891 SPARK PLUG.INGNITION.TC 110OMM
W0109897 OVEN BOTTOM ELEMENT. 1000W
W0109899 OVEN TOP ELEMENT. GRILL
W0109913 SPARKPLUG. IGNITION. B. 800MM
W0109929 THERMOCOUPLE. L=500 EKM6700X
W0109937 THERMOCOUPLE. L=275 EKM6700X
W0109944 HOLDER. LAMP COMPLETE EKM6701X
W0109949 VENTILATOR. TANGENTIAL
W0109950 PUSH BUTTON SWITCH. COMPLETE
W0109962 THERMOSTAT. BLACK.N.C. 160/140
W0109967 THERMOSTAT SET. STIRRUP
W0110004 BOX IGNITION
W0110045 HARNESS. PROGRAM SWITCH
W0110048 HARNESS. USER INTERFACE BOARD
W0110073 HINGE. OVEN DOOR EKM6701X
W0110079 CROWN. TRIPLE CROWN BURNER
W0110090 GASCOCK. SMALL BURNER. COPRECI
W0110091 GASCOCK. MED BURNER. COPRECI
W0110103 BURNER ASSY WOK NG
$40.00
W0110140 GLASS PANEL ASSY. OVEN DOOR
W0110155 CLOCK CONTROLLER
W0110191 BLADE FAN
W0110194 SHOULDER. COMPLETE EKM6700X
W0110197 TERMINAL BLOCK EKM6700X
W0114254 RESISTOR. 800 OHM EKM6701X

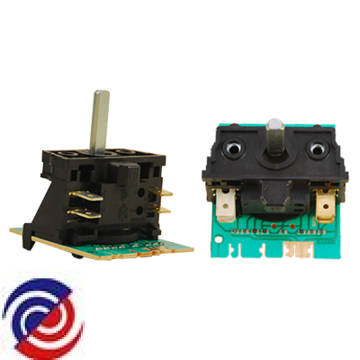

W0114273 SWITCH SELECTOR
$30.80
W0114276 POWER BOARD OVC1000 EKM6701X
W0114632 CAP BURNER INNER WOK
W0114634 CAP BURNER OUTER WOK
W0114697 SENSOR. L=350 OVC1000
W0116425 MOTOR OVEN 220/240V-20W(FIME)
$147.00
W0127161 ROLL. DRAWER EKC6707X
W0127696 KIT. BUFFER. GRATE. 20PZ
W0128075 KIT. SEALING. FRONT PANEL
W0128139 KIT. SUPPORT. BUFFER EKM6701X
W0128220 NOZZLE SET, NATURAL GAS
$9.90
W0128221 INJECTOR SET LPG EKM6700X
