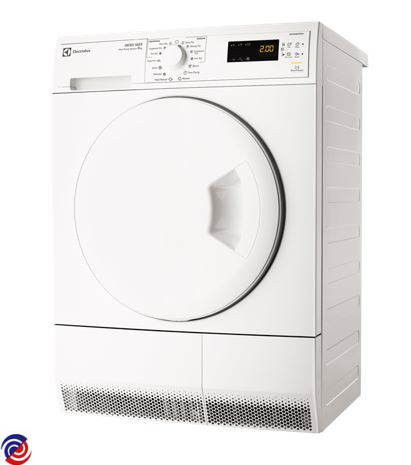

EDH3284PDW — 916097086 00
ELECTROLUX — Clothes Dryer

W0016685 HOSE DRAIN KIT DRYER 2.5M

W0016701 BUSH SUPPORT ROLLER

$6.00

W0017346 SIDE PANEL,INSULATED,RIGHT

$94.65

W0017380 HUMIDITY SENSOR

$27.75

W0017397 HOSE, PUMP,TANK, L=770

$13.09

W0017403 GASKET FILTER

$27.75

W0017408 SPRING, DOOR, PLINTH

$9.75

W0017421 DRUM, LIFTER

$11.21

W0017426 MAIN BOARD,EDH3284PDW

W0017435 DOOR LOCK

$22.50

W0017445 SWITCH MICRO ANTI FLOOD CONTROL

$23.25

W0017447 MOTOR

W0017467 CONE

$15.83

W0017469 BOARD INVERTER

$209.25

W0017475 HINGE, PORTHOLE, PLASTIC DOOR

$23.25

W0017477 HINGE BUSHING

$6.00

W0017484 FLUFF FILTER

$36.00

W0017498 FILTER,BASEMENT,SMALL,HP

$30.00

W0017505 TAPPET, DOOR

$7.50

W0017522 OUTER DOOR, PLINTH

$85.05

W0017523 PLINTH, TIR

$93.79

W0017530 OUTER DOOR,COVER,WHITE

$60.04

W0019381 KNOB, WHITE, TIR

$18.15

W0019382 PROGRAM SELECTOR TC4/5

W0019384 USER INTERFACE BOARD,TC4,TIR

$197.25

W0074659 ROLLER CLAMPING ASSY

W0074941 AEG DRYER CONDENSATION PUMP

$65.25

W0076582 GASKET DRUM BACK

$26.25

W0076689 GASKET FRONT

W0150019 LEG ADJUSTABLE

W0016564 CAPAC 18UF 425V 2 PIN WASHER

W0016656 BUFFER (MOTOR)

$6.00

W0016657 BUSH MAIN MOTOR

W0017345 SIDE PANEL,WITH INSULATION

$127.54

W0017354 ROLLER ASSY CHANNEL DRAIN

$21.75

W0017362 PANEL REAR

$127.88

W0017364 DOOR FRAME

$31.35

W0017367 REINFORCEMENT, TOP

$33.00

W0017369 REINFORCEMENT, MIDDLE,TOP

$20.63

W0017370 SUPPORT, TANK

$43.50

W0017371 TANK, UPPER

$38.25

W0017376 SUPPORT,BUTTON, DOOR

$6.75

W0017379 TANK. CONNECTOR

$17.18

W0017381 DRUM, COMPLETE

$110.25

W0017383 BELT DRIVE L=1791

W0017384 TUBE HOLDER

$10.73

W0017389 BRACKET FIXING MOTOR FRONT

$14.25

W0017391 BRACKET HARNESS

$20.63

W0017394 DOOR HINGE,REINFORCEMENT

$17.40

W0017399 SEALING,BASEMENT,AIR DUCT

$15.75

W0017401 SUPPORT, HUMIDITY SENSOR

$15.00

W0017406 BUSH TANK

$7.50

W0017412 COVER, PLATE, DOOR LOCK

$4.13

W0017419 INNER DOOR

$80.85

W0017430 COVER ELECTRONIC BOARD

$9.79

W0017434 CLAMP CABLE

$5.36

W0017443 WORK TOP ASSEMBLY

$93.75

W0017451 HARNESS. AIR DUCT

$24.75

W0017466 CONE, BASE

$27.00

W0017470 BRACKET BOARD MOUNTING

$20.63

W0017471 COVER ELECTRONIC BOARD, INV

$12.38

W0017481 SUPPORT, PUMP

$24.00

W0017482 COVER, PUMP, FLOAT

$34.84

W0017483 FAN WHEEL, FRONT

$41.25

W0017490 DRAWER BASEMENT

$10.50

W0017492 GASKET, DOOR, FILTER,HP

$22.50

W0017493 GASKET, DOOR, BASEMENT

$26.25

W0017494 DOOR, BASEMENT,HP

$20.63

W0017496 KNOB LOCK,DOOR,BASEMENT

$18.15

W0017499 BRACKET WIRING

$20.63

W0017501 BRACKET WIRING

$7.43

W0017502 SUPPORT FRAME, COMPRESSOR

$23.93

W0017520 TENSION SPRING, MOTOR

$9.75

W0017524 HINGE, DOOR, PLINTH

$13.20

W0017527 SUPPORT, INNER DOOR

$10.73

W0017529 DIFFUSER, LUMINOUS DIODE.SUPP

$21.00

W0017550 CONTROL PANEL, HANDLE,COMPLETE

$108.79

W0023730 BUTTON PUSH

$9.45

W0025696 BUSH KIT (MOTOR)

W0072032 HINGE PIN EDI96150W

$4.95

W0072092 FAN COOLING COMPRESSOR

$57.75

W0074436 SENSOR EDI96150W

W0076546 COMPRESSOR,COMPLETE,RB68EP

$230.18

W0076585 DUCT. AIR. FRONT

W0076604 OVERFLOW HOSE, L=640

$22.50

W0076609 GASKET FRONT. LARGE OPENING

W0076616 DOOR SWITCH

W0076618 POWER CABLE, AUS, 2600MM

$52.50

W0076653 FILTER BASEMENT HP

W0076655 FIXING BRACKET, MOTOR, REAR

$10.50

W0076657 COVER, BACK,AIR DUCT

$33.00

W0076671 PANEL FRONT

W0116541 DOOR HANDLE. ASSY

W0116629 CAPAC ANTI INTERFERENCE FILTER
