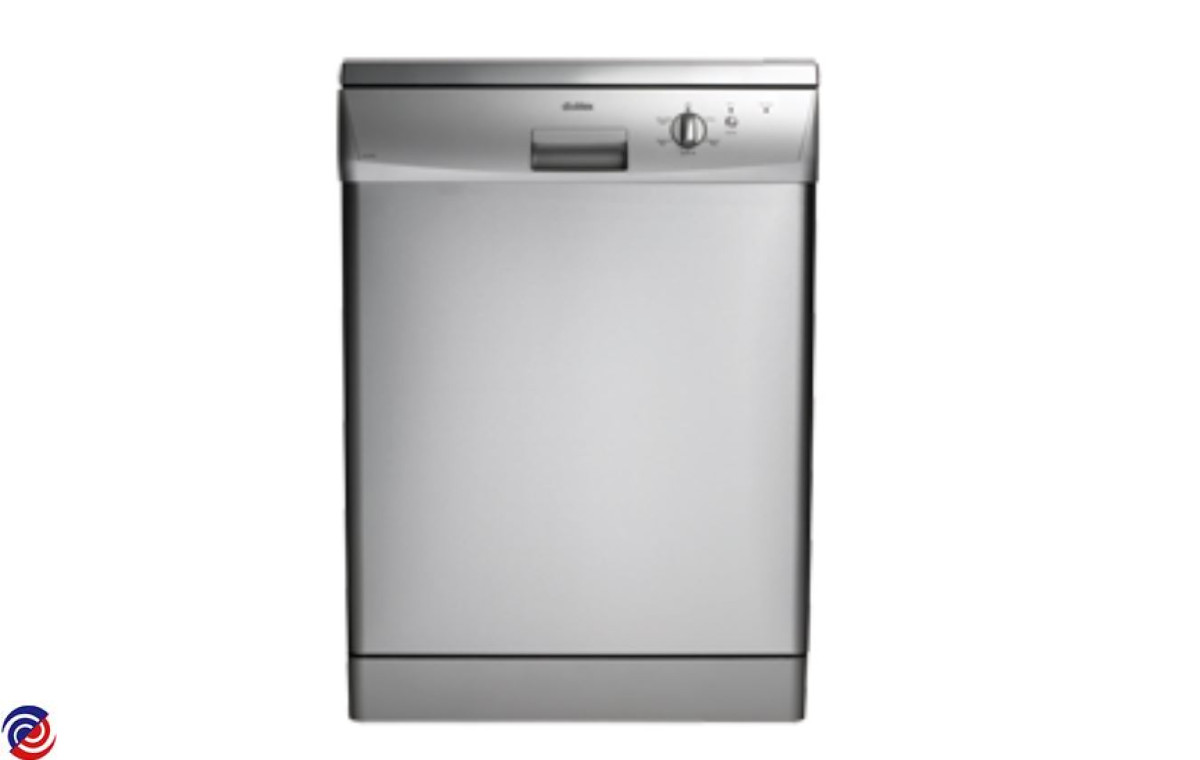

DX103SK — 911519032 02
DISHLEX — Dishwasher

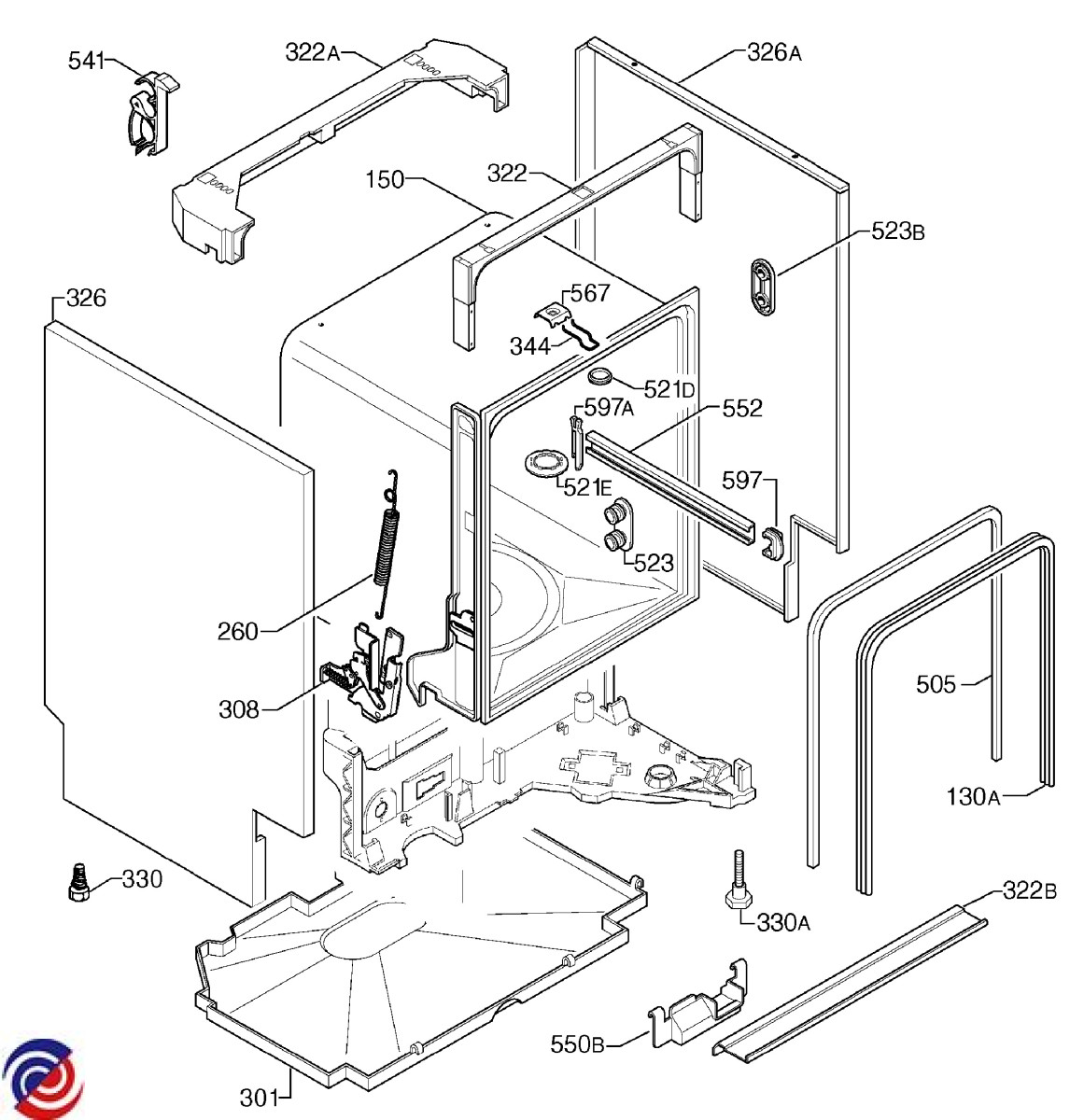

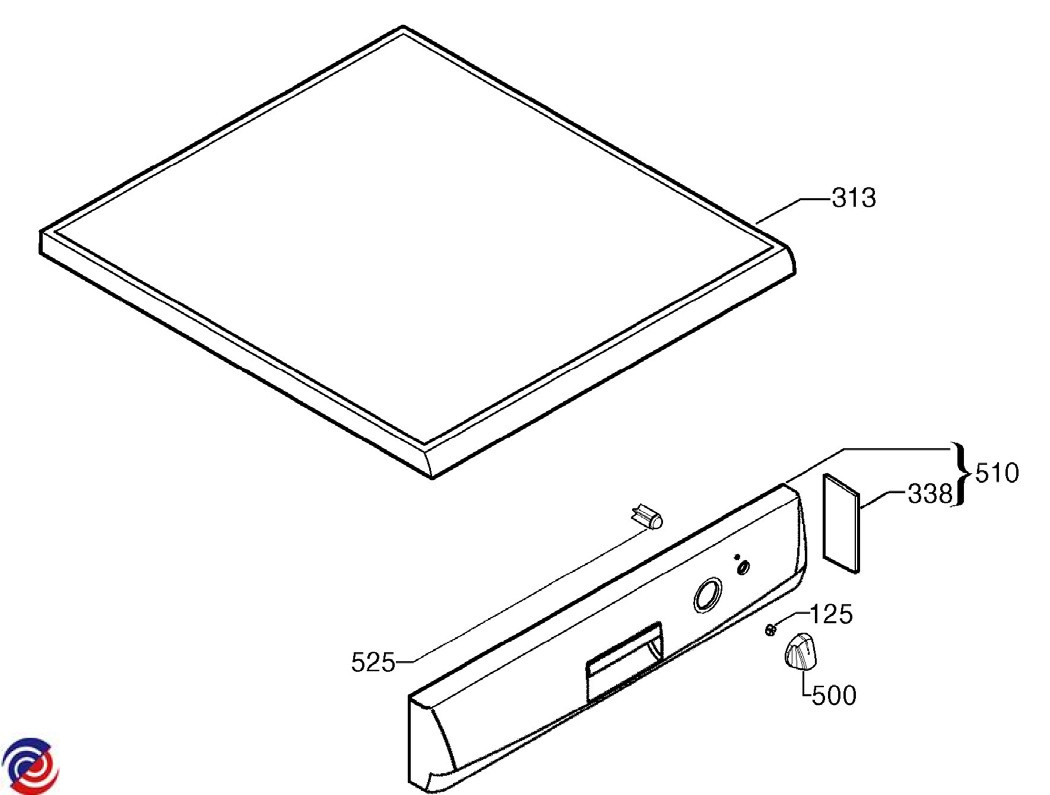

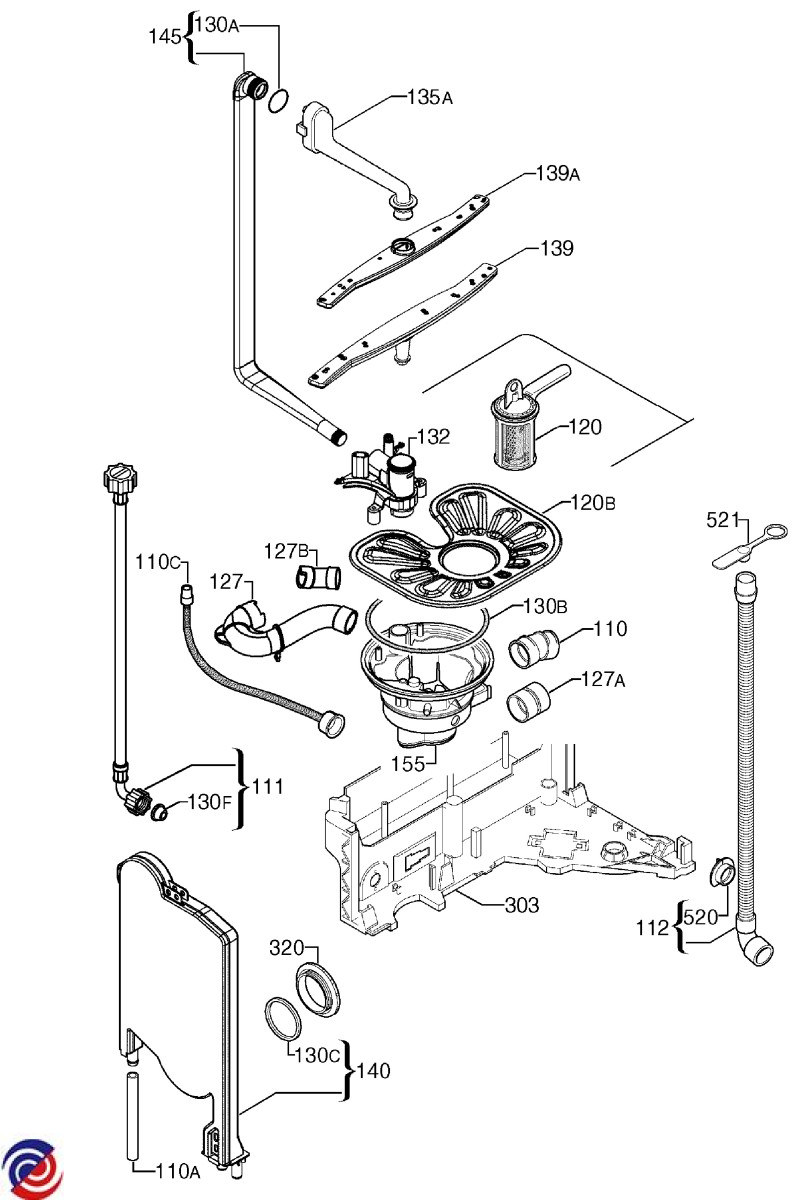

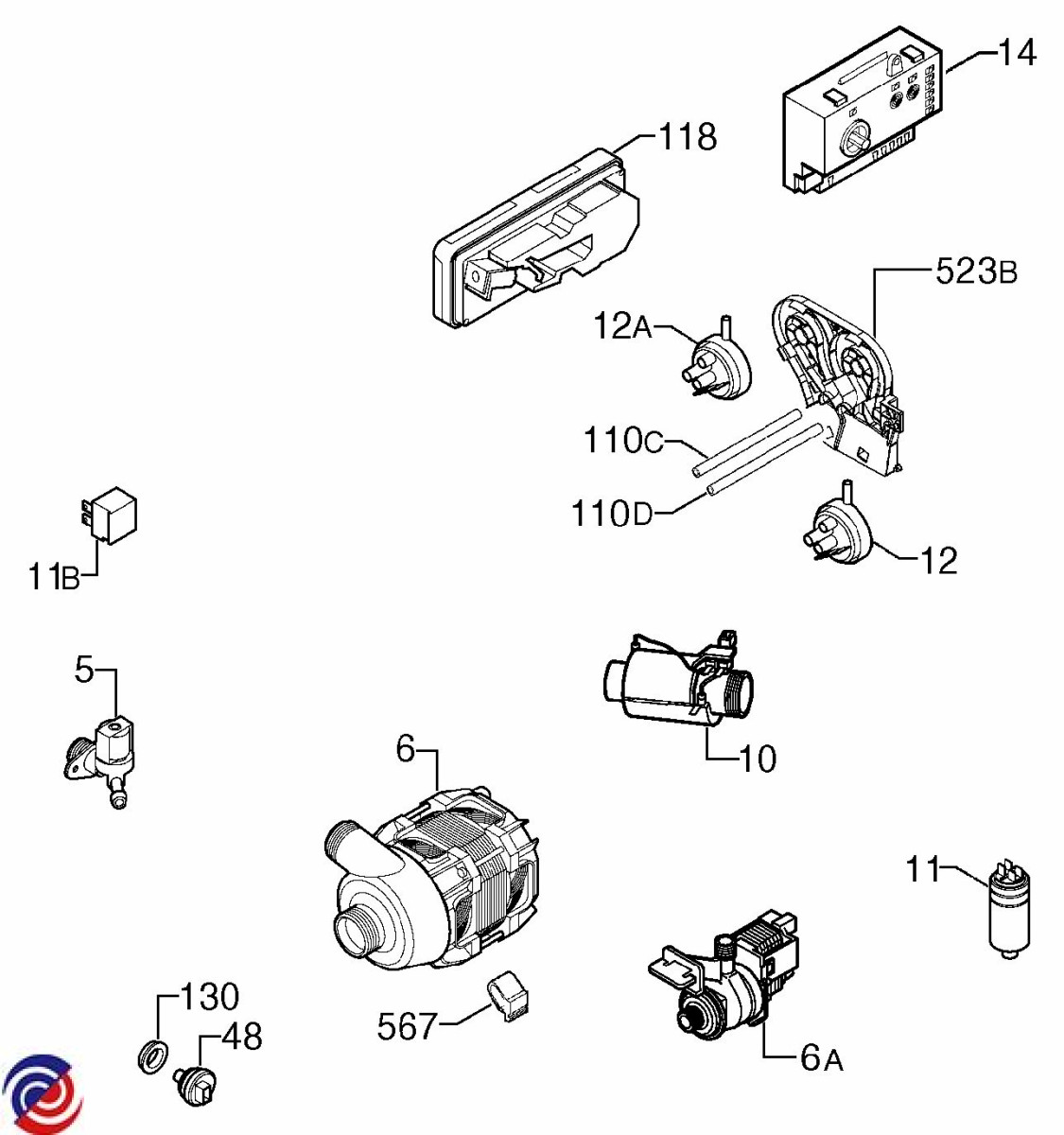

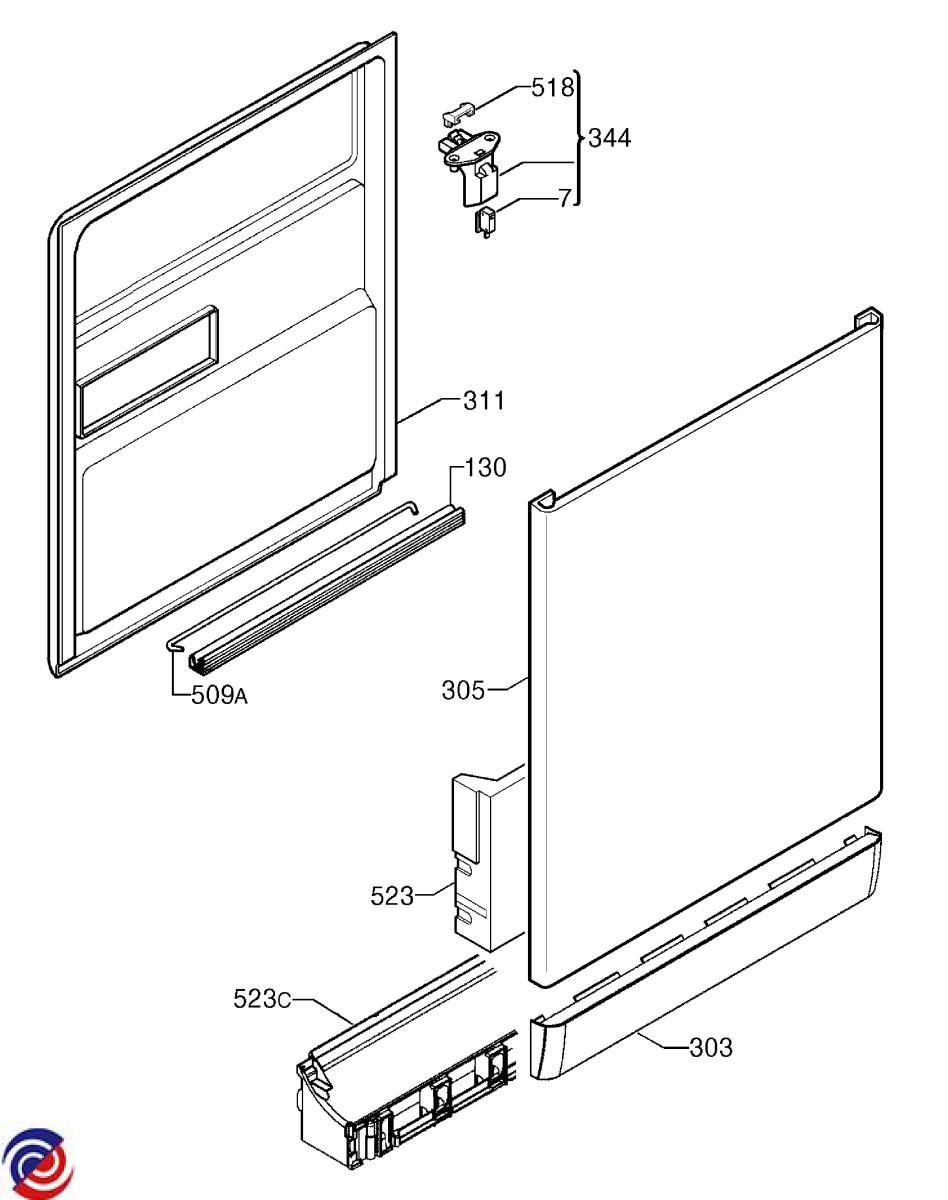

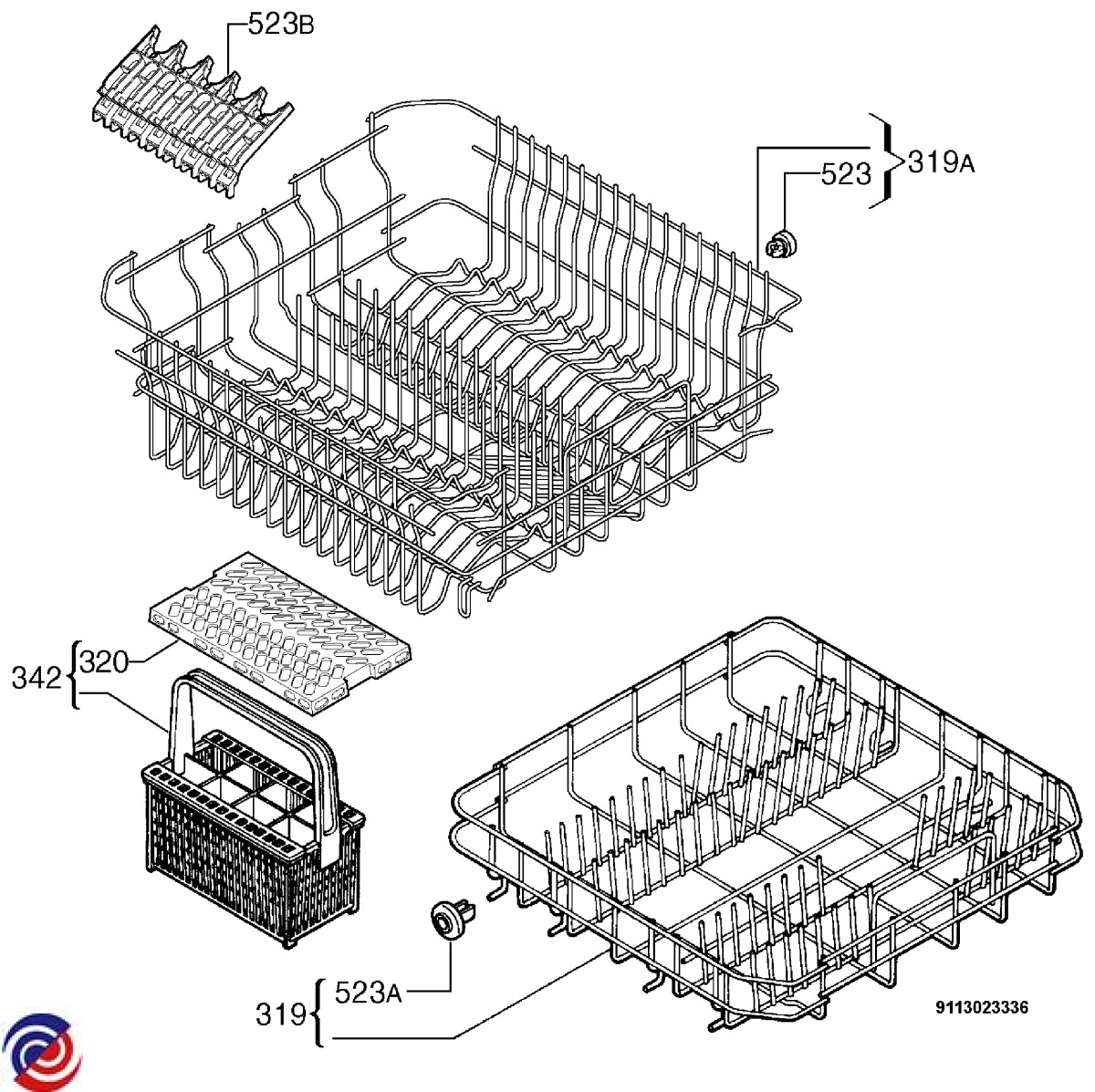

Parts for DX103SK

W0015351 SPRAY ARM LOWER LIGHT GREY
W0015721 MOUNT PRESSURE SWITCH
$50.00
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0019073 DISHLEX DISHWASHER BASKET CUP RACK
W0025858 ROLLER KIT LOWER PKT 8
W0025859 ROLLER KIT UPPER PKT 8
$37.00
W0025958 AEG DISHLEX ELECTROLUX WESTINGHOUSE DISHWASHER DRAIN PUMP DRAIN ASSY 50293177-00/7
$89.00
W0071629 MOTOR WASHING 2600RPM
$181.00
W0071719 SENSOR TEMPERATURE
$50.00
W0071889 PIPE UNION HEATING ELEMENT
W0071893 SPRAY ARM UPPER LIGHT GREY
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090546 BASKET CUTLERY
W0090599 LATCH DOOR LOCK
W0090747 GASKET DOOR LOWER BLK L=550
W0090799 SWITCH PRESSURE LEVEL 65/45
W0090932 DISHLEX DISHWASHER PC BOARD ASSY EDW500 1560116-20/2
W0128067 CHANNEL DRAINAGE. COMPLETE
W0128335 ELEMENT INLINE 230V/2000W 32MM
W0149911 STOP BASKET REAR DK GREY
No image available
W0015301 HOSE DRAIN DRUM DRAIN PUMP
$55.00
No image available
W0015342 BRACKET STIFFENING
$34.50
No image available
W0015353 MANIFOLD VERTICAL
$46.90
No image available
W0015712 PLINTH GREY
$100.95
No image available
W0015713 HOLDER PLINTH
No image available
W0015714 BASEPLATE BASEMENT
$115.50
No image available
W0015742 RAIL BASKET UPPER
No image available
W0015751 CORD POWER AUST/NZ 10A
$40.00
No image available
W0018988 LATCH DOOR LOCK
No image available
W0019019 TUBE AIR CHAMBER
No image available
W0019023 VENT VAPOUR OUTLET
$14.90
No image available
W0019090 BUTTON PUSH INOX
$18.60
No image available
W0025927 SWITCH MICRO DOOR
$35.00
No image available
W0047345 FILTER EMC
No image available
W0050178 SEAL SUMP
No image available
W0050183 SEAL NTC TURBIDITY
No image available
W0051411 MOUNTING MOTOR
No image available
W0071610 DISPENSER DETERGENT
No image available
W0071809 HOSE DRAIN DRUM CIRCULATION
$60.05
No image available
W0071886 FILTER MAIN INOX
$40.00
No image available
W0071887 HOLDER COLUMN LOWER SPRAY ARM
$14.30
No image available
W0071891 PIPE UNION HEAT ELEM-WASH PUMP
No image available
W0071899 SUMP
$63.00
No image available
W0071908 BASKET UPPER D/W - LT GREY
No image available
W0071910 BASKET LOWER INCLUDES ROLLERS
No image available
W0072600 DOOR INOX
No image available
W0072606 DOOR PANEL INNER
No image available
W0072670 PANEL SIDE LH
$189.90
No image available
W0072671 PANEL SIDE RH
$170.00
No image available
W0072685 TUBE PRESSURE SWITCH SAFETY
No image available
W0072696 TANK WATER SHORT ELECTRONIC
$50.00
No image available
W0074296 SEAL
No image available
W0090280 TIE HINGE
No image available
W0090303 FOOT ADJUSTABLE
$10.00
No image available
W0090380 COVER WIRING
No image available
W0090413 SEAL CHANNEL DRAINAGE
No image available
W0090423 NUT SPEED CLIP
No image available
W0090475 GASKET DOOR 17300MM
No image available
W0090510 GRATE CUTLERY BASKET GREY
No image available
W0090572 BOTTOM CABINET
No image available
W0090593 SWITCH PRESSURE. SAFETY 123/98
No image available
W0090611 PLUG BRIDGING
$4.50
No image available
W0090612 CLAMP HOSE
No image available
W0090614 VALVE FILL
No image available
W0090636 COVER LATCH HOLE
No image available
W0090642 DRAIN FILTER. COMPLETE
No image available
W0090648 SPRING. HINGE ESL6143
No image available
W0090683 TUBE AIR CHAMBER
No image available
W0090702 COVER HOLE TUB
No image available
W0090716 BRACE FRONT UPPER
No image available
W0090726 CROSSBAR FRONT BOTTOM
No image available
W0090746 PLUG DRAIN HOSE
No image available
W0090790 LEG ADJUSTABLE FRONT 10MM
$18.90
No image available
W0090809 KNOB GREY
$35.55
No image available
W0090865 BRACKET STIFFENING
$6.60
No image available
W0090918 PANEL SIDE FOR CONTROL PANEL
No image available
W0090930 CONTROL PANEL DX103SK
No image available
W0090938 WORKTOP GREY
No image available
W0090939 HOSE DRAIN X 2230MM
No image available
W0090942 HARNESS COMPLETE
$69.90
No image available
W0090959 CAPAC 3UF 425V 2 PIN RUNNING
$30.00
No image available
W0127959 HOSE INLET X 1500 LONG
No image available
W0127972 NAMEPLATE DOOR
No image available
W0128097 CLIP FIXING STUD (PKT 4)
$4.50
No image available
W0128168 HINGE KIT DOOR RIGHT-LEFT
No image available
W0128246 SUPPORT ROLLER KIT PKT 4
No image available
W0129222 SEAL AIR CHAMBER
No image available
W0129236 RING LOCKING KNOB
