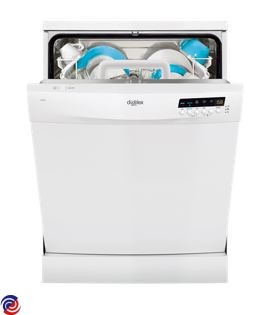

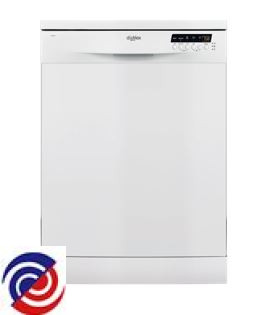

DSF6305W — 911516170 02
DISHLEX — Dishwasher
Parts for DSF6305W
W0015188 LATCH DOOR LOCK
$66.00
W0015204 BOARD INTERFACE AMBER EDW1500
$210.05
W0015350 DISHLEX IKEA SIMPSON DISHWASHER UPPER SPRAY ARM DARK GREY
$93.05
W0017618 BASKET UPPER DISHWASH ASSY
W0017624 SENSOR TEMPERATURE TURBIDITY
W0017627 PUMP DRAIN 50HZ.
W0017639 VALVE NON-RETURN FLAP SUMP
$28.55
W0017640 SENSOR PRESSURE SWITCH
W0017642 SPRAY ARM LOWER DARK GREY
$93.05
W0018964 FOOT ADJUSTABLE X 36MM LONG
$18.90
W0019066 ROLLER BASKET RH QUIK LIFT
$40.00
W0019067 ROLLER BASKET LH QUIK LIFT
$40.00
W0025858 ROLLER KIT LOWER PKT 8
$36.00
W0030797 SUPPORT SPIKES RUBBER - GREY
$30.00
.JPG)
W0030810 BASKET CUTLERY UNIVERSAL
W0071641 DISPENSER DETERGENT
$110.00
W0071643 AEG DISHLEX ELECTROLUX DISHWASHER ON OFF SWITCH 1113337024
$43.55
W0071723 CAPAC 3UF MOTOR DISHWASHER
$45.50
W0071935 SUPPORT SPRAY ARM LOWER DRK GR
$30.55
W0072845 GASKET DOOR 1730MM
W0077043 DISHLEX SIMPSON DISHWASHER INLET WATER HOSE x 1500mm LONG
$64.00
W0077072 VALVE FILL 2.5L/MIN
W0077090 PUMP RE-CIRC/HEATER COMP 1800W
W0090747 GASKET DOOR LOWER BLK L=550
$32.00
W0015342 BRACKET STIFFENING
$34.50
W0015367 TRAP SUMP PUMP RECIRC - BLACK
$12.05
W0015368 O-RING SUMP
$16.35
W0015374 FILTER FLAT
W0015388 DISPLAY LED 7MM
$91.95
W0015713 HOLDER PLINTH
$72.00
W0015720 BRACE CROSSBAR UPPER REAR
$14.95
W0015828 SPRING ON/OFF BUTTON
$12.20
W0015890 HOSE SUMP PRESSURE SEN X212MM
$4.00
W0017614 HOSE SUMP TO TANK X370MM
$9.85
W0017622 BRACE CROSSBAR FRONT LOWER
W0017635 TRAY BOTTOM SPILLAGE
$54.00
W0017649 TUBE MANIFOLD INNER DARK GREY
$59.05
W0017650 COVER ELEC CONTROL BOX
$44.00
W0017665 CORD SERVICE AU 2.15M
$45.05
W0017690 HANDLE WHITE
$73.70
W0017692 MOUNTING HANDLE - WHITE
$24.95
W0017697 BUTTON PUSH SET OF 6 - WHITE
$17.60
W0017699 SUPPORT BUTTON PUSH SET6
$27.50
W0017721 RAIL BASKET UPPER
$32.00
W0018963 STOP BASKET UPPER FRONT D/GREY
$8.35
W0018988 LATCH DOOR LOCK
$4.00
W0018989 COVER WIRING PROTECTION
$11.00
W0019024 VENT VAPOUR OUTLET
$19.75
W0019170 BRACE FRONT UPPER
$35.05
W0019179 WORKTOP - WHITE
$160.00
W0019182 CHANNEL FEED UPPER SPRAYARM
$49.50
W0024199 KIT OVERFLOW HOSE
$150.00
W0024359 HANDLE BASKET COMPLETE
$44.00
W0024452 KIT HINGE DOOR LH/RH
$108.05
W0026167 SCREW SWITCH HOUSING
$4.00
W0026672 STOP BASKET UPPER REAR D/GREY
$9.20
W0026946 PLINTH WHITE
$69.05
W0027046 HARNESS PCB HEATER
$72.00
W0027059 FOOT ADJUSTABLE M8 X 48MM LONG
$18.90
W0027129 CLAMP DRAIN HOSE Ï30MM
$7.80
W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM
$19.45
W0027131 CLAMP CIRCULATION PUMP-SUMP
$10.30
W0027132 CLAMP DIA 16MM
W0027267 PANEL CONTROL WHITE DSF6305W
$229.85
W0027387 HARNESS PCB PUMP
$34.30
W0072593 PANEL SIDE LEFT - WHITE
$150.00
W0072595 PANEL SIDE RH - WHITE
$147.35
W0072705 CONTAINER CUP SMALL
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072944 ON/OFF BUTTON PROTECTION
$18.60
W0072945 ON/OFF BUTTON WHITE
$18.65
W0077055 SUMP WATER ASSEMBLY
W0077057 BASEMENT REAR
$68.20
W0077065 SWITCH & FLOAT ASSY
$42.00
W0077073 SUPPORT CUP GREY
$10.00
W0077152 HARNESS PCB DOOR
$66.00
W0077167 HOSE DRAIN X 2230MM
W0077240 DOOR INNER INOX 577X617
$220.00
W0090280 TIE HINGE
$6.60
W0090413 SEAL CHANNEL DRAINAGE
$12.85
W0090423 NUT SPEED CLIP
W0090637 COVER LATCH HOLE
$10.00
W0090657 TRIM TUB BLACK
$28.55
W0090683 TUBE AIR CHAMBER
W0090960 HOOK UPPER BASKET DISPENSER
$4.50
W0090967 PANEL DOOR OUTER - WHITE
$195.00
W0090972 BASKET DISHWASHER BOTTOM GREY
$176.00
W0128356 SUPPORT ROLLER KIT PKT 4
$55.00
W0147301 FILTER DRAIN ASSEMBLY - FINE
W0149952 BUFFER DISHWASHER BASKET
$8.00
W0153244 PCB MAIN CONFIGURED
