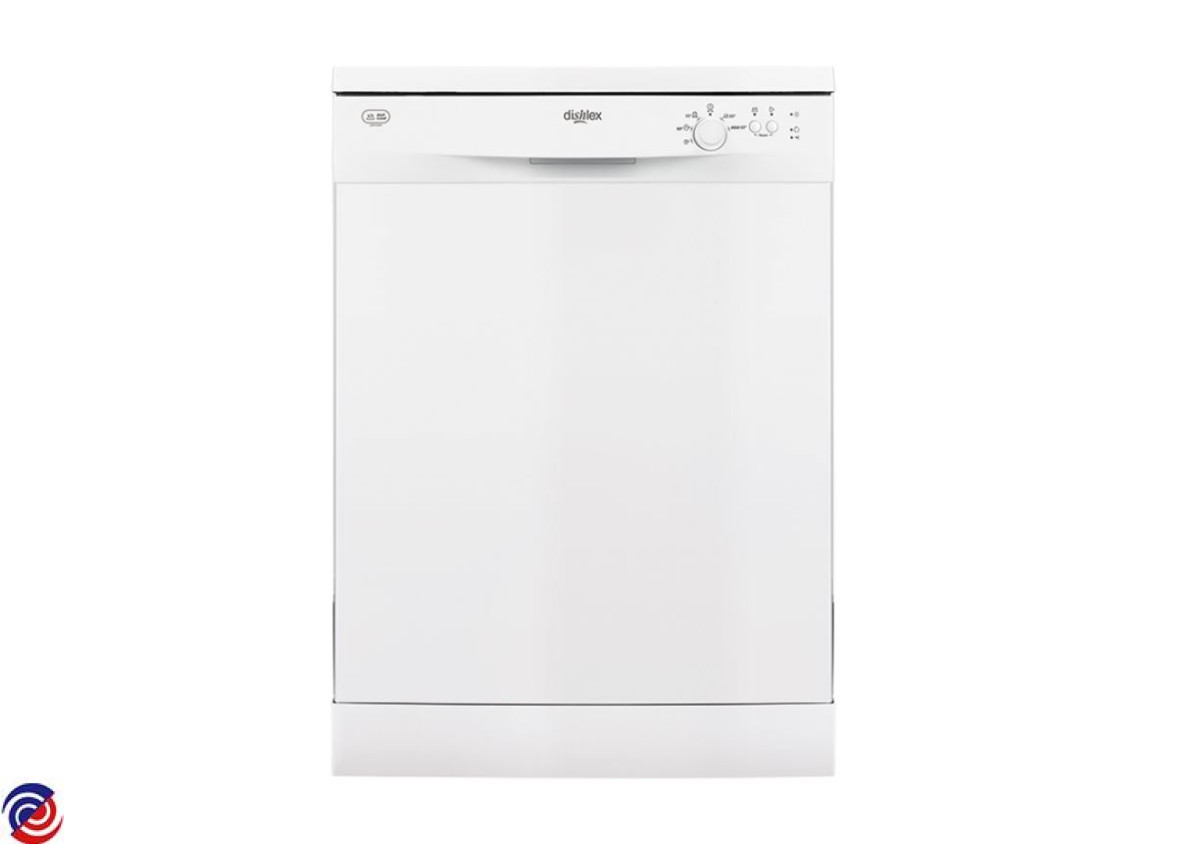

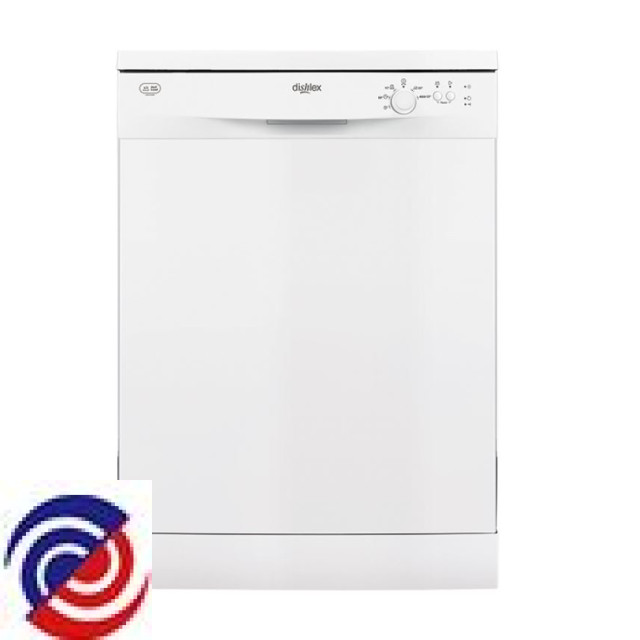

DSF6106W — 911519209 00
DISHLEX — Dishwasher

W0015188 LATCH DOOR LOCK

$56.00

W0015350 DISHLEX IKEA SIMPSON DISHWASHER UPPER SPRAY ARM DARK GREY

$78.40

W0017614 HOSE SUMP TO TANK X370MM

$8.80

W0017618 BASKET UPPER DISHWASH ASSY

W0017624 SENSOR TEMPERATURE TURBIDITY

W0017626 PCB USER INTERFACE EDW500

W0017627 PUMP DRAIN 50HZ.

W0017639 VALVE NON-RETURN FLAP SUMP

$24.00

W0017640 SENSOR PRESSURE SWITCH

W0017642 SPRAY ARM LOWER DARK GREY

$78.40

W0018964 FOOT ADJUSTABLE X 36MM LONG

W0019177 ROLLER BASKET ADJUSTMENT FRNT

$12.80

W0025858 ROLLER KIT LOWER PKT 8

W0028897 PCB MAIN CONFIGURED DSF6106_

$159.20

W0030797 SUPPORT SPIKES RUBBER - GREY

W0030810 BASKET CUTLERY UNIVERSAL

W0071641 DISPENSER DETERGENT

$92.80

W0071723 CAPAC 3UF MOTOR DISHWASHER

$38.40

W0071935 SUPPORT SPRAY ARM LOWER DRK GR

$26.40

W0072845 GASKET DOOR 1730MM

W0077043 DISHLEX SIMPSON DISHWASHER INLET WATER HOSE x 1500mm LONG

$54.40

W0077072 VALVE FILL 2.5L/MIN

W0077090 PUMP RE-CIRC/HEATER COMP 1800W

W0090747 GASKET DOOR LOWER BLK L=550

W0015342 BRACKET STIFFENING

$27.60

W0015367 TRAP SUMP PUMP RECIRC - BLACK

$10.40

W0015368 O-RING SUMP

$14.40

W0015374 FILTER FLAT

W0015713 HOLDER PLINTH

W0015720 BRACE CROSSBAR UPPER REAR

$11.96

W0017622 BRACE CROSSBAR FRONT LOWER

W0017635 TRAY BOTTOM SPILLAGE

$43.20

W0017649 TUBE MANIFOLD INNER DARK GREY

$47.24

W0017650 COVER ELEC CONTROL BOX

$35.20

W0017653 SUPPORT CUP GREY

$20.80

W0017665 CORD SERVICE AU 2.15M

$38.40

W0017682 KNOB WHITE

$31.20

W0017686 BUTTON PUSH LEFT - WHITE

$12.88

W0017688 BUTTON PUSH RIGHT - WHITE

$20.00

W0017690 HANDLE WHITE

$62.40

W0017692 MOUNTING HANDLE - WHITE

$21.60

W0017721 RAIL BASKET UPPER

$27.20

W0017831 HOOK BASKET UPPER DISPENSER

$3.20

W0018958 SPRING KNOB

$7.20

W0018963 STOP BASKET UPPER FRONT D/GREY

$7.20

W0018988 LATCH DOOR LOCK

W0018989 COVER WIRING PROTECTION

$8.80

W0019024 VENT VAPOUR OUTLET

$16.80

W0019170 BRACE FRONT UPPER

$28.04

W0019178 ROLLER BASKET ADJUSTMENT REAR

$12.80

W0019179 WORKTOP - WHITE

$128.00

W0019182 CHANNEL FEED UPPER SPRAYARM

$41.60

W0024199 KIT OVERFLOW HOSE

$120.00

W0024257 SUPPORT ROLLER KIT (PKT 4)

$46.40

W0024452 KIT HINGE DOOR LH/RH

$86.44

W0026672 STOP BASKET UPPER REAR D/GREY

$8.00

W0026941 BUFFER BASKET UPPER

$9.84

W0026946 PLINTH WHITE

$58.40

W0026989 PLUG DRAIN HOSE

$9.68

W0027046 HARNESS PCB HEATER

$57.60

W0027059 FOOT ADJUSTABLE M8 X 48MM LONG

$15.12

W0027129 CLAMP DRAIN HOSE Ï30MM

$7.20

W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM

$16.80

W0027131 CLAMP CIRCULATION PUMP-SUMP

$8.80

W0027161 COVER MOTOR DRIP PREVENTION

$20.84

W0027265 PANEL CONTROL WHITE DSF6106W

$113.60

W0027319 HARNESS PCB PUMP

$136.04

W0027331 HARNESS PCB DOOR

$43.20

W0027356 BASKET LOWER COMPLETE ASSY

W0072593 PANEL SIDE LEFT - WHITE

$120.00

W0072595 PANEL SIDE RH - WHITE

$117.88

W0072705 CONTAINER CUP SMALL

W0072894 SUPPORT BRACKET MOTOR RUBBER

W0077056 SUMP WATER ASSEMBLY / AIR TRAP

$40.00

W0077058 BASEMENT REAR

W0077065 SWITCH & FLOAT ASSY

W0077167 HOSE DRAIN X 2230MM

W0077240 DOOR INNER INOX 577X617

$184.80

W0090280 TIE HINGE

W0090413 SEAL CHANNEL DRAINAGE

W0090423 NUT SPEED CLIP

W0090637 COVER LATCH HOLE

$8.80

W0090657 TRIM TUB BLACK

$24.00

W0090683 TUBE AIR CHAMBER

W0090967 PANEL DOOR OUTER - WHITE

$164.00

W0129222 SEAL AIR CHAMBER

W0147301 FILTER DRAIN ASSEMBLY - FINE
