PMFPS60B — F6P0DA002X
DELONGHI — Cooker Electric

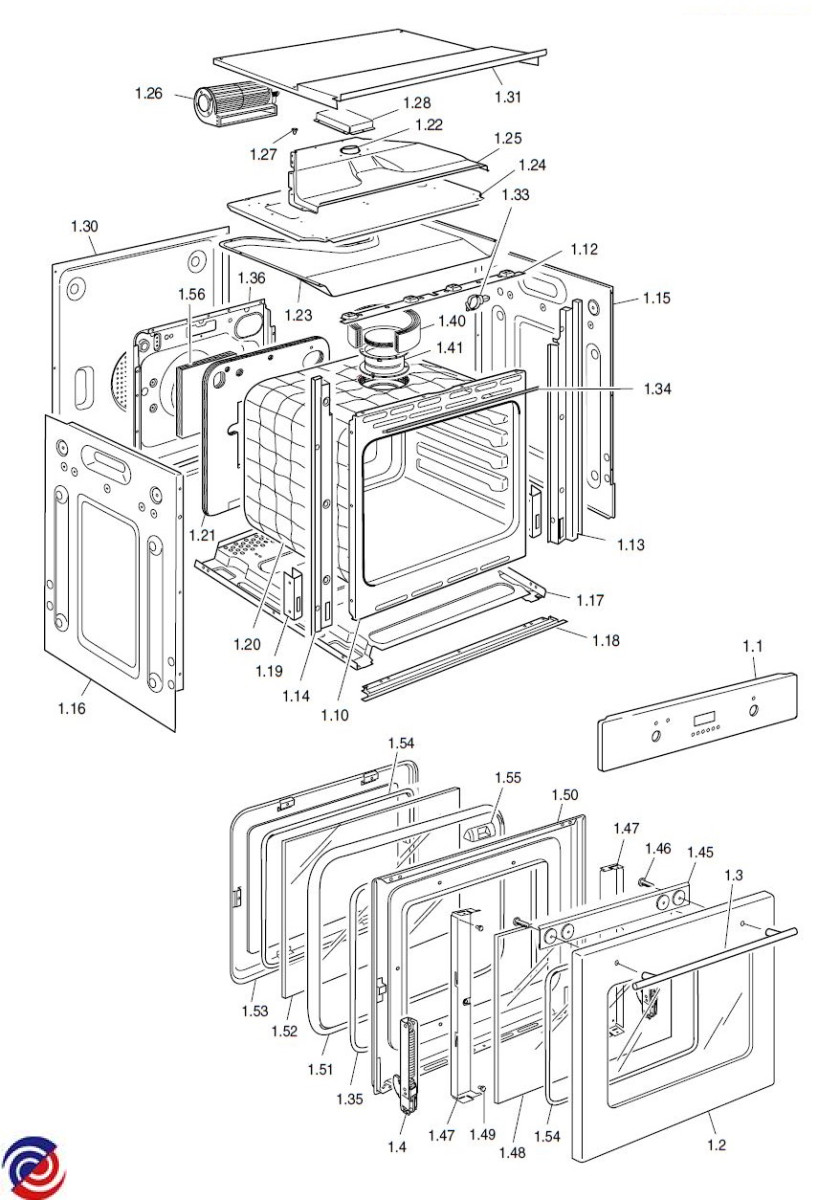

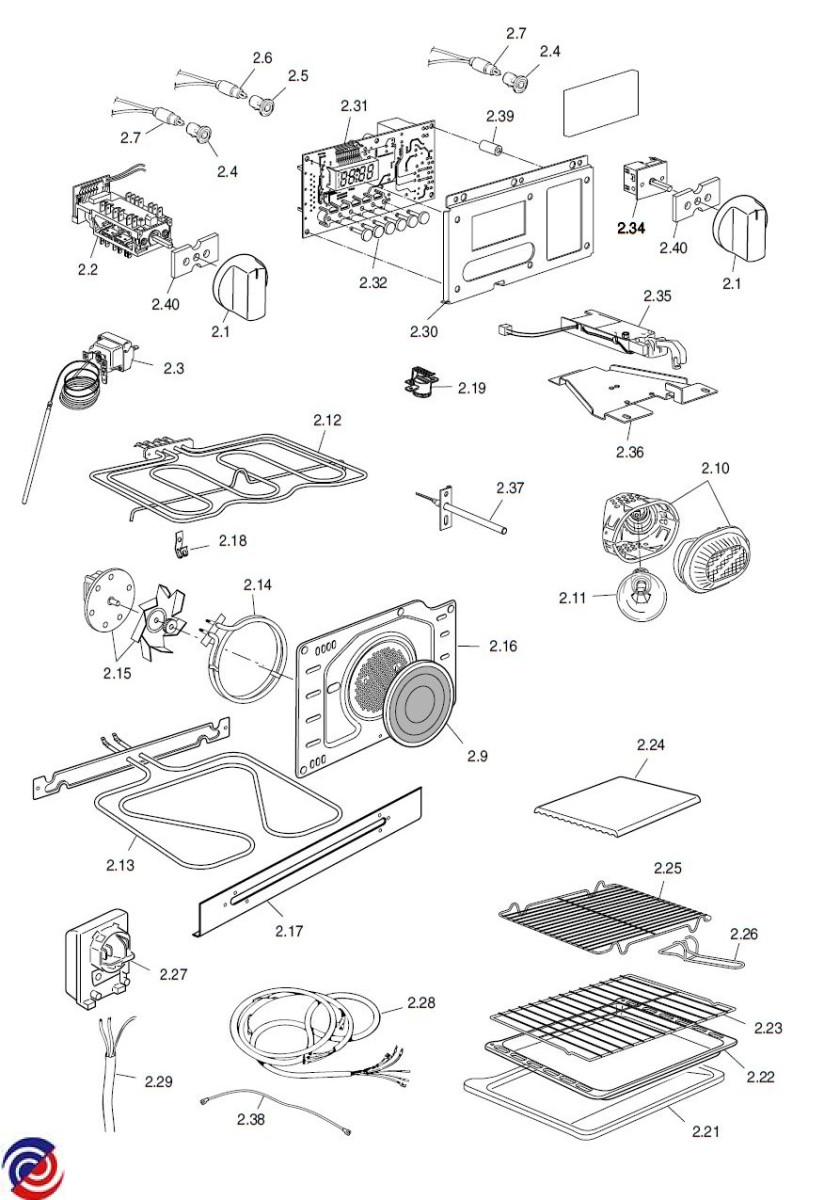

Parts for PMFPS60B
W0271194 DELONGHI FAN FORCED OVEN ELEMENT 2200W 062097004
$65.00
W0273388 HINGE (MALE)
$24.10
W0273413 FAN MOTOR
$41.90
W0273707 OVEN TRAY
W0273718 PROGRAMMER ELECTRONIC CARD
$219.10
W0273743 FILTER
$22.20
W0273744 LAMP
$15.20
W0274137 UPPER SEAL
W0276364 TANGENTIAL FAN
$53.50
W0294581 HANDLE BAR
W0294934 MIDDLE INNER GLASS
$56.80
W0295642 CONTROL LAMP COVER (RED)
$12.20
W0295675 DOOR HINGE (FEMALE)
$17.60
W0299830 ELECTRONIC PROGRAMMER BRACKET
W0299881 CABLE
W0299897 WIRE CLAMP
W0300009 WIRING
W0300412 CONTROL PANEL
W0300526 REAR PANEL
W0300660 RIGHT FRONT TRIM
W0300662 LEFT FRONT TRIM
W0302765 DOOR HANDLE SCREW
$12.20
W0302780 CONTROL LAMP COVER (ORANGE)
$12.20
W0302847 RUBBER
$12.40
W0302868 SWITCH SPACER
$12.40
W0302917 PROGRAMMER ELECTRONIC PEG
$12.60
W0303135 BUTTON
$13.40
W0303181 CONTROL LAMP L 230
$13.90
W0303194 FUMES CATALYST INSULATION
$14.10
W0303196 GLASS PROGRAMMER
$14.10
W0303214 CONTROL LAMP L 600/240
$14.30
W0303276 TERMINAL BLOCK
$14.90
W0303300 GRILL PAN GRID HANDLE
$15.20
W0303454 KNOB
$16.30
W0303471 CLIP
$16.50
W0303495 CUT-OFF THERMOSTAT 130 DEGREE
$16.60
W0303683 OVEN INSULATION
$102.30
W0303684 REAR INSULATION
$43.70
W0303685 REAR CENTRAL INSULATION
$21.00
W0303706 SWITCH
$66.60
W0303707 POTENTIOMETER
$25.40
W0303722 DOOR PANEL GASKET
$44.60
W0303723 INNER GLASS GASKET
$44.10
W0303724 SEAL
$55.80
W0303733 CORD
$21.30
W0303769 THERMOSTAT
$49.30
W0303783 LAMP HOLDER
$29.80
W0303857 DOOR LOCK SUPPORT
$21.70
W0303858 FUMES CONVEYOR
$21.00
W0303898 KIT PIZZA STONE
$58.10
W0303910 FUMES FILTER
$32.00
W0303911 DOOR LOCK
W0303912 DOOR LOCK BLOCK
$24.80
W0303918 FUMES CATALYST
$52.60
W0303973 PROBE
$47.50
W0304030 GRILL-PAN GRID
$22.40
W0304046 WIRE SHELF
$36.10
W0304078 INNER GLASS
$43.80
W0304223 DOOR HANDLE
$48.40
W0304250 BOTTOM ELEMENT
$40.40
W0304268 TOP + GRILL ELEMENT
$50.80
W0304371 DOOR GLASS
$123.50
W0304480 LOWER TRIM
$19.10
W0304713 DOOR PANEL
$57.50
W0304714 DOOR PANEL FRAME
$75.20
W0304756 BOTTOM PANEL
$26.00
W0304757 REAR PANEL
$26.50
W0304758 UPPER SHELTER
$25.90
W0304760 UPPER AIR CONVEYOR
$24.20
W0304761 LOWER AIR CONVEYOR
$21.50
W0304765 RIGHT SIDE PANEL
$26.20
W0304766 LEFT SIDE PANEL
$26.20
W0304825 AIR CONVEYOR SUPPORT
$25.20
W0304848 OVEN CUBE
$137.40
W0304894 FAN DIFFUSER
$36.90
W0304926 PASTRY PLATE
$30.80
W0304985 BOTTOM ELEMENT SUPPORT
$18.20
W0304986 MIDDLE INNER GLASS SUPPORT
$21.60
W0304989 DEFLECTOR
$22.60
