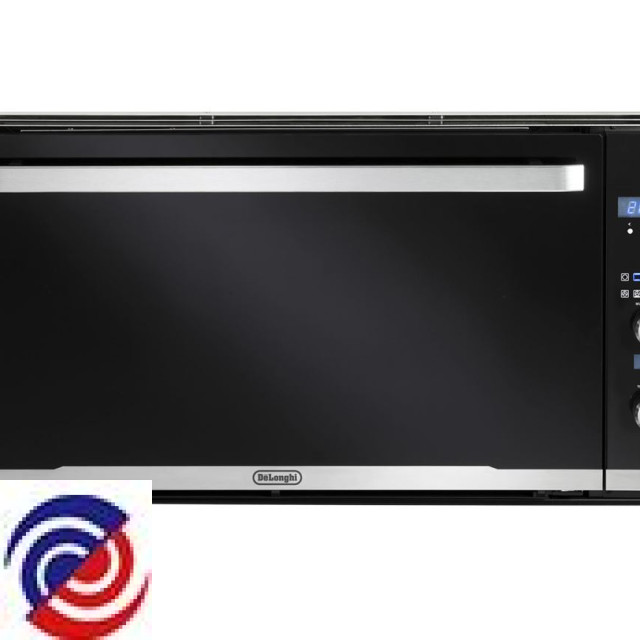

DEP909P — F9P0DA005X
DELONGHI — Cooker Electric

W0273413 FAN MOTOR

$41.90

W0294370 LAMP HOLDER

$20.70

W0299473 STARLOCK WASHER

W0299474 RETAINING RING

W0299577 OVEN INSULATION

W0299598 WIRE STANDOFF COIL

W0299621 INSULATOR RUBBER

W0299641 WIRE RING

W0299673 CORD

W0299691 PIN LINKAGE

W0299692 PIN

W0299754 LIGHTING TUBE

W0299849 ROCKER LOCK

W0299850 LINKAGE LOCK

W0299851 BRACKET HOOK

W0299852 FIXING BRACKET

W0299853 BRACKET

W0299855 BRACKET

W0299856 BRACKET

W0299862 REAR BRACKET

W0299929 NUT

W0299965 GLASS DOOR MIDDLE

W0299975 DIFFUSER FUNCTION

W0299976 ROD ACTUACTOR

W0299979 TUBE

W0299980 FILTER

W0299981 COOLING FAN ELEMENT

W0299982 FILTER

W0300030 HARNESS DOOR SWITCH

W0300031 WIRING MAIN RELAY

W0300032 HARNESS TEMP SENSOR

W0300034 LIGHT WIRING

W0300302 TOP TRIM

W0300530 LOWER SHELTER

W0300531 SHELTER

W0300532 SHELTER

W0300534 LOWER PROTECTION

W0300536 REAR INNER PANEL

W0300689 SUPPORT BAR

W0300690 SUPPORT BAR

W0300691 SERVICE PANEL ACCESS

W0300694 MOTOR SUPPORT

W0302746 KNOB SPRING

$12.10

W0302791 RETAINIG RING

$12.20

W0302807 PLUG

$12.20

W0302847 RUBBER

$12.40

W0302897 PUSH-BUTTON

$12.50

W0302914 RUBBER RING

$12.50

W0302986 SPACER

$12.80

W0303032 HANDLE SPACER

$13.00

W0303132 SPRING

$13.40

W0303134 TRIGGER DOOR SENSOR

$13.40

W0303167 HINGE MALE SUPPORT SX - DX

$13.80

W0303201 REFLECTOR FUNCTION

$14.10

W0303202 HOUSING TEMP

$14.10

W0303227 ELEMENT SUPPORT

$14.30

W0303278 HOUSING CLOCK

$15.00

W0303289 PIN PIVOT LOCK

$15.10

W0303332 SUPPORT DOOR GLASS

$15.40

W0303362 RETAINER DOOR GLASS

$15.70

W0303391 BRACKET

$16.00

W0303400 TERMINAL BLOCK

$16.00

W0303402 HARNESS LOCK SWITCH

$16.00

W0303426 KNOB RING

$16.20

W0303471 CLIP

$16.50

W0303529 HARNESS POWER BOARD CLOCK

$16.80

W0303590 CORNER DOOR LOWER RH RIGHT

$17.20

W0303591 CORNER DOOR LOWER LH LEFT

$17.20

W0303603 FEMALE HINGE LEFT

$17.30

W0303621 HOOK LOCK

$17.50

W0303637 CUT-OFF THERMOSTAT 85 DEGREE

$17.70

W0303697 REAR INSULATION PANEL

$71.90

W0303700 GRILL-PAN HANDLE

$19.80

W0303710 ENCODERS TEMPERATURE+FUNCTION

$83.30

W0303727 SEAL

$44.00

W0303763 FEMALE HINGE RIGHT

$68.80

W0303764 SOFT CLOSE HINGE MALE SX - DX

$71.50

W0303773 FUSE

$24.10

W0303810 MODULE POWER

$124.00

W0303811 MODULE CLOCK

$98.70

W0303812 MODULE TEMPERATURE

$52.50

W0303813 MODULE FUNCTION

$53.00

W0303820 SWITCH LOCK

$20.80

W0303823 ROTISSERIE MOTOR

$25.10

W0303829 LOCK MOTOR

$33.30

W0303830 TANGENTIAL FAN

$193.30

W0303840 ROTISSERIE SPEAR

$47.70

W0303880 BRACKET LOCK SYSTEM

$34.50

W0303888 RIGHT BRACKET

$28.60

W0303889 LEFT BRACKET

$28.60

W0303981 TEMPERATURE SENSOR

$33.40

W0304059 GRILL PAN GRID

$33.10

W0304062 ROTISSERIE SUPPORT

$25.20

W0304063 OVEN SHELF

$39.40

W0304080 INNER DOOR GLASS

$370.80

W0304108 REL&AMP

$21.20

W0304114 CLOCK MASK

$19.00

W0304155 HARNESS CLOCK FUNCTION TEMPERATURE

$20.40

W0304156 WIRING MAINS LOOM

$68.30

W0304238 OVEN DOOR HANDLE

$84.40

W0304261 TOP+GRILL ELEMENT

$64.50

W0304262 FAN ELEMENT 2.5 KW

$31.10

W0304263 BOTTOM ELEMENT

$46.50

W0304352 OVEN DOOR GLASS

$248.10

W0304353 GLASS FACIA PANEL

$87.30

W0304483 LOWER TRIM

$26.00

W0304486 MIDDLE TRIM

$48.50

W0304488 LOWER TRIM

$27.90

W0304550 KNOB

$26.80

W0304603 COMPLETE CONTROL PANEL ASSEMBLY (INCLUDING CLOCK)

$540.50

W0304659 CONTROL PANEL SUPPORT

$41.40

W0304704 COMPLETE OVEN DOOR ASSEMBLY

$1,093.10

W0304773 LOWER SHELTER

$72.90

W0304777 LEFT SIDE PANEL

$39.20

W0304779 RIGHT SIDE PANEL

$23.70

W0304780 REAR SHELTER

$29.60

W0304781 UPPER SHELTER

$29.60

W0304827 GRILL REFLECTOR

$36.20

W0304828 MOTOR SUPPORT

$51.80

W0304846 OVEN CUBE

$208.10

W0304859 BODY FRONT PANEL

$65.70

W0304899 FAN DIFFUSER

$51.20

W0304922 OVEN TRAY

$45.30

W0305001 LOWER BAR

$21.00

W0305003 FRONT TRIM

$30.60
