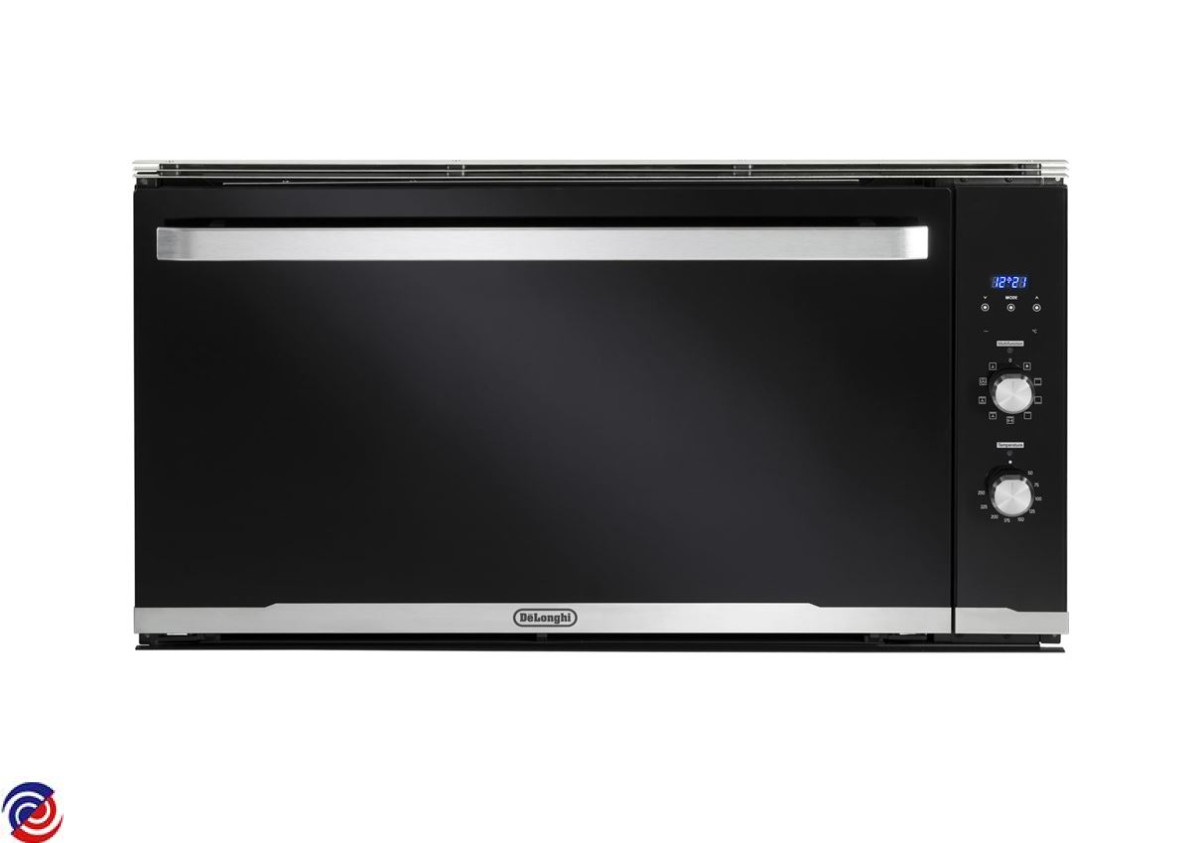

DEP909M — F9E0DA005X
DELONGHI — Cooker Electric

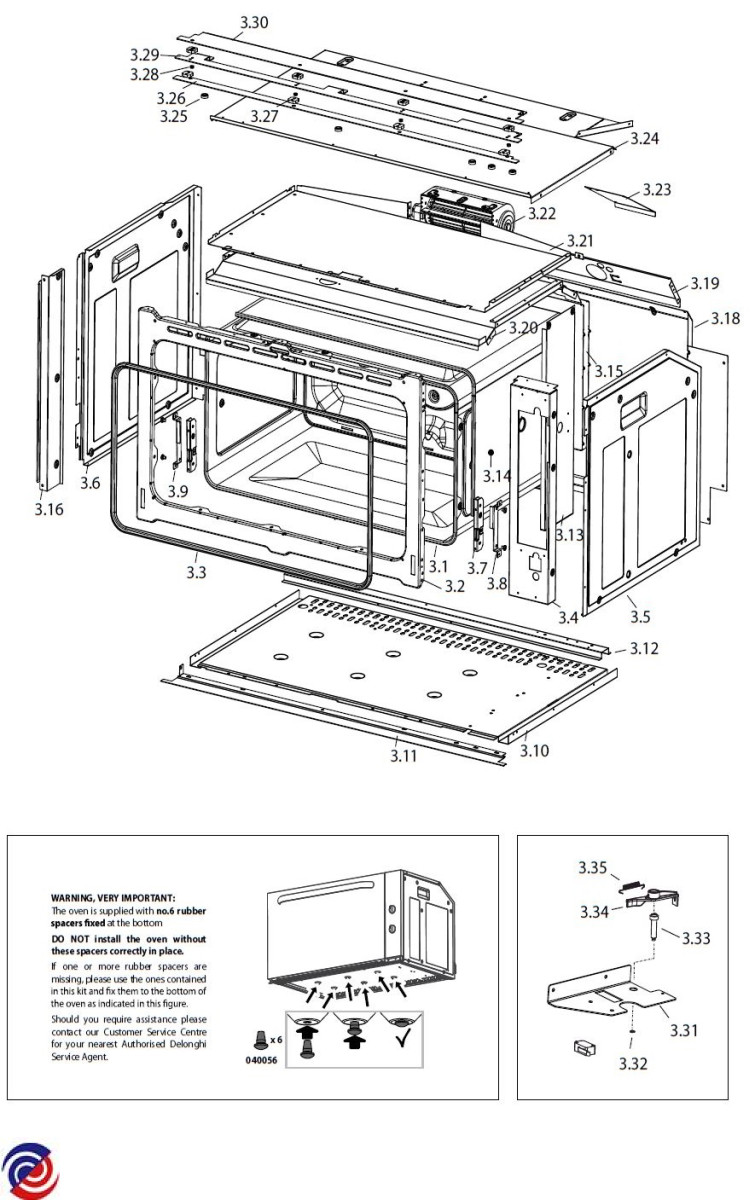

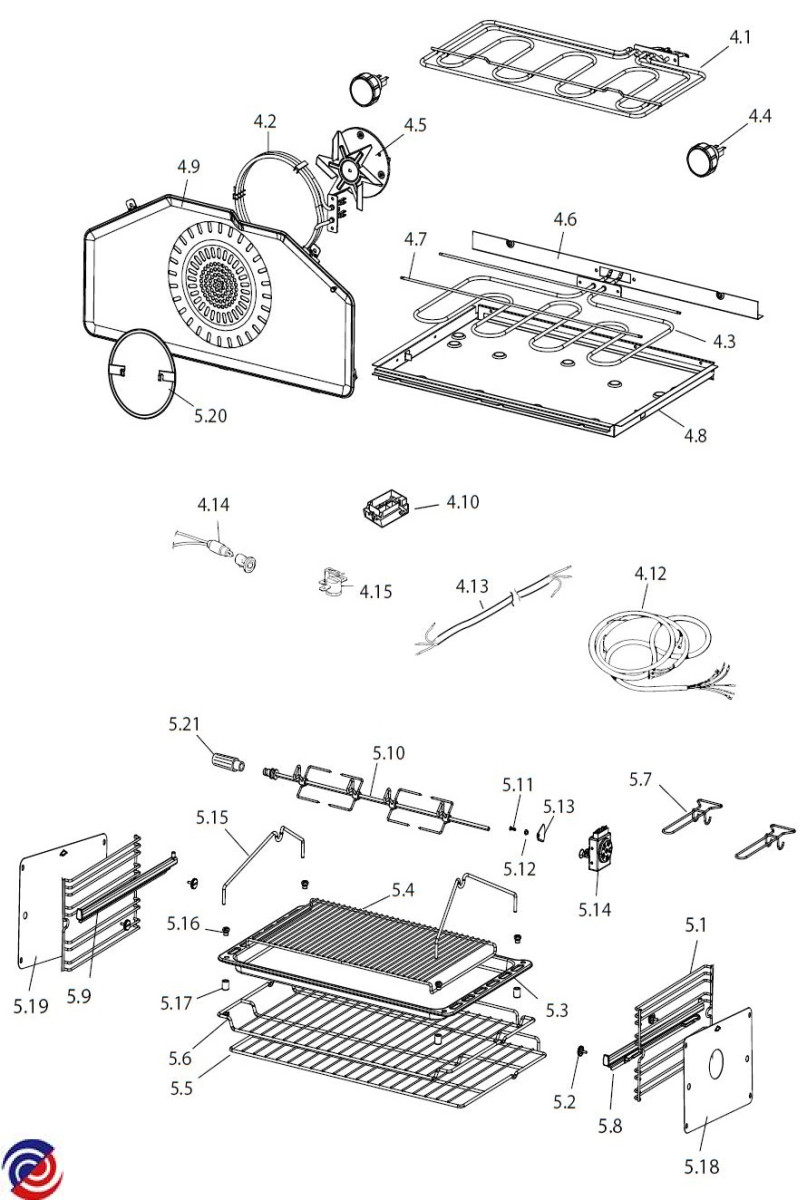

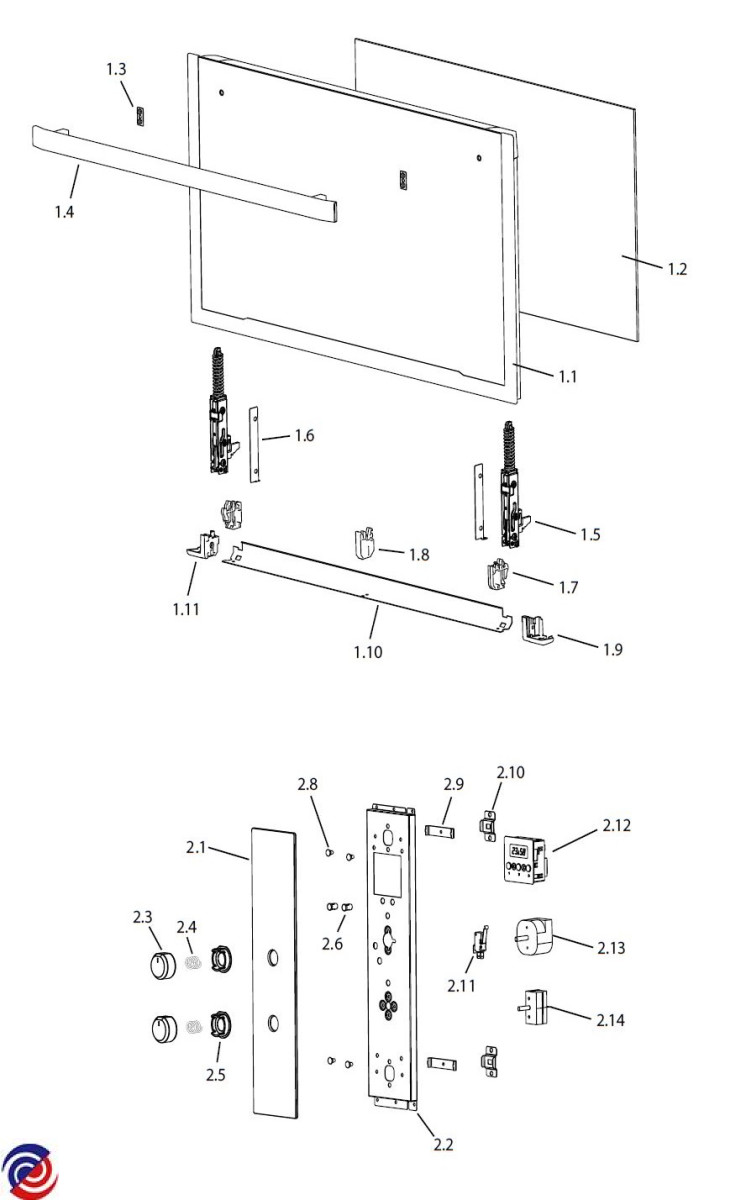

Parts for DEP909M
W0271194 DELONGHI FAN FORCED OVEN ELEMENT 2200W 062097004
$65.00
W0273743 FILTER
$22.20
W0294242 PROGRAMMER
$105.80
W0294370 LAMP HOLDER
$20.70
W0299443 SCREW
W0299854 EQUERRE
W0299984 RIGHT TELESCOPIC RUNNER
W0299985 LEFT TELESCOPIC RUNNER
W0300302 TOP TRIM
W0300530 LOWER SHELTER
W0300534 LOWER PROTECTION
W0300535 PANEL VENTING MIDDLE
W0300690 SUPPORT BAR
W0300692 REAR SUPPORT
W0300693 SUPPORT BAR
W0302722 STARLOCK WASHER
$12.10
W0302746 KNOB SPRING
$12.10
W0302748 NUT
$12.10
W0302798 CONTROL LAMP COVER (BLUE)
$12.20
W0302807 PLUG
$12.20
W0302847 RUBBER
$12.40
W0302986 SPACER
$12.80
W0302999 SPEAR HANDLE
$12.80
W0303032 HANDLE SPACER
$13.00
W0303066 SHELF SUPPORT SCREW
$13.00
W0303083 DOUILLE
$13.10
W0303109 REAR BRACKET
$13.20
W0303132 SPRING
$13.40
W0303134 TRIGGER DOOR SENSOR
$13.40
W0303167 HINGE MALE SUPPORT SX - DX
$13.80
W0303216 TERMINAL BLOCK
$14.30
W0303227 ELEMENT SUPPORT
$14.30
W0303281 ROTISSERIE SUPPORT
$15.00
W0303327 PIN PIVOT LOCK
$15.40
W0303332 SUPPORT DOOR GLASS
$15.40
W0303335 CONTROL LAMP L = 230
$15.50
W0303362 RETAINER DOOR GLASS
$15.70
W0303391 BRACKET
$16.00
W0303409 CONTROL LAMP L 600/230
$16.10
W0303426 KNOB RING
$16.20
W0303433 MOTOR SUPPORT
$16.10
W0303490 ROTISSERIE BUSH
$16.60
W0303495 CUT-OFF THERMOSTAT 130 DEGREE
$16.60
W0303505 SWITCH DOOR
$16.70
W0303590 CORNER DOOR LOWER RH RIGHT
$17.20
W0303591 CORNER DOOR LOWER LH LEFT
$17.20
W0303603 FEMALE HINGE LEFT
$17.30
W0303663 LOCK DOOR BRACKET
$17.90
W0303693 OVEN INSULATION
$45.40
W0303696 REAR INSULATION
$25.00
W0303701 GRILL-PAN GRID HANDLE
$25.20
W0303715 SWITCH
$29.70
W0303730 SEAL
W0303733 CORD
$21.30
W0303762 SOFT CLOSE HINGE MALE SX - DX
$31.90
W0303763 FEMALE HINGE RIGHT
$68.80
W0303767 THERMOSTAT
$28.90
W0303827 FAN MOTOR 230 V
$44.50
W0303831 ROTISSERIE MOTOR
$23.90
W0303832 TANGENTIAL FAN
$45.00
W0303841 ROTISSERIE SPEAR (INCLUDING HANDLE)
$20.10
W0303854 ROTISSERIE SCREW
$18.70
W0303888 RIGHT BRACKET
$28.60
W0303889 LEFT BRACKET
$28.60
W0303894 BRACKET
$21.50
W0304058 OVEN SHELF
$35.90
W0304059 GRILL PAN GRID
$33.10
W0304060 FLAT SHELF
$35.00
W0304061 SHELF SUPPORT
$21.30
W0304081 INNER DOOR GLASS
$45.60
W0304088 RIGHT CATALYTIC PANEL
$39.30
W0304089 LEFT CATALYTIC PANEL
$38.80
W0304171 WIRING
$118.10
W0304238 OVEN DOOR HANDLE
$84.40
W0304265 BOTTOM ELEMENT
$37.40
W0304269 TOP + GRILL ELEMENT
$78.00
W0304351 GLASS FACIA PANEL
W0304352 OVEN DOOR GLASS
$248.10
W0304483 LOWER TRIM
$26.00
W0304486 MIDDLE TRIM
$48.50
W0304488 LOWER TRIM
$27.90
W0304548 CONTROL KNOB
$26.80
W0304657 INTERIOR CONTROL PANEL
$42.40
W0304672 INTERIOR CONTROL PANEL
$36.90
W0304773 LOWER SHELTER
$72.90
W0304777 LEFT SIDE PANEL
$39.20
W0304780 REAR SHELTER
$29.60
W0304781 UPPER SHELTER
$29.60
W0304782 RIGHT SIDE PANEL
$23.70
W0304845 OVEN FRAME
$190.60
W0304859 BODY FRONT PANEL
$65.70
W0304897 FAN DIFFUSER
$55.70
W0304921 OVEN TRAY
$47.60
W0305001 LOWER BAR
$21.00
W0305003 FRONT TRIM
$30.60
