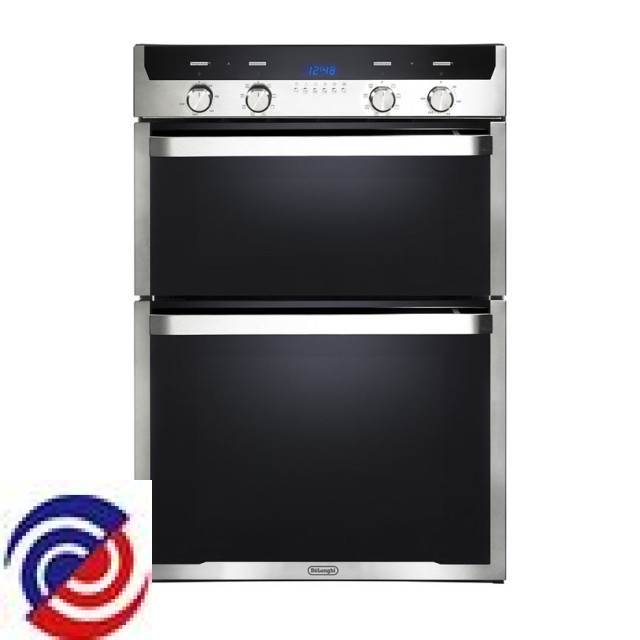

DEL6038D — F6D0DA011X
DELONGHI — Cooker Electric
Parts for DEL6038D
W0271194 DELONGHI FISHER & PAYKEL FAN FORCED OVEN ELEMENT 2200W 062097004
$65.00
W0271297 SEAL
W0271298 TANGENTIAL FAN
W0271322 OVEN SWITCH
W0273377 FAN MOTOR - 230 V
W0273411 BOTTOM ELEMENT - 230 V
$91.00
W0273384 TOP OVEN SEAL
W0273404 INTERMEDIATE GLASS
$29.30
W0273743 FILTER
$22.20
W0274137 UPPER SEAL
W0281628 THERMOSTAT
$121.00
W0281694 WIRE SHELF
W0281904 DOOR HINGE (FEMALE)
$12.80
W0293067 ELECTRONIC PROGRAMMER
$198.00
W0294368 LAMP
$24.40
W0294370 LAMP HOLDER
$20.70
W0299467 SPACER
W0299564 TOP OVEN INSULATION
W0299573 OVEN INSULATION
W0299580 SIDE LAMP INSULATION
W0299619 BUFFER
W0299641 WIRE RING
W0299643 CABLE CLAMP - REAR COOKER
W0299838 TERMINAL BLOCK SUPPORT
W0299897 WIRE CLAMP
W0300492 REAR PANEL
W0300493 RIGHT SIDE PANEL
W0300602 RIGHT DOOR TRIM
W0300603 LEFT DOOR TRIM
W0300608 RIGHT DOOR TRIM
W0300667 TERMINAL BLOCK SHIELD
W0300668 TOP OVEN BODY PANEL
W0300670 OVEN BODY BAR
W0300677 HANDLE BAR
W0302724 WASHER
$12.10
W0302728 NUT
$12.10
W0302771 SCREW
$12.20
W0302799 CONTROL LAMP COVER
$12.20
W0302801 CLIP
$12.20
W0302828 CLIP
$12.30
W0302846 BUFFER
$12.40
W0302847 RUBBER
$12.40
W0302878 THERMAL OVERLOAD SUPPORT
$12.40
W0302881 NUT
$12.40
W0302911 DOOR HANDLE SCREW
$12.60
W0303032 HANDLE SPACER
$13.00
W0303066 SHELF SUPPORT SCREW
$13.00
W0303127 INSULATION SPRING
$13.40
W0303155 BOTTOM MIDDLE GLASS CLAMP
$13.50
W0303241 BOTTOM ELEMENT SUPPORT
$14.50
W0303255 FAN MOTOR INSULATION
$14.70
W0303274 TERMINAL BLOCK
$14.90
W0303290 TOP MIDDLE GLASS CLAMP
$15.10
W0303291 BUTTON
$15.10
W0303300 GRILL PAN GRID HANDLE
$15.20
W0303325 SEAL
$15.30
W0303335 CONTROL LAMP L = 230
$15.50
W0303495 CUT-OFF THERMOSTAT 130 DEGREE
W0303497 CUT-OUT THERMOSTAT 160 DEGREE C
$16.60
W0303501 DIFFUSER BUSH
$16.60
W0303526 CUT-OFF THERMOSTAT 55 DEGREE
$16.80
W0303570 STUD
$17.10
W0303619 ELECTRONIC CARDS WIRING (SIDE LAMP)
$17.50
W0303688 REAR INSULATION
$20.80
W0303692 TOP OVEN REAR INSULATION
$20.00
W0303750 HINGE (MALE)
W0303754 HINGE (MALE)
$23.40
W0303767 THERMOSTAT
$28.90
W0303788 SIDE LAMP HOLDER
$32.20
W0303828 FAN MOTOR 230 V
$45.70
W0304030 GRILL-PAN GRID
$22.40
W0304032 WIRE SHELF
$25.90
W0304055 SHELF SUPPORT
$18.90
W0304057 SHELF SUPPORT
$20.40
W0304086 LATERAL CATALYTIC PANEL
$30.00
W0304090 LEFT LATERAL CATALYTIC PANEL
$30.00
W0304096 RIGHT TELESCOPIC RUNNER
W0304097 LEFT TELESCOPIC RUNNER
W0304176 WIRING
$186.20
W0304237 DOOR HANDLE
$69.70
W0304252 BOTTOM ELEMENT 230 V
$30.30
W0304259 TOP + GRILL ELEMENT 230 V
$51.70
W0304260 FAN ELEMENT 230 V
$28.40
W0304264 TOP + GRILL ELEMENT 230V
$64.50
W0304365 INNER GLASS
$38.40
W0304366 INNER GLASS
$29.80
W0304422 DOOR GLASS
$125.00
W0304430 DOOR GLASS
$92.50
W0304437 CONTROL PANEL
$105.10
W0304480 LOWER TRIM
$19.10
W0304547 CONTROL KNOB
$26.00
W0304670 INTERIOR CONTROL PANEL
$27.30
W0304756 BOTTOM PANEL
$26.00
W0304758 UPPER SHELTER
$25.90
W0304759 AIR CONVEYOR
$24.20
W0304783 BOTTOM AIR CONVEYOR
$22.20
W0304784 LEFT SIDE PANEL
$33.20
W0304824 CONVEYOR SUPPORT
$25.20
W0304837 TOP OVEN BODY
$108.60
W0304841 BOTTOM OVEN BODY
$121.10
W0304891 FAN DIFFUSER
$40.60
W0304895 FAN DIFFUSER
$37.80
W0304919 OVEN TRAY
$37.40
W0304940 LEFT DOOR TRIM
$27.40
W0304989 DEFLECTOR
$22.60
W0304990 HANDLE BAR
$21.70
W0305004 RIGHT FRONT TRIM
$21.30
W0305006 LEFT FRONT TRIM
$21.30
