DE609MP — F6P0DA005X
DELONGHI — Cooker Electric

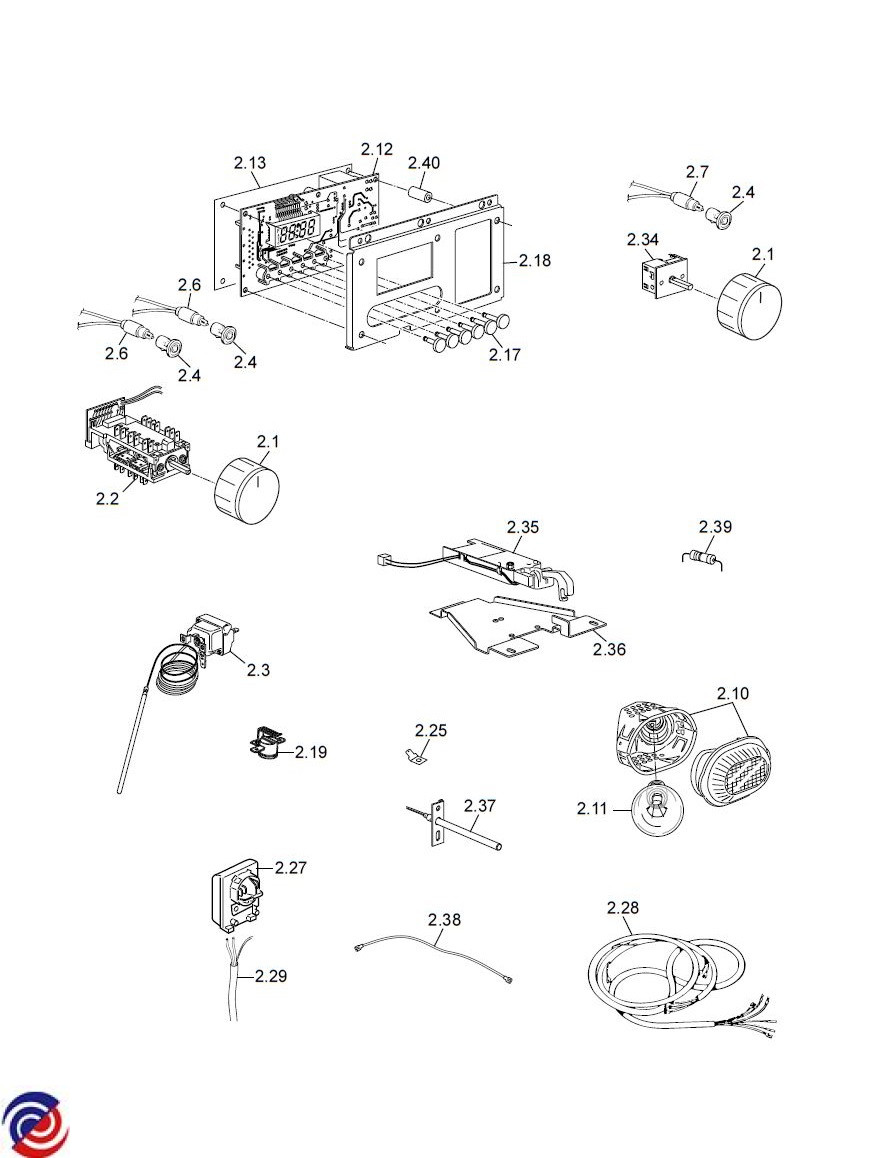

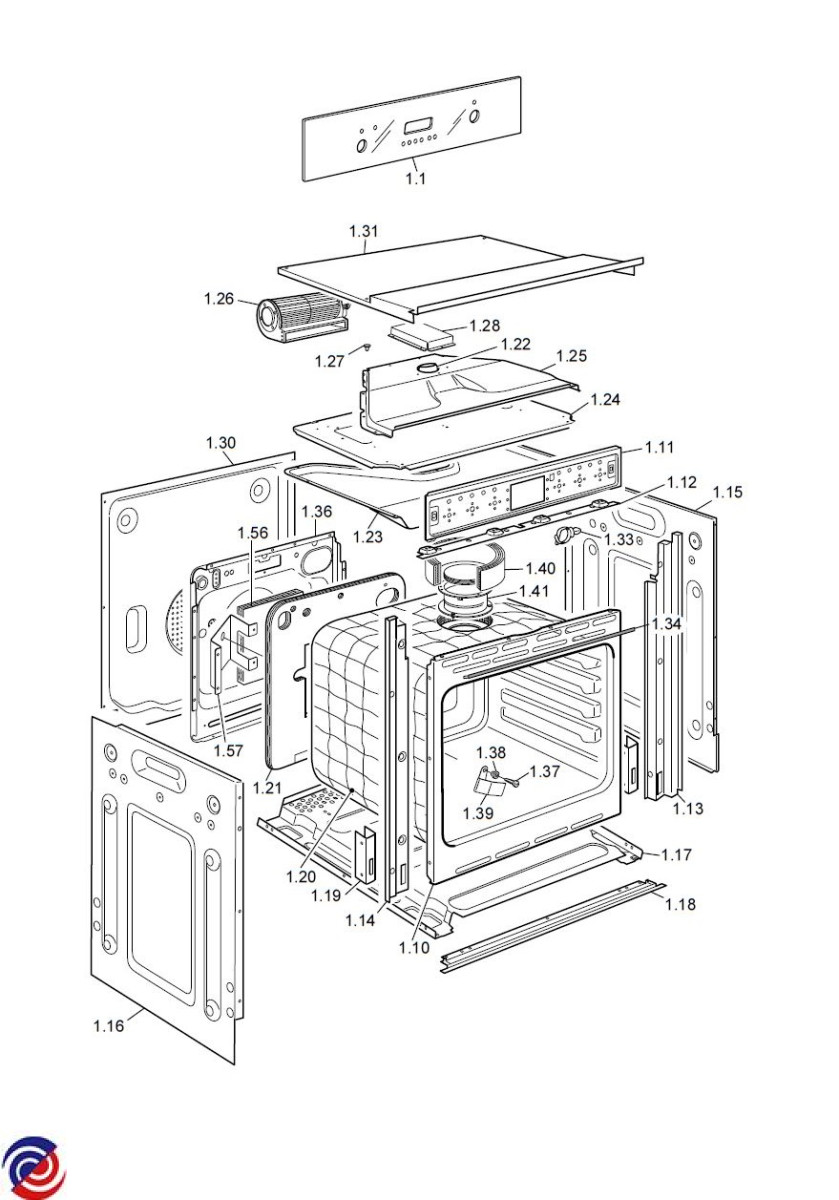

Parts for DE609MP
W0271194 DELONGHI FISHER & PAYKEL FAN FORCED OVEN ELEMENT 2200W 062097004
$65.00
W0273398 CONTROL KNOB
$18.30
W0273413 FAN MOTOR
$41.90
W0273743 FILTER
$22.20
W0273744 LAMP
$15.20
W0274137 UPPER SEAL
W0276364 TANGENTIAL FAN
$53.50
W0278707 HINGE (MALE)
W0294581 HANDLE BAR
W0294934 MIDDLE INNER GLASS
$56.80
W0299561 REAR CENTRAL INSULATION
W0299777 EARTH PLATE
W0299804 ROTISSERIE MOTOR SUPPORT
W0299897 WIRE CLAMP
W0300526 REAR PANEL
W0300660 RIGHT FRONT TRIM
W0300662 LEFT FRONT TRIM
W0302736 SCREW
$12.10
W0302799 CONTROL LAMP COVER
$12.20
W0302846 BUFFER
$12.40
W0302847 RUBBER
$12.40
W0302876 SLEEVE
$12.50
W0302883 NUT FOR FILTER
$12.40
W0302888 SCREW
$12.50
W0302917 PROGRAMMER ELECTRONIC PEG
$12.60
W0302970 COUNTERBALANCE METAL PLATE
$12.80
W0303037 SCREW
$13.00
W0303135 BUTTON
$13.40
W0303169 PROGRAMMER ELECTRONIC CARD INSULATOR
$13.80
W0303194 FUMES CATALYST INSULATION
$14.10
W0303241 BOTTOM ELEMENT SUPPORT
$14.50
W0303276 TERMINAL BLOCK
$14.90
W0303335 CONTROL LAMP L = 230
$15.50
W0303389 CONTROL LAMP L = 600
$16.00
W0303471 CLIP
$16.50
W0303495 CUT-OFF THERMOSTAT 130 DEGREE
W0303517 ROTISSERIE DOOR
$16.70
W0303526 CUT-OFF THERMOSTAT 55 DEGREE
$16.80
W0303624 DOOR HINGE (FEMALE)
W0303662 ROTISSERIE SPEAR
$17.90
W0303683 OVEN INSULATION
$102.30
W0303684 REAR INSULATION
$43.70
W0303706 SWITCH
$66.60
W0303707 POTENTIOMETER
$25.40
W0303722 DOOR PANEL GASKET
$44.60
W0303723 INNER GLASS GASKET
$44.10
W0303724 SEAL
$55.80
W0303737 CORD 3X1.5
$21.10
W0303769 THERMOSTAT
$49.30
W0303783 LAMP HOLDER
$29.80
W0303806 DISPLAY ELECTRONIC CARD
W0303823 ROTISSERIE MOTOR
$25.10
W0303857 DOOR LOCK SUPPORT
$21.70
W0303858 FUMES CONVEYOR
$21.00
W0303883 ELECTRONIC PROGRAMMER BRACKET
$27.00
W0303910 FUMES FILTER
$32.00
W0303911 DOOR LOCK
W0303912 DOOR LOCK BLOCK
$24.80
W0303918 FUMES CATALYST
$52.60
W0303924 CABLE
$19.80
W0303973 PROBE
$47.50
W0304023 ROTISSERIE SUPPORT
$21.50
W0304046 WIRE SHELF
$36.10
W0304078 INNER GLASS
W0304095 HEATING ELEMENT
$35.30
W0304161 WIRING
$212.10
W0304230 DOOR HANDLE
$48.50
W0304250 BOTTOM ELEMENT
$40.40
W0304268 TOP + GRILL ELEMENT
$50.80
W0304433 GLASS PANEL
$98.30
W0304435 DOOR GLASS
$107.80
W0304480 LOWER TRIM
$19.10
W0304669 INTERIOR CONTROL PANEL
$27.30
W0304714 DOOR PANEL FRAME
$75.20
W0304715 DOOR PANEL
$58.40
W0304756 BOTTOM PANEL
$26.00
W0304757 REAR PANEL
$26.50
W0304758 UPPER SHELTER
$25.90
W0304760 UPPER AIR CONVEYOR
$24.20
W0304761 LOWER AIR CONVEYOR
$21.50
W0304765 RIGHT SIDE PANEL
$26.20
W0304766 LEFT SIDE PANEL
$26.20
W0304825 AIR CONVEYOR SUPPORT
$25.20
W0304847 OVEN CUBE
$140.60
W0304896 FAN DIFFUSER
$30.00
W0304913 OVEN TRAY
$39.60
W0304925 GRILL FLAT
$41.70
W0304986 MIDDLE INNER GLASS SUPPORT
$21.60
W0304989 DEFLECTOR
$22.60
