DE602EPS — F6D0DA008X
DELONGHI — Cooker Electric

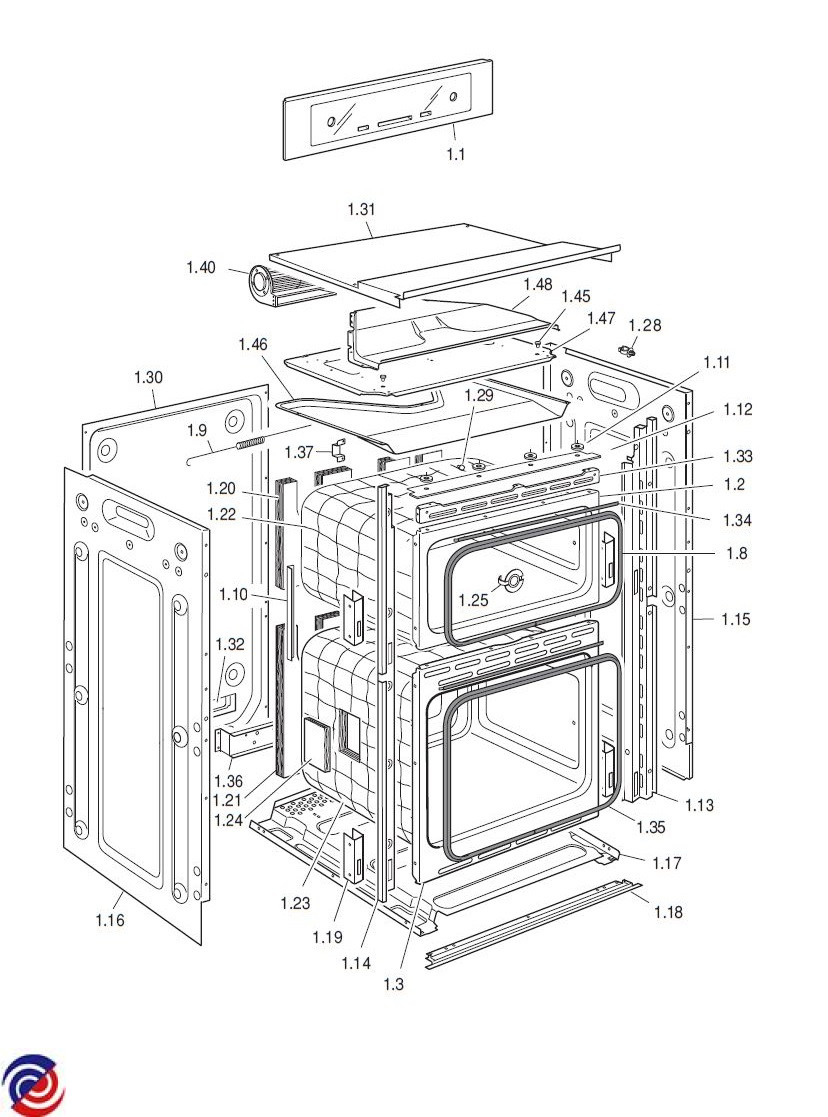

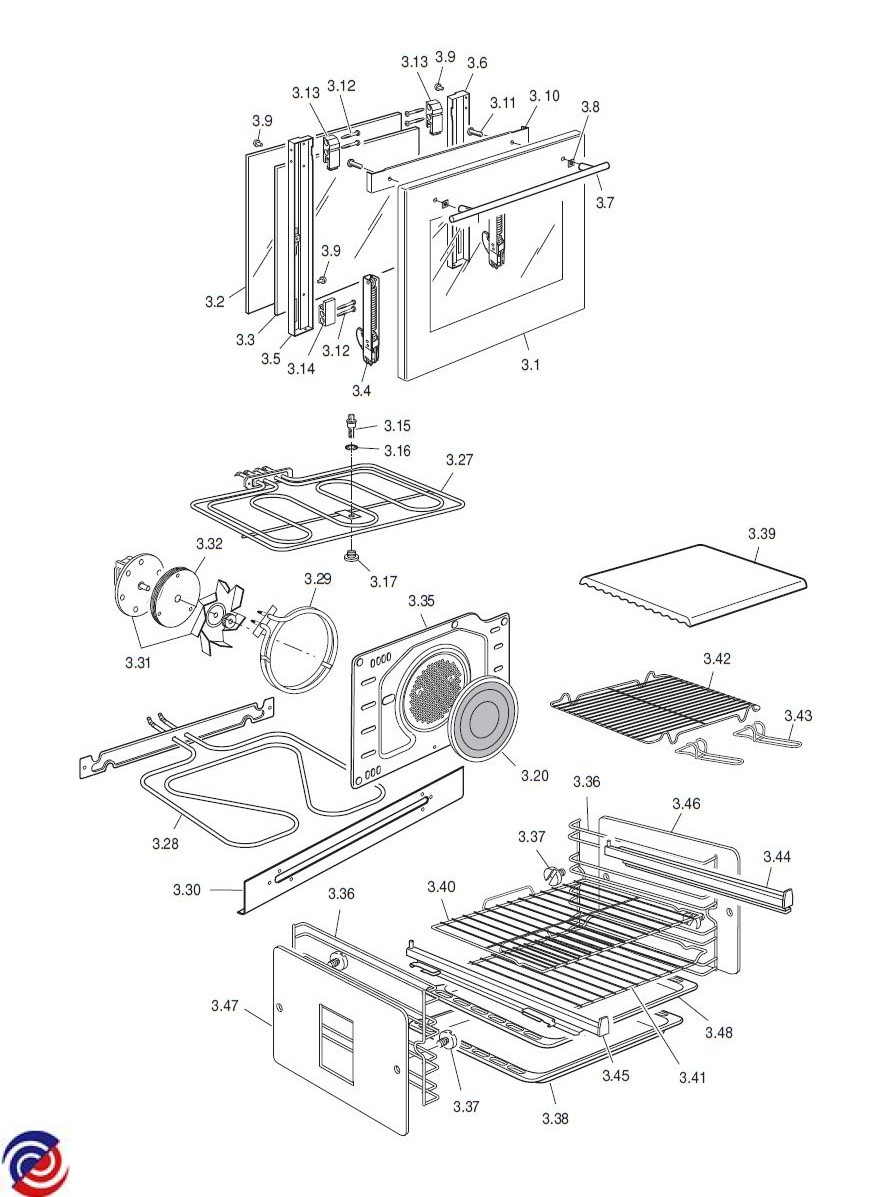

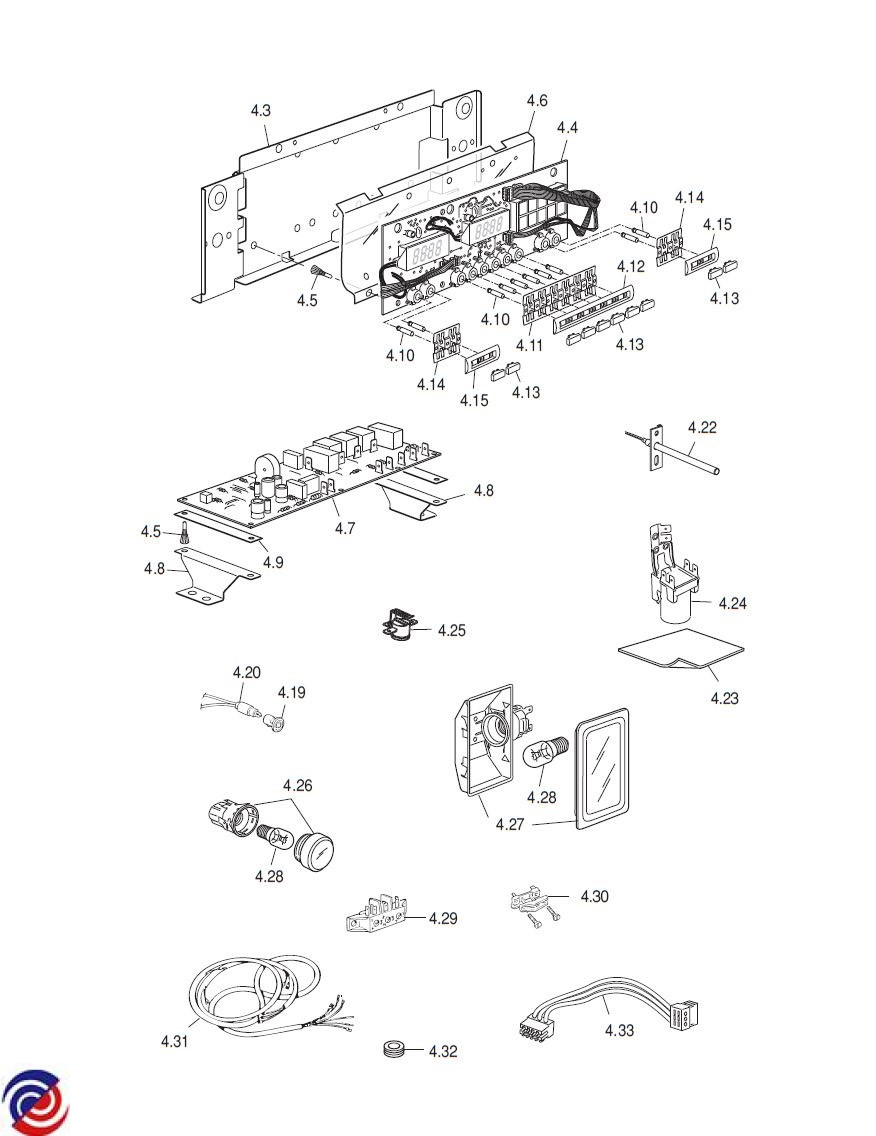

Parts for DE602EPS
W0271194 DELONGHI FAN FORCED OVEN ELEMENT 2200W 062097004
$65.00
W0273411 BOTTOM ELEMENT - 230 V
$91.00
.JPG)
W0277016 CUT-OFF THERMOSTAT 175 DEGREE
$16.60
W0273398 CONTROL KNOB
$18.30
W0273404 INTERMEDIATE GLASS
$29.30
W0273663 LAMP HOLDER
W0273707 OVEN TRAY
W0273743 FILTER
$22.20
W0273744 LAMP
$15.20
W0277018 PROGRAMMER ELECTRONIC CARD
$159.20
W0277019 POWER ELECTRONIC CARD
$123.90
W0281628 THERMOSTAT
$121.00
W0281694 WIRE SHELF
W0299466 SPACER
W0299563 TOP OVEN INSULATION
W0299565 TOP OVEN REAR INSULATION
W0299574 BOTTOM OVEN INSULATION
W0299575 BOTTOM OVEN REAR INSULATION
W0299579 SIDE LAMP INSULATION
W0299593 ROTISSERIE HOLE PLUG
W0299595 INSULATION SPRING
W0299607 PROGRAMMER ELECTRONIC CARD INSULATOR
W0299608 POWER ELECTRONIC CARD INSULATOR
W0299614 RUBBER
W0299641 WIRE RING
W0299643 CABLE CLAMP - REAR COOKER
W0299654 TOP-BOTTOM SEAL
W0299656 SEAL
W0299659 TOP OVEN SEAL
W0299718 RIGHT TANGENTIAL FAN
W0299797 DOOR HINGE (FEMALE)
W0299798 CUT-OFF THERMOSTAT SUPPORT
W0299831 POWER ELECTRONIC CARD SUPPORT
W0299837 TERMINAL BLOCK SUPPORT
W0299897 WIRE CLAMP
W0300018 ELECTRONIC CARDS WIRING
W0300268 CONTROL PANEL
W0300492 REAR PANEL
W0300493 RIGHT SIDE PANEL
W0300608 RIGHT DOOR TRIM
W0300667 TERMINAL BLOCK SHIELD
W0300669 TOP OVEN BODY PANEL
W0300670 OVEN BODY BAR
W0300678 HANDLE BAR
W0302771 SCREW
$12.20
W0302793 RETAINING RING
$12.20
W0302799 CONTROL LAMP COVER
$12.20
W0302801 CLIP
$12.20
W0302806 PIVOT BUTTON (PLEASE ORDER THE CONTROL PANEL ASSEMBLY)
$12.20
W0302874 INSULATION
$12.40
W0302917 PROGRAMMER ELECTRONIC PEG
$12.60
W0302944 SPRING PLATE (PLEASE ORDER THE COMPLETE CONTROL PANEL)
$12.70
W0302948 WASHER
$12.70
W0302998 DOOR HANDLE SCREW
$12.80
W0303066 SHELF SUPPORT SCREW
$13.00
W0303069 HOOK
$13.00
W0303155 BOTTOM MIDDLE GLASS CLAMP
$13.50
W0303188 HOOK SUPPORT
$14.00
W0303203 BUTTON (PLEASE ORDER COMPLETE CONTROL PANEL)
$14.10
W0303215 SPRING PLATE (PLEASE ORDER THE CONTROL PANEL ASSEMBLY)
$14.30
W0303241 BOTTOM ELEMENT SUPPORT
$14.50
W0303255 FAN MOTOR INSULATION
$14.70
W0303274 TERMINAL BLOCK
$14.90
W0303290 TOP MIDDLE GLASS CLAMP
$15.10
W0303300 GRILL PAN GRID HANDLE
$15.20
W0303325 SEAL
$15.30
W0303409 CONTROL LAMP L 600/230
$16.10
W0303495 CUT-OFF THERMOSTAT 130 DEGREE
W0303527 CUT-OFF THERMOSTAT 80 DEGREES
$16.80
W0303530 CONSOLLE FRAME (PLEASE ORDER THE CONTROL PANEL ASSEMBLY)
$16.80
W0303560 ANTIJAMMING FILTER
$17.00
W0303570 STUD
$17.10
W0303602 CONSOLLE FRAME (PLEASE ORDER COMPLETE CONTROL PANEL)
$17.30
W0303619 ELECTRONIC CARDS WIRING (SIDE LAMP)
$17.50
W0303703 OVEN SWITCH
$21.80
W0303750 HINGE (MALE)
$22.80
W0303752 HINGE (MALE)
$23.00
W0303754 HINGE (MALE)
$23.40
W0303786 SIDE LAMP HOLDER
$28.80
W0303825 FAN MOTOR - 220/240 V
$57.30
W0303875 PROGRAMMER ELECTRONIC CARD SUPPORT
$32.10
W0303898 KIT PIZZA STONE
$58.10
W0303976 PROBE
$28.30
W0304030 GRILL-PAN GRID
$22.40
W0304032 WIRE SHELF
$25.90
W0304055 SHELF SUPPORT
$18.90
W0304057 SHELF SUPPORT
$20.40
W0304086 LATERAL CATALYTIC PANEL
$30.00
W0304090 LEFT LATERAL CATALYTIC PANEL
$30.00
W0304096 RIGHT TELESCOPIC RUNNER
W0304097 LEFT TELESCOPIC RUNNER
W0304112 TOP + GRILL ELEMENT FIXING SCREW
$19.90
W0304153 WIRING
$241.00
W0304223 DOOR HANDLE
$48.40
W0304252 BOTTOM ELEMENT 230 V
$30.30
W0304255 TOP + GRILL ELEMENT - 230V
$52.80
W0304264 TOP + GRILL ELEMENT 230V
$64.50
W0304361 INNER GLASS
$29.20
W0304365 INNER GLASS
$38.40
W0304406 DOOR GLASS
$90.30
W0304407 DOOR GLASS
$89.80
W0304480 LOWER TRIM
$19.10
W0304756 BOTTOM PANEL
$26.00
W0304758 UPPER SHELTER
$25.90
W0304759 AIR CONVEYOR
$24.20
W0304783 BOTTOM AIR CONVEYOR
$22.20
W0304784 LEFT SIDE PANEL
$33.20
W0304824 CONVEYOR SUPPORT
$25.20
W0304838 OVEN CUBE
$108.40
W0304841 BOTTOM OVEN BODY
$121.10
W0304892 FAN DIFFUSER
$37.80
W0304926 PASTRY PLATE
$30.80
W0304936 RIGHT DOOR TRIM
$30.70
W0304937 LEFT DOOR TRIM
$30.70
W0304940 LEFT DOOR TRIM
$27.40
W0304989 DEFLECTOR
$22.60
W0304990 HANDLE BAR
$21.70
W0305005 RIGHT FRONT TRIM
$27.40
W0305007 LEFT FRONT TRIM
$27.40
W0305014 OVEN CONDENSATION KIT
$43.90
