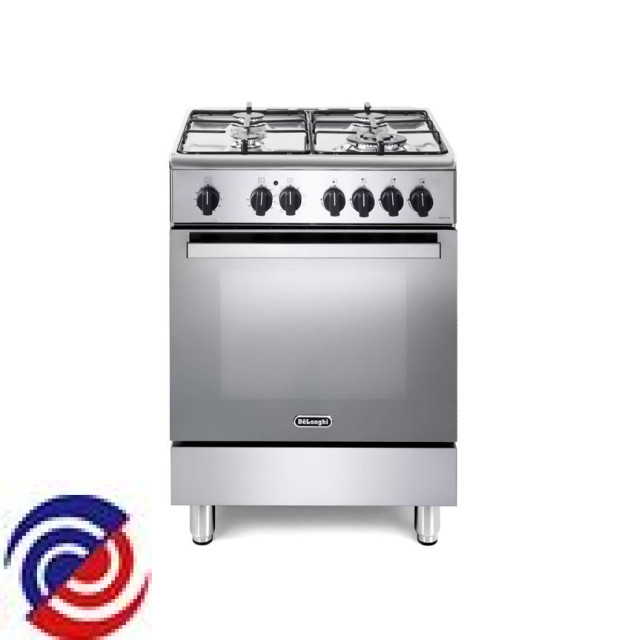

DEFL605G — C660DA001X
DELONGHI — Cooker Dual Fuel
Parts for DEFL605G
W0276305 NUT
$12.50
W0276335 INNER GLASS
W0294139 INJECTOR ULPG Ø 0.95 - TR
$12.80
W0294144 INJECTOR ULPG Ø 0.53 - A
$12.80
W0294145 INJECTOR ULPG Ø 0.70 - SR
$12.80
W0294482 BURNER HEADSR
W0294485 BURNER HEADA
W0299440 SCREW
W0299458 TAP FIXING SCREW
W0299470 SNAP RING
W0299472 RETAINING RING
W0299477 INLET PIPE PLUG
W0299501 INLET PIPE FRONT LEFT A
W0299502 INLET PIPE FRONT RIGHT TR
W0299562 FAN MOTOR INSULATION
W0299589 TIMER KNOB
W0299591 IGNITER SPRING
W0299595 INSULATION SPRING
W0299604 GRILL-PAN GRID HANDLE
W0299612 RUBBER
W0299614 RUBBER
W0299629 OVEN SWITCH
W0299631 TERMINAL BLOCK
W0299645 ELBOW GASKET
W0299654 TOP-BOTTOM SEAL
W0299655 BURNER-CUP GASKETTR
W0299656 SEAL
W0299660 BURNER-CUP GASKETA
W0299661 BURNER-CUP GASKETSR
W0299671 CORD 3X1.5
W0299674 DOOR HINGE (MALE)
W0299678 CUT-OFF THERMOSTAT 120°C
W0299681 CUT-OFF THERMOSTAT 55°
W0299686 OVEN THERMOSTAT
W0299688 CONNECTION
W0299689 CORNER DOOR LOWER RH RIGHT
W0299696 LAMP HOLDER
W0299701 CONTROL LAMP L=230
W0299715 LAMP - 15 W
W0299716 TIMER 60
W0299718 RIGHT TANGENTIAL FAN
W0299719 COMPLETE OVEN FAN 220-240V
W0299733 BURNERS IGNITION COIL
W0299736 IGNITERL=630 MM
W0299738 IGNITERL=500 MM - TR
W0299757 DRAWER RAIL
W0299796 DRAWER FIXING BRACKET
W0299797 DOOR HINGE (FEMALE)
W0299845 TAP BRACKET
W0299848 PLAQUE
W0299864 FIXING PLATE
W0299890 REAR SPACING
W0299924 PIVOT
W0300083 CONTROL LAMP COVER - RED
W0300097 DOOR HANDLE
W0300106 BOTTOM ELEMENT - 230V
W0300119 BURNER HEADTR
W0300245 SCREW
W0300305 REAR RIGHT COUPLER
W0300306 REAR LEFT COUPLER
W0300307 REAR RIGHT COUPLER
W0300308 LEFT RIGHT COUPLER
W0300326 TAPØ 0.28 - A
W0300327 TAPØ 0.33 - SR
W0300328 TAPØ 0.43 - R
W0300643 BURNERS SUPPORT
W0302747 CLIP
$12.10
W0302828 CLIP
$12.30
W0302868 SWITCH SPACER
$12.40
W0302962 INJECTOR NATURAL GAS Ø 1.60 - TR
$14.50
W0302979 INJECTOR NATURAL GAS Ø 1.12 - SR
$12.80
W0302985 INJECTOR NATURAL GAS Ø 0.85 - A
$12.80
W0303092 TIMER KNOB
$13.10
W0303102 SHIELD
$13.20
W0303241 BOTTOM ELEMENT SUPPORT
$14.50
W0303254 INSTRUCTION BOOKLET
$14.70
W0303316 BURNER-CAPA
$15.30
W0303416 BURNER-CUPA
$16.10
W0303423 REAR TRIM
$16.10
W0303432 BURNER-CAPSR
$16.10
W0303524 BURNER-CAP INSIDE TR
$16.80
W0303571 BURNER-CUPSR
$17.10
W0303577 INLET PIPE REAR RIGHT SR
$17.20
W0303584 INLET PIPE REAR LEFT SR
$17.20
W0303643 BURNER THERMOCOUPLE L=500 MM
W0303649 BURNER THERMOCOUPLE L=250 MM - TR
$17.80
W0303897 GAS PRESSURE REGULATOR 1/2
$35.00
W0303899 TEST POINT ADAPTOR
$26.70
W0303917 SHIM
$24.70
W0303991 BURNER-CUPTR
$18.50
W0304007 GRILL-PAN GRID
$29.60
W0304032 WIRE SHELF
$25.90
W0304055 SHELF SUPPORT
$18.90
W0304106 IGNITION SWITCHES
$21.90
W0304178 WIRING
$116.70
W0304207 ANTI TILT BRACKET
$23.80
W0304258 TOP + GRILL ELEMENT 230V
$47.50
W0304332 PAN-SUPPORT
$31.70
W0304345 MANIFOLD
$31.00
W0304441 DOOR GLASS
$220.00
W0304513 BURNER-CAP OUTSIDE TR
$23.70
W0304527 BURNER KNOB
W0304528 TIMER KNOB
$20.60
W0304555 COOKTOP
$102.40
W0304627 CONTROL PANEL
$46.50
W0304684 SIDE PANEL RIGHT
$62.70
W0304685 SIDE PANEL LEFT
$62.70
W0304736 DRAWER FRONT PANEL
$37.50
W0304738 DRAWER
$45.00
W0304747 REAR PANEL
$38.40
W0304759 AIR CONVEYOR
$24.20
W0304761 LOWER AIR CONVEYOR
$21.50
W0304805 BOTTOM REAR PANEL
$18.50
W0304806 BOTTOM PANEL
$33.70
W0304824 CONVEYOR SUPPORT
$25.20
W0304893 FAN DIFFUSER
$30.00
W0304919 OVEN TRAY
$37.40
W0304938 RIGHT DOOR TRIM
$27.00
W0304939 LEFT DOOR TRIM
$27.00
W0304956 LATERAL CROSS-PIECE SUPPORT
$22.20
W0304957 BOTTOM SUPPORT
$29.90
W0304958 RIGHT REAR TRIM
$21.80
W0304959 LEFT REAR TRIM
$21.80
W0304960 RIGHT FRONT TRIM
$25.20
W0304961 LEFT FRONT TRIM
$25.20
W0304966 UPPER TRIM
$24.90
W0304989 DEFLECTOR
$22.60
