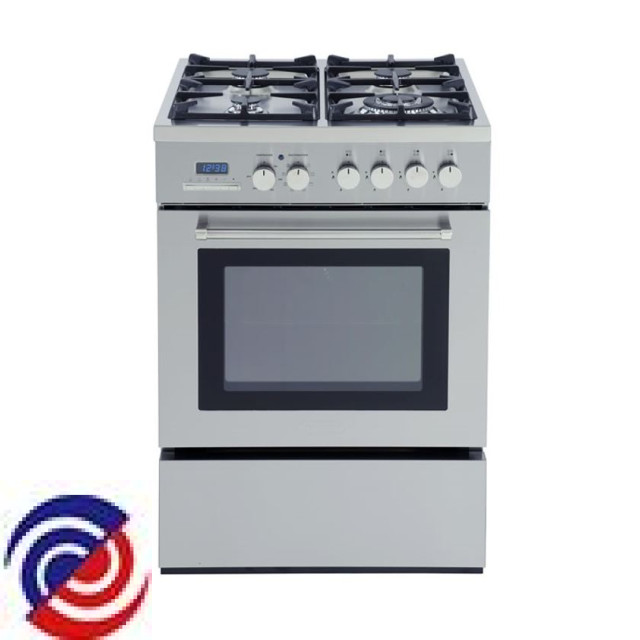

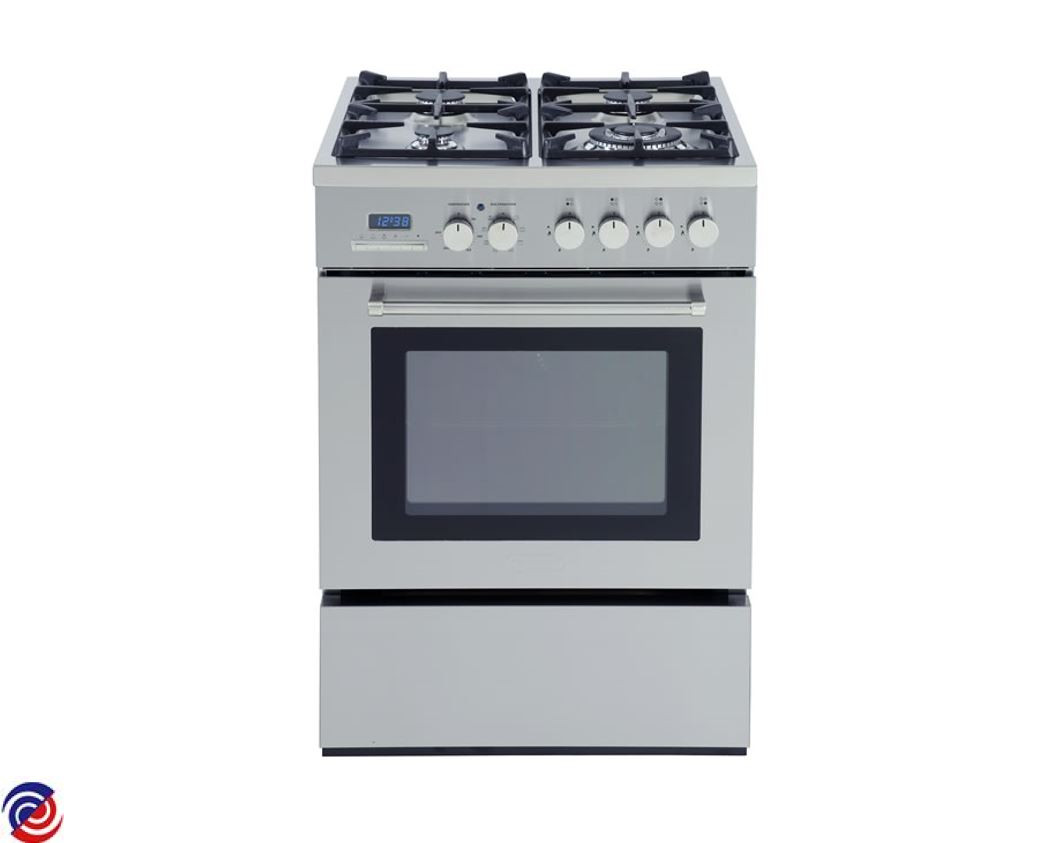

DE60GW — C6E0DA003X
DELONGHI — Cooker Dual Fuel
Parts for DE60GW
W0271194 DELONGHI FISHER & PAYKEL FAN FORCED OVEN ELEMENT 2200W 062097004
$65.00
W0271257 HINGE (MALE)
$22.50
W0271297 SEAL
W0271298 TANGENTIAL FAN
W0271322 OVEN SWITCH
W0273740 TOP + GRILL ELEMENT 230V
W0303429 DELONGHI GRATE FOR SMALL PANS
$17.60
W0273385 THERMOSTAT
$32.40
W0273413 FAN MOTOR
$41.90
W0273663 LAMP HOLDER
W0273707 OVEN TRAY
W0273743 FILTER
$22.20
W0273744 LAMP
$15.20
W0274137 UPPER SEAL
W0276305 NUT
$12.50
W0276335 INNER GLASS
W0281694 WIRE SHELF
W0281904 DOOR HINGE (FEMALE)
$12.80
W0282053 SPARK PLUG L=250MM (AUXILIARY BURNER)
$13.90
W0293067 ELECTRONIC PROGRAMMER
$198.00
W0294139 INJECTOR ULPG Ø 0.95 - TR
$12.80
W0294144 INJECTOR ULPG Ø 0.53 - A
$12.80
W0294145 INJECTOR ULPG Ø 0.70 - SR
$12.80
W0294607 IGNITER TR - L = 500
$14.50
W0295094 SPARK PLUG L=630MM (SEMIRAPID &AMP
$14.70
W0299573 OVEN INSULATION
W0299643 CABLE CLAMP - REAR COOKER
W0299777 EARTH PLATE
W0299895 PIN
W0299917 TAP DIAMETER 0.63 TR
W0299928 NUT
W0299972 DRAWER RAIL SPACER
W0300118 TR BURNER HEAD
W0300321 RIGHT DRAWER RAIL
W0300526 REAR PANEL
W0300608 RIGHT DOOR TRIM
W0300626 RAIL SUPPORT
W0300639 DEFLECTOR
W0300640 LATERAL CROSS -PIECE SUPPORT
W0300641 RIGHT REAR TRIM
W0300642 LEFT REAR TRIM
W0300643 BURNERS SUPPORT
W0302735 SCREW
$12.10
W0302742 SCREW
$12.10
W0302743 STAINLESS STEEL SCREW V
$12.10
W0302747 CLIP
$12.10
W0302775 EARTH PLATE
$12.20
W0302779 SHIM NUT
$12.20
W0302789 TAP FIXING SCREW
$12.20
W0302792 RETAINING RING
$12.20
W0302795 IGNITER SPRING
$12.20
W0302796 SPRING
$12.20
W0302798 CONTROL LAMP COVER (BLUE)
$12.20
W0302801 CLIP
$12.20
W0302804 PIVOT BUTTON
$12.20
W0302807 PLUG
$12.20
W0302825 SEALING WASHER
$12.30
W0302847 RUBBER
$12.40
W0302864 CLAMP
$12.40
W0302867 TAP BRACKET
$12.40
W0302868 SWITCH SPACER
$12.40
W0302944 SPRING PLATE (PLEASE ORDER THE COMPLETE CONTROL PANEL)
$12.70
W0302954 RUBBER PAD (FOR TRIVETS)
$12.70
W0302962 INJECTOR NATURAL GAS Ø 1.60 - TR
$14.50
W0302979 INJECTOR NATURAL GAS Ø 1.12 - SR
$12.80
W0302985 INJECTOR NATURAL GAS Ø 0.85 - A
$12.80
W0303057 DRAWER SPACER
$13.00
W0303066 SHELF SUPPORT SCREW
$13.00
W0303145 SHIM
$13.50
W0303153 INLET PIPE PLUG
$13.60
W0303164 ELECTRONIC PROGRAMMER BRACKET
$13.70
W0303176 DRAWER HANDLE FRONT PANEL
$13.90
W0303203 BUTTON (PLEASE ORDER COMPLETE CONTROL PANEL)
$14.10
W0303208 REAR HOB SUPPORT RIGHT
$14.20
W0303209 REAR HOB SUPPORT LEFT
$14.20
W0303251 NG CONNECTION
$14.70
W0303275 LOCK PIN
$14.90
W0303300 GRILL PAN GRID HANDLE
$15.20
W0303302 RIGHT RAIL
$15.20
W0303303 RIGHT DRAWER RAIL
$15.20
W0303304 LEFT RAIL
$15.20
W0303308 TERMINAL BLOCK 25A-3P
$15.20
W0303316 BURNER-CAPA
$15.30
W0303325 SEAL
$15.30
W0303335 CONTROL LAMP L = 230
$15.50
W0303359 TRIPLE-RING BURNER-CUP GASKET
$15.60
W0303373 TERMINAL BLOCK PROTECTION
$15.90
W0303378 ANTI TILT BRACKET
$15.80
W0303413 INLET PIPE LEFT SR
$16.10
W0303416 BURNER-CUPA
$16.10
W0303428 INLET PIPE RIGHT SR
$16.10
W0303432 BURNER-CAPSR
$16.10
W0303503 KNOB
W0303524 BURNER-CAP INSIDE TR
$16.80
W0303526 CUT-OFF THERMOSTAT 55 DEGREE
$16.80
W0303528 CONICAL ADAPTOR
$16.80
W0303534 INLET PIPE A
$16.90
W0303548 INLET PIPE TR
$16.90
W0303571 BURNER-CUPSR
$17.10
W0303573 CONSOLLE FRAME (PLEASE ORDER THE COMPLETE CONTROL PANEL)
$17.10
W0303643 BURNER THERMOCOUPLE L=500 MM
W0303645 BURNER KNOB
$17.80
W0303649 BURNER THERMOCOUPLE L=250 MM - TR
$17.80
W0303688 REAR INSULATION
$20.80
W0303733 CORD
$21.30
W0303770 OVEN SAFETY THERMOSTAT
$49.30
W0303845 ELECTRONIC IGNITION
$23.30
W0303897 GAS PRESSURE REGULATOR 1/2
$35.00
W0303898 KIT PIZZA STONE
$58.10
W0303899 TEST POINT ADAPTOR
$26.70
W0303965 TAP DIAMETER 0.33
$36.70
W0303992 BURNER-CUP TRIPLE-RING
$35.00
W0304014 GRID FOR WOKS
$32.80
W0304021 PAN-SUPPORT
$56.40
W0304030 GRILL-PAN GRID
$22.40
W0304056 SHELF SUPPORT
$21.10
W0304086 LATERAL CATALYTIC PANEL
$30.00
W0304094 CONTROL PANEL ASSY (3.1+3.9+9.3+9.4+9.5)
$113.30
W0304096 RIGHT TELESCOPIC RUNNER
W0304097 LEFT TELESCOPIC RUNNER
W0304106 IGNITION SWITCHES
$21.90
W0304150 WIRING
$107.30
W0304217 HANDLE
$44.90
W0304257 BOTTOM ELEMENT 230V
$31.70
W0304276 PLINTH
$81.10
W0304287 BURNER-HEAD AUXILIARY
$18.20
W0304289 BURNER-HEAD SEMI-RAPID
$19.30
W0304345 MANIFOLD
$31.00
W0304406 DOOR GLASS
$90.30
W0304502 TAP DIAM 0.28 A
$38.10
W0304513 BURNER-CAP OUTSIDE TR
$23.70
W0304556 COOKTOP
$156.50
W0304682 SIDE PANEL RIGHT
$98.10
W0304683 SIDE PANEL LEFT
$98.10
W0304735 DRAWER FRONT PANEL
$69.90
W0304737 DRAWER
$47.30
W0304745 REAR PANEL
$35.80
W0304759 AIR CONVEYOR
$24.20
W0304761 LOWER AIR CONVEYOR
$21.50
W0304806 BOTTOM PANEL
$33.70
W0304810 BOTTOM REAR PANEL
$29.60
W0304811 DRAWER REAR PANEL
$25.30
W0304824 CONVEYOR SUPPORT
$25.20
W0304839 OVEN CUBE
$122.90
W0304895 FAN DIFFUSER
$37.80
W0304927 PASTRY PLATE
$33.20
W0304940 LEFT DOOR TRIM
$27.40
W0304963 RIGHT FRONT TRIM
$32.50
W0304964 LEFT FRONT TRIM
$32.50
W0304985 BOTTOM ELEMENT SUPPORT
$18.20
W0304990 HANDLE BAR
$21.70
W0305014 OVEN CONDENSATION KIT
$43.90
