AP1246GWT — C480DA002X

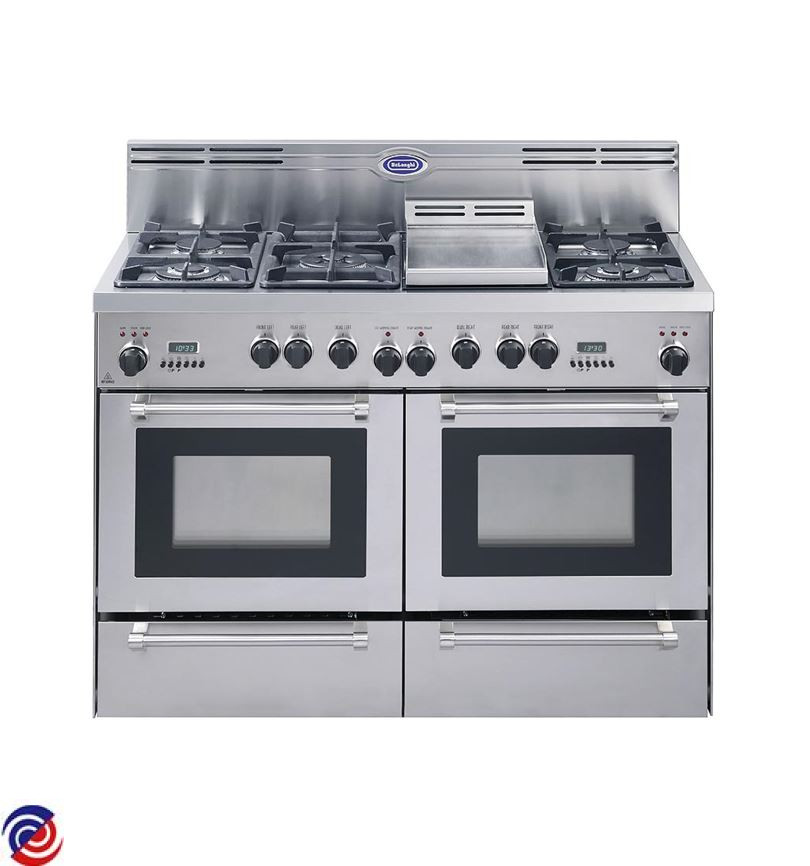

DELONGHI — Cooker Dual Fuel
Parts for AP1246GWT
W0271194 DELONGHI FISHER & PAYKEL FAN FORCED OVEN ELEMENT 2200W 062097004
$65.00
W0273413 FAN MOTOR
$41.90
W0273707 OVEN TRAY
W0273743 FILTER
$22.20
W0273744 LAMP
$15.20
W0274137 UPPER SEAL
W0276304 BURNER THERMOCOUPLE L=500MM (TRIPLE-RING BURNER)
W0276305 NUT
$12.50
W0276364 TANGENTIAL FAN
$53.50
W0294139 INJECTOR ULPG Ø 0.95 - TR
$12.80
W0294143 INJECTOR RAPID DIAM 0.91 - LPG
$12.80
W0294581 HANDLE BAR
W0294607 IGNITER TR - L = 500
$14.50
W0294621 IGNITER TR - L = 900
$15.30
W0294934 MIDDLE INNER GLASS
$56.80
W0295094 SPARK PLUG L=630MM (SEMIRAPID &AMP
$14.70
W0295642 CONTROL LAMP COVER (RED)
$12.20
W0296145 ENERGY REGULATOR
$31.40
W0299427 SCREW
W0299456 TAP FIXING SCREW DUAL
W0299464 WASHER
W0299561 REAR CENTRAL INSULATION
W0299634 FEMALE CONNECTOR
W0299641 WIRE RING
W0299643 CABLE CLAMP - REAR COOKER
W0299751 SPACER
W0299777 EARTH PLATE
W0299808 R BURNER SUPPORT
W0299810 TR BURNER SUPPORT
W0299823 DOOR HINGE (FEMALE)
W0299825 ELECTRONIC CARD PROTECTION
W0299897 WIRE CLAMP
W0299905 DRAWER RAIL
W0299906 GRIDDLE RELAY BASE
W0299917 TAP DIAMETER 0.63 TR
W0299918 TAP - GRIDDLE DIAMETER 0.63
W0299920 GRIDDLE THERMOCOUPLE EXTENSION
W0299964 INNER GLASS
W0299986 IGNITION SWITCHES
W0300093 DOOR HANDLE
W0300108 TOP ELEMENT 230V
W0300164 MANIFOLD
W0300251 DOOR PANEL (GLASS/STEEL)
W0300354 WARMING DRAWER CONTROL KNOB
W0300355 OVEN KNOB
W0300401 CONTROL PANEL
W0300445 SIDE PANEL RIGHT
W0300446 SIDE PANEL LEFT
W0300462 DRAWER FRONT PANEL
W0300467 DRAWER
W0300526 REAR PANEL
W0300578 FUNNEL
W0300618 CENTRAL CROSS-PIECE SUPPORT
W0300620 BASE TRIM
W0300645 DEFLECTOR
W0300667 TERMINAL BLOCK SHIELD
W0300700 HINGE BAR
W0302738 SCREW
$12.10
W0302739 BURNER SCREW M3.5 X 6
$12.10
W0302747 CLIP
$12.10
W0302750 SCREW
$12.20
W0302789 TAP FIXING SCREW
$12.20
W0302792 RETAINING RING
$12.20
W0302795 IGNITER SPRING
$12.20
W0302807 PLUG
$12.20
W0302825 SEALING WASHER
$12.30
W0302829 SHIM NUT
$12.30
W0302847 RUBBER
$12.40
W0302864 CLAMP
$12.40
W0302865 TAP BRACKET DUAL
$12.40
W0302867 TAP BRACKET
$12.40
W0302875 SLEEVE
$12.50
W0302904 THERMOCOUPLE NUT DUAL
$12.50
W0302917 PROGRAMMER ELECTRONIC PEG
$12.60
W0302923 PROGRAMMER BUTTON
$12.60
W0302934 INSULATION
$12.70
W0302955 BURNER-CUP GASKET R
$12.70
W0302961 INJECTOR (NATURAL GAS) DIAM 1.15 - DU OUT
$12.80
W0302962 INJECTOR NATURAL GAS Ø 1.60 - TR
$14.50
W0302977 INJECTOR (ULPG) DIAM 0.50 - DU CENTR
$12.80
W0302978 INJECTOR - GRIDDLE - ULPG DIAMETER 1.05
$12.80
W0302980 INJECTOR RAPID DIAM 1.45 - NG
$12.80
W0302983 INJECTOR (ULPG) DIAM 0.62 - DU OUT
$12.80
W0302985 INJECTOR NATURAL GAS Ø 0.85 - A
$12.80
W0303014 INJECTOR - GRIDDLE DIAMETER 1.75
$12.90
W0303181 CONTROL LAMP L 230
$13.90
W0303194 FUMES CATALYST INSULATION
$14.10
W0303196 GLASS PROGRAMMER
$14.10
W0303241 BOTTOM ELEMENT SUPPORT
$14.50
W0303251 NG CONNECTION
$14.70
W0303256 SPACER
$14.70
W0303283 REAR PANEL BRACKET
$15.10
W0303286 DUAL - BURNER KNOB
$15.10
W0303287 BURNER KNOB
$15.10
W0303300 GRILL PAN GRID HANDLE
$15.20
W0303359 TRIPLE-RING BURNER-CUP GASKET
$15.60
W0303364 WIRING
$15.70
W0303381 INLET PIPE - FRONT LEFT TR
$16.00
W0303390 CLIPS
$16.00
W0303398 INLET PIPE - INSIDE LEFT CENTRAL DUAL
$16.00
W0303407 INLET PIPE - REAR LEFT R
$16.10
W0303408 DUAL INLET PIPE - OUTSIDE LEFT CENTRAL DUAL
$16.10
W0303410 TERMINAL BLOCK PROTECTION
$16.10
W0303437 INLET PIPE - FRONT RIGHT TR
$16.20
W0303461 INLET PIPE - REAR RIGHT R
$16.40
W0303470 MOISTURE SELECTOR GRIP
$16.50
W0303471 CLIP
$16.50
W0303475 MANIFOLD EXTENSION SUPPORT
$16.50
W0303495 CUT-OFF THERMOSTAT 130 DEGREE
W0303500 IGNITER DUAL - L = 450 MM
$16.70
W0303512 GRIDDLE - ELBOW
$16.70
W0303524 BURNER-CAP INSIDE TR
$16.80
W0303528 CONICAL ADAPTOR
$16.80
W0303535 INLET PIPE FRY
$16.80
W0303569 SHIM
$17.10
W0303583 DUAL IGNITION SWITCH
$17.20
W0303604 TERMINAL BLOCK - REAR COOKER 40A- 6P
$17.30
W0303636 BURNER GASKET
$17.70
W0303643 BURNER THERMOCOUPLE L=500 MM
W0303683 OVEN INSULATION
$102.30
W0303684 REAR INSULATION
$43.70
W0303687 GRIDDLE FRONT INSULATION
$18.30
W0303706 SWITCH
$66.60
W0303718 MALE CONNECTOR
$18.30
W0303722 DOOR PANEL GASKET
$44.60
W0303723 INNER GLASS GASKET
$44.10
W0303724 SEAL
$55.80
W0303751 HINGE (MALE)
W0303771 THERMOSTAT
$52.10
W0303783 LAMP HOLDER
$29.80
W0303808 PROGRAMMER ELECTRONIC CARD WITH TRANSFORMER (BLUE LED)
$239.90
W0303843 BADGE
$58.90
W0303846 ELECTRONIC IGNITION
$24.00
W0303847 MOISTURE PANEL
$25.40
W0303848 MOISTURE SELECTOR
$32.20
W0303849 GRIDDLE IGNITER
$18.40
W0303857 DOOR LOCK SUPPORT
$21.70
W0303862 FUMES CATALYST CONVEYOR
$21.30
W0303863 SHIM BRACKET
$20.50
W0303864 TRASFORMER BRACKET
$21.30
W0303865 DUAL BURNER SUPPORT
$22.10
W0303866 MANIFOLD SUPPORT
$23.00
W0303867 PROGRAMMER ELECTRONIC CARD SUPPORT
$24.10
W0303868 GRIDDLE BURNER SUPPORT
$18.40
W0303869 BOTTOM GREASE TRAY SUPPORT
$33.80
W0303870 SIDE METAL PROTECTION
$25.60
W0303871 BOTTOM GREASE TRAY PROTECTION
$23.30
W0303872 CLIPS
$18.70
W0303873 THERMOCOUPLE PROTECTION
$18.40
W0303874 BACK METAL PROTECTION
$19.40
W0303876 WIRE FASTENER BRACKET
$22.10
W0303897 GAS PRESSURE REGULATOR 1/2
$35.00
W0303898 KIT PIZZA STONE
$58.10
W0303899 TEST POINT ADAPTOR
$26.70
W0303911 DOOR LOCK
W0303912 DOOR LOCK BLOCK
$24.80
W0303918 FUMES CATALYST
$52.60
W0303925 RELAY
$39.60
W0303926 WARMING DRAWER PARTITION
$22.20
W0303928 GRIDDLE BURNER HOUSING
$30.50
W0303929 GRIDDLE BURNER LOWER METAL PROTECTION
$59.50
W0303930 BOTTOM GREASE TRAY
$98.20
W0303931 GRIDDLE BURNER GRID
$29.30
W0303932 GRIDDLE RELAY
$37.80
W0303933 GRIDDLE STAINLESS STEEL PLATE
$841.50
W0303957 TAP DUAL 27/60
$68.00
W0303966 TAP - GRIDDLE DIAMETER 0.43 R
$36.70
W0303973 PROBE
$47.50
W0303974 BURNER THERMOCOUPLE L = 450
$21.90
W0303975 GRIDDLE THERMOCOUPLE
$21.60
W0303991 BURNER-CUPTR
$18.50
W0303992 BURNER-CUP TRIPLE-RING
$35.00
W0303994 BURNER-CUP DUAL
$50.80
W0303995 GRIDDLE BURNER
$30.60
W0304014 GRID FOR WOKS
$32.80
W0304030 GRILL-PAN GRID
$22.40
W0304031 PAN-SUPPORT
$62.00
W0304046 WIRE SHELF
$36.10
W0304049 DRAWER OVEN SHELF
$28.10
W0304051 CENTRAL PAN-SUPPORT
$69.90
W0304078 INNER GLASS
$43.80
W0304139 WIRING
$24.80
W0304140 GRIDDLE - WIRING
$165.70
W0304141 WIRING
$257.50
W0304184 ANCHORAGE PIPE
$18.40
W0304250 BOTTOM ELEMENT
$40.40
W0304268 TOP + GRILL ELEMENT
$50.80
W0304291 BURNER-HEAD RAPID
$21.10
W0304294 BURNER-HEAD TRIPLE-RING
$51.10
W0304296 BURNER HEAD DUAL
$67.90
W0304312 BACKGUARD
$211.20
W0304481 GRIDDLE FRAME
$104.10
W0304499 KNOB RING
$22.30
W0304512 BURNER-CAP R
$18.80
W0304513 BURNER-CAP OUTSIDE TR
$23.70
W0304515 BURNER-CAP OUTSIDE DUAL
$25.00
W0304516 BURNER-CAP INSIDE DUAL
$20.70
W0304552 COOKTOP
$266.00
W0304713 DOOR PANEL
$57.50
W0304714 DOOR PANEL FRAME
$75.20
W0304743 REAR PANEL
$108.70
W0304761 LOWER AIR CONVEYOR
$21.50
W0304799 BOTTOM REAR PANEL
$40.80
W0304800 DRAWER SUPPORT
$55.40
W0304801 WARMING DRAWER PROTECTION
$59.30
W0304806 BOTTOM PANEL
$33.70
W0304807 CONTROLS PROTECTION
$25.20
W0304808 COOLING FAN SHEET SUPPORT
$29.00
W0304809 AIR CONVEYOR
$49.00
W0304826 AIR CONVEYOR SUPPORT
$25.20
W0304848 OVEN CUBE
$137.40
W0304894 FAN DIFFUSER
$36.90
W0304911 BROILER PAN TRAY
$41.00
W0304924 BROILER PAN
$37.30
W0304926 PASTRY PLATE
$30.80
W0304945 RIGHT FRONT TRIM
$41.80
W0304946 LEFT FRONT TRIM
$41.80
W0304947 CENTRAL FRONT TRIM
$46.10
W0304948 REAR CENTRAL TRIM
$44.10
W0304949 RIGHT REAR TRIM
$34.80
W0304950 LEFT REAR TRIM
$34.80
W0304951 RAIL DRAWER SUPPORT
$29.30
W0304952 WARMING DRAWER FRAME
$45.30
W0304953 COOKTOP RENFORCEMENT
$27.80
W0304954 BURNERS SUPPORT
$59.10
W0304956 LATERAL CROSS-PIECE SUPPORT
$22.20
W0304962 COOLING FAN BAR SUPPORT
$29.60
W0304985 BOTTOM ELEMENT SUPPORT
$18.20
W0304987 GLASS SIDE SUPPORT
$21.70
W0304988 SUPPORT
$18.80
