ESAM3000.B EX:1 — 0132212154
DELONGHI — Coffee Machine

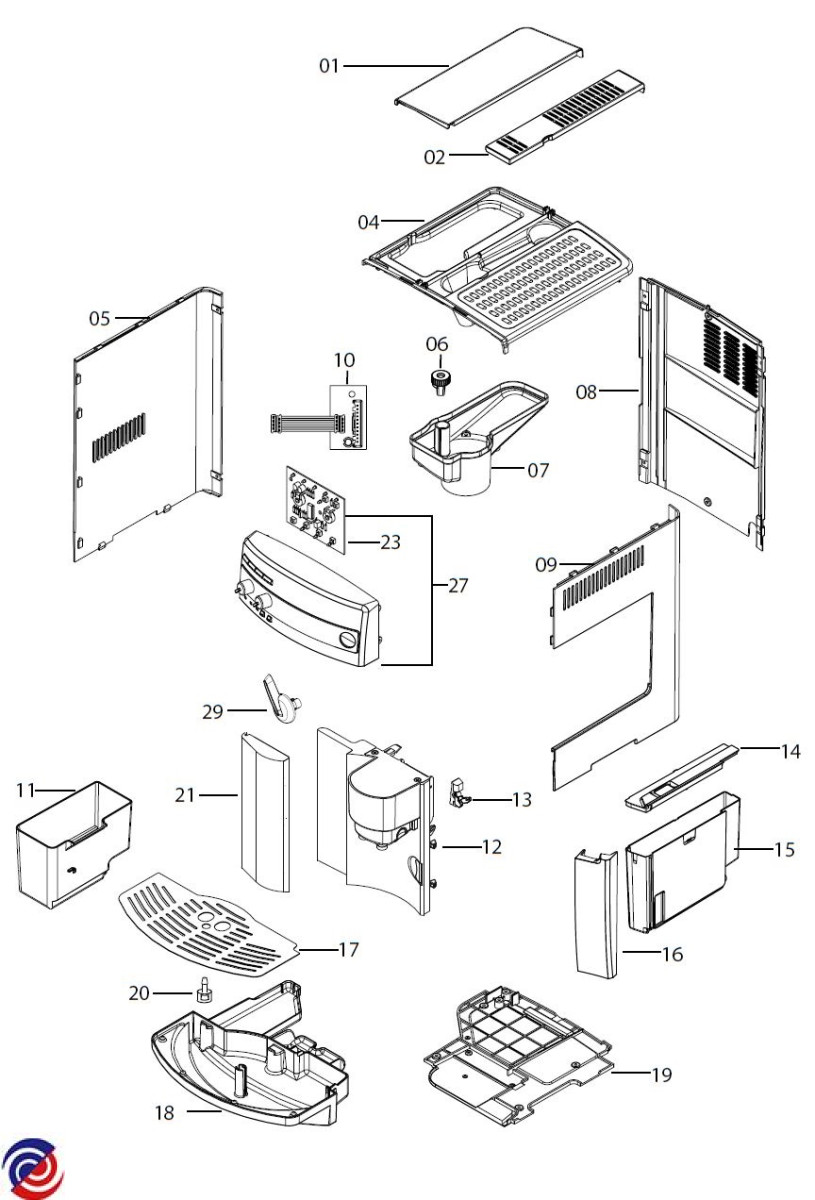

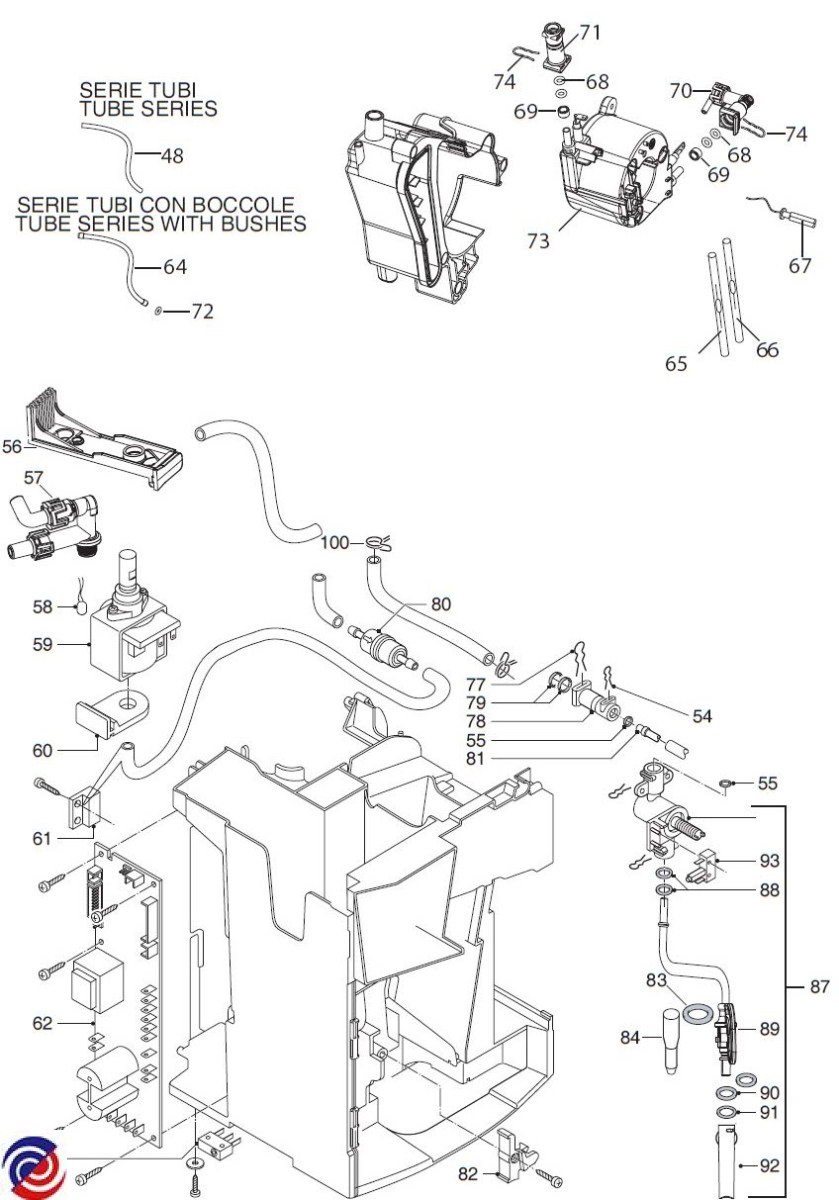

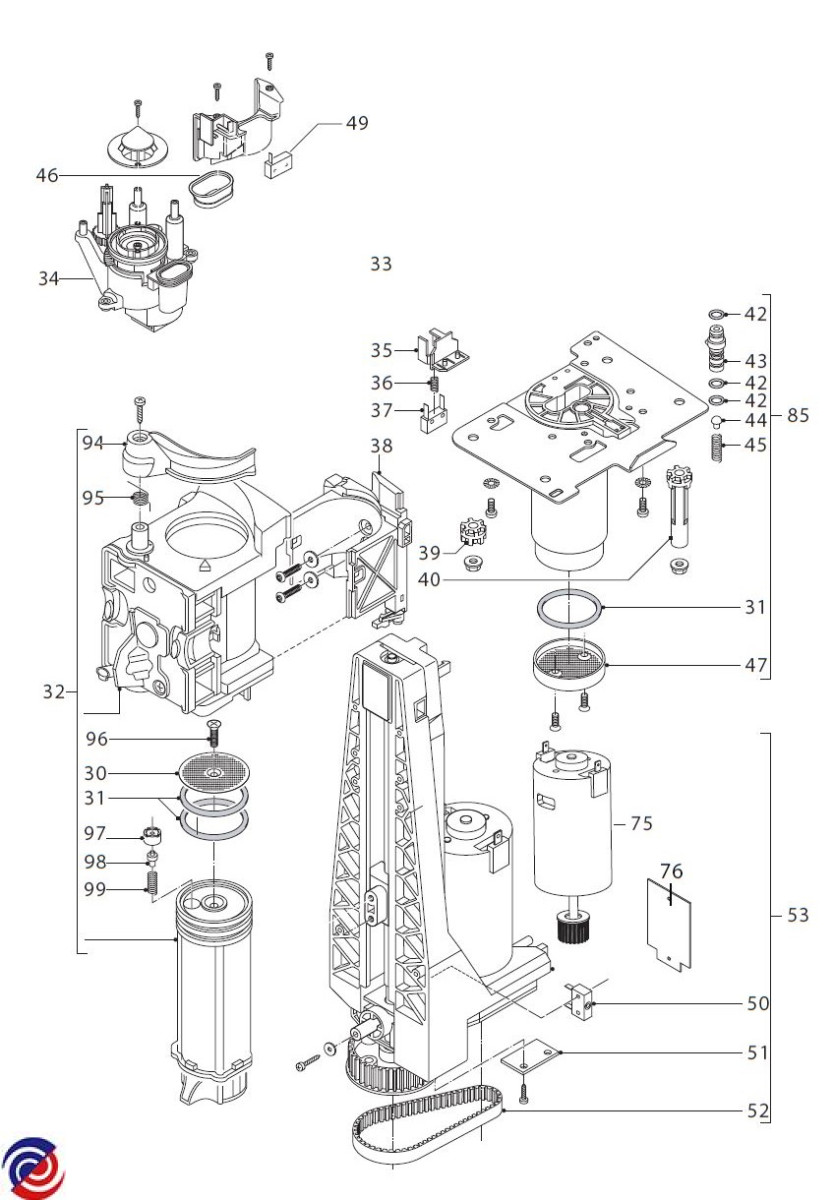

Parts for ESAM3000.B EX:1
W0276945 O-RING (D=6.07 T=1.78)
$4.20
W0276958 SCREW (3.5X12)
$11.70
W0276969 STOPPER
$11.70
W0276970 VALVE
$11.70
W0276971 SPRING
$12.00
W0276972 DELONGHI COFFEE MACHINE FILTER O-RING
$6.95
W0276980 MICROSWITCH
$27.00
W0276981 MOTOR WITH PULLEY (ECM 230V)
$89.80
W0276982 HALL SENSOR (L620)
$16.92
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0276999 PUMP PROTECTOR
$24.80
W0277006 ROUND GENERATOR (230V 1400W F6.3)
W0277008 SPACER
$12.20
W0277009 O-RING D=4,5
W0277010 CLIP (WIRE 1,2 AISI302)
W0277012 CONNECTOR
$12.60
W0277013 MOTOR BELT
$14.00
W0277014 SCRAPER BRUSH WITH BRISTLES
$12.80
W0277015 GREASE TUBE (5GR VERKOFOOD)
$20.00
W0277020 GRINDER ASSEMBLY (2D-DL 230V)
$93.00
W0277078 DELONGHI COFFEE MACHINE GASKET
$12.00
W0277083 TOOTHED BELT
$14.00
W0277098 GRINDER BELLOW GASKET
$13.00
W0277099 REED SENSOR
$33.00
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277196 MICROSWITCH
$13.00
W0277212 DELONGHI COFFEE MACHINE PUMP (ULKA 230V 48W)
$37.95
W0277223 SENSOR (NTC L400)
$16.50
W0277234 RIGHT ANGLE GENERATOR CONNECTION
$12.30
W0277735 VALVE
$6.60
W0277750 SUPPORT
$12.30
W0277751 LOWER TUBE
$13.00
W0277752 COVER
$14.00
W0277754 SILICONE HOSE (DI=4 L=270)
$12.80
W0277761 IMPURITY FILTER
$14.30
W0277830 FIXING BRACKET (TCO)
$13.00
W0277831 SENSOR BRACKET
$13.00
W0277885 FLOWMETER WIRING (L 470)
$24.60
W0278034 TCO WITH WIRING
$24.10
W0278119 MOTOR BOARD (ECM 230V)
$18.00
W0278209 MOTOR ASSEMBLY (CHIAPHUA 230V)
$39.90
W0295783 LEVER
$11.70
W0296740 INFUSER
$43.00
W0305689 STEAM KNOB
$12.70
W0317798 HOOK
$12.50
W0317800 COVER
$13.30
W0317801 COVER
$22.90
W0318028 DRAIN HOSE (90°)
$14.00
W0321467 GRINDING ADJUSTMENT KNOB
$12.20
W0323782 SOLENOID VALVE SUPPORT (2V)
$12.80
W0323783 SOLENOID VALVE SUPPORT (3V)
$29.00
W0323873 GRID
$14.70
W0325430 DELONGHI COFFEE MACHINE SAFETY VALVE
$14.00
W0273641 SLIDER
$16.00
W0311477 POWER SUPPLY CORD WITH PLUG (AU)
W0311576 TCO WITH WIRING
$23.60
W0312478 MICROSWITCH (10A/ 250V/ 125°)
$13.60
W0312479 MICROSWITCH
$23.40
W0312985 BOARD
$38.70
W0313000 CONTROL BOARD (8 PIN)
$32.60
W0313205 MOTOR BOARD (CHIAPHUA 230V)
$18.90
W0313577 ELECTRONIC CONTROL BOARD
$69.70
W0314984 SCUFF-PROOF RUBBER PAD
$13.00
W0314992 PUMP SUPPORT
$23.30
W0315030 REAR PANEL
$30.10
W0315037 O-RING (D11 91 T2.62)
$12.90
W0315038 O-RING (D=13.1 T=2.62)
$12.80
W0315459 GRINDER PANEL
W0317713 TUBE (DI=4 L=220)
$12.50
W0317791 FILTER
$12.00
W0317795 SUPPORT
$11.90
W0317796 BUSH
$11.70
W0317797 BUSH
$11.70
W0317802 RIGHT SIDE
$27.80
W0317803 LEFT SIDE
$29.30
W0317804 CUP HOLDER TRAY
$27.20
W0317805 O-RING (D=6)
$12.00
W0317806 GASKET
$12.00
W0317808 COVER
$12.80
W0317812 COVER
$13.00
W0317817 SILICONE HOSE (DI=4 L=55)
$12.80
W0317820 GLASS HANDLE
W0317826 PROFILE
$13.20
W0317857 RUNNER FRAME
$12.80
W0317881 DISPENSER GLASS
$13.10
W0317883 SILICONE HOSE (DI=5 L=270)
$12.80
W0317887 COVER
W0317922 DRAIN HOSE (90°L180)
$13.40
W0317981 PIN
$11.70
W0317982 SPACER
$11.70
W0318012 BOTTOM
$24.40
W0318068 COVER
$36.90
W0318072 FLOAT
$11.70
W0318077 COVER
$12.00
W0319621 FROTHER TUBE
$17.10
W0319631 TUBE WITH 2 BUSHES (L180)
$12.20
W0319787 COFFEE BEANS TANK WITH RUBBER PADS
$14.70
W0323178 CUP HOLDER
$29.00
W0323457 SPRING
$11.70
W0323458 SPRING
$11.70
W0323462 SPRING
$11.70
W0323781 POD SUPPORT
$14.30
W0325443 DOOR ASSEMBLY
$21.10
W0325519 CONTROL PANEL ASSEMBLY
W0325872 TRANSMISSION KIT (CHIAPHUA)
$94.40
W0327151 CLIP CLAMP (9.30-9.10-8.80)
W0333617 SEE TECNICAL INFORMATION IT0258
