EN520.DB — 5513294431

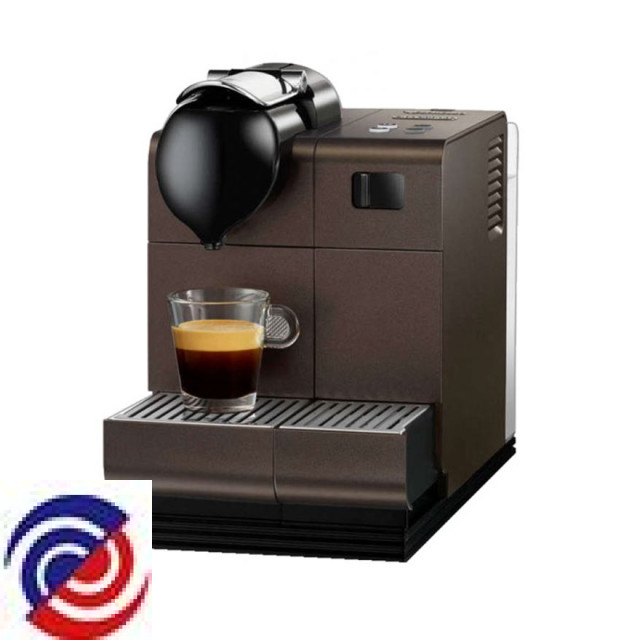

DELONGHI — Coffee Machine
Parts for EN520.DB
W0276944 O-RING (D=9.25 T=1.78)
$12.40
W0276995 O-RING (D=3.85 T=2)
$12.20
W0276996 SPRING
$11.90
W0277009 O-RING D=4,5
W0277010 CLIP (WIRE 1,2 AISI302)
$12.10
W0277012 CONNECTOR
$12.00
W0277113 TUBE WITH 2 BUSHES (L120)
$11.90
W0277116 TUBE WITH 2 BUSHES (L205)
$12.30
W0277124 FIXING BRACKET (NTC)
$11.70
W0277125 STEAM CONNECTION
$12.30
W0277230 FIXING BRACKET (NTC)
W0277233 FIXING BRACKET (TCO)
W0277240 PORTABLE DIGITAL THERMOMETER, -50 +150°C
$88.90
W0277744 SILICONE O-RING (5.94X3.53)
$11.90
W0278213 BELLOW BOTTLE (702 CPL)
$52.00
W0295478 MILK INTAKE TUBE
$27.00
.jpg)
W0295669 DELONGHI NESPRESSO KIT INFUSER PISTON
$50.00
W0305696 MILK JUG COVER - DELONGHI LATTISSIMA COFFEE MACHINE
$34.43
W0312188 WIRED MICROSWITCH
$14.10
W0313141 SOLENOID VALVE (3VA 230V)
$26.10
W0319879 DELONGHI MILK TANK FOR FROTHING JUG
$19.69
.jpg)
W0325585 DELONGHI NESPRESSO DESCALING SPOUT
$20.00
.jpg)
W0325604 WATER TANK
$23.00
W0345214 PUMP
$39.95
W0307726 TUBE (L80)
$11.90
W0311494 POWER SUPPLY CORD WITH PLUG (AU)
$18.10
W0311592 WIRING FOR FLOWMETER (L190)
$13.00
W0311593 WIRING WITH (THS) AND 4-WAY CONNECTOR
$15.80
W0311594 TCO WITH WIRING
$13.20
W0311595 TCO WITH WIRING
$14.60
W0313030 CONTROL BOARD (230V)
$19.80
W0313041 SENSOR NTC
$20.60
W0313050 TCO (318°C 15A)
$14.20
W0313079 POWER BOARD (SW1.4 230V)
$38.10
W0313132 SOLENOID VALVE (3VB 230V)
$26.70
W0314918 RIGHT ANGLE CONNECTOR
$11.80
W0315065 SHAPE FOR TUBE
W0315206 TUBE
$12.40
W0315222 BOTTOM PANEL COVER
$12.10
W0315223 CAPSULE CONTAINER
$13.00
W0315224 CUP HOLDER TRAY
$13.80
W0315225 REAR TMBU COVER
$12.20
W0315226 SLIDING DOOR (IFD)
$11.70
W0315228 TMBU OUTLET
$11.90
W0315229 DOOR PIN (IFD)
$11.70
W0315230 PIN SUPPORT (IFD)
$11.90
W0315231 KEY ACTUATOR
$11.70
W0315232 ON/OFF KEY
$11.70
W0315233 GENERATOR FRONT CASING
$13.00
W0315234 GENERATOR REAR CASING
$14.10
W0315236 SOLENOID VALVE SUPPORT
$13.20
W0315237 PUMP SUPPORT
$14.30
W0315238 DOUBLE TUBE SHAPE
$11.70
W0315239 WATER TANK CONNECTOR
$13.20
W0315299 VAPORIZER CONNECTOR CLIP
$12.90
W0315316 INSULATION TUBE (L170)
$12.30
W0315322 RUBBER FOOT PAD
$11.70
W0315335 HANDLE STOP RUBBER PAD
$13.00
W0315416 MACHINE CONNECTOR
$11.90
W0315454 VALVE
$12.90
W0315508 REAR FRAME
$15.30
W0315516 CAPSULE CONTAINER COVER
$17.90
W0315517 CUP HOLDER COVER (IFD)
$18.30
W0315518 CUP HOLDER FRONT PIECE
$18.30
W0315519 FRONT RIGHT PANEL
$17.60
W0315520 LEFT PANEL
W0315521 RIGHT PANEL
W0317805 O-RING (D=6)
$12.00
W0317829 SILICONE HOSE (DI=7 L=70)
$11.70
W0319631 TUBE WITH 2 BUSHES (L180)
$12.20
W0319668 TUBE WITH 2 BUSHES (L85)
$12.10
W0319669 TUBE WITH 2 BUSHES (L230)
$12.70
W0319691 TUBE WITH 2 BUSHES (L95)
$12.20
W0319724 COFFEE DISPENSER WITH RUBBER PAD
$15.80
W0319862 OUTLET PIPE MILK
$15.60
W0319912 REAR PANEL
$16.60
W0321518 KEYBOARD
$12.20
W0321534 UPPER COVER
$26.50
W0323086 CUP HOLDER
$13.60
W0323087 CUP HOLDER
$13.60
W0323284 SPRING
$11.70
W0323285 SPRING
$11.70
W0323286 SPRING
$11.70
W0323290 SPRING
$13.00
W0325454 EXPANSION CHAMBER
$13.30
W0325559 ROUND GENERATOR (230V1200W+CONNEC)
$45.60
W0325584 FRAME
W0325666 CARAFE COUPLING
$15.20
