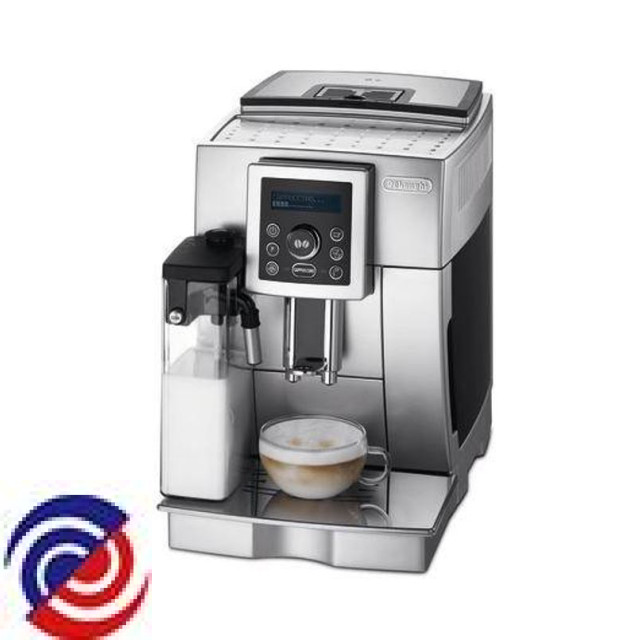

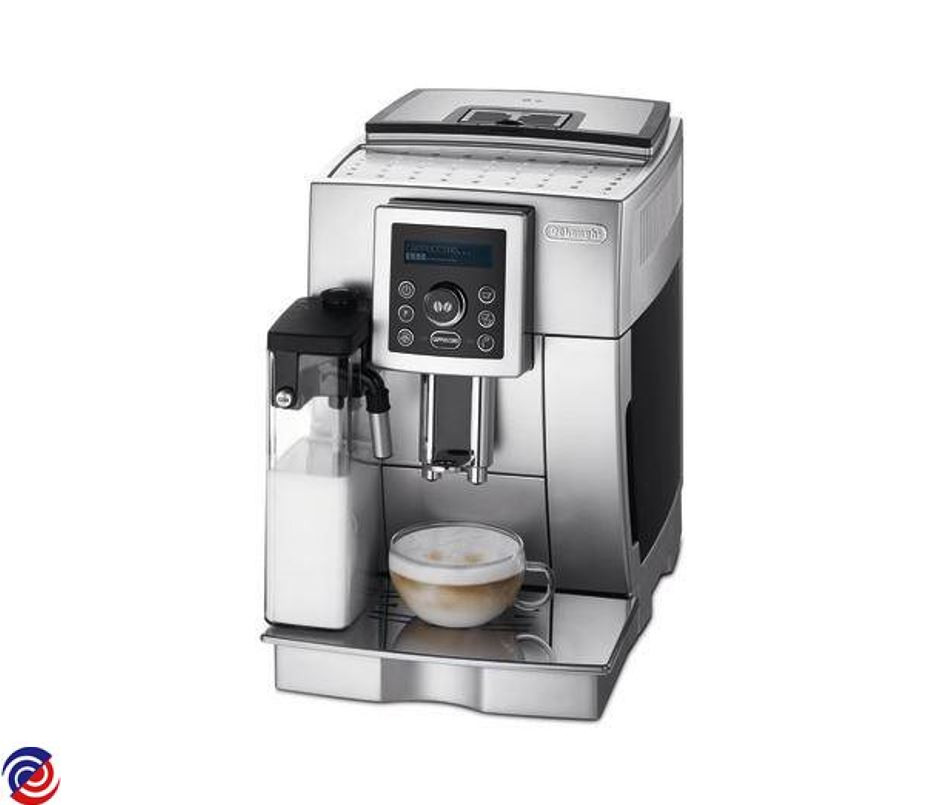

ECAM23.450.S EX:3 — 0132215109
DELONGHI — Coffee Machine

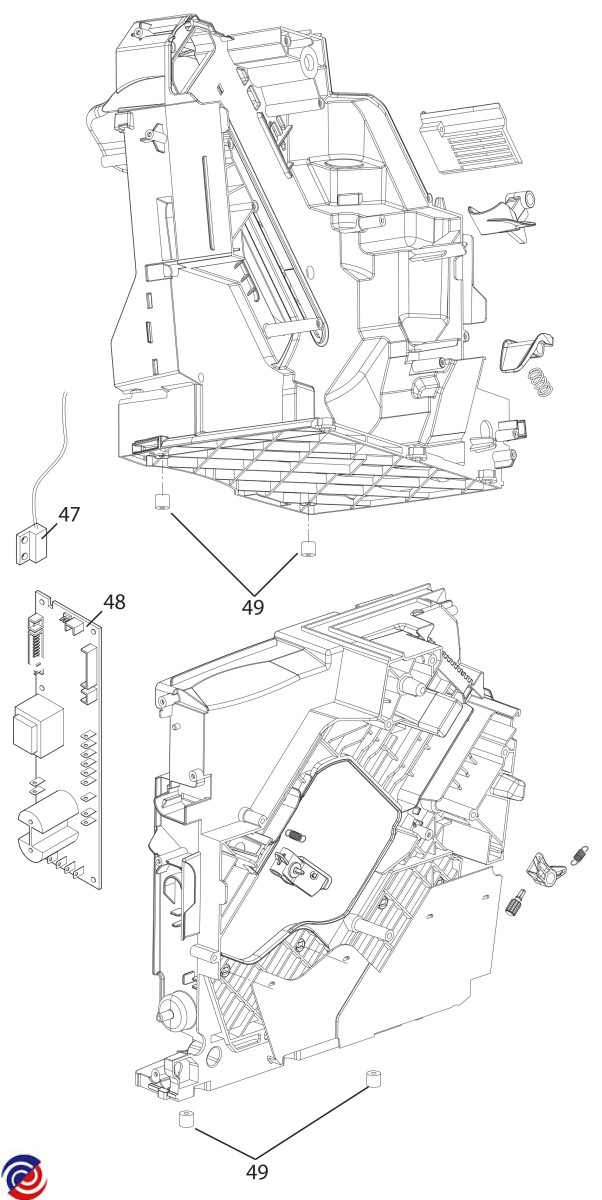

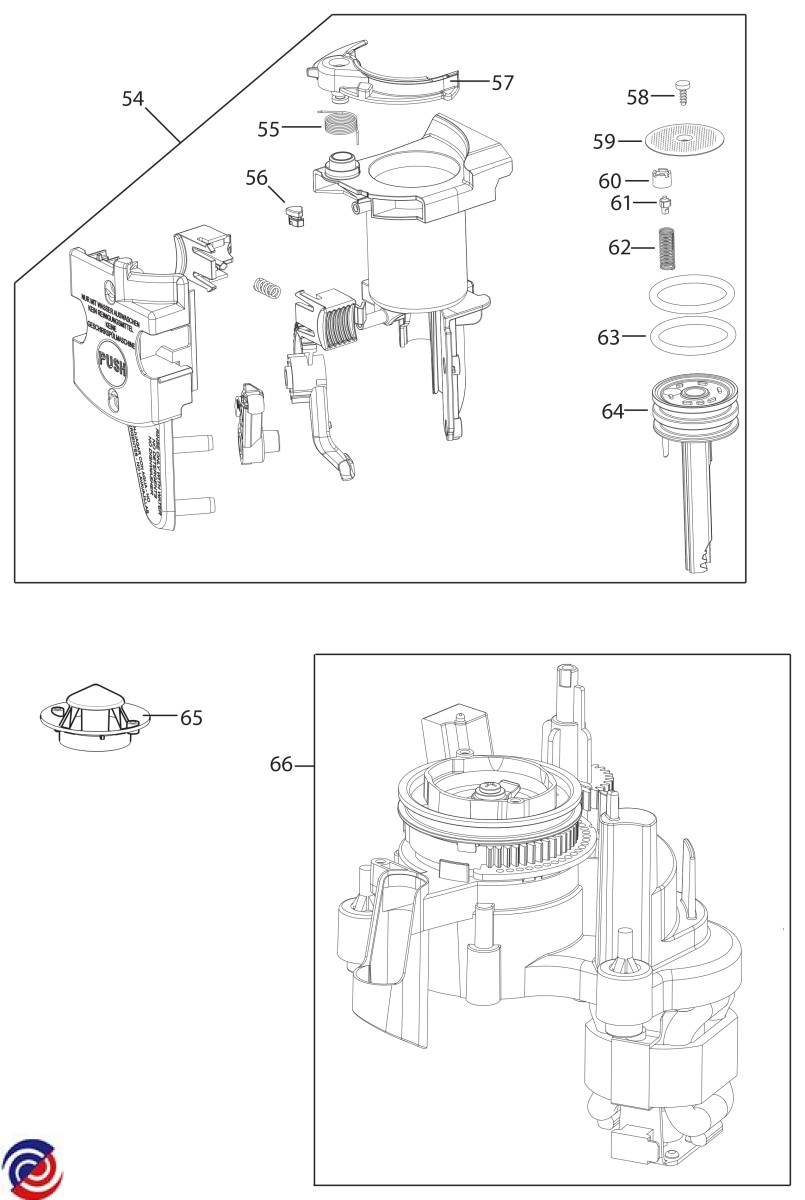

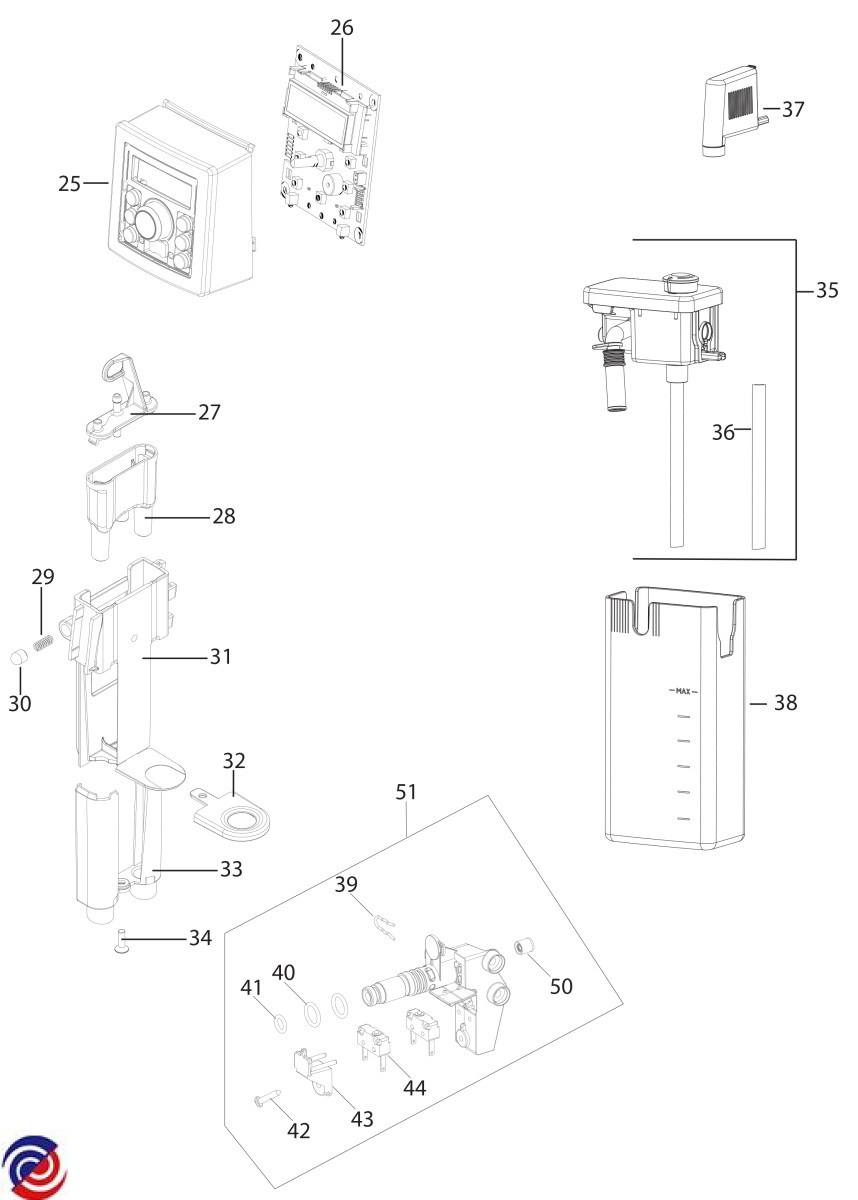

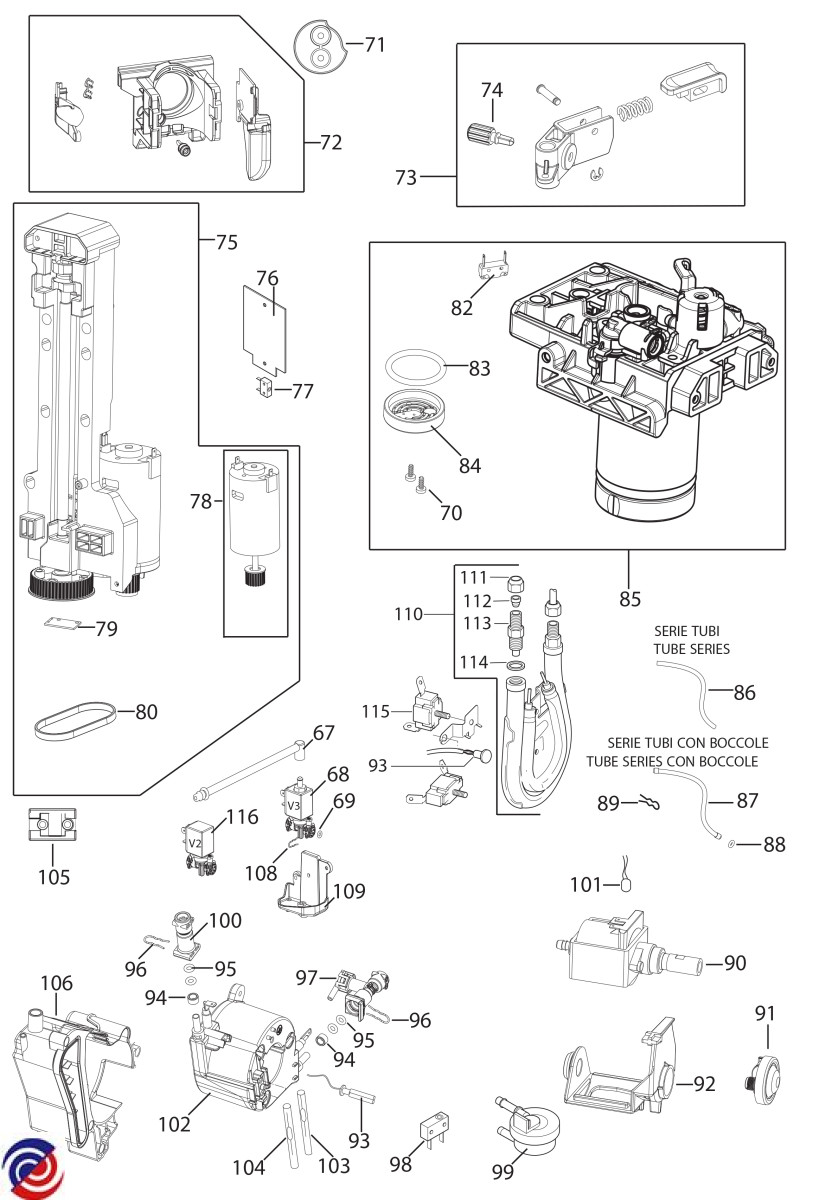

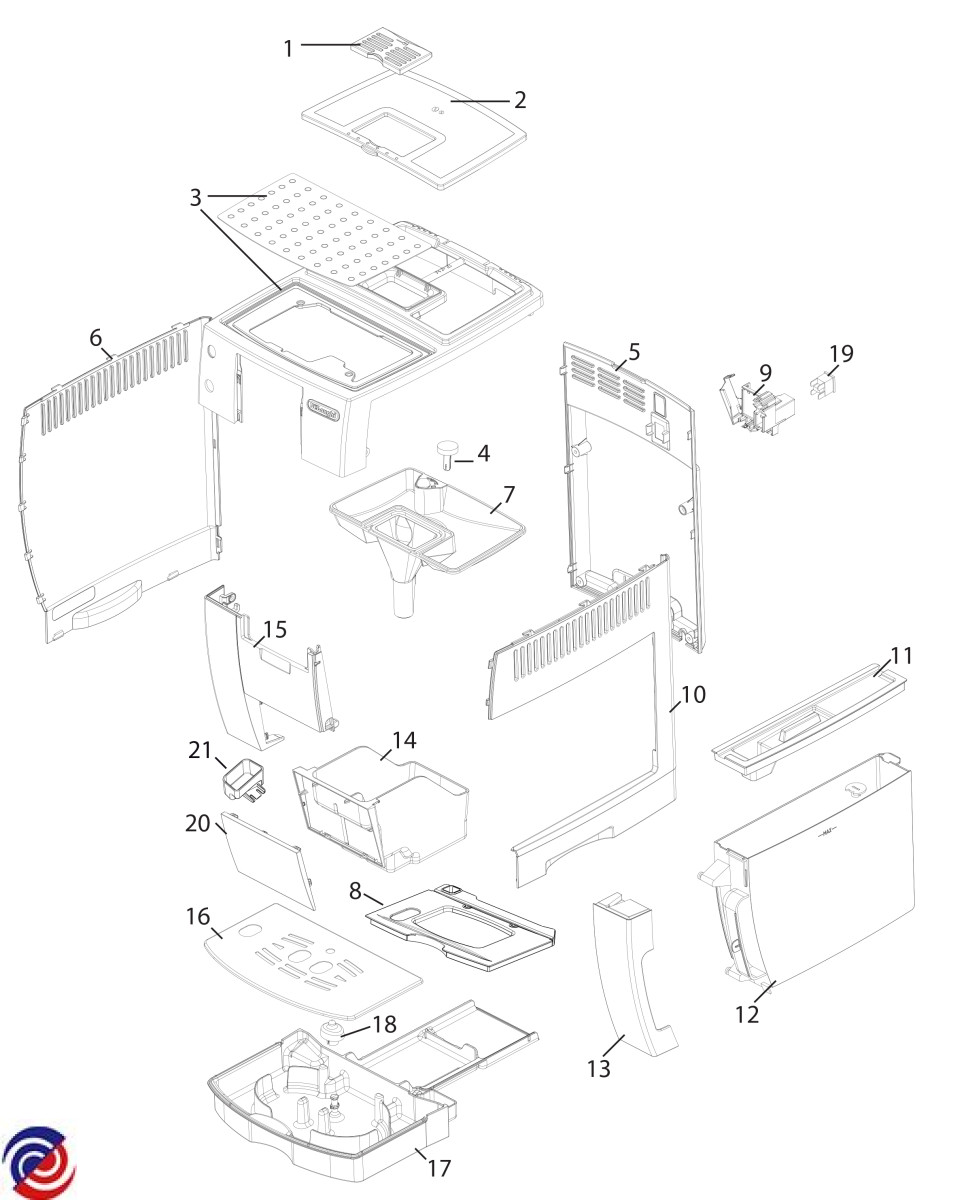

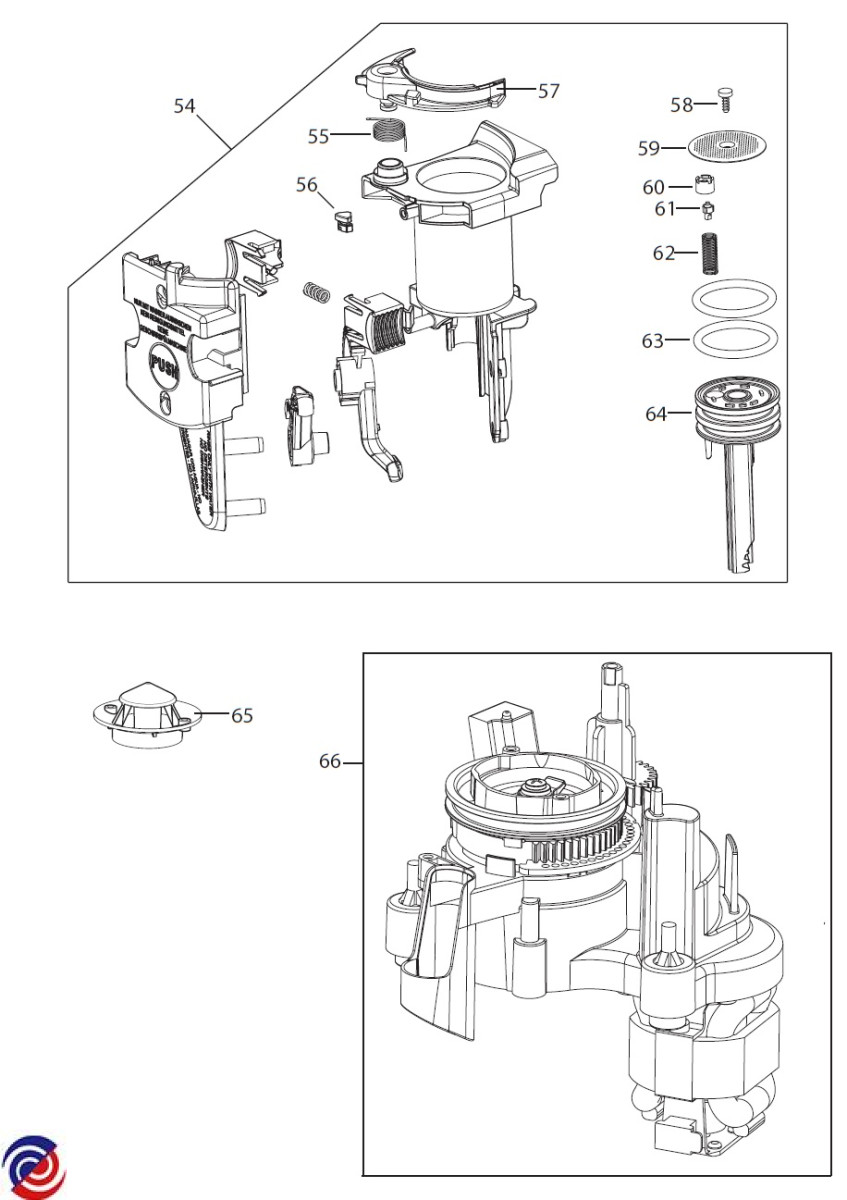

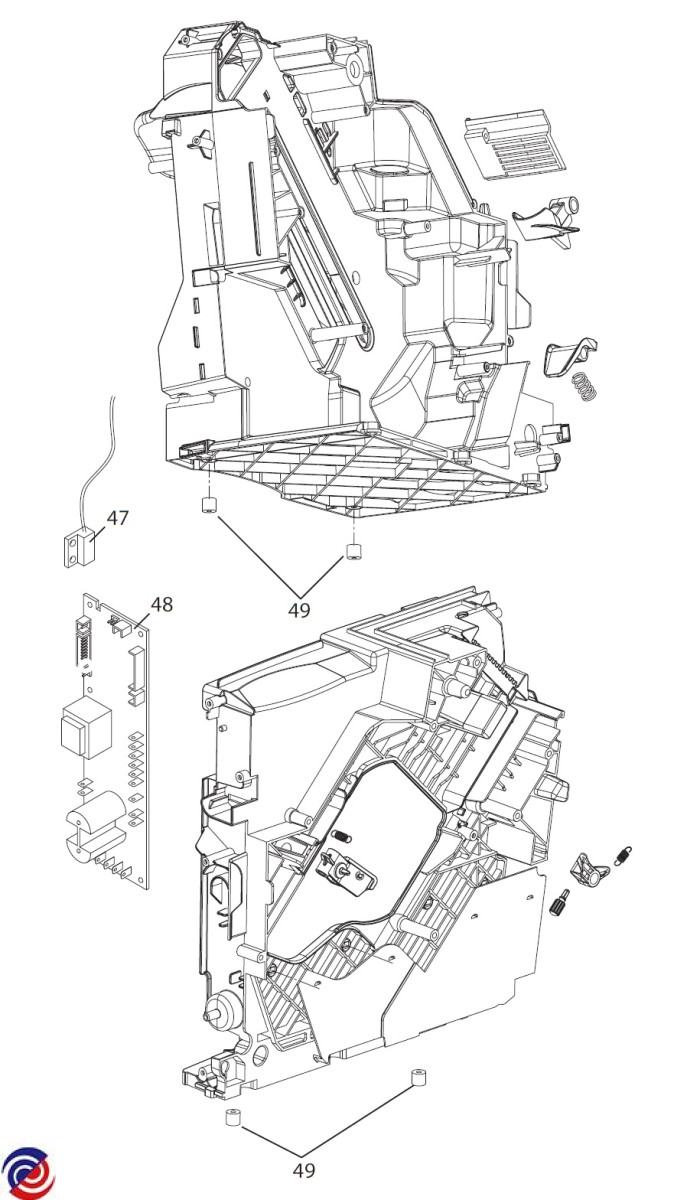

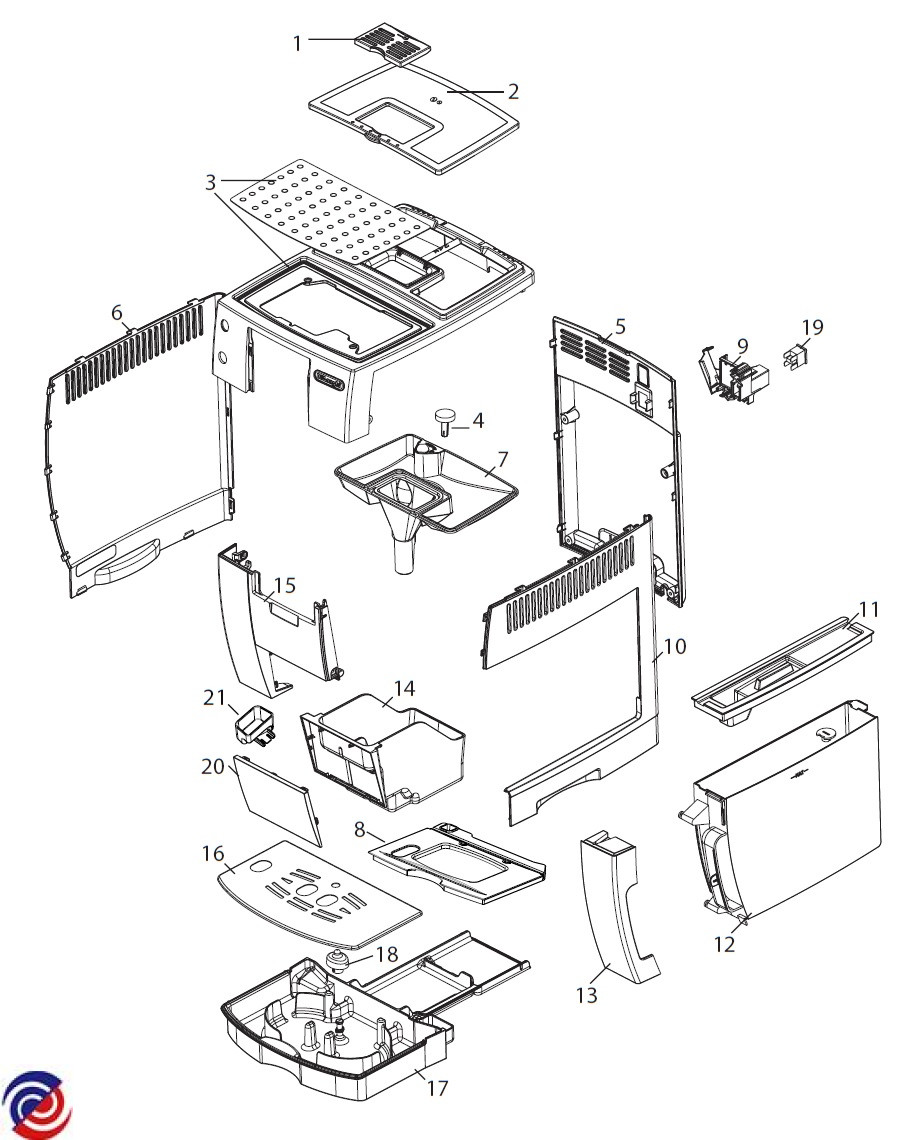

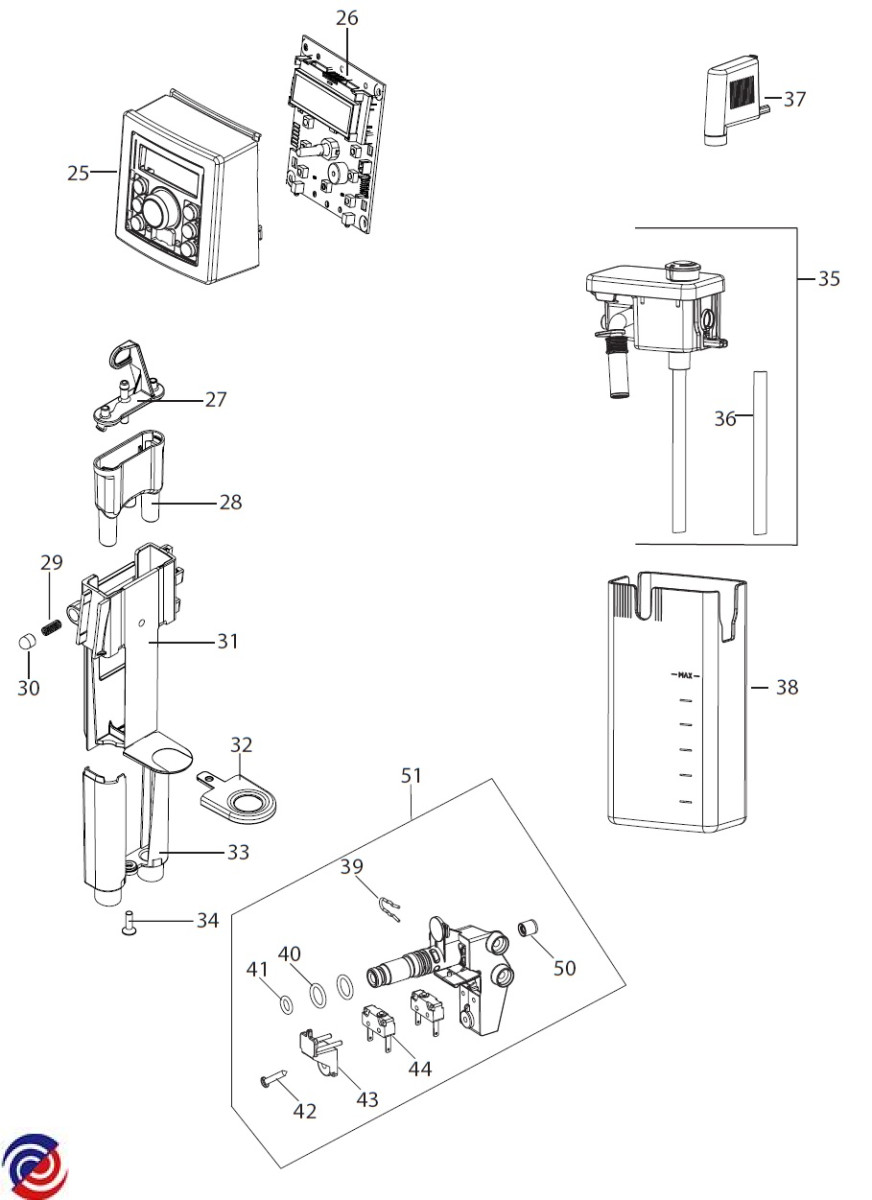

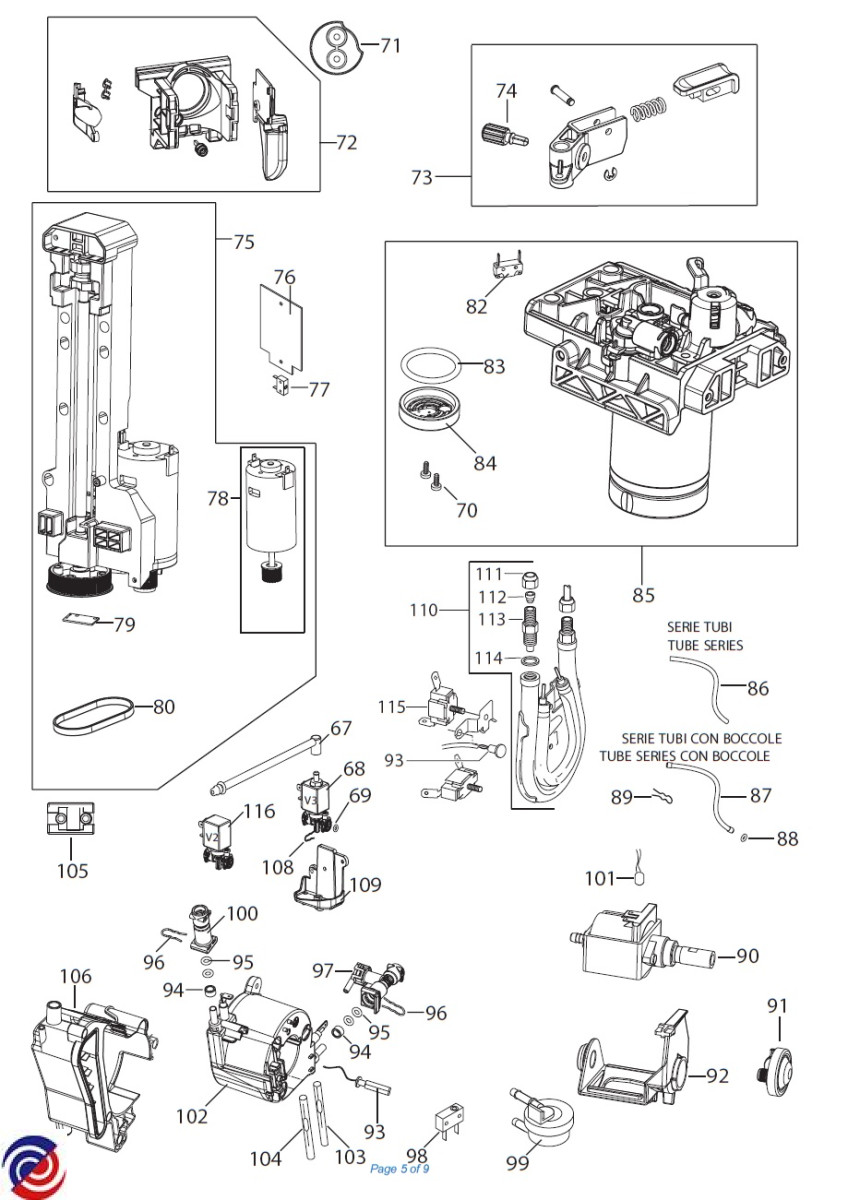

Parts for ECAM23.450.S EX:3
W0271287 MILK CLEAN SOLUTION 250ML
$19.95
W0276254 WATER TANK
W0276636 WATER INTAKE TUBE
$13.20
W0276917 GROUND COFFEE TANK COVER
$11.90
W0276918 COFFEE BEANS COVER
W0276921 GRIND REGULATION KNOB
$19.90
W0276922 COFFEE BEANS TANK
$12.80
W0276924 SWITCH HOLDER
$22.80
W0276925 SWITCH
$24.30
W0276927 COFFEE DREGS DRAWER
W0276928 DRAIN TRAY
$12.50
W0276931 WATER TANK COVER
$23.10
W0276934 FLOAT
$26.60
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276944 O-RING (D=9.25 T=1.78)
$12.85
W0276949 COFFEE OUTLET TANK COVER
$13.00
W0276950 COFFEE OUTLET TANK
$12.30
W0276951 SPRING
$12.00
W0276952 REGULATOR
$12.00
W0276958 SCREW (3.5X12)
$11.70
W0276963 FINGER STOP COVER
$12.40
W0276964 DELONGHI COFFEE INFUSER BREW UNIT
$49.00
W0276965 EXPULSION LEVER
$12.20
W0276966 SPRING
$12.20
W0276968 FILTER
W0276969 STOPPER
$11.70
W0276970 VALVE
$11.70
W0276971 SPRING
$12.00
W0276972 DELONGHI COFFEE MACHINE FILTER O-RING
$5.95
W0276974 TROLLEY SLEWING RING
$12.70
W0276975 TROLLEY
$34.30
W0276976 COMPENSATION SYSTEM
$34.50
W0276977 PROTECTIVE RUBBER GASKET
$12.20
W0276979 MOTOR BOARD (ECM 230V)
$18.90
W0276980 MICROSWITCH
$27.00
W0276981 MOTOR WITH PULLEY (ECM 230V)
$89.80
W0276984 RIGHT ANGLE WATER OUTLET TUBE
$14.18
W0276985 BLACK FILTER
$12.20
W0276986 DELONGHI COFFEE MACHINE VALVE
$56.50
W0276987 TUBE (L145)
$12.20
W0276988 TUBE (DI=3 DE=6 L200)
$12.20
W0276989 SILICONE HOSE (DI=4 DE=8 L=150) TUBE FOR ULKA PUMP
$13.42
W0276991 TUBE WITH 2 BUSHES (L97)
$12.60
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276994 TUBE WITH 2 BUSHES (L290)
$25.00
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0276997 FLOWMETER
W0276998 MICROSWITCH
$25.10
W0276999 PUMP PROTECTOR
$24.80
W0277000 PUMP (ULKA 230V 48W)
W0277001 REGULATOR
$30.50
W0277005 TCO WITH WIRING
$14.30
W0277006 ROUND GENERATOR (230V 1400W F6.3)
W0277007 CAM SLIDER
$12.90
W0277008 SPACER
$12.20
W0277009 O-RING D=4,5
W0277010 CLIP (WIRE 1,2 AISI302)
W0277011 SAFETY VALVE
$15.98
W0277012 CONNECTOR
$12.58
W0277013 MOTOR BELT
$14.00
W0277014 SCRAPER BRUSH WITH BRISTLES
$12.80
W0277015 GREASE TUBE (5GR VERKOFOOD)
$22.90
W0277084 HALL SENSOR (L780)
$15.40
W0277087 DOOR
$16.30
W0277089 GRINDER ASSEMBLY (3D-DL 230V)
$71.60
W0277098 GRINDER BELLOW GASKET
$13.00
W0277099 REED SENSOR
$33.00
W0277106 A Y CONNECTION
$11.70
W0277121 THERMAL CUT OUT (13.5A 318°)
$14.00
W0277123 NTC PROBE (L870)
$17.00
W0277149 MEASURING SPOON
W0277240 PORTABLE DIGITAL THERMOMETER, -50 +150°C
$88.90
W0277684 COFFEE HOSE CLAMP
$12.90
W0277830 FIXING BRACKET (TCO)
$13.00
W0277831 SENSOR BRACKET
$13.00
W0277839 CUP HOLDER INSULATION
$13.60
W0277842 CARAFE
$27.00
W0277847 CUP HOLDER
$30.40
W0277869 TUBE WITH NUT AND 1 BUSH (L460)
$16.06
W0277870 TRANSMISSION ASSEMBLY (ECM 230V)
$83.60
W0277871 DELONGHI SOLENOID VALVE
$29.00
W0277874 SOLENOID VALVE SUPPORT
$11.90
W0277875 SOLENOID VALVE (3VB 230V)
$26.40
W0277880 TCO WITH WIRING
$13.80
W0277881 TUBE WITH 2 BUSHES (L320)
$23.60
W0277914 O-RING (D6.07 T1.78)
$12.20
W0277921 RUBBER FOOT PAD
$11.70
W0278004 ARCHIMEDES SCREW
$15.30
W0278021 GUIDE DISPENSER COVER
$13.00
W0278023 CONVEYOR EXTERNAL PART
$27.20
W0278042 FRONT PIECE
$25.10
W0278048 COVER
W0278049 HOT WATER SPOUT
$30.00
W0278054 COUPLING RUBBER PAD SEAL
$23.50
W0278055 DELONGHI COUPLING ASSY
$31.00
W0278065 CUP HOLDER TRAY
$33.30
W0278068 DISPLAY BOARD
$76.50
W0278069 POWER BOARD (SW1.0 230V)
$92.00
W0278070 NUT
$12.00
W0278071 BRASS BUSH
W0278073 RING
$11.90
W0295785 Genuine DeLonghi Descaler Cleaner Espresso Coffee Machine in 500ml - EcoDecalk
$37.00
W0276967 EXPULSION LEVER RUBBER PAD
W0276973 BOTTOM PISTON
W0276983 BELT
$12.20
W0277002 PUMP SUPPORT
W0277861 SEE TECNICAL INFORMATION
W0277883 COUPLING MICRO SUPPORT (IFD)
W0278022 DISPENSER HANDLE
$23.50
W0278050 SCREW (2.9X13)
W0278060 UPPER COVER
$49.70
W0278061 REAR PANEL
$32.10
W0278062 LEFT SIDE
$34.50
W0278063 RIGHT SIDE
$29.20
W0278064 WATER TANK FRONT PIECE
$23.20
W0278066 DREGS DRAWER FRONT PIECE
$19.40
W0278067 CONTROL PANEL ASSEMBLY WITHOUT BOARD
$135.00
W0278072 CONNECTION
